Product Introduction
This 63 KVA transformer was delivered to South Africa in 2018. the rated power of the transformer is 63 KVA. It is a small power transformer, the primary voltage is 11kv, the secondary voltage is 0.415kv. We use copper as our winding material, make the transformer has good conductive and heat transfer function. Our 63 KVA distribution transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
63 KVA transformer specification type and data sheet
| Delivered to | South Africa |
| Year | 2018 |
| Model | S11-63 MVA-11/0.415KV |
| Type | Oil Immersed Distribution Transformer |
| Standard | IEC60076 |
| Rated Power | 63 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 11 KV |
| Secondary Voltage | 0.415 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 6% |
| Tap Changer | |
| Tapping Range | ±2*2.5% |
| No Load Loss | 2.8KW |
| On Load Loss | 20KW |
| Accessories | Standard Configuration |
| Remarks | N/A |

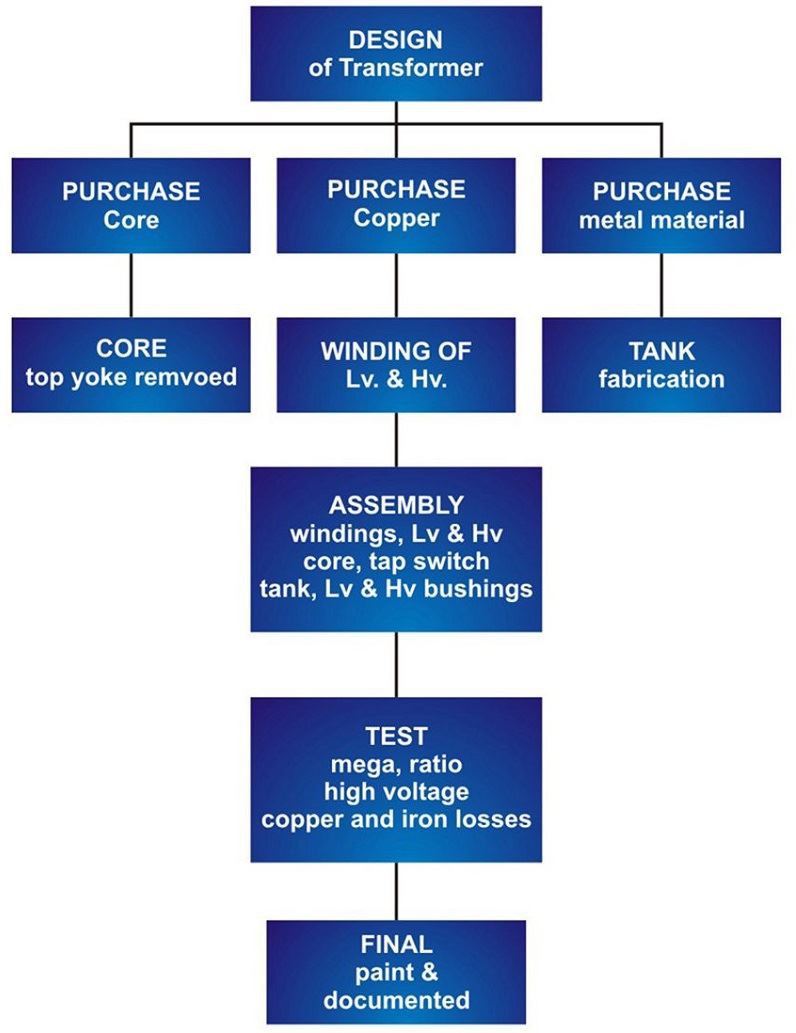

63 KVA 11/0.415KV Transformer Manufacturing

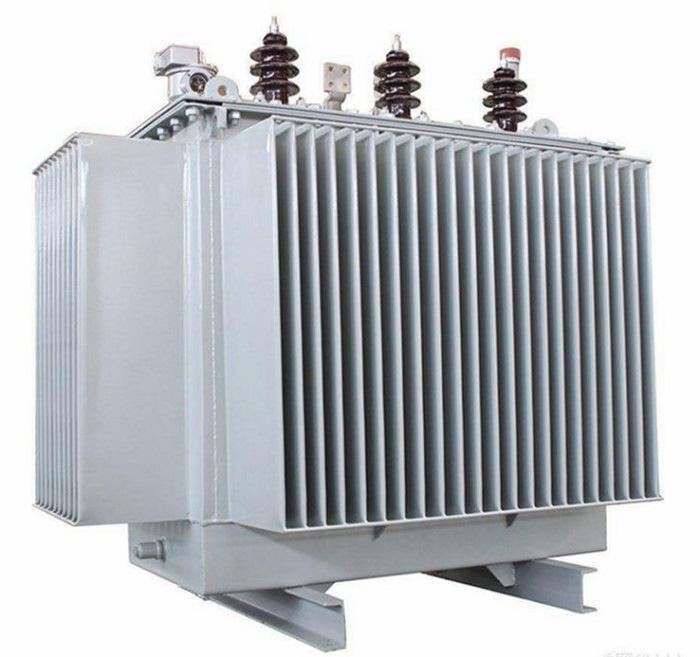

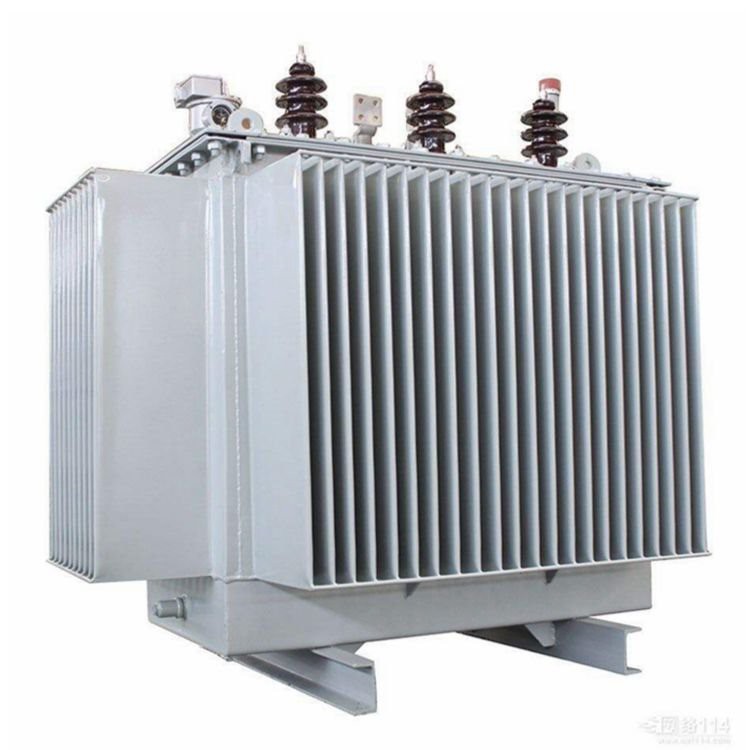

Finished 63 KVA 11/0.415KV Transformer

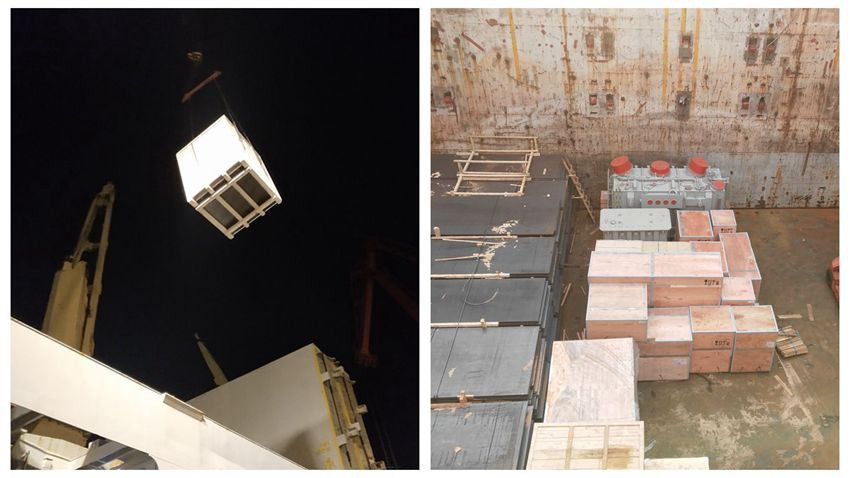

Packing and Delivery
Transformer cooling type
· Oil Natural Air Natural (ONAN)
· Oil Natural Air Forced (ONAF)
· Oil Forced Air Forced (OFAF) …
· Oil Forced Water Forced (OFWF)
FAQ
1. What standard do you follow?
IEC 60076 standard, and all other major international standard such as ANSI, CSA, UL, etc.
2. What package do you have for transformers?
Standard package with welded iron frame packed with ply wood boxes.
3. How long can I receive my transformers?
The shipping time from our port (shanghai or Ningbo) to your port is range from one week to one month, depend on the distance.
