Product Introduction

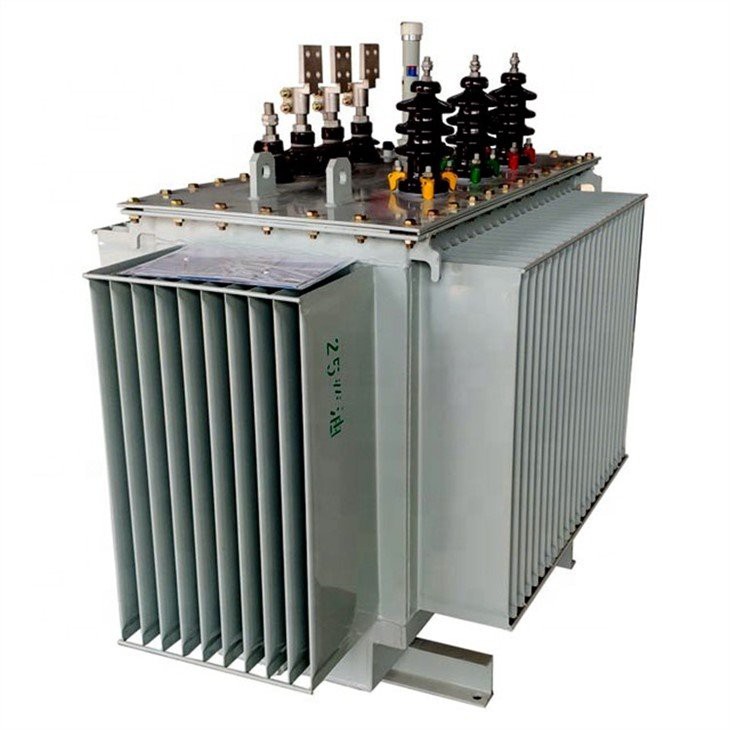

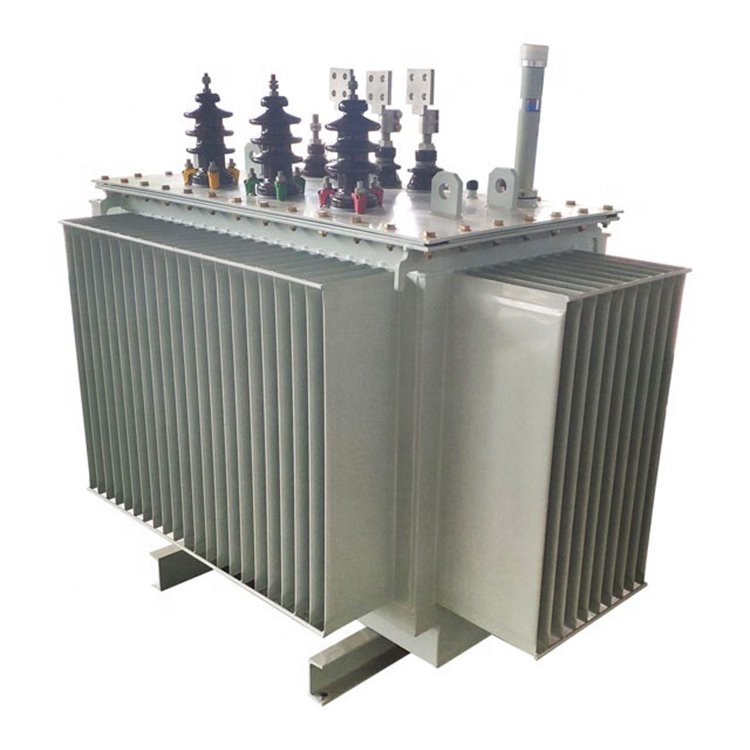

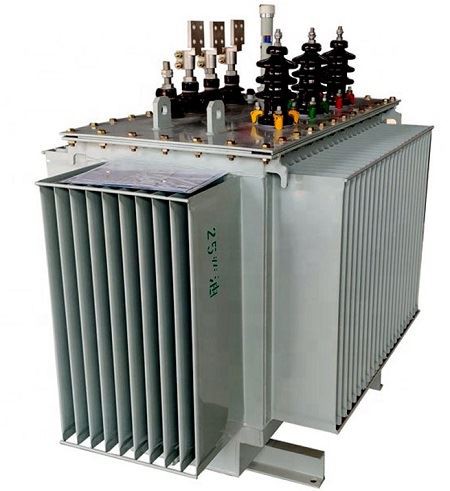

This 112.5 KVA transformer was delivered to Egypt in 2018. the rated power of the transformer is 112.5 KVA. The primary voltage of the transformer is 11 KV, and the secondary voltage is 0.4 KV. The transformer is a hermetically sealed transformer with corrugated tank. It has the advantages of low loss, low noise and high efficiency. Our 112.5 KVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
112.5 KVA transformer specifications and data sheet
| Delivered to | Egypt |
| Year | 2018 |
| Model | S11-112.5 MVA-11/0.4KV |
| Type | Oil Immersed Power Transformer |
| Standard | IEC60076 |
| Rated Power | 112.5 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAF |
| Primary Voltage | 11 KV |
| Secondary Voltage | 0.4 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 4% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 0.24KW |
| On Load Loss | 1.8KW |
| Accessories | Standard Configuration |

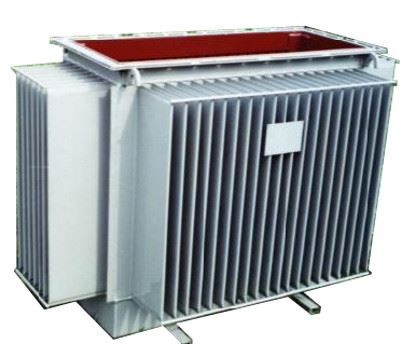

112.5KVA 11/0.4KV Transformer Corrugated tank
Corrugated tank：
Corrugated transformer or hermetically sealed transformer is not only space savvy equipment it is exceptionally reliable equipment with better cooling. Our corrugated transformer is optimally designed to get the long life with high efficiency & reliability. Corrugated transformers are available with wide range in 11KV as well as 33KV class up to 2500 KVA. Corrugated transformers are compact in size as corrugated fins have been used for cooling in place of conventional pressed steel radiators. Cooling effect through this fins are more effective in comparison of conventional radiators due to which we will get better cooling and reliability and age of transformers increases.

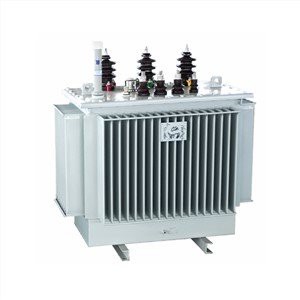

Finished 112.5VA 11/0.4KV Transformer

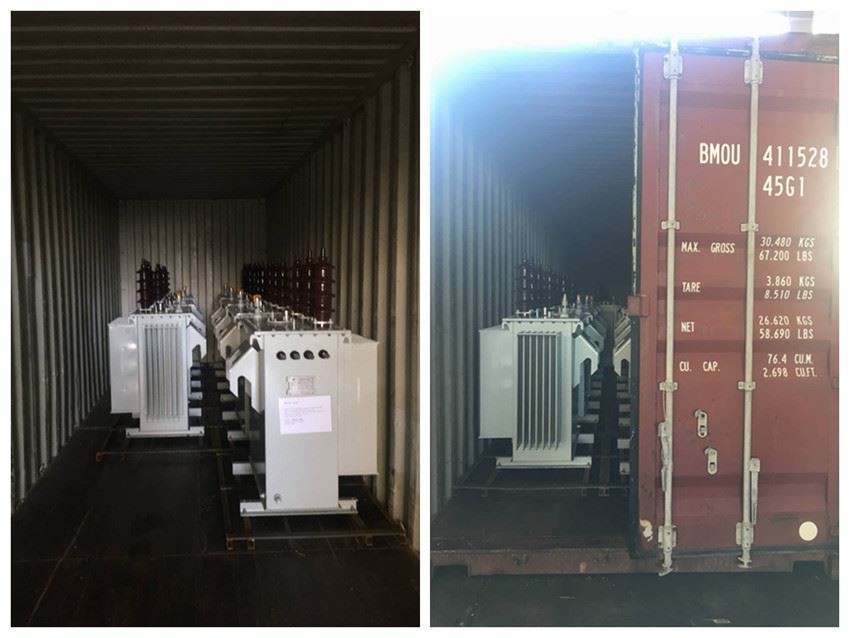

Packing and Delivery
Transformer Knowledge
What are the main performance parameters of the transformer？
1、Impedance voltage,
2、No load current,
3、No load loss,
4、Short circuit loss.
FAQ
1. What standard do you follow?
IEC 60076 standard, and all other major international standard such as ANSI, CSA, UL, etc.
2. What package do you have for transformers?
Standard package with welded iron frame packed with ply wood boxes.
3. How long can I receive my transformers?
The shipping time from our port (shanghai or Ningbo) to your port is range from one week to one month, depend on the distance.
