Product Introduction
This 160 KVA distribution transformer was delivered to Zimbabwe in 2017, the rated power of the transformer is 160 KVA. This 160 KVA Step Down transformer 11kv to 0.4kv, the primary voltage is 11kv, the secondary voltage is 0.4kv. Corrugated plate radiator is widely used in the fully sealed oil immersed transformers. Corrugated plates can expand or shrink while the ambient temperature changes. Corrugated tank has beautiful appearance and compact in size. Our 160 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
160 KVA transformer specifications and data sheet
| Delivered to | Zimbabwe |
| Year | 2017 |
| Model | S11-160 KVA-11/0.4KV |
| Type | Oil Immersed Distribution Transformer |
| Standard | IEC60076 |
| Rated Power | 160 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 11 KV |
| Secondary Voltage | 0.4 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 4% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 0.29KW |
| On Load Loss | 2.2KW |
| Accessories | Standard Configuration |
160 KVA 11/0.4KV Transformer Winding
The applications of transformer winding
-It can rise or lower the level of level of Voltage or Current in an AC Circuit.
-It can increase or decrease the value of capacitor, an inductor or resistance in an AC circuit.
-It can be used to prevent DC from passing from one circuit to the other.
-It can isolate two circuits electrically.

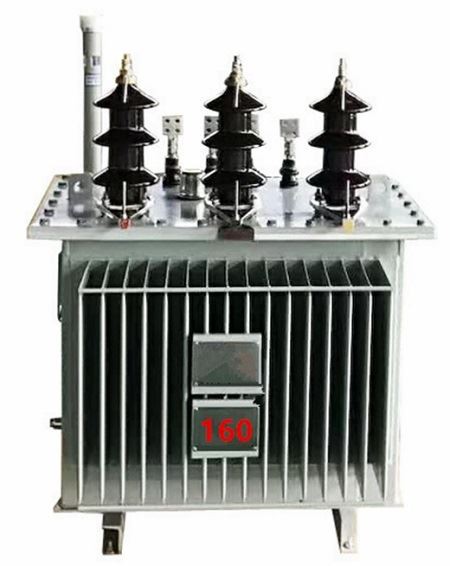

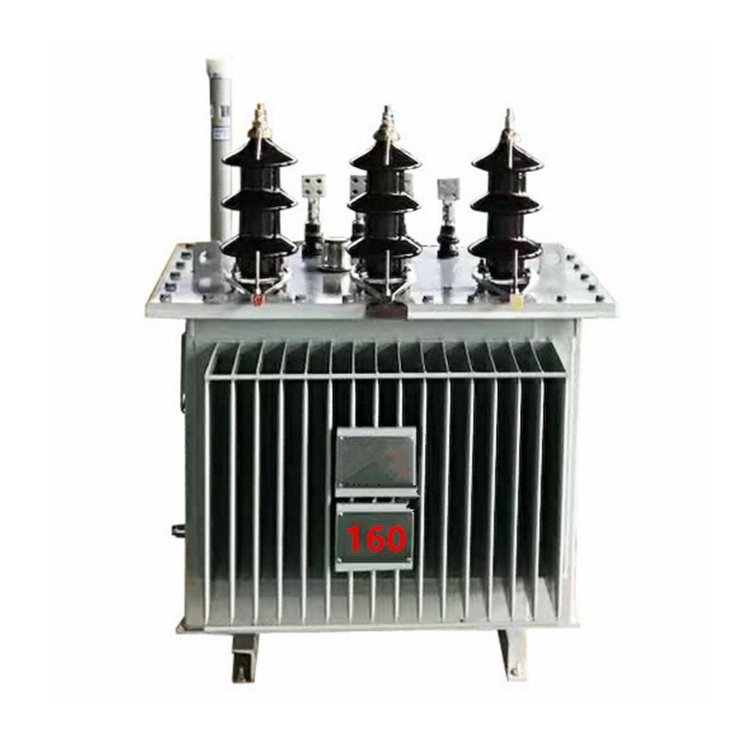

Finished 160 KVA 11/0.4KV Transformer

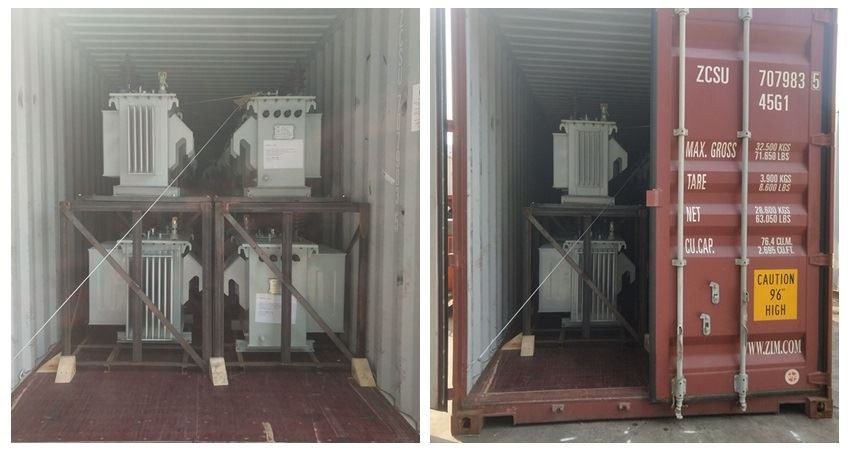

Packing and Delivery
Transformer knowledge
The function of gas relay
The transformer gas relay is a protective device installed on the top of oil-filled transformers. It performs two functions. It detects the slow accumulation of gases, providing an alarm after a given amount of gas has been collected.
FAQ
1. What is the scope of your supply?
We can supply distribution transformers up to 5000KVA 35KV, power transformers up to 200 MVA 230KV, dry type transformers up to 10 MVA 35KV, and other special transformers such as rectifier transformer and furnace transformers.
2. What service can you provide?
We can provide design, manufacturing, delivery, installation, commissioning, after-sale service.
3. Can I visit your company?
You are welcomed to visit our company at any time, contact us to get start the journey.
