Product Introduction
This 333 kVA Single Phase Pole Mounted transformer was delivered to Canada in 2023. It is an Platform type transformer, whose bottom has a platform to support it, The primary voltage is 4160Y/ 2400 V and the secondary voltage is 347V. The capacity is larger than the normal one. Designed according to standard CAN/CSA-C2.1, ANSI C57.12.28. This 333 kVA Single phase transformer with the weight of 2000 kg is put on a platform. We designed it with our advanced technology and high quality wingding material to achieve the on load loss 1.75 kW. The impedance is 4% with ONAN cooling method.
SCOTECH ensure that every of our delivered units has undergone full acceptance testing. Our oil immersed power transformer is designed in accordance with CSA, IEEE, ANSI and other major international standards.
Scope of Supply
Product: Single phase Pole Mounted transformer
| Standard | CSA | IEEE |
| Rated Power | Up to 167 kVA | Up to 500 kVA |
| Primary Voltage: | Up to 34.5 KV | Up to 34.5 KV |
| Note: ＞167 kVA Pole mounted transformer will be designed as platform type in CSA. We could design for you according to your different needs for pole or platform type. |
||
Technical Specification
333kVA Single Phase transformer specification and data sheet
| Delivered to | Canada |
| Year | 2023 |
| Model | 333 kVA/2.4 /0.347 kV |
| Type | Single Phase Transformer Platform Type |
| Standard | CAN/CSA-C2.1, ANSI C57.12.28 |
| Rated Power | 333kVA |
| Frequency | 60 HZ |
| Phase | Single |
| Cooling Type | ONAN |
| Primary Voltage | 4.16Y/ 2.4 kV |
| Secondary Voltage | 0.347 kV |
| Winding Material | ALUMINUM |
| Vector Group | Ii6 |
| Impedance | 4% |
| Polarity | Additive |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% @ Primary Side |
| No Load Loss | 0.977 KW |
| On Load Loss | 1.75 KW |
| Accessories | Standard Configuration |
| Remarks | N/A |

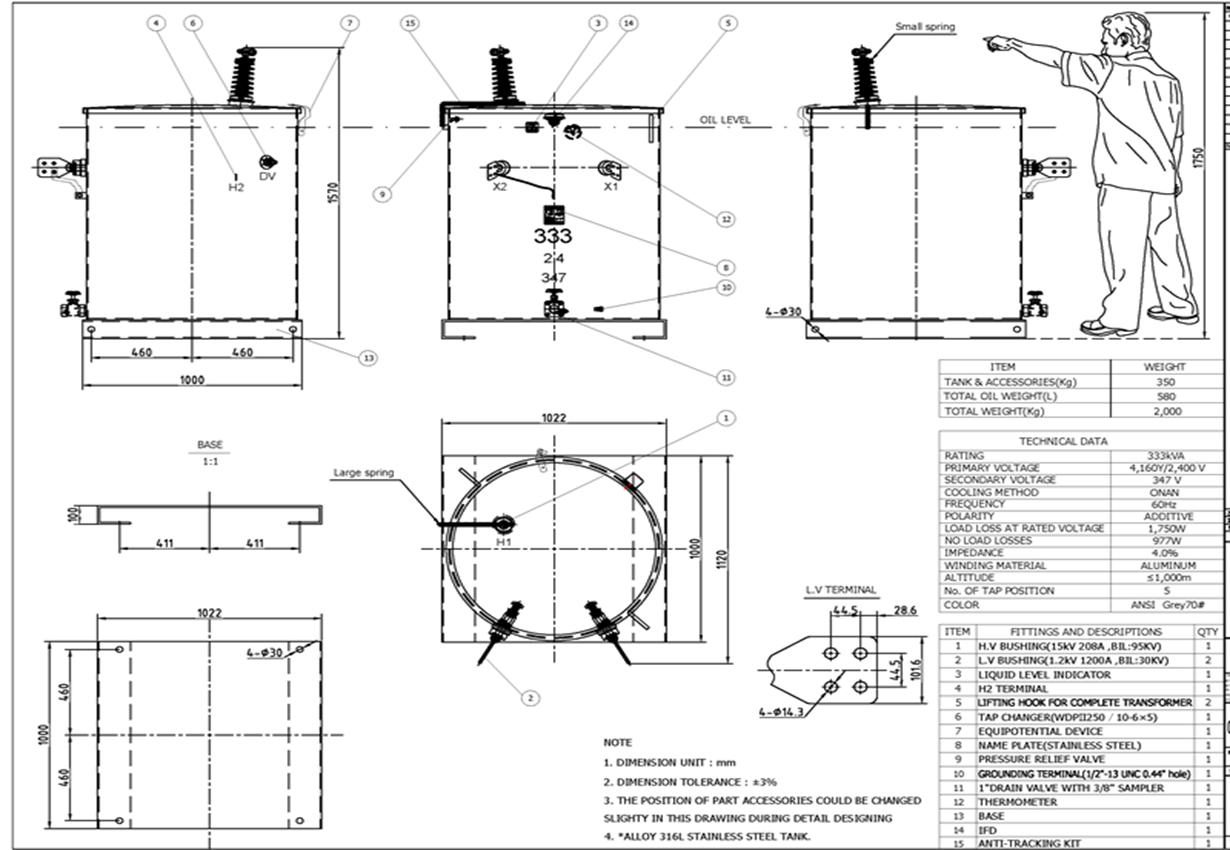

General Arrangement Drawing
333 kVA Single phase transformer dimensions and weight details

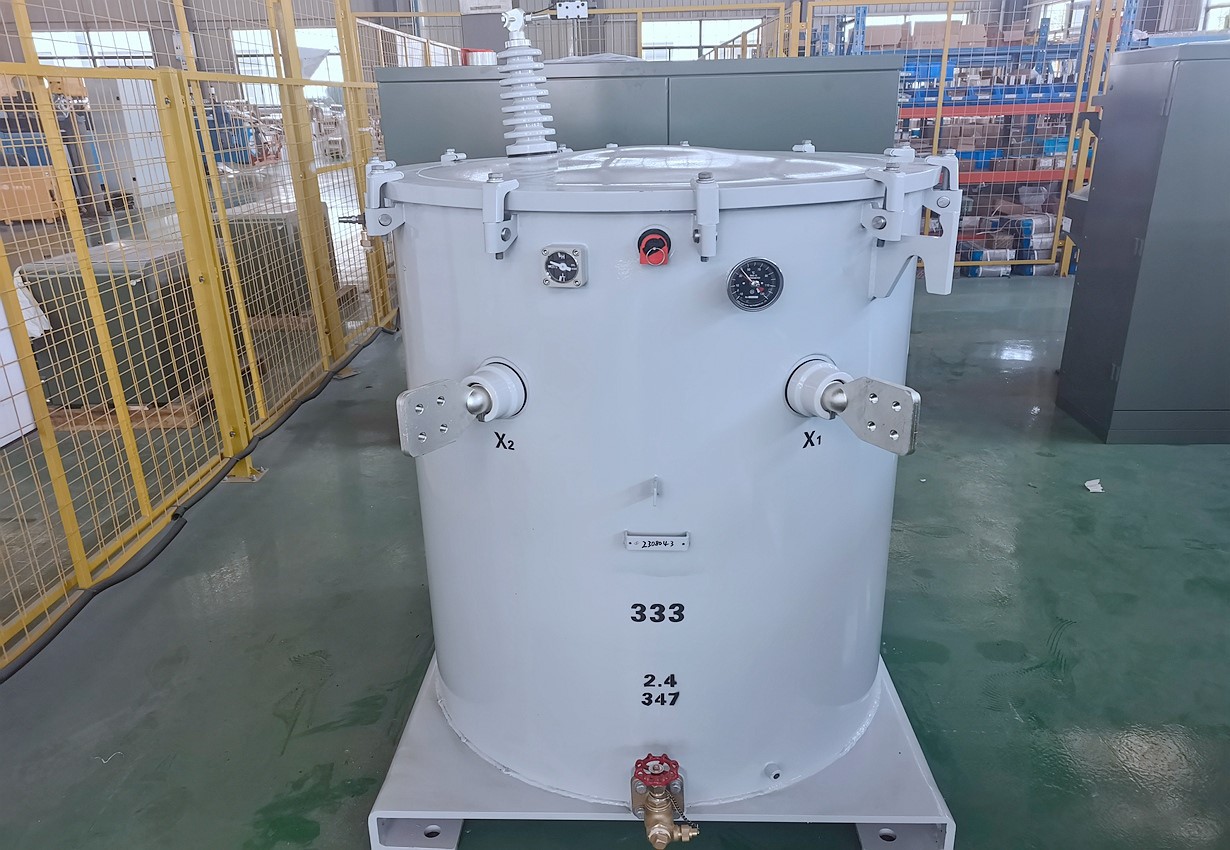

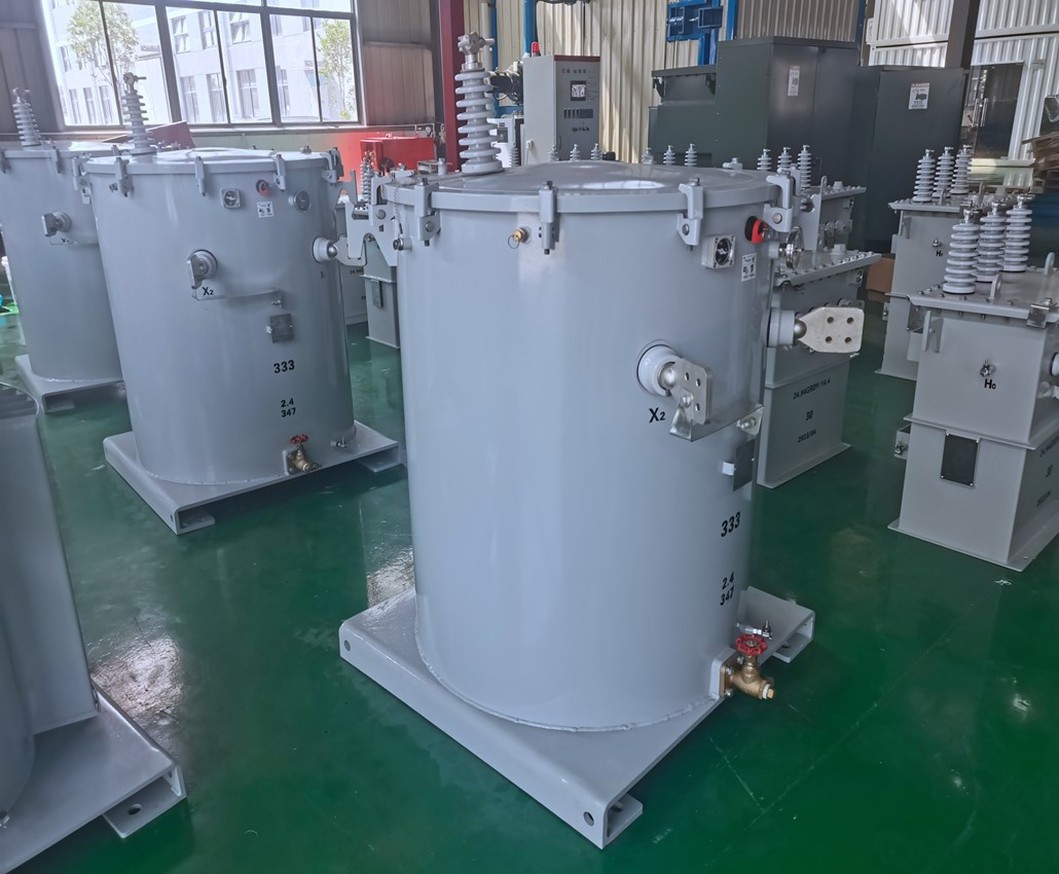

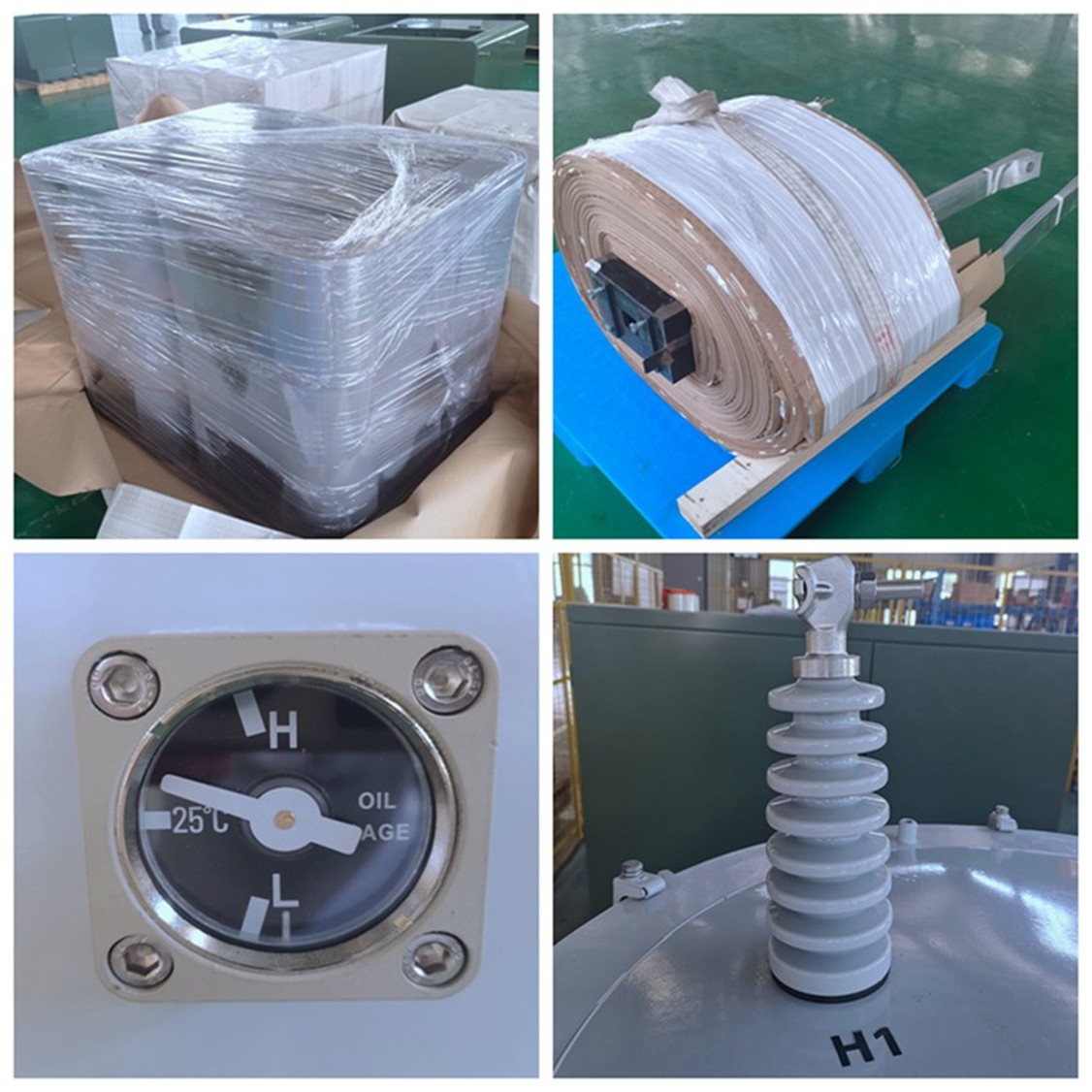

333 kVA 2.4/ 0.347 kV Single Phase Transformer Manufacturing

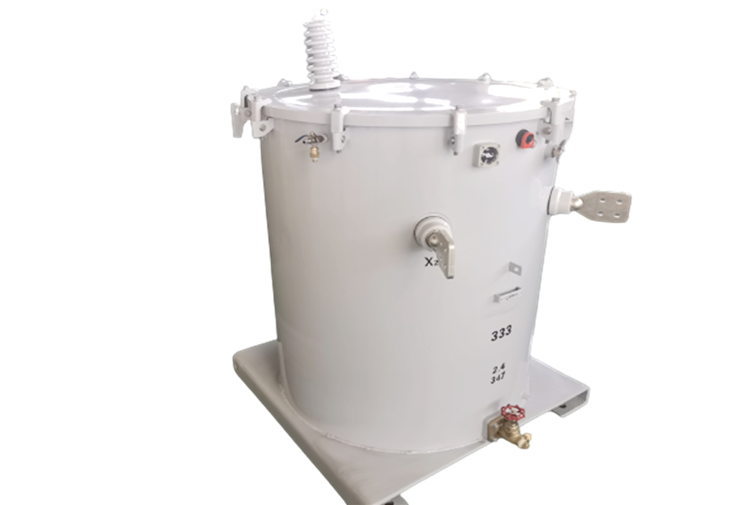

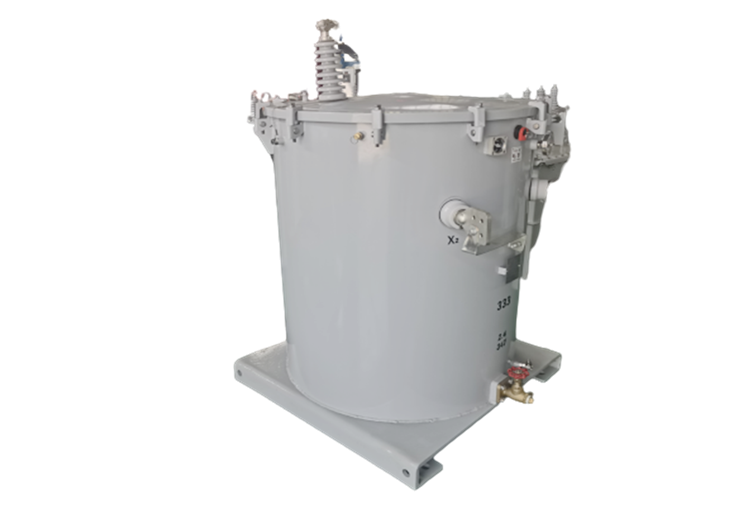

Finished 333 kVA 2.4/ 0.347 kV Single Phase Transformer

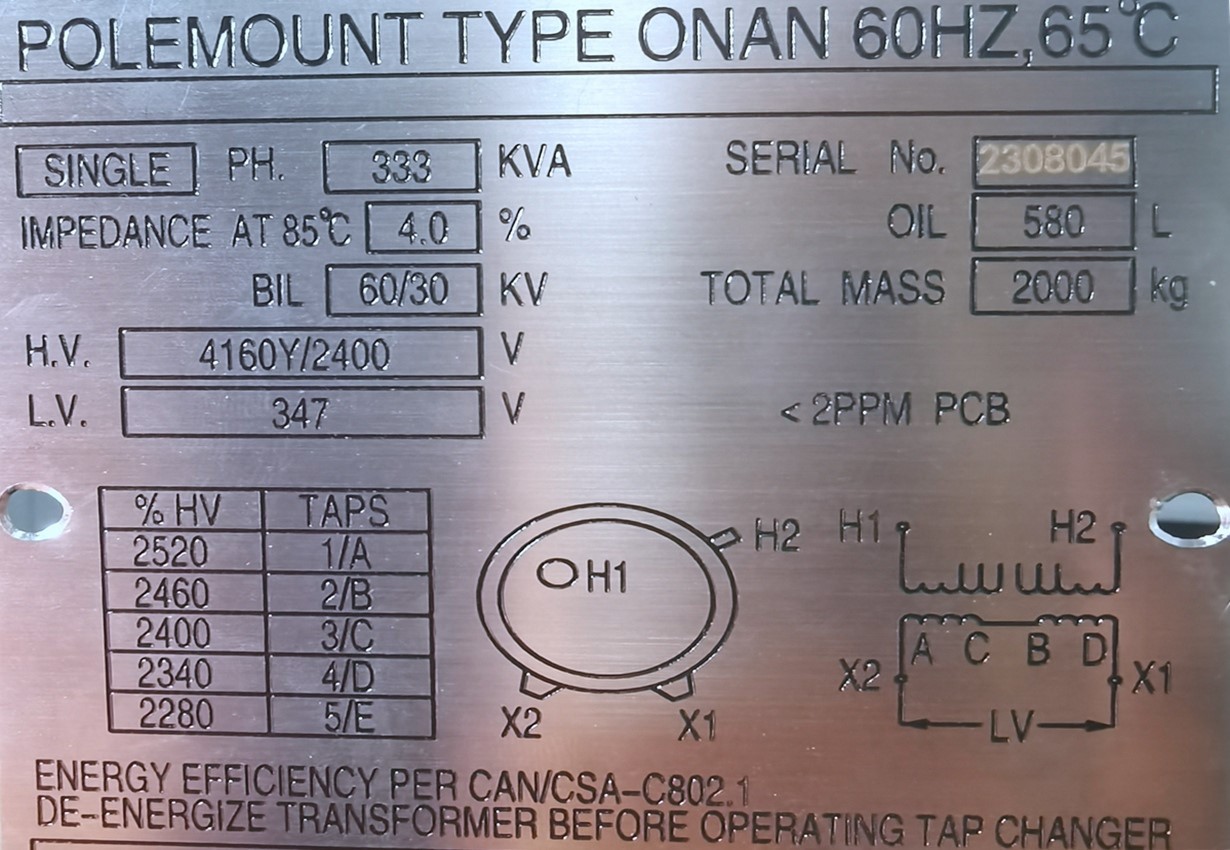

Name Plate
333 kVA single phase transformer nameplate details

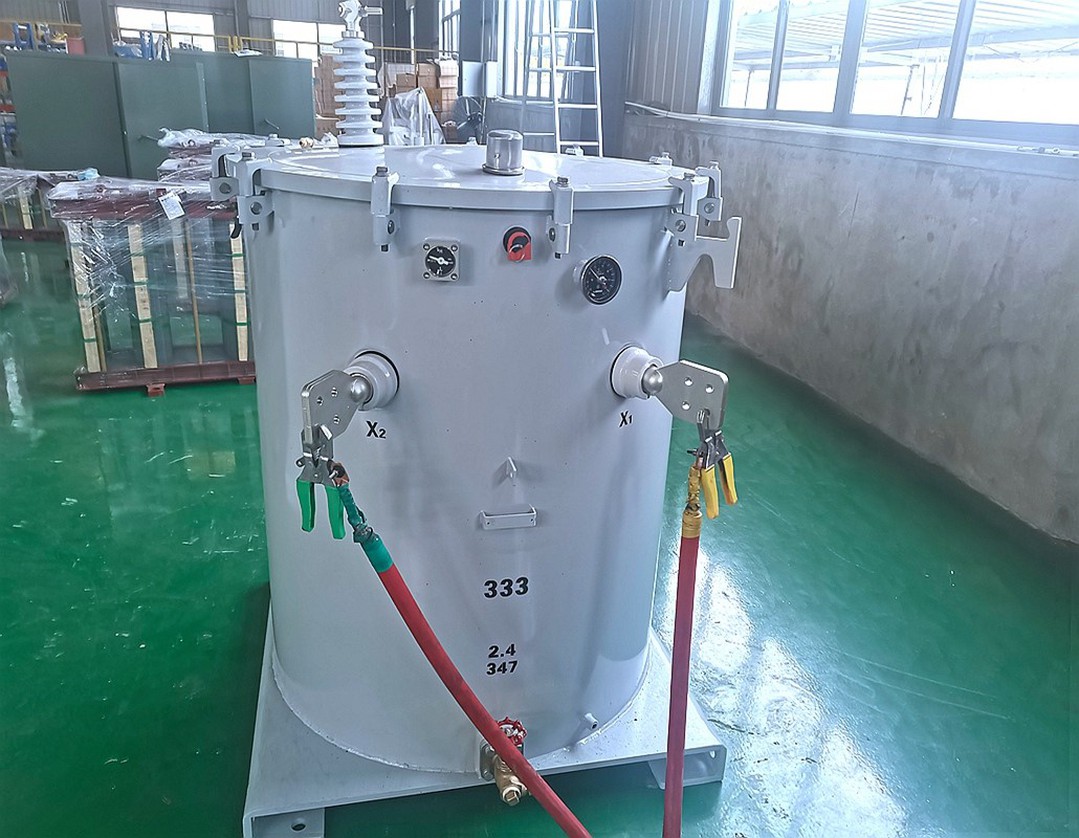

333 kVA 2.4/ 0.347 kV Transformer Testing

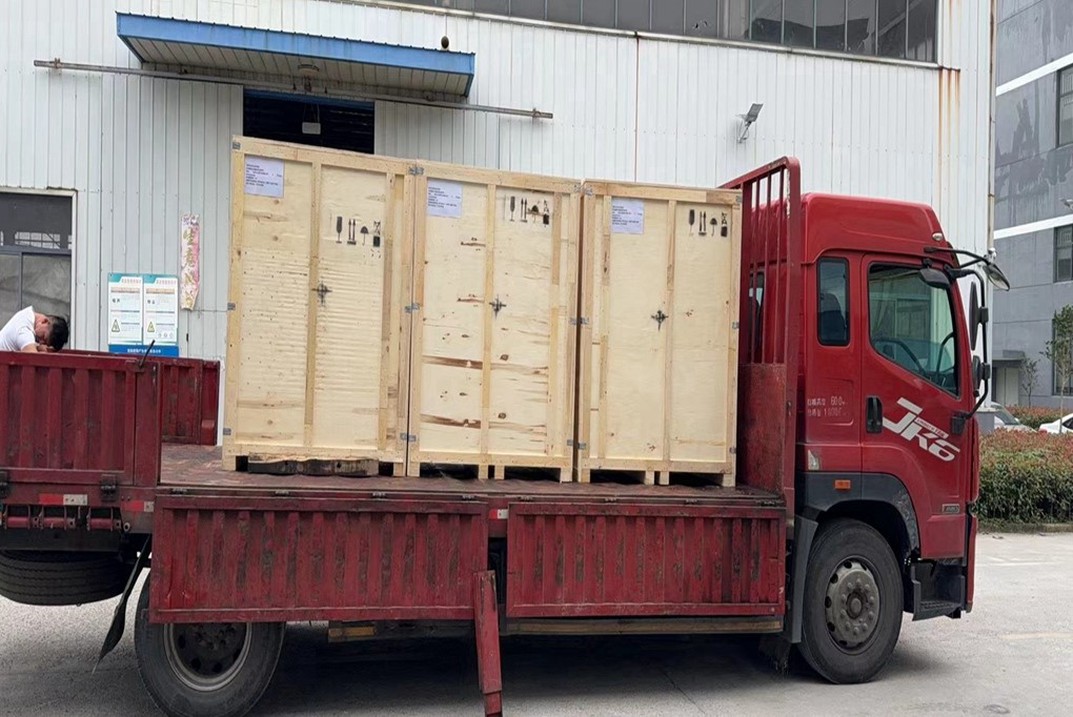

Packing and Delivery
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is North and South American countries, Africa countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kVA, bigger transformers depend on the capacity and components, normally 30-90days ( with imported components).
