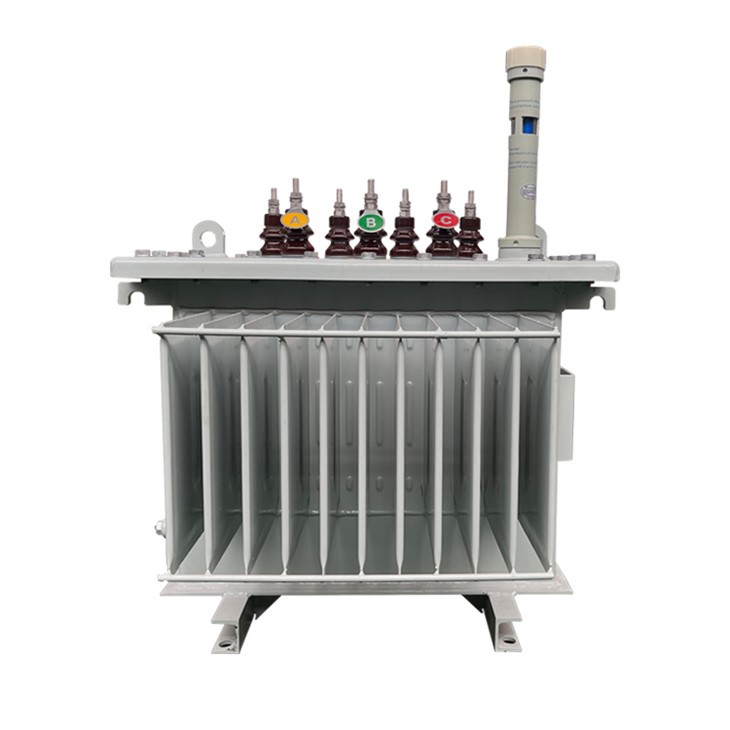

Product Introduction
The 25 kVA step down distribution transformer was delivered to Georgia in 2022 for a national project. Transformers are used on the highway.
The rated power of the transformer is 25 kVA with ONAN cooling, the primary voltage is 0.69 kV, the secondary voltage is 0.4 kV, the phase is three, they formed a vector group of Dyn11.
Our 25 kVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
25 kVA transformer specifications type and data sheet
| Delivered to | Georgia |
| Year | 2022 |
| Model | S-M-25kVA-0.69/0.4kV |
| Type | Pole mounted distribution transformer |
| Standard | IEC60076 |
| Rated Power | 25 kVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 0.4 kV |
| Secondary Voltage | 0.69 kV |
| Winding Material | Copper |
| Vector Group | Dny11 |
| Impedance | 4% |
| Tap Changer | N/A |
| Tapping Range | N/A |
| No Load Loss | 100W |
| On Load Loss | 720W |
| Accessories | Standard Configuration |
| Remarks | N/A |

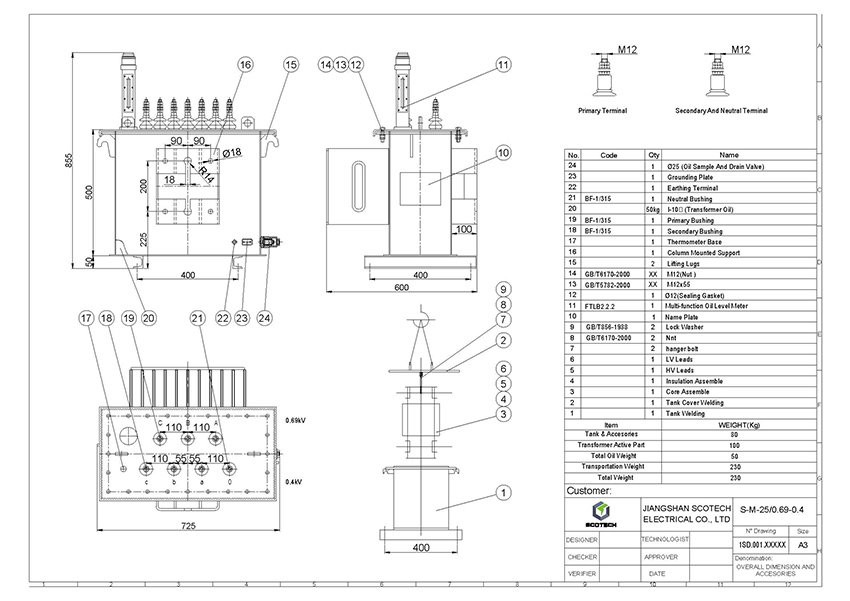

25kVA-0.69/0.4kV Transformer Drawing
25 kVA transformer diagram drawing and size.

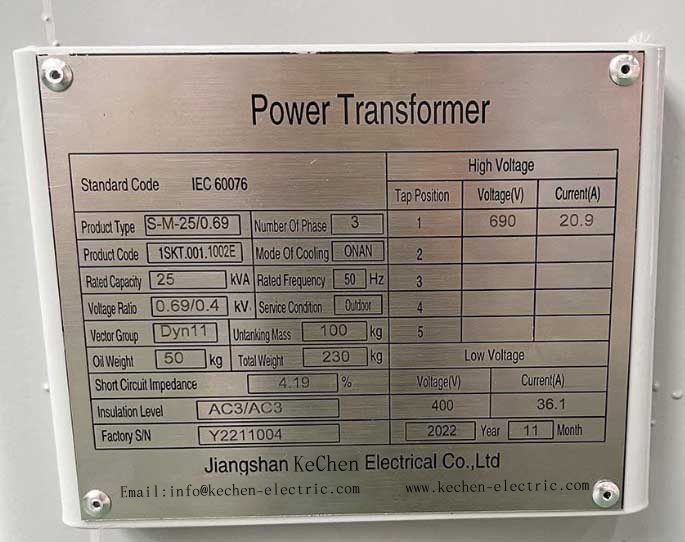

25kVA-0.69/0.4kV Transformer Name Plate

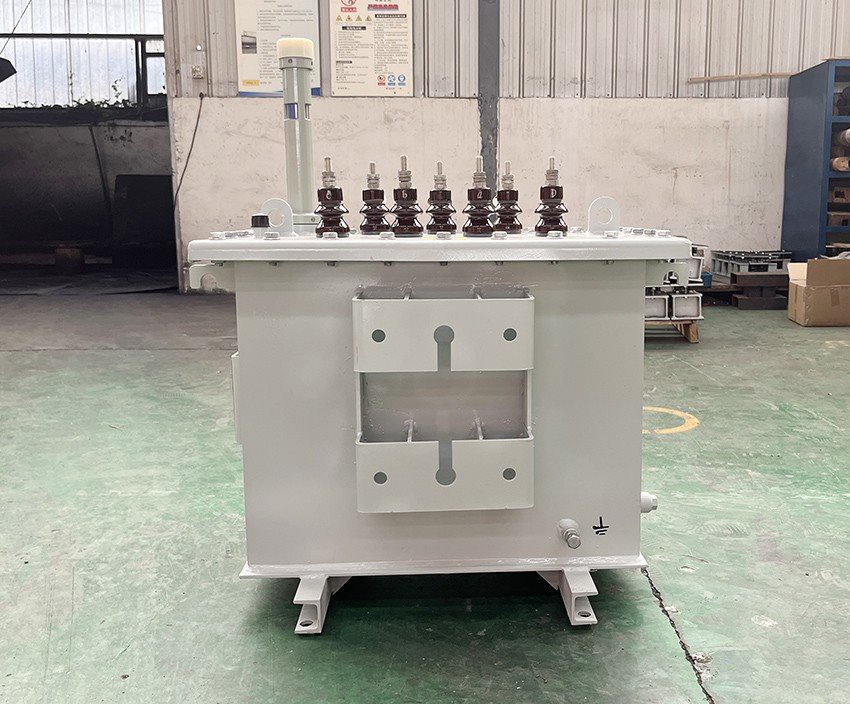

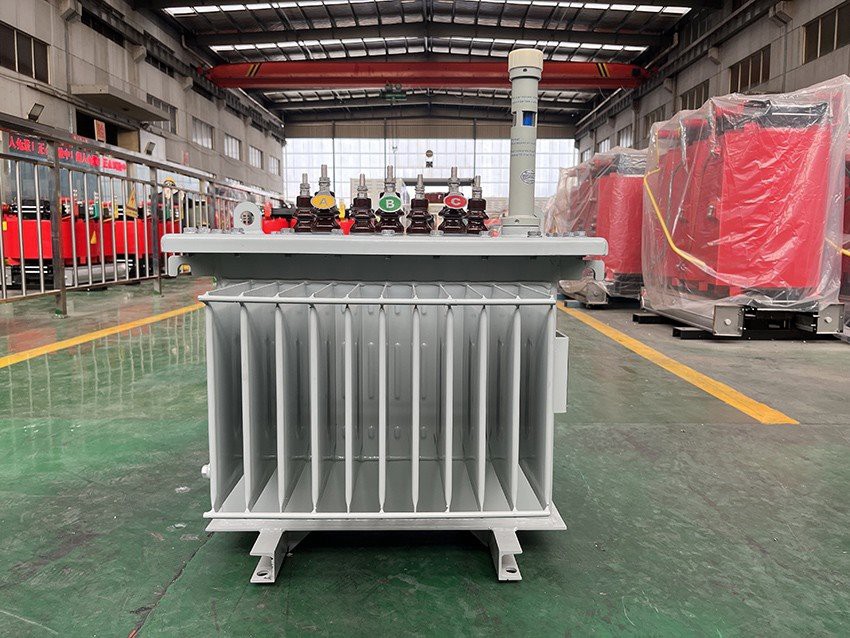

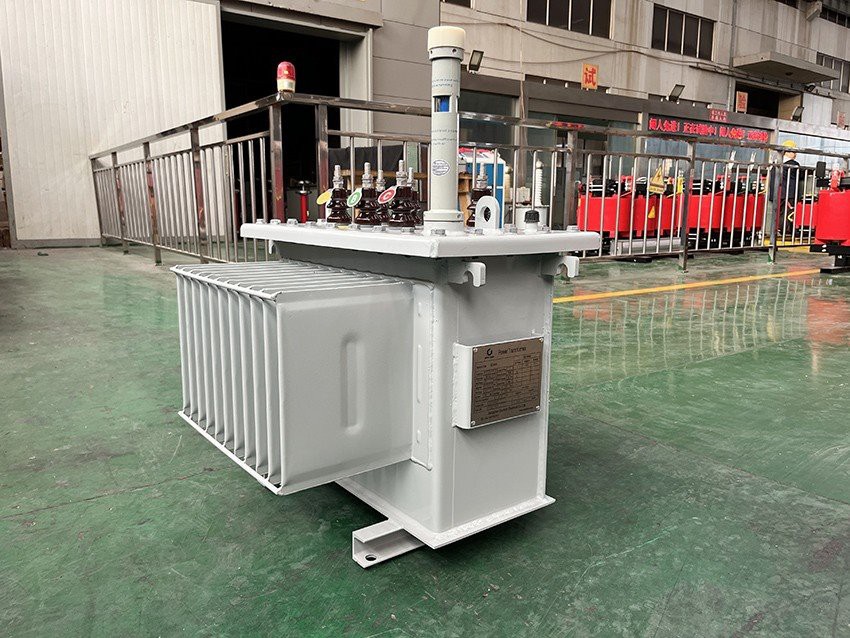

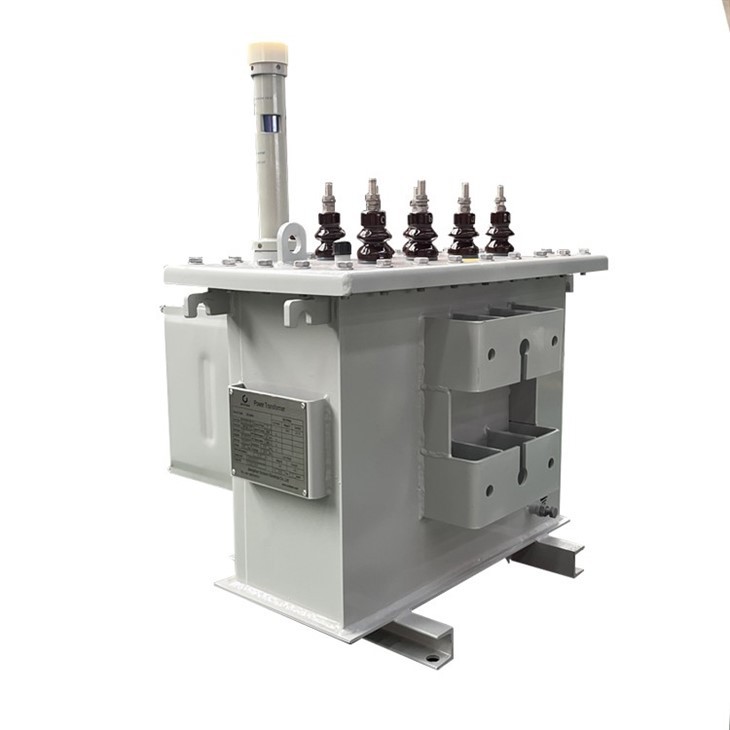

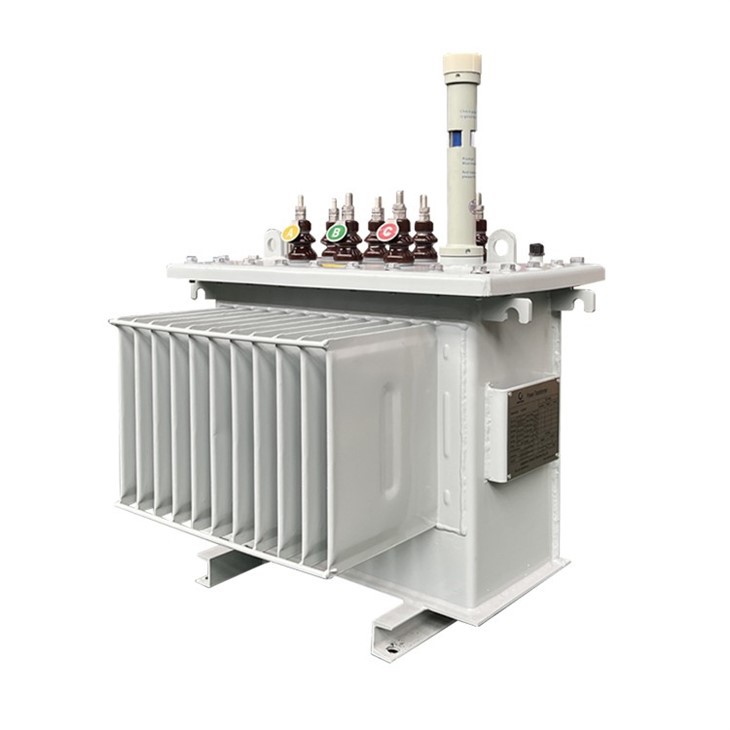

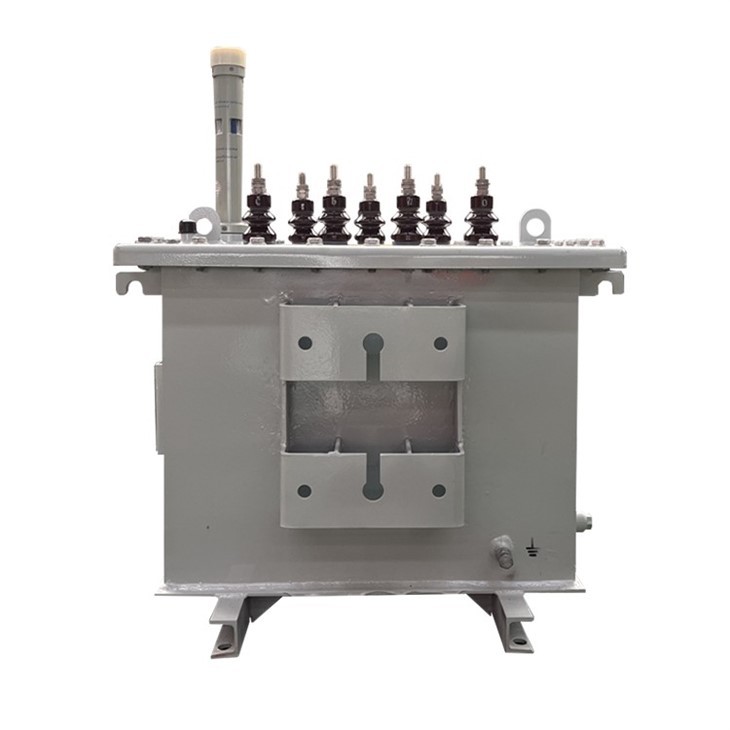

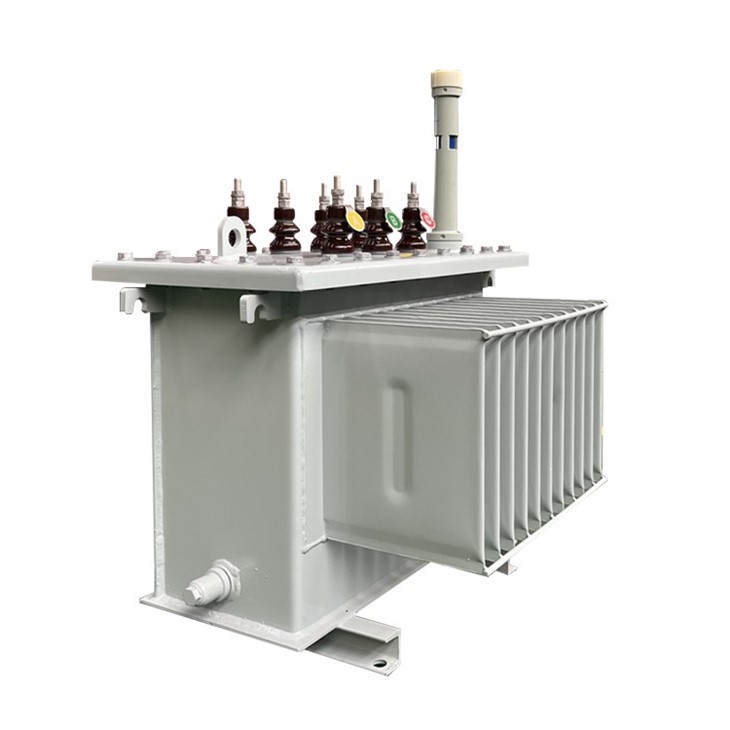

Finished 25kVA-0.69/0.4kV Transformer
The Features of Our Transformer:
● Low loss
● Low noise
● High efficiency
● Easy maintenance
● Operation reliability
● Pretty outline and compact structure
● Strong mechanical strength and short-circuit withstand ability
● 100% guaranteed no leakage
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
