Product Introduction
This 80 KVA transformer was delivered to Cameroon in 2011. the rated power of the transformer is 80 KVA. It is a Step-down transformer 11KV to 0.415KV, the primary voltage is 11kv, and the secondary voltage is 0.415kv. It is an oil filled transformer. the transformer is cooled by oil circulation. Our 80 KVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI, and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
3 phase step-down transformer specifications and data sheet
|
Delivered to |
Cameroon |
|
Year |
2011 |
|
Model |
S11-80KVA-11/0.415KV |
|
Type |
Oil Immersed Distribution Transformer |
|
Standard |
IEC60076 |
|
Rated Power |
80 KVA |
|
Frequency |
50 HZ |
|
Phase |
Three |
|
Cooling Type |
ONAN |
|
Primary Voltage |
11 KV |
|
Secondary Voltage |
0.415 KV |
|
Winding Material |
Copper |
|
Vector Group |
Dyn11 |
|
Impedance |
4% |
|
Tap Changer |
NLTC |
|
Tapping Range |
±2*2.5% |
|
No Load Loss |
0.18KW |
|
On Load Loss |
1.25KW |
|
Accessories |
Standard Configuration |
|
Remarks |
N/A |

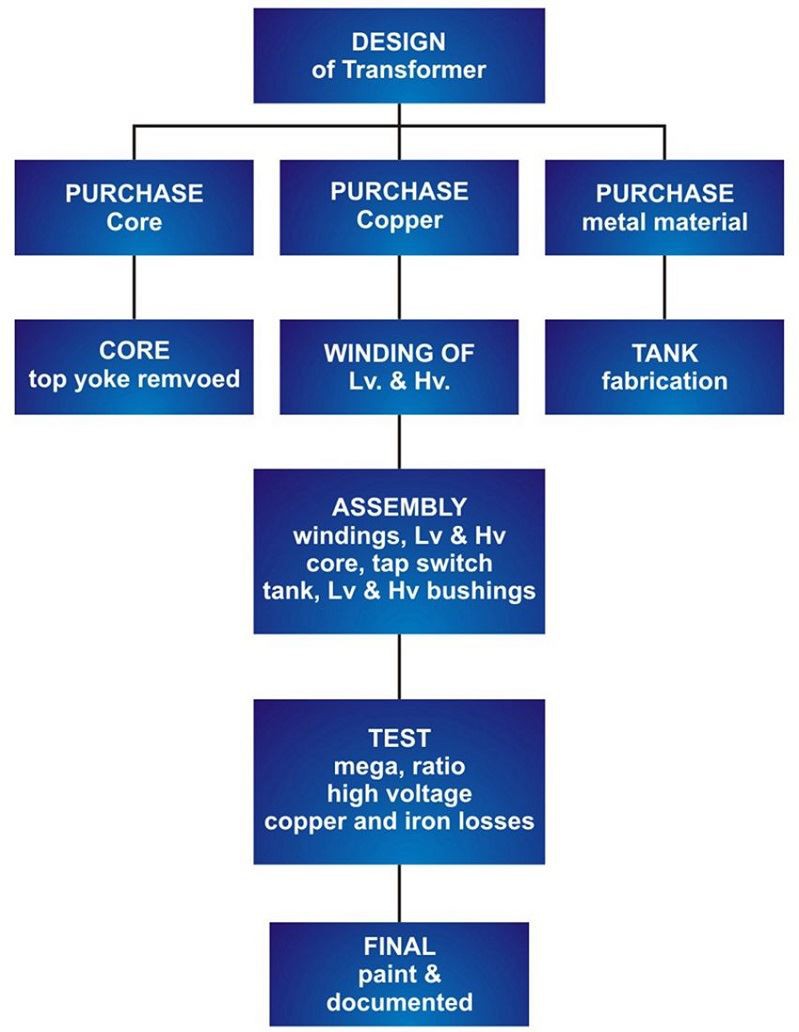

80 KVA 11/0.415KV Transformer Manufacturing

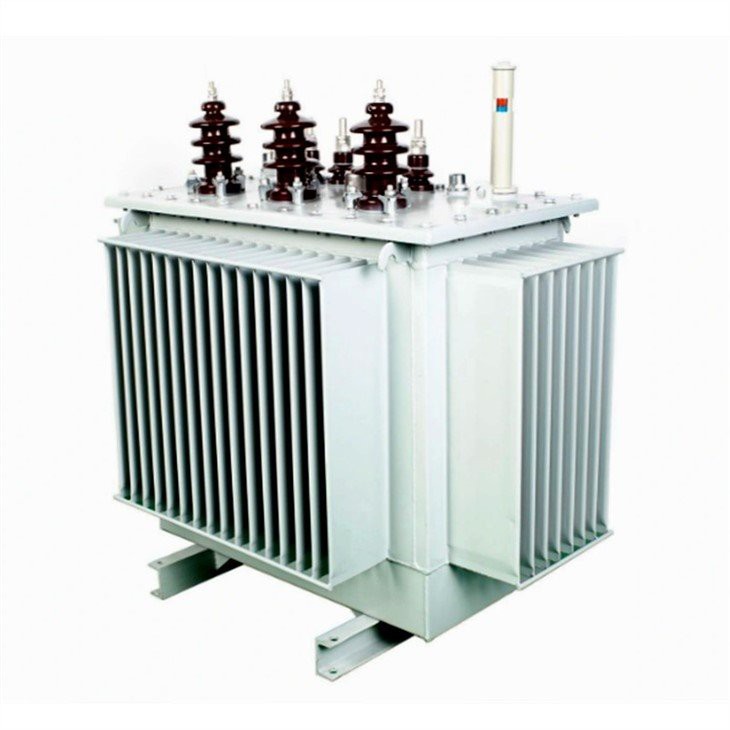

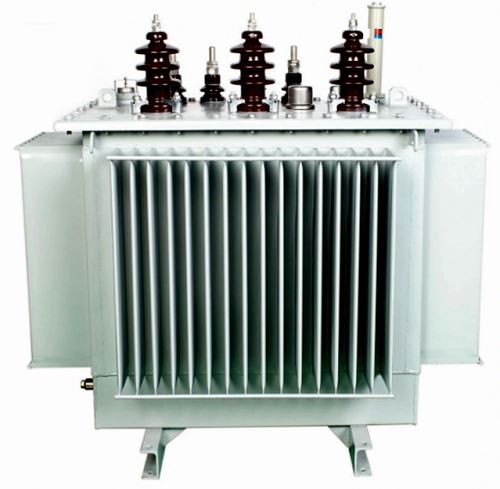

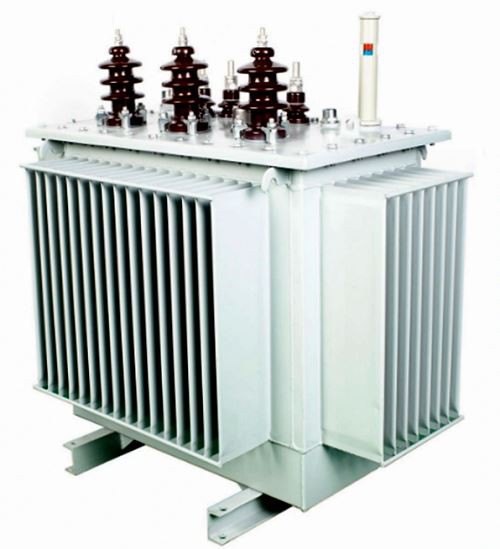

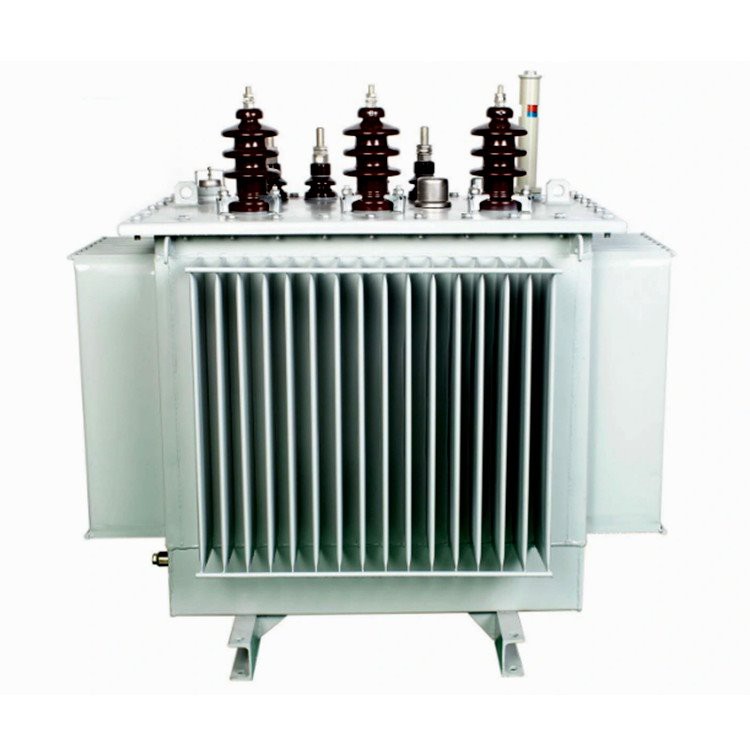

Finished 80 KVA 11/0.415KV Transformer

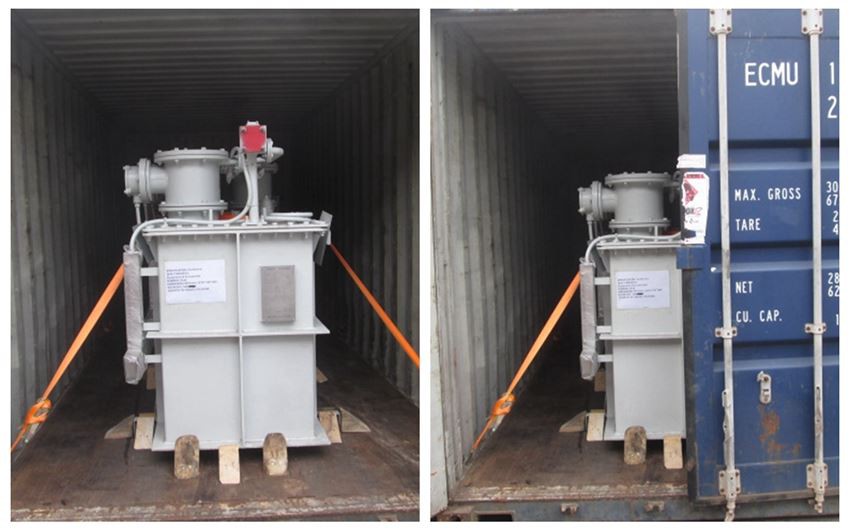

Packing and Delivery
What is On-Load Tap-Changing Transformer &what are the advantages？
A transformer which can automatically adjust the voltage with energy band is called an on-load regulating transformer. The advantage is to be able to stabilize the voltage, save electricity, and contact the grid.
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days (with imported components)
