Product Introduction
SCOTECH manufactured 2 units of the 1000 kVA pad mounted transformer to Guyana in 2023.The rated power of the transformer is 1000 kVA with ONAN cooling. The primary voltage is 13.8kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.48kV, they formed a vector group of YNd11.
Our 1000 KVA pad mounted transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Pad mounted transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
1000 KVA transformer specifications type and data sheet
| Year | 2023 |
| Model | ZGS-1000 kVA-13.8/0.48kV |
| Type | Oil type pad mounted transformer |
| Standard | IEC ANSI IEEE |
| Rated Power | 1000 kVA |
| Frequency | 60 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 13.8 kV |
| Secondary Voltage | 0.48 kV |
| Winding Material | Copper |
| Vector Group | YNd11 |
| Impedance | 4.25% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 1800W |
| On Load Loss | 10000W |
| Accessories | Standard Configuration |
| Remarks | N/A |

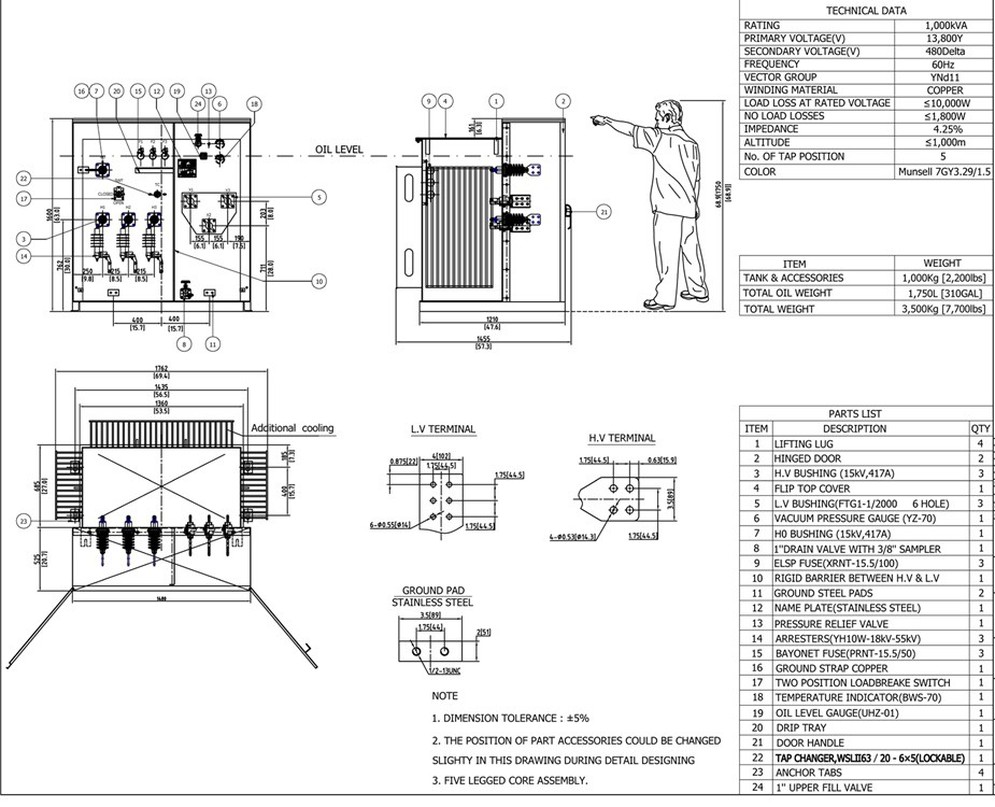

1000 kVA-13.8/0.48kV Transformer Drawing
1000 kVA transformer diagram drawing and size.

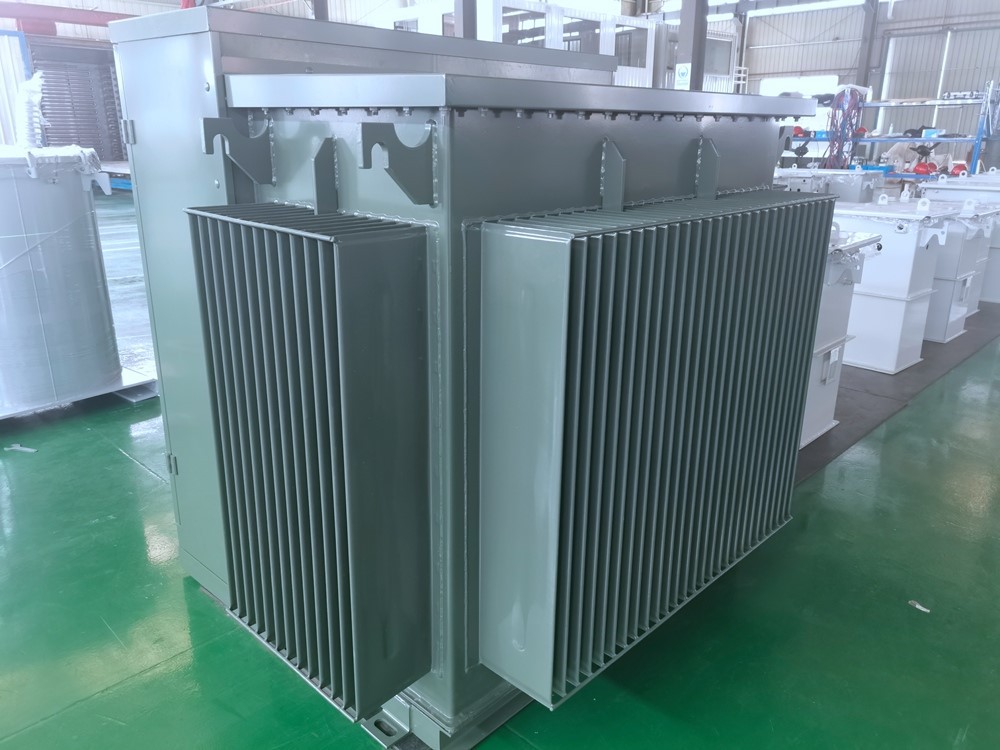

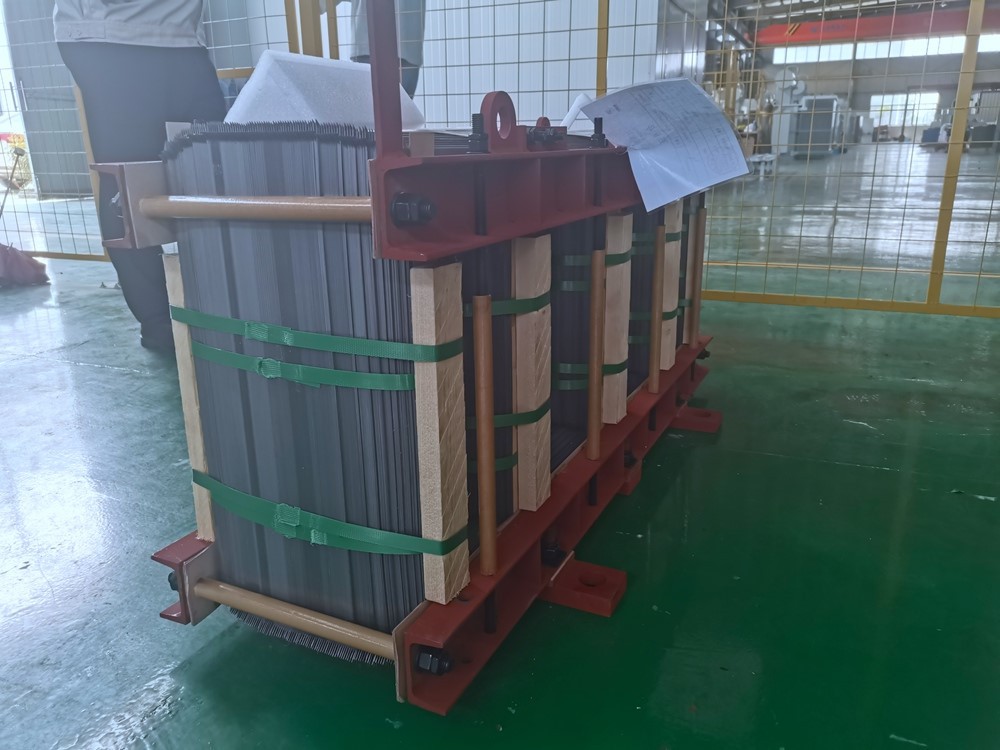

1000kVA pad mounted transformer assemble

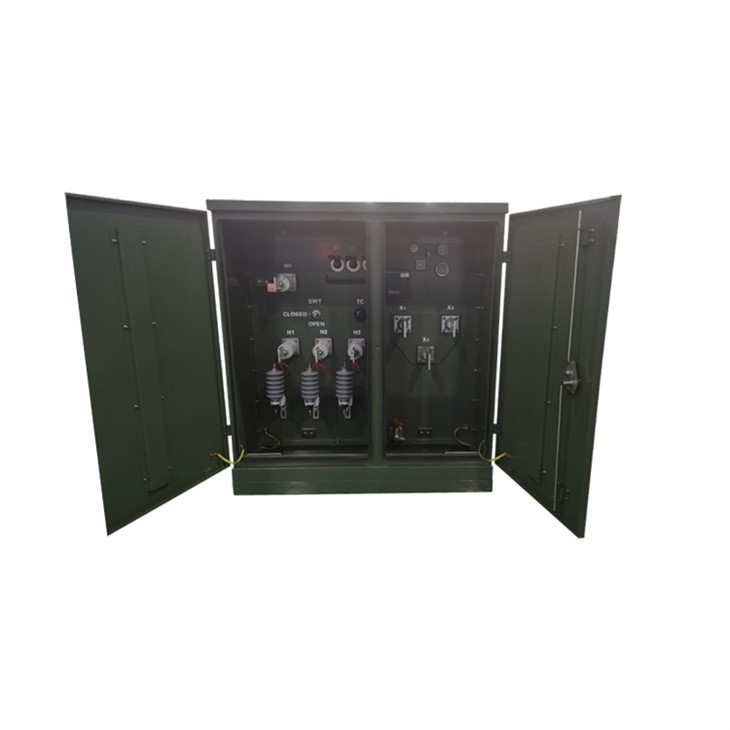

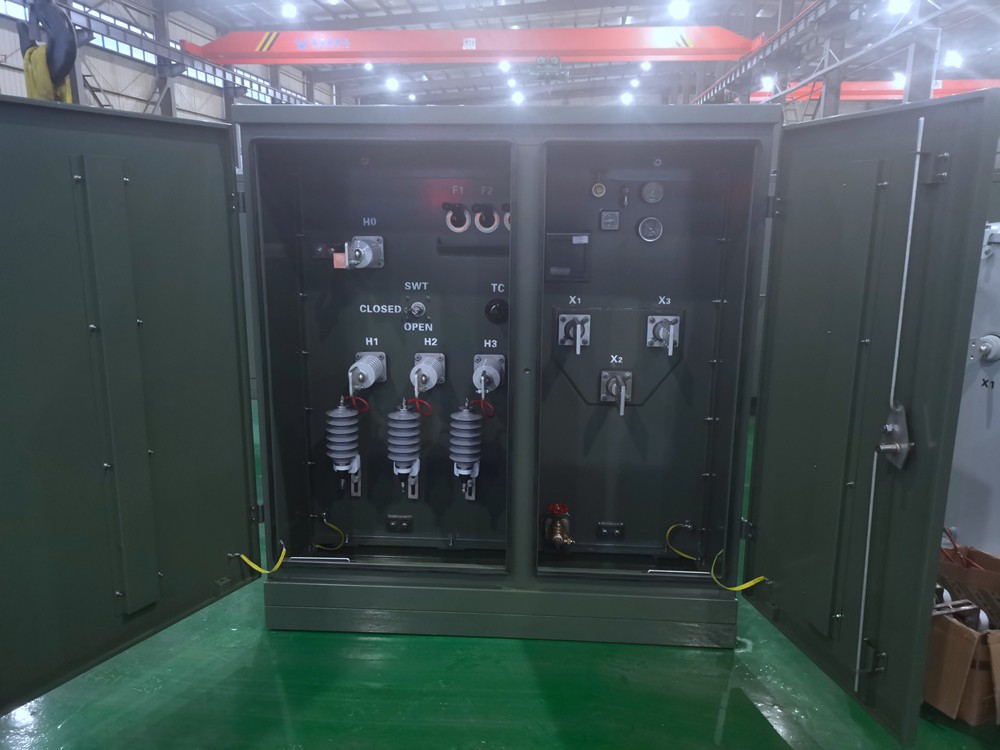

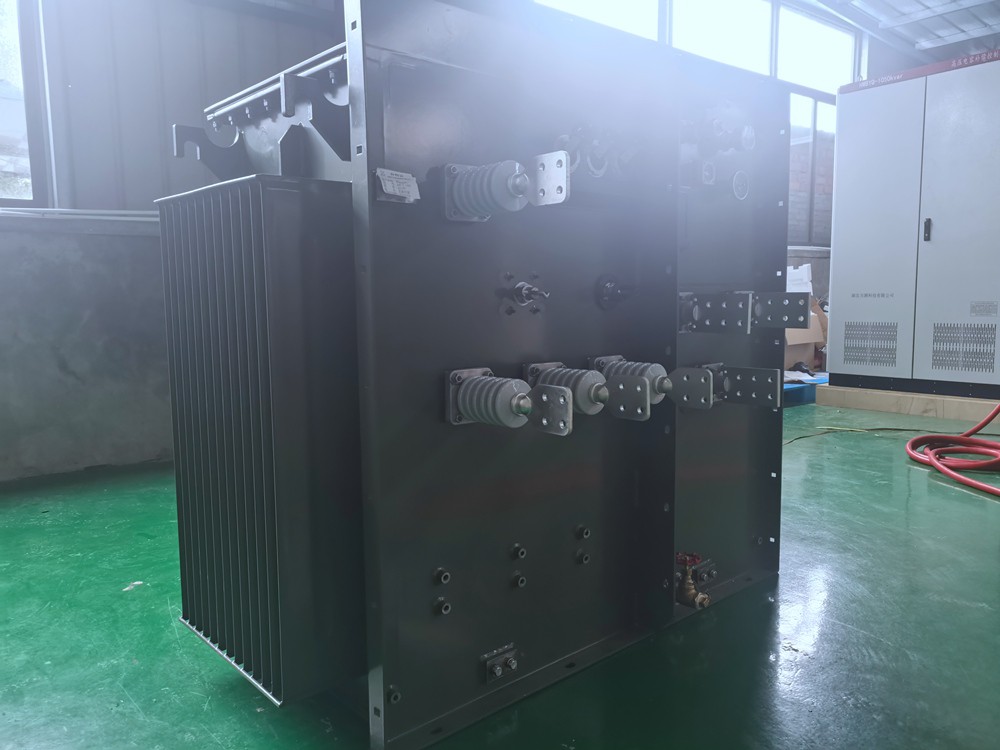

Finished 1000 kVA-13.8/0.48kV Transformer

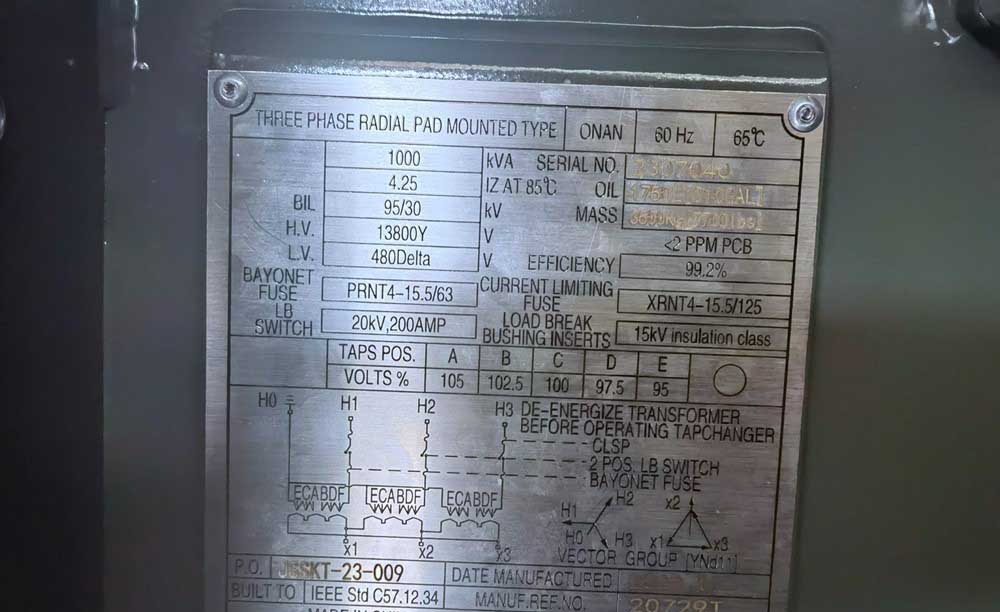

1000kVA pad mounted transformer nameplate

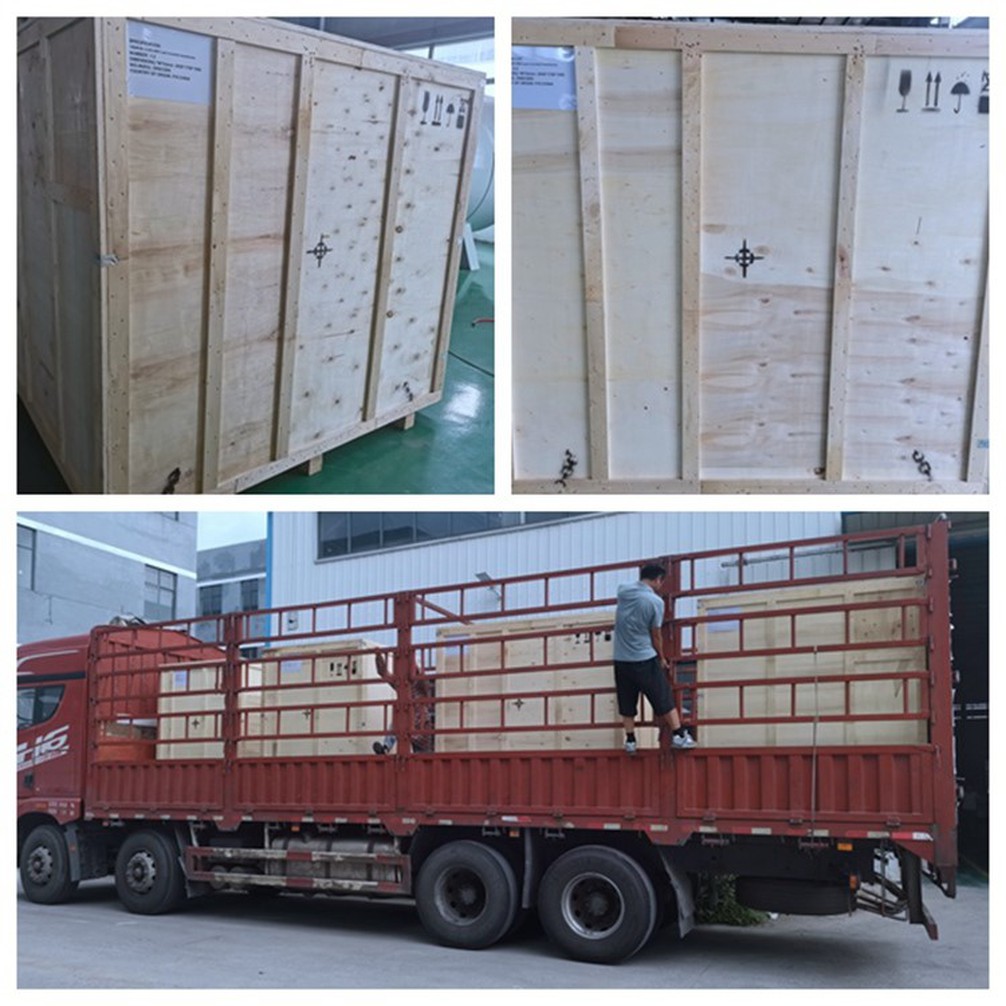

Pad Mounted Transformer Packing and Delivery
Advantages of Pad-mounted Transformer:
1.The internal structure of the pad mounted transformer is reasonably arranged, and the space occupied is relatively small.
2.Convenient and simple operation method and small volume, convenient and quick assembly.
3.High application income.
4.The way of combination is flexible.
5.Safe and reliable.
6.High level of automation.
The special of this transformer is that it is designed with three phases and five legs.Three-phase five-column transformer, also known as three-phase autotransformer, is widely used in power distribution systems due to its many advantages. Here are several highlights about the advantages of the three-phase five-column transformer:
1. Space-saving
Compared to traditional three-phase transformers, the three-phase five-column transformer takes up less space. It can handle greater power levels and deliver the same amount of power with less material usage and smaller footprint. This space-saving feature makes it especially suitable for densely populated urban areas.
2. High efficiency
The three-phase five-column transformer can maintain good voltage regulation and low power loss when delivering power to various loads because of its unique circuit structure. It can achieve high efficiency with up to 99% energy utilization.
3. Customizable voltage ratios
The three-phase five-column transformer has flexible voltage ratios, which can vary according to specific requirements. By adjusting the placement and number of the windings, the transformer can output voltages suitable for different devices or systems.
4. Enhanced reliability
Thanks to its low power loss and stable temperature, the three-phase five-column transformer has a longer lifespan than traditional transformers. Its robust design reduces the risk of transformer failure, which ultimately enhances the reliability of the power grid.
5. Simpler maintenance
The three-phase five-column transformer requires less maintenance than traditional transformers because it has fewer components and simpler design. This minimizes the amount of time and money needed to maintain the transformer.
In conclusion, the three-phase five-column transformer possesses many advantages over traditional transformers, including space-saving, high efficiency, customizable voltage ratios, enhanced reliability, and simpler maintenance. These benefits make it an ideal choice for power distribution systems in various settings.
