Product Introduction
SCOTECH manufactured 2 units of the 750 kVA pad mounted transformer in 2022.
The rated power of the transformer is 750 kVA with ONAN cooling. The primary voltage is 13.8kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.4kV, they formed a vector group of Dyn11.
Our 750 KVA pad mounted transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Pad mounted transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification

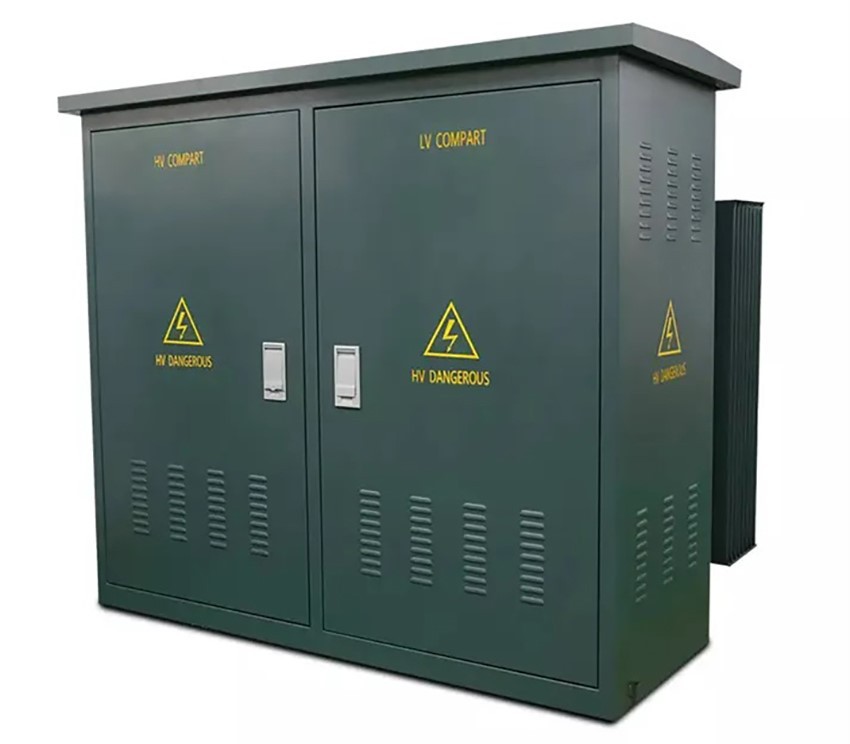

750 KVA transformer specifications type and data sheet
| Year | 2022 |
| Model | ZGS-750 kVA-13.8/0.48kV |
| Type | Oil type pad mounted transformer |
| Standard | IEC ANSI IEEE |
| Rated Power | 750 kVA |
| Frequency | 60 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 13.8 kV |
| Secondary Voltage | 0.48 kV |
| Winding Material | Copper |
| Vector Group | Dny11 |
| Impedance | 5.12% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 950W |
| On Load Loss | 7500W |
| Accessories | Standard Configuration |
| Remarks | N/A |

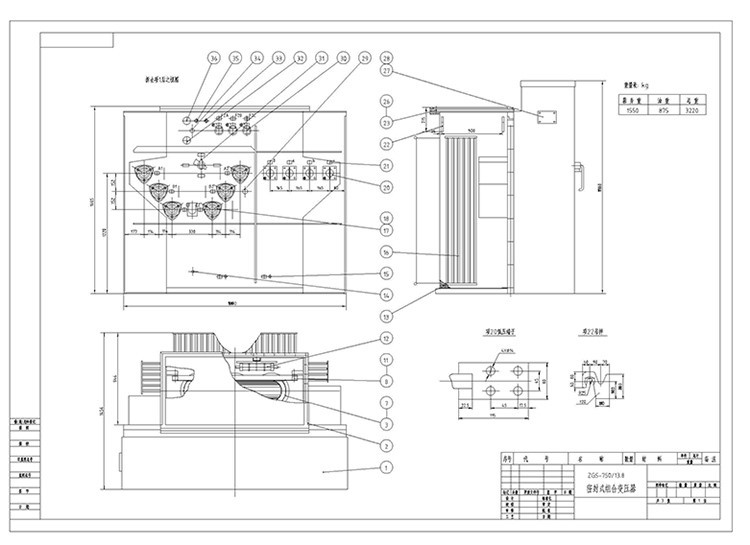

750 kVA-13.8/0.48kV Transformer Drawing
750 kVA transformer diagram drawing and size.

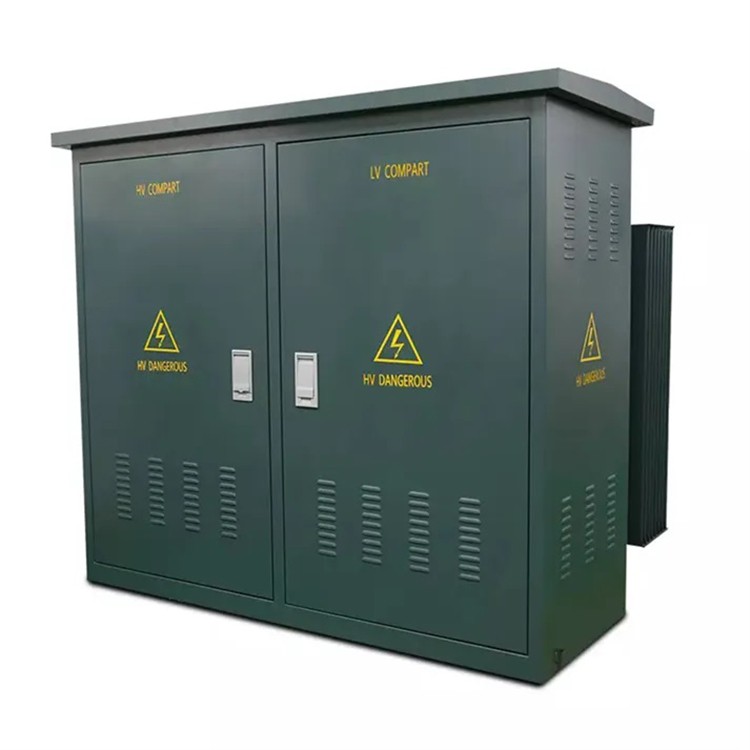

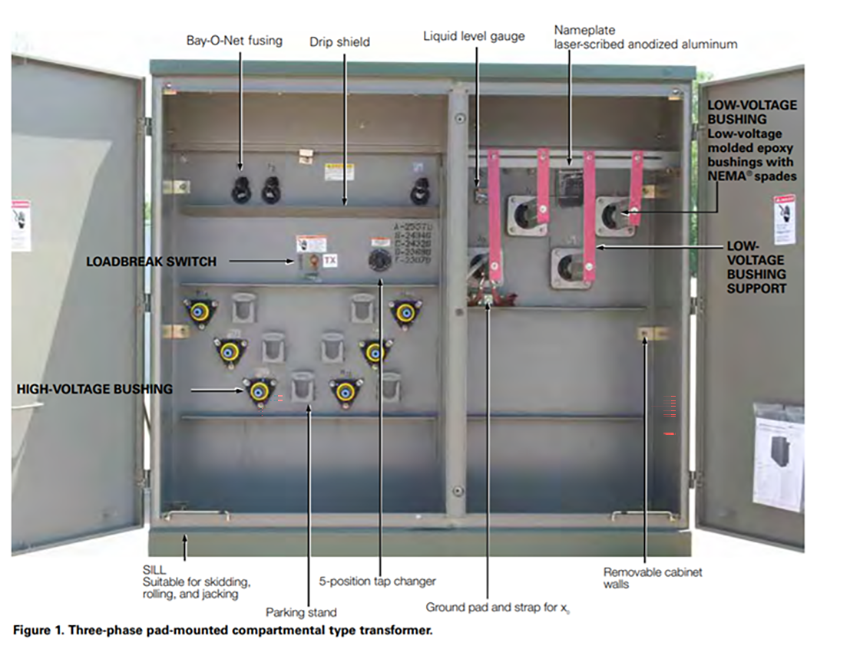

Example of three phase pad mounted transformer

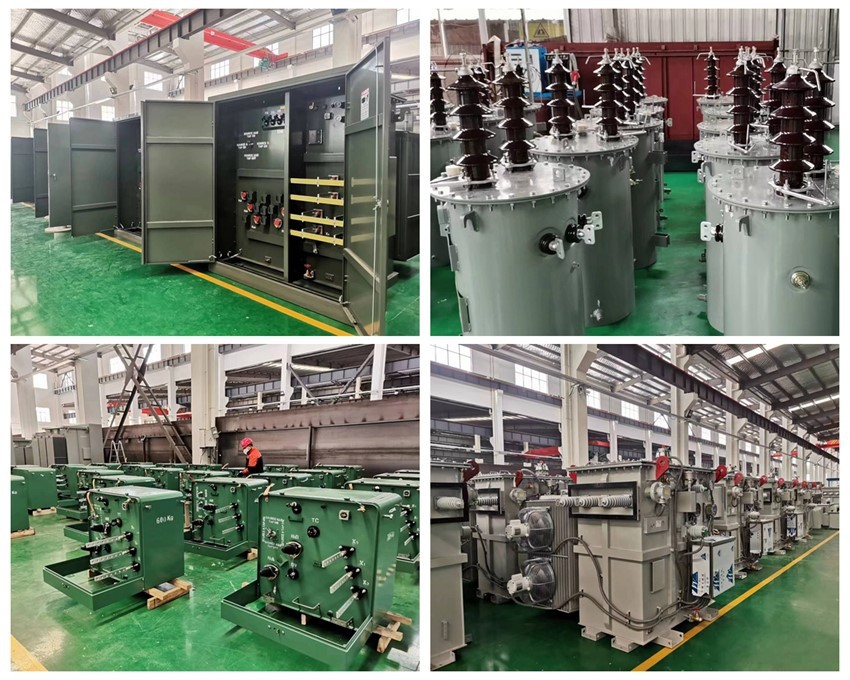

Transformer workshop

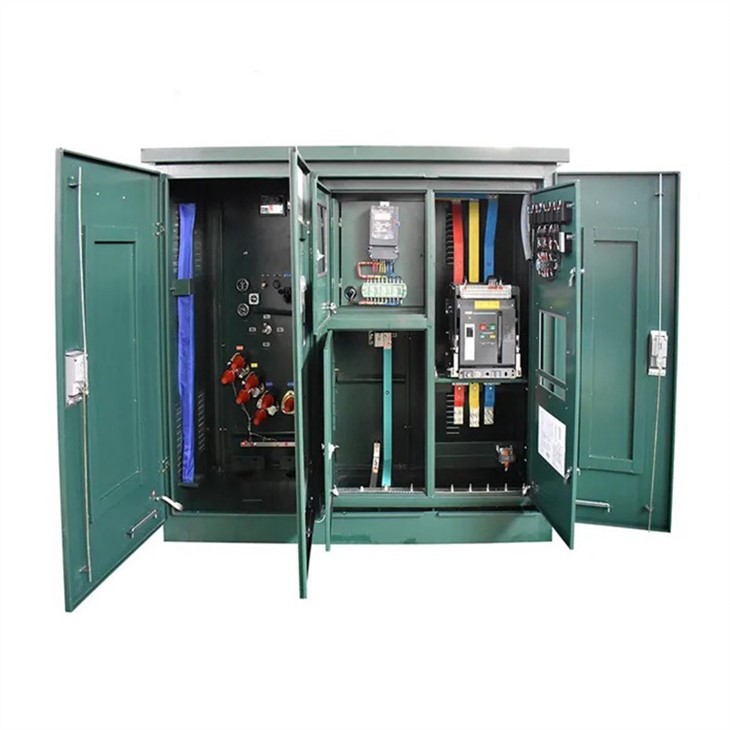

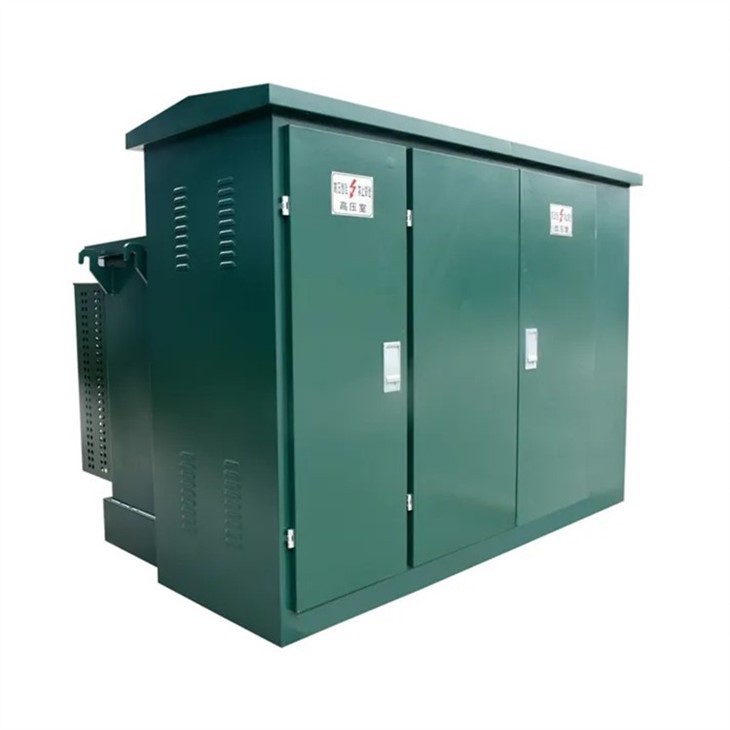

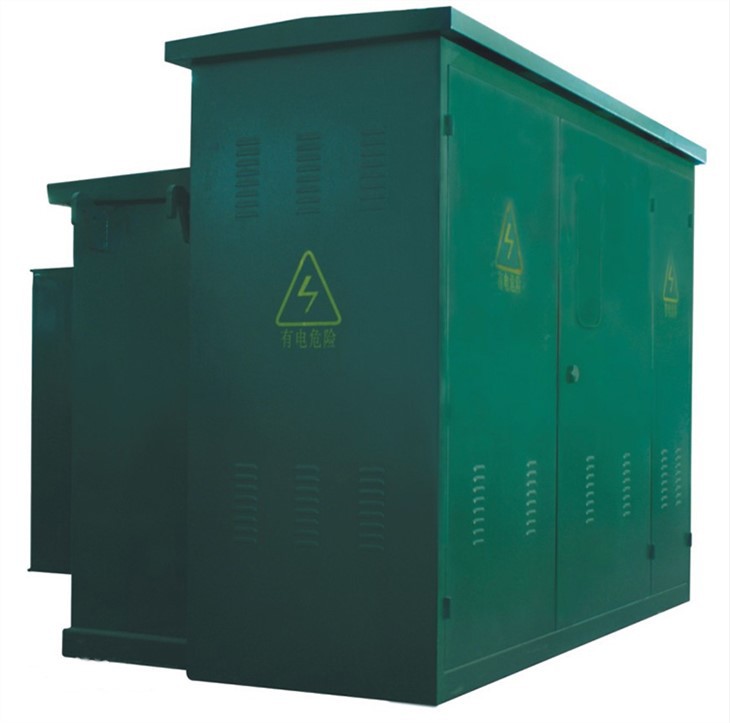

Finished 750 kVA-13.8/0.48kV Transformer

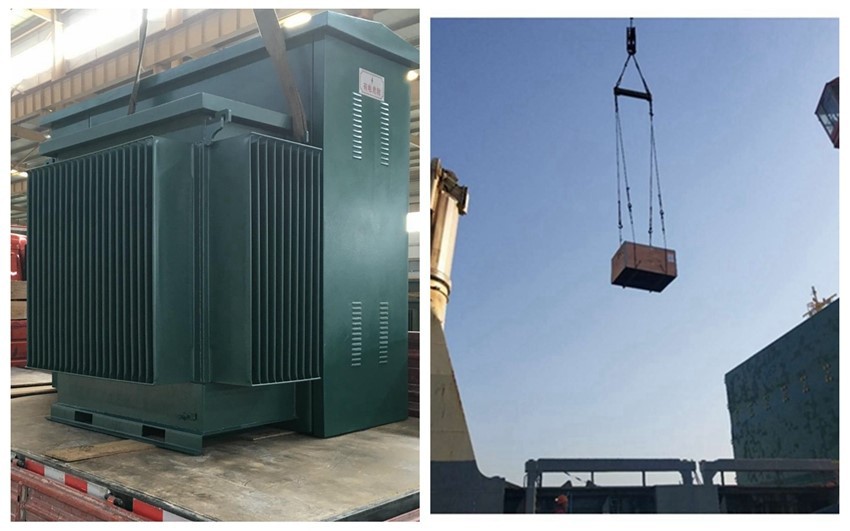

Packing and Delivery
Customer Photos
Advantages of Pad-mounted Transformer:
1.The internal structure of the pad mounted transformer is reasonably arranged, and the space occupied is relatively small.
2.Convenient and simple operation method and small volume, convenient and quick assembly.
3.High application income.
4.The way of combination is flexible.
5.Safe and reliable.
6.High level of automation.
FAQ
1.How soon can you delivery the transformer?
It depends on the quantity and capacity of the transformer, normally within one month since the date drawing confirmed by buyer.
2.How long can you provide the quality warranty?
12 months since the date transformer operated.
3.What payment method do you accept?
T/T (wire transfer), L/C both accepted.
