Product Introduction
This 225 kVA Pad mounted transformer was delivered to Canada in 2023. The rated power of the transformer is 225 kVA, with the primary voltage 24.94GRDY/14.4 kV to secondary voltage 0.48GrdY/0.277 kV. The connection group is YNyn0, and there are 5 taps ABCDE to adjust the voltage at the primary side, where can output 5 different voltages as wanted.
The 225 kVA Pad mounted transformer is welled design with 98.94% efficiency and our advanced manufacturing process, which may satisfy various voltage requirements.
SCOTECH ensure that every of our delivered units has undergone full acceptance testing. Our oil immersed power transformer is designed in accordance with CSA, IEEE, ANSI and other major international standards.
Scope of Supply
Product: Pad mounted transformer
| Standard | CSA | IEEE |
| Rated Power | Up to 3000 KVA | Up to 5000 KVA |
| Primary Voltage: | Up to 34.5 KV | Up to 34.5 KV |
Technical Specification
225 kVA Pad mounted transformer specification and data sheet
| Delivered to | Canada |
| Year | 2023 |
| Model | 225 kVA/24.94/0.48 kV |
| Type | Oil Type Pad Mounted Transformer |
| Standard | CSA C227.4:21 |
| Rated Power | 225 kVA |
| Frequency | 60 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 24.94GRDY/14.4 kV |
| Secondary Voltage | 0.48GrdY/0.277 kV |
| Winding Material | ALUMINUM |
| Vector Group | YNyn0 |
| Impedance | 4% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% @ Primary Side |
| No Load Loss | 0.62KW |
| On Load Loss | 2.59KW |
| Accessories | Standard Configuration |
| Remarks | N/A |

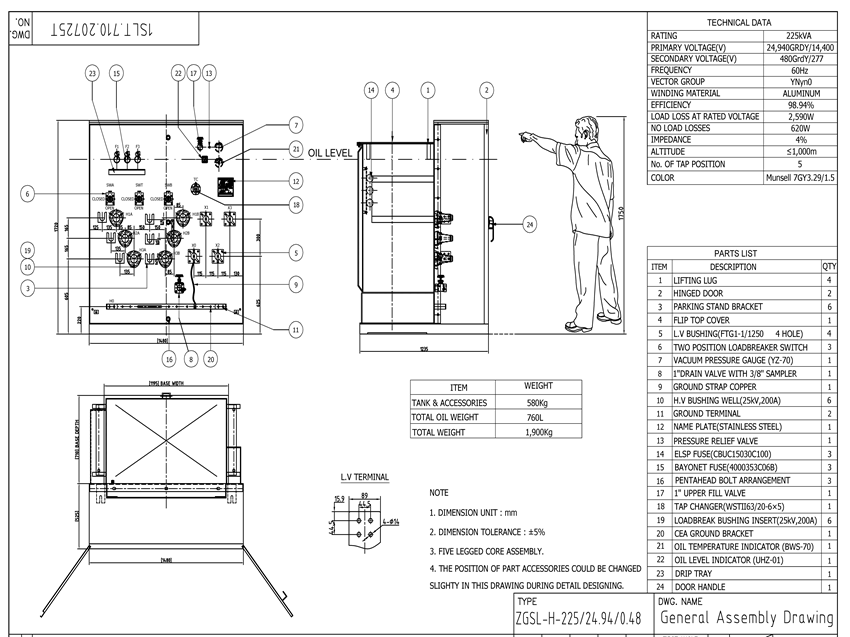

General Arrangement Drawing
225 kVA Pad mounted transformer dimensions and weight details

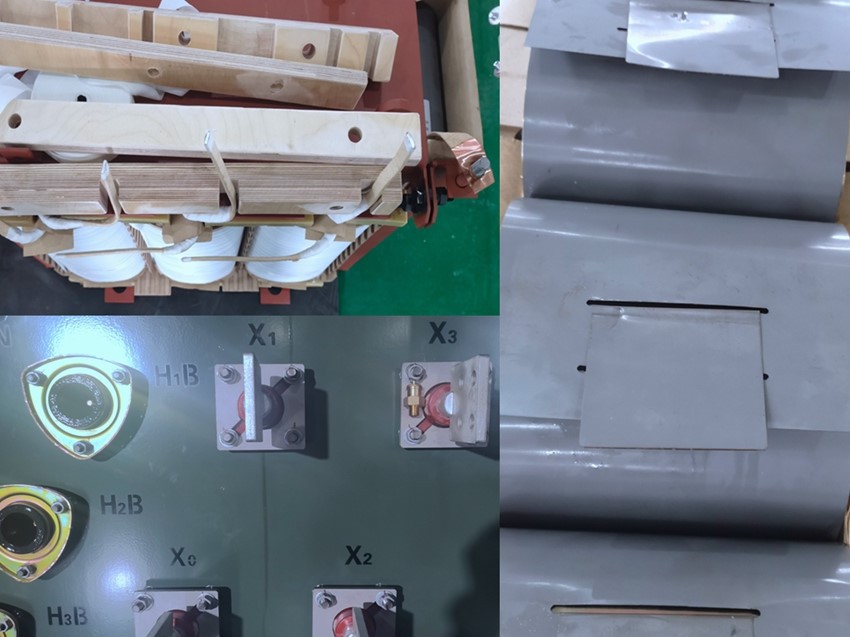

225 kVA 24.94/0.48kV Pad Mounted Transformer Manufacturing

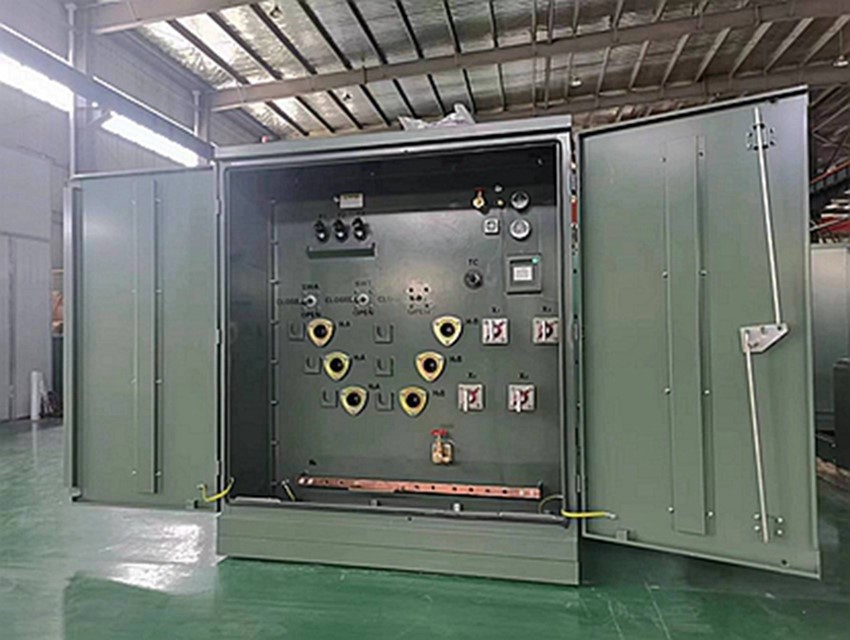

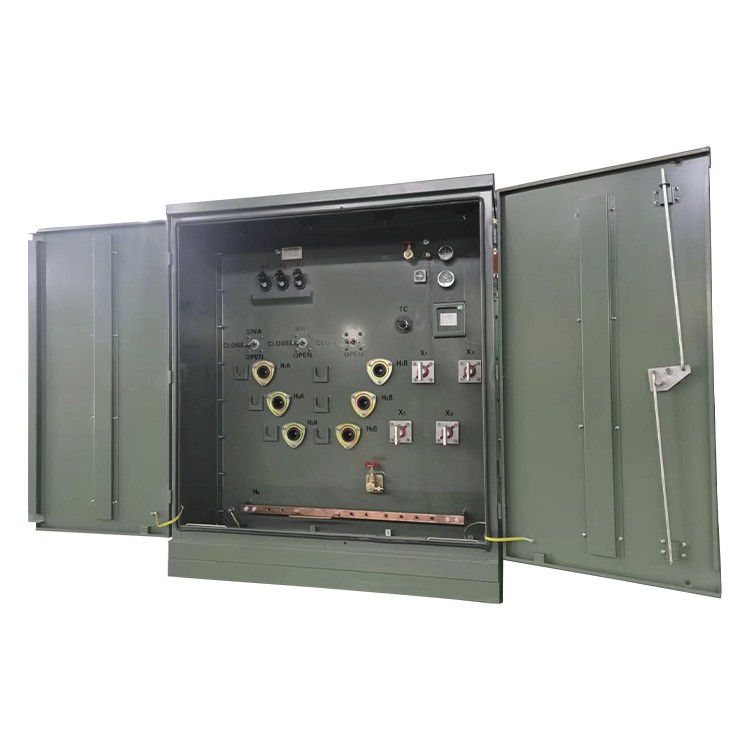

Finished 225 kVA 24.94/0.48kV Pad Mounted Transformer
Name Plate

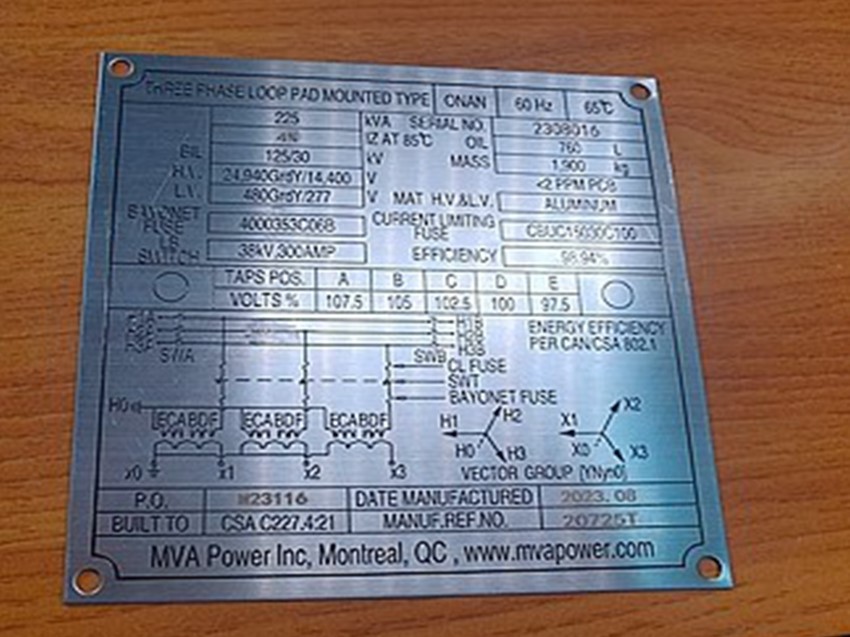

225 kVA Pad Mounted transformer nameplate details

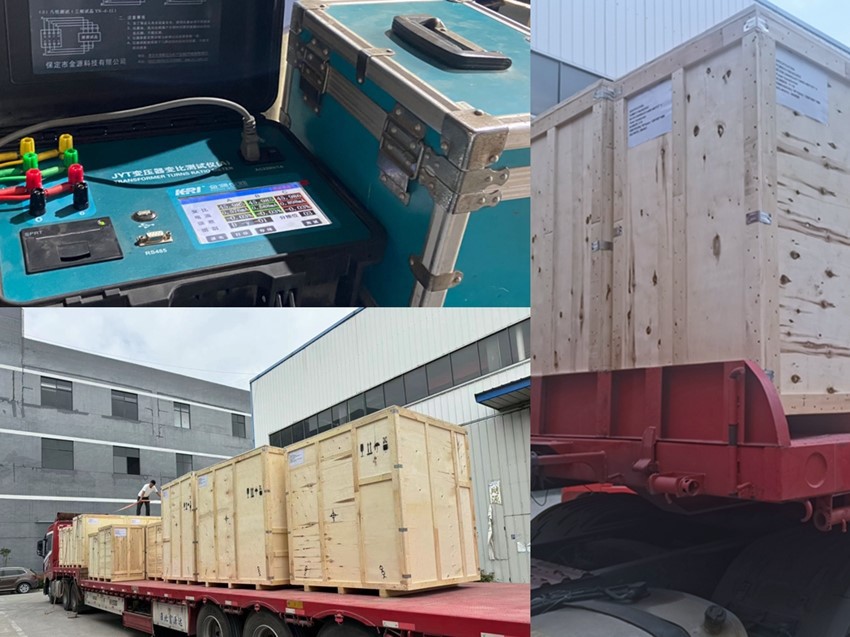

225 kVA 24.94/0.48kV Pad Mounted Transformer Testing and delivery
