Product Introduction
SCOTECH manufactured various types of pad mounted transformer according to customer requirements.
Our pad mounted transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Pad mounted transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
|
Rated Capacity xa0 xa0 xa0 xa0 xa0 xa0 xa0KVA |
High Voltage KV |
Low Voltage KV |
Tapping Range& Vector symbol |
Loss(W) |
|
|
No-load |
On-load |
||||
|
30KVA |
xa0 6.3KV 7.2KV 7.62KV 8.6KV 12.47KV 13.2KV 13.8KV 19.8KV 19.92KV 23KV 34.5KV 35KV xa0 To be requested by customers xa0 |
xa0 xa0 xa0 xa0 xa0 xa0 110V 220V 230V 240V 347V 480V 277V 600V |
xa0 xa0 xa0 xa0 ±5 （±2*2.5） xa0 Yyn0 Dyn11 |
110 |
500 |
|
63KVA |
200 |
1040 |
|||
|
75KVA |
180 |
1250 |
|||
|
125KVA |
220 |
1700 |
|||
|
150KVA |
280 |
2200 |
|||
|
225KVA |
400 |
3050 |
|||
|
300KVA |
480 |
3650 |
|||
|
500KVA |
680 |
5100 |
|||
|
750KVA |
980 |
7500 |
|||
|
1000KVA |
1150 |
10300 |
|||
|
1500KVA |
1640 |
14500 |
|||
|
2000KVA |
2160 |
20645 |
|||
|
2500KVA |
2680 |
27786 |
|||
|
3000KVA |
3300 |
30300 |
|||
|
3750KVA |
4125 |
37875 |
|||
Pad Mounted Transformer Drawing

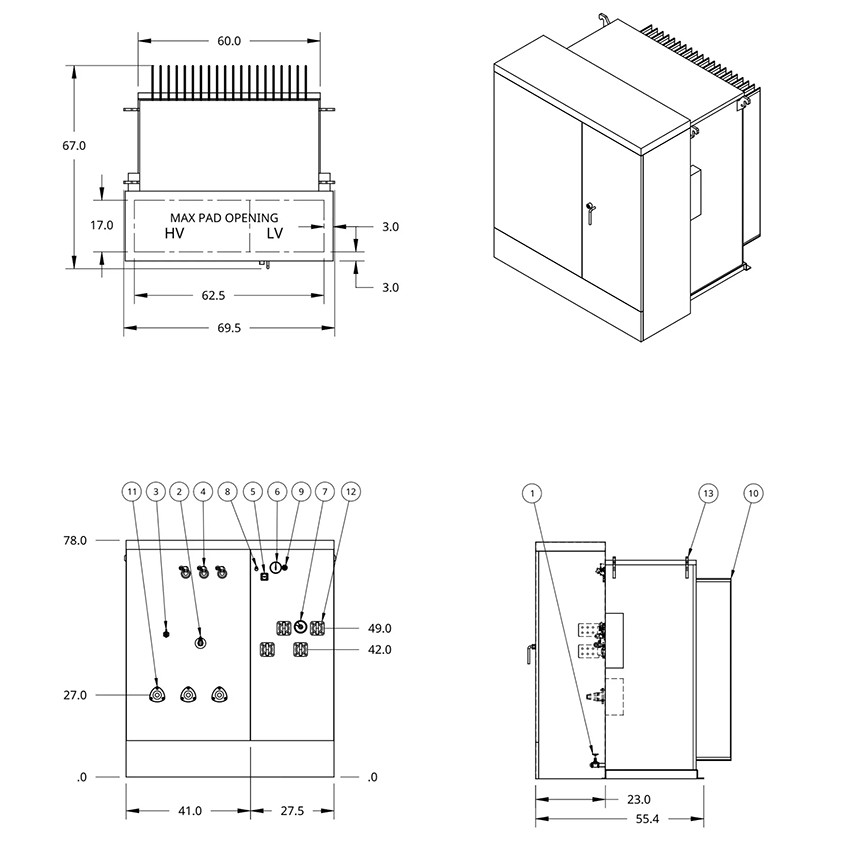

Pad Mounted Transformer diagram drawing and size.

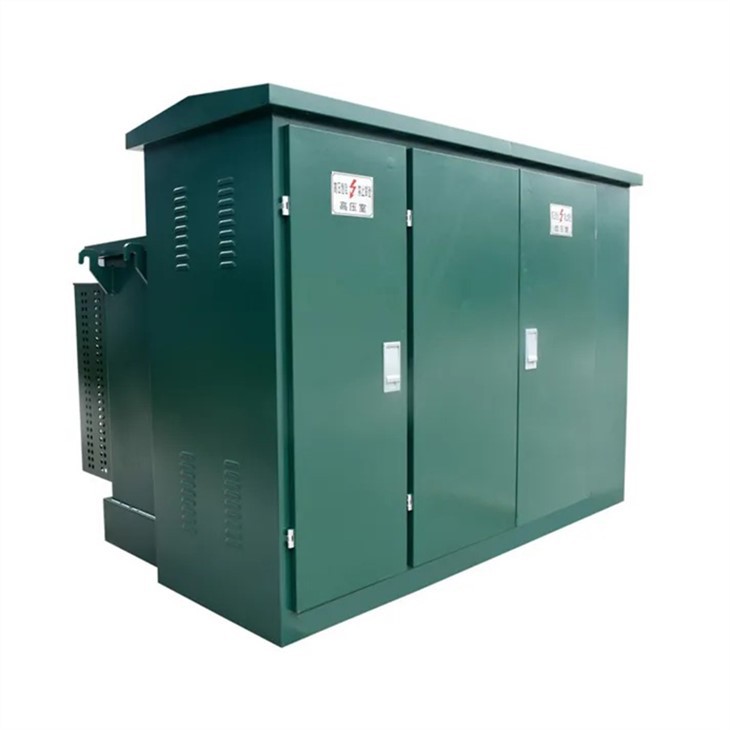

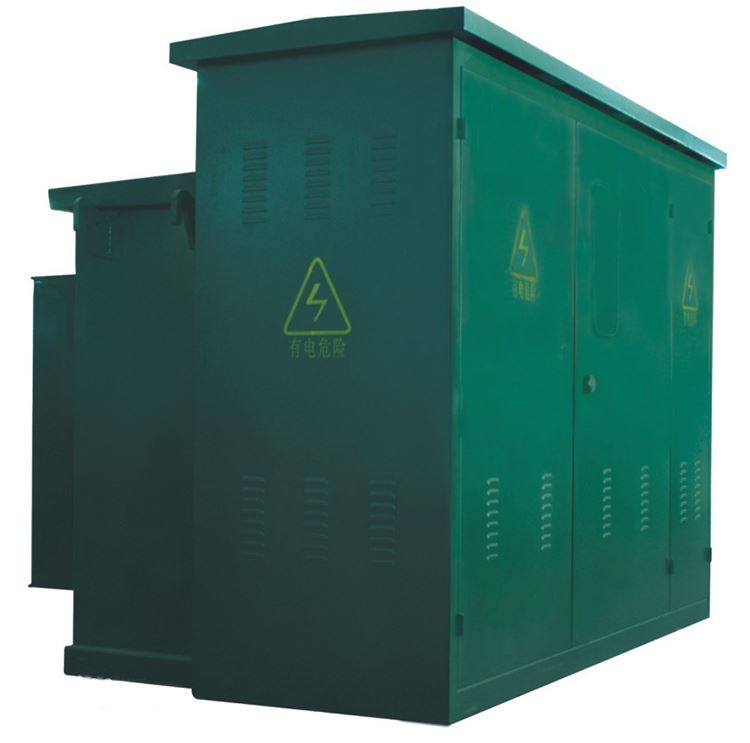

Example of three phase pad mounted transformer

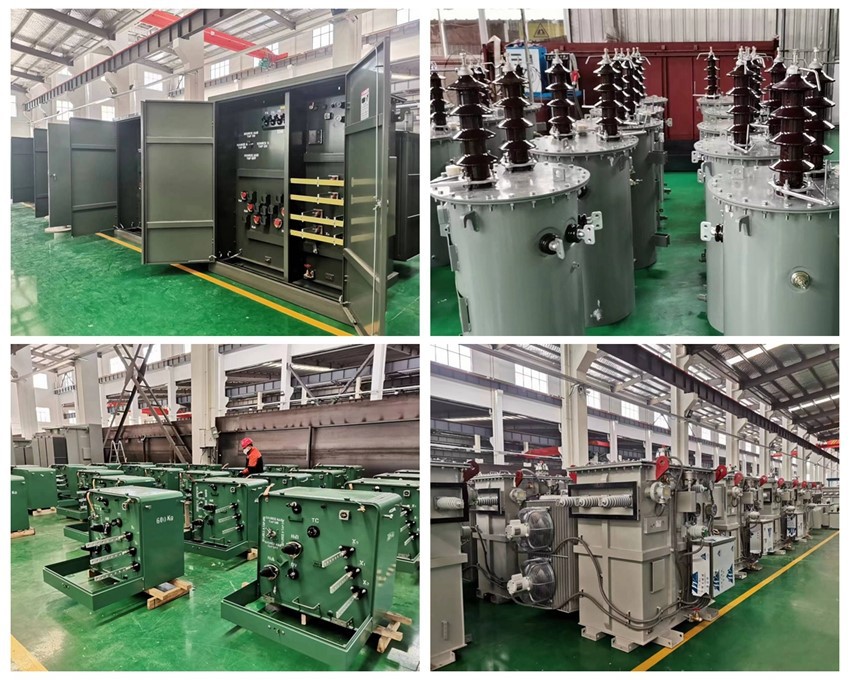

Transformer workshop

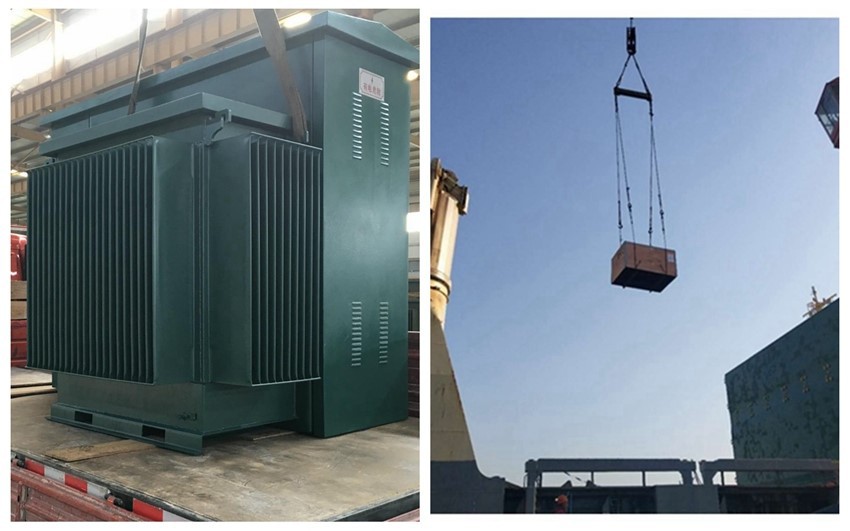

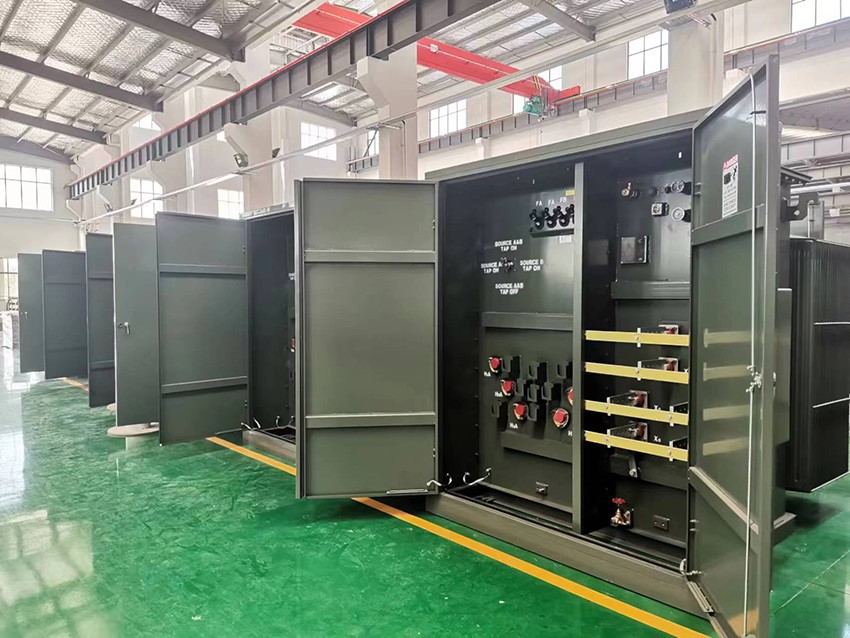

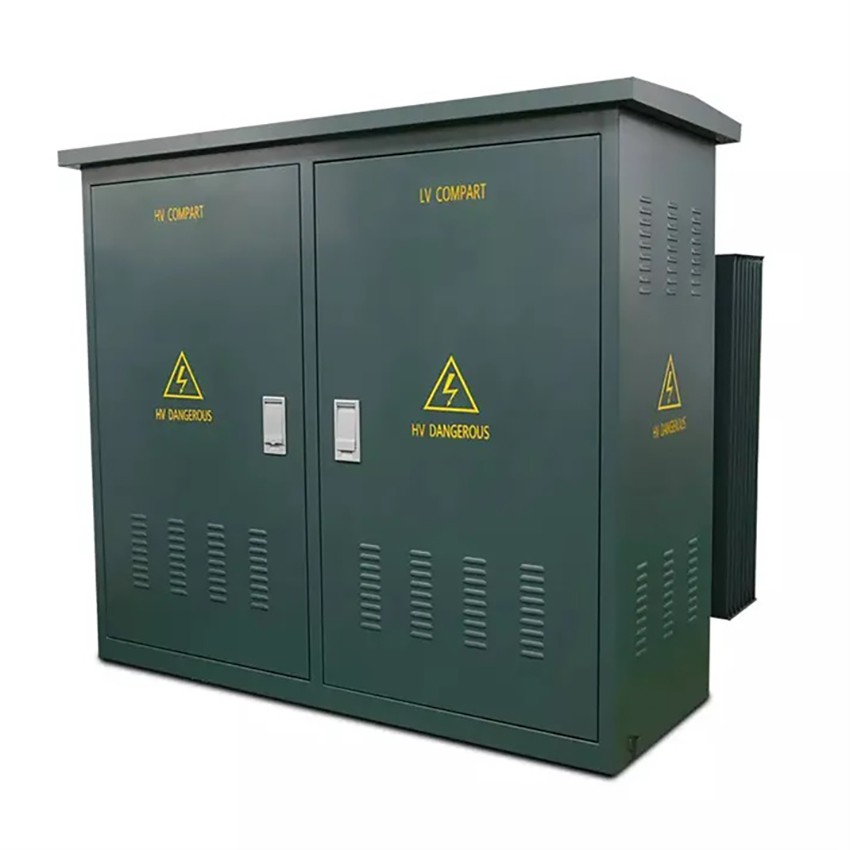

Finished Pad Mounted Transformer
Packing and Delivery
Pad Mounted Transformer on the site
Customer Photos
What is Pad-mounted Transformer ?
A padmount or pad-mounted transformer is a ground-mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad. These transformer are used with underground electric power distribution lines at service drops to step down the primary voltage on the line to the lower secondary voltage supplied to utility customers.
