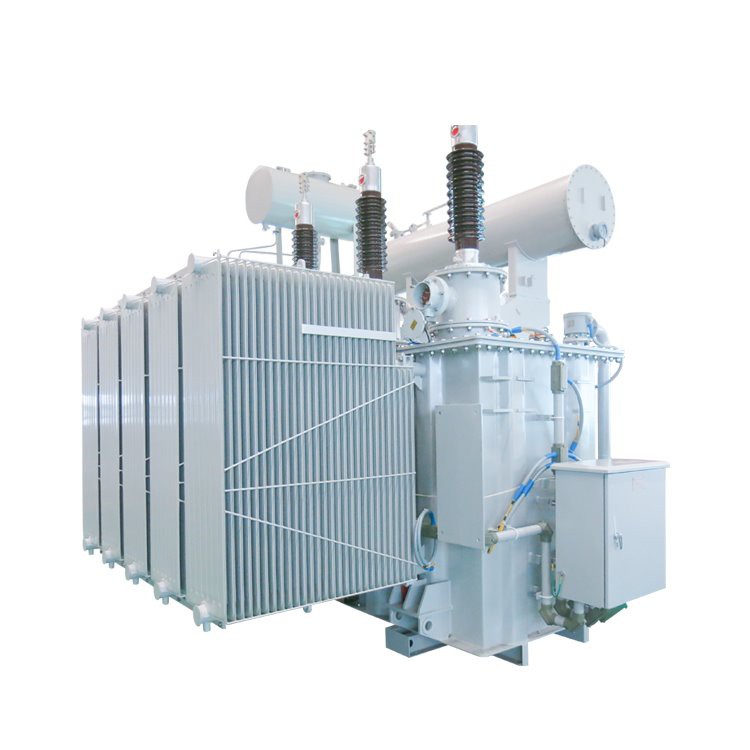

Product Introduction
This 12.5 MVA transformer was delivered to the Philippines in 2017. the rated power of the transformer is 12500 KVA. This is step down transformer, the primary voltage of the transformer is 66 KV and secondary is 33 KV. We use copper as winding material. Compared with other metals, copper is characterized by high conductivity, high thermal conductivity and corrosion resistance. Our 12.5 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
12.5 MVA power transformer specification and data sheet
| Delivered to | the Philippine |
| Year | 2017 |
| Model | SFZ11-12.5 MVA-66/33KV |
| Type | Oil immersed power transformer |
| Standard | IEC60076 |
| Rated Power | 12500 KVA |
| Frequency | 60HZ |
| Phase | 3 |
| Cooling Type | ONAF |
| Primary Voltage | 66 KV |
| Secondary Voltage | 33 KV |
| Winding Material | Copper |
| Vector Group | Ynd1 |
| Impedance | 10% |
| Tap Changer | OLTC |
| Tapping Range | ±8*1.25% |
| Accessories | Standard |
| Remarks | N/A |

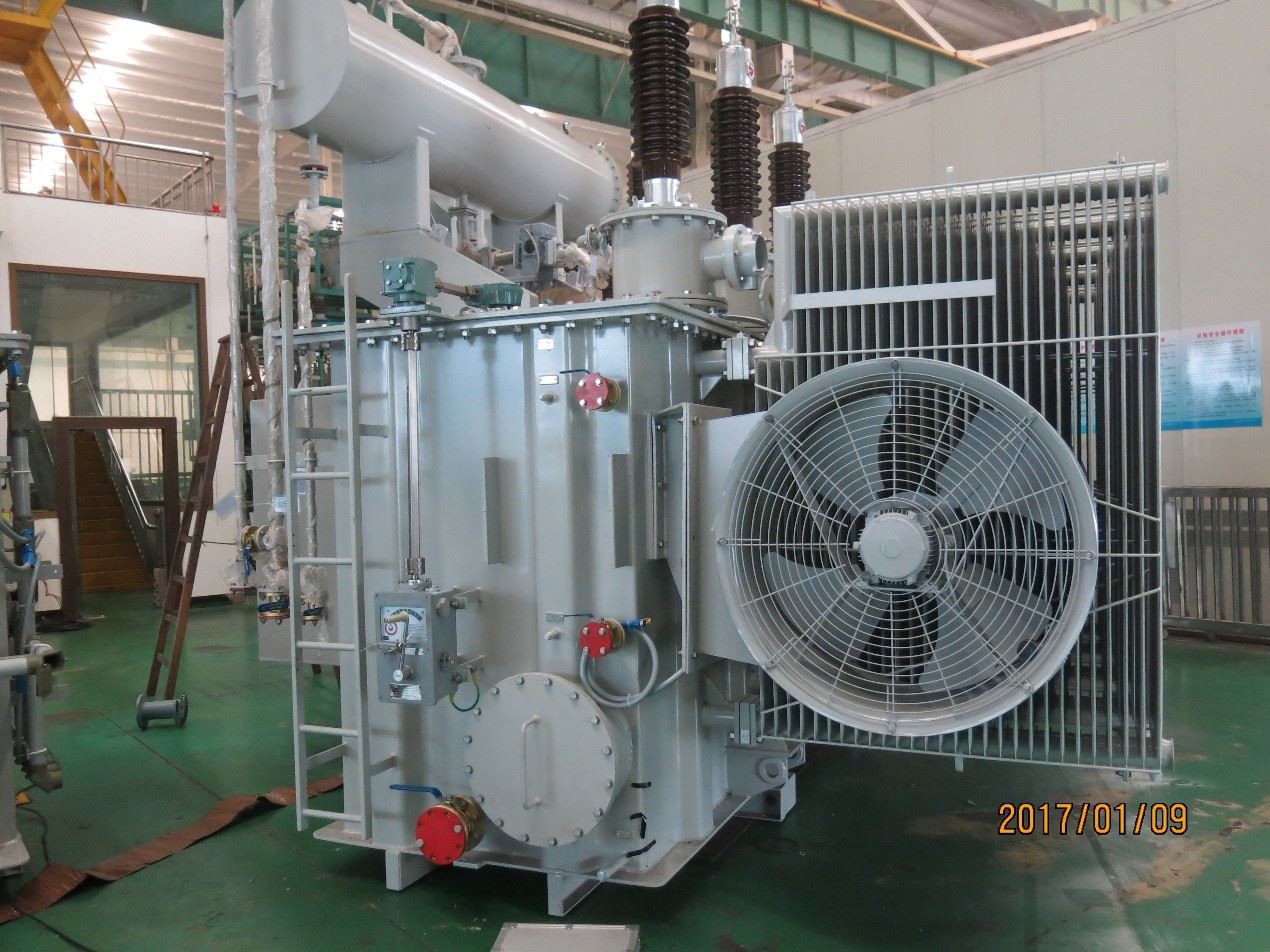

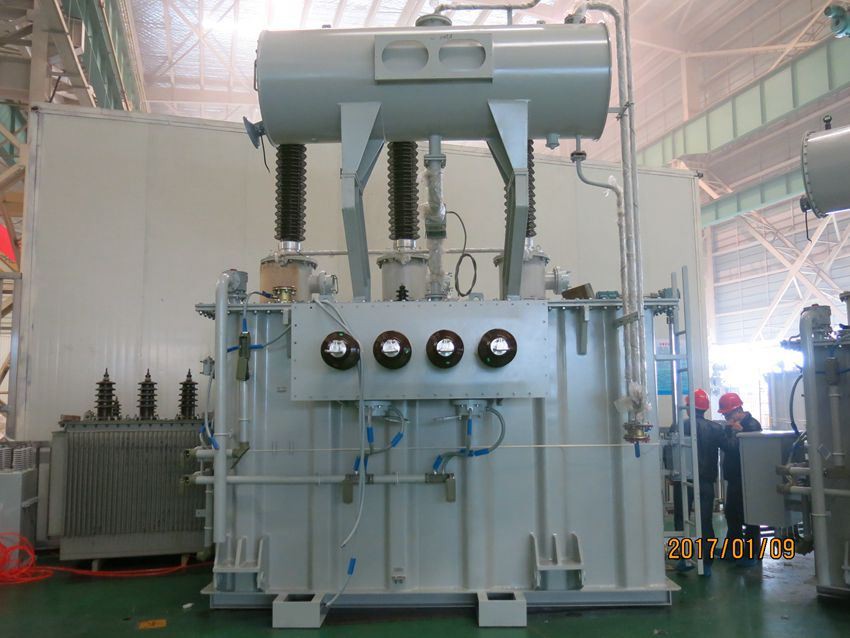

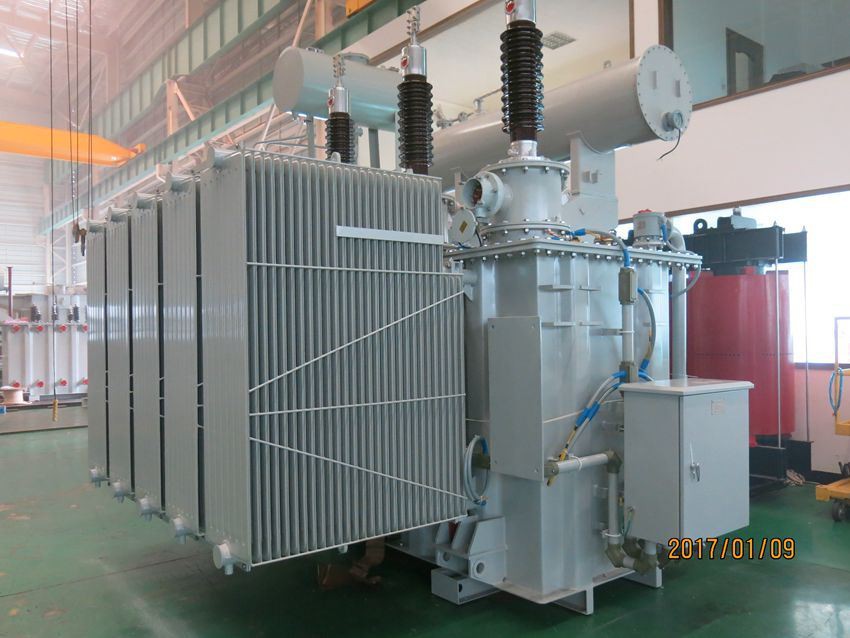

Finished 12.5 MVA 66/33KV Transformer

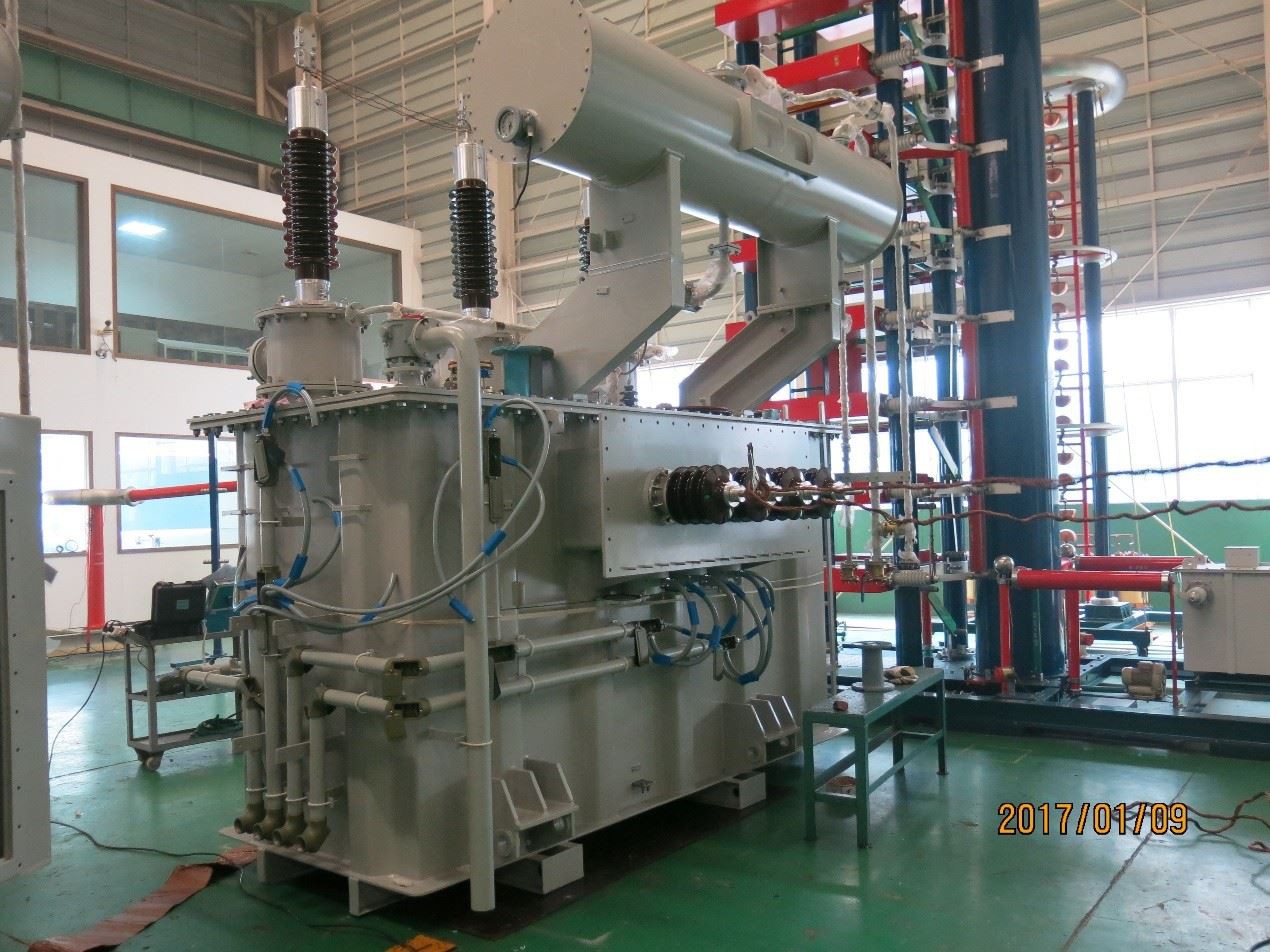

12.5 MVA 66/33KV Transformer Testing
What is the cooling method of an oil immersed transformer?
Normally there are many ways to cool an oil immersed transformer.
ONAN= Oil natural air natural
ONAF= Oil natural air forced
ONWF=Oil natural water forced
OFWF=Oil forced air forced
OFAN=Oil forced air natural
OFAF=Oil forced air forced
FAQ
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
