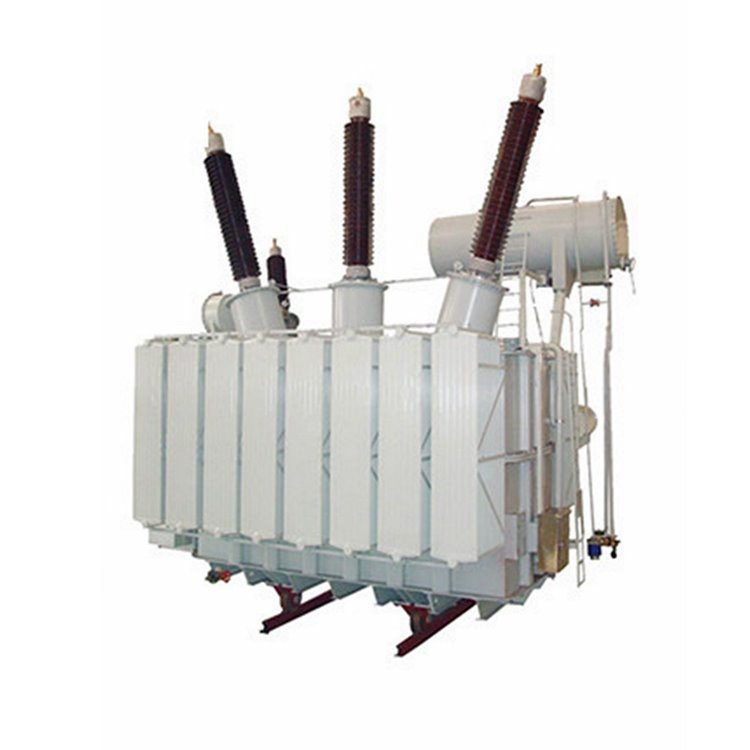

Product Introduction
This 15 MVA 66KV transformer was manufactured by us in 2014, the rated power of the transformer is 15000 KVA. The primary voltage of the transformer is 66 KV and secondary voltage is 11 KV. The 15000 KVA three phase transformer equipped with OLTC to change voltage in the specified range. Our 15 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation times.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
15 MVA 66KV transformer specification and data sheet.
| Delivered to | South Africa |
| Year | 2014 |
| Model | SZ11-15 MVA-66/11KV |
| Type | Oil Immersed Power Transformer |
| Standard | IEC60076 |
| Rated Power | 15 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 66 KV |
| Secondary Voltage | 11 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 10.03% |
| Tap Changer | OLTC |
| Tapping Range | ±16*1.25% @ Primary Side |
| No Load Loss | 13.5KW |
| On Load Loss | 78 KW |
| Accessories | Standard Configuration |
| Remarks | N/A |
How to determine the required capacity KVA for a three-phase transformer?
KVA=V*I*1.732/1000
V=Voltage(V)
I=Current(A)

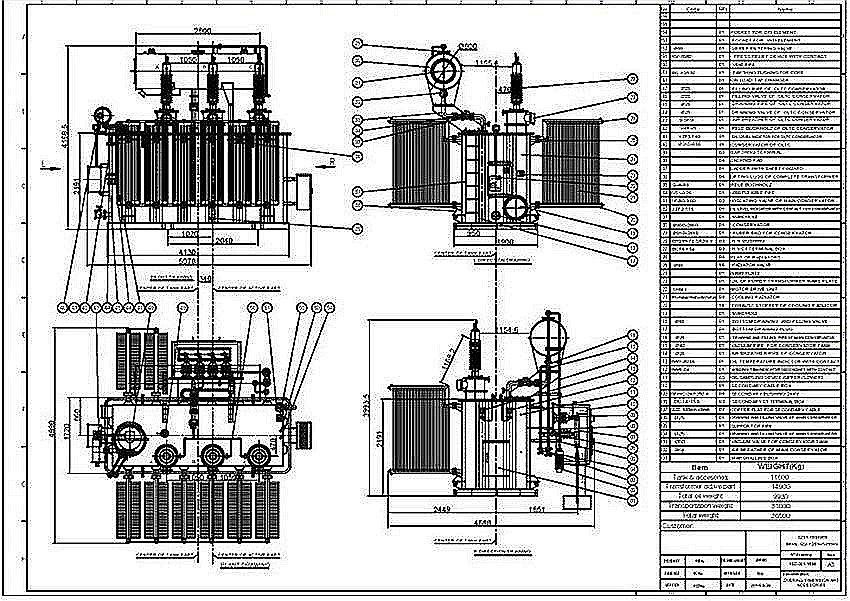

General Arrangement Drawing of 15 MVA transformer
15 MVA power transformer dimensions and design

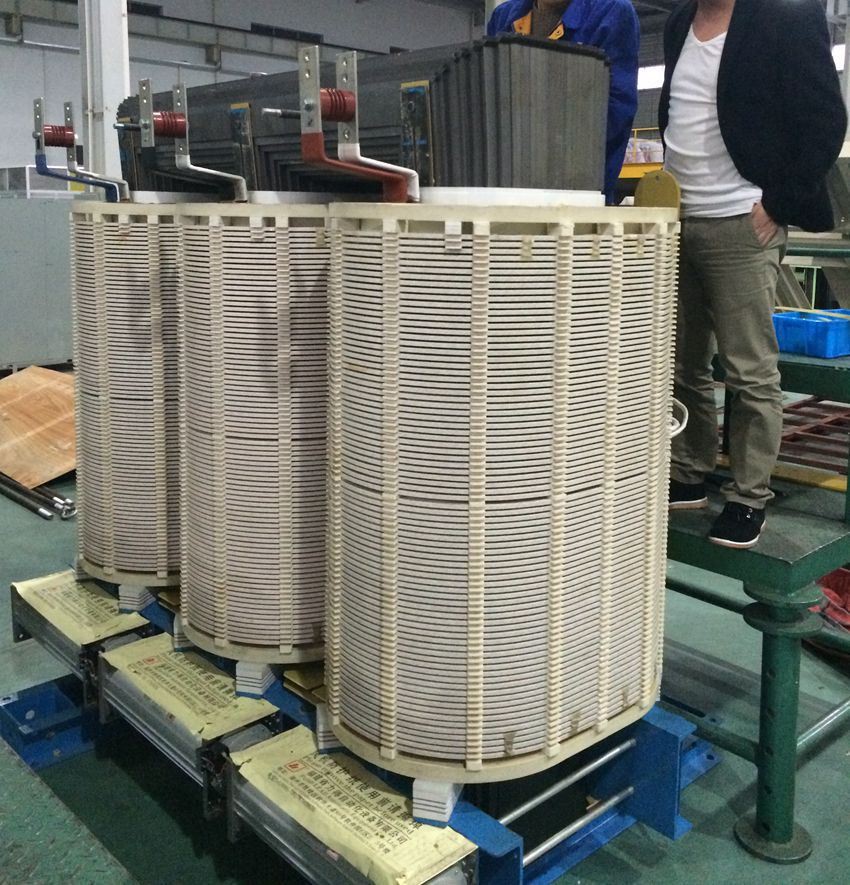

15 MVA 66/11KV Transformer windings
Windings are key components of the transformer, they are made of high-quality oxygen free copper, with our advanced technology and experience, our windings have the following features:
1. The windings are able to withstand lighting overvoltage, transient overvoltage, longtime overvoltage.
2. High heat resistant strength, it’s able to continuous working over 20 years under the heat generate by current.
3. The windings are able to withstand the short-circuit current.
4. High mechanical strength.

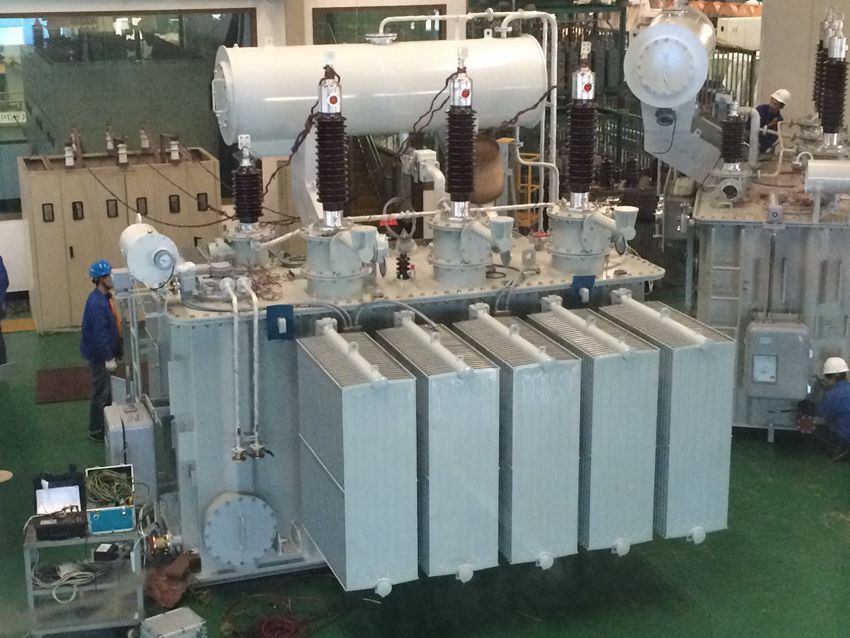

Finished 15MVA 66/11KV Transformer

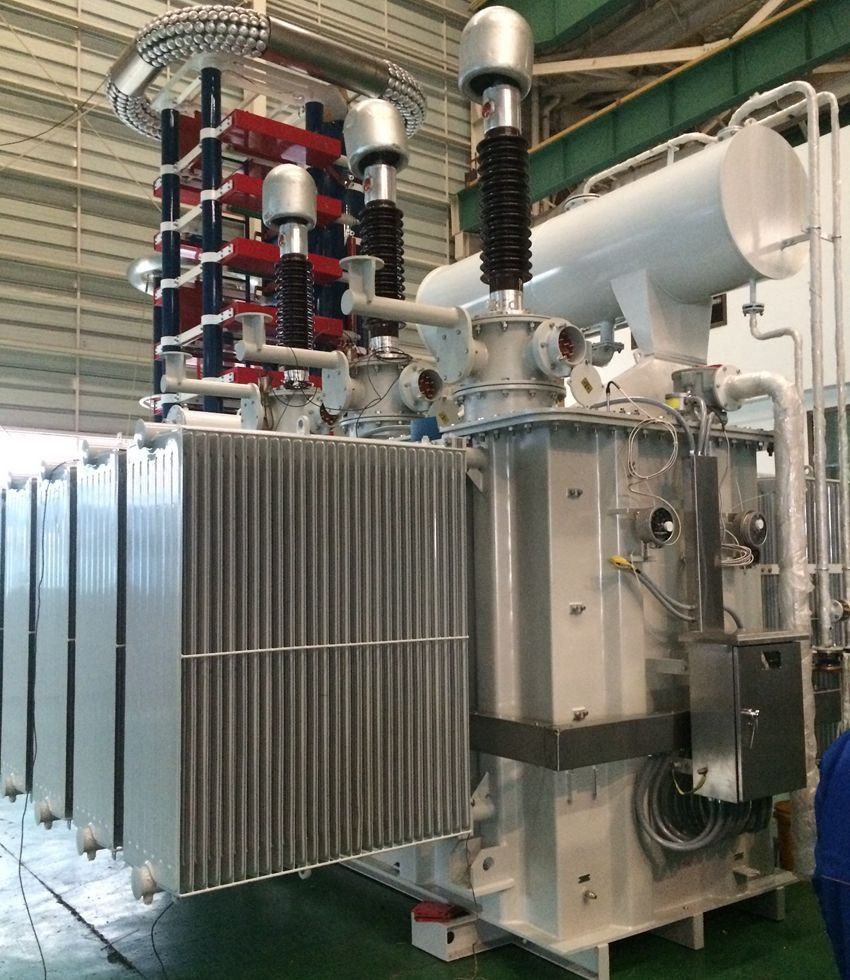

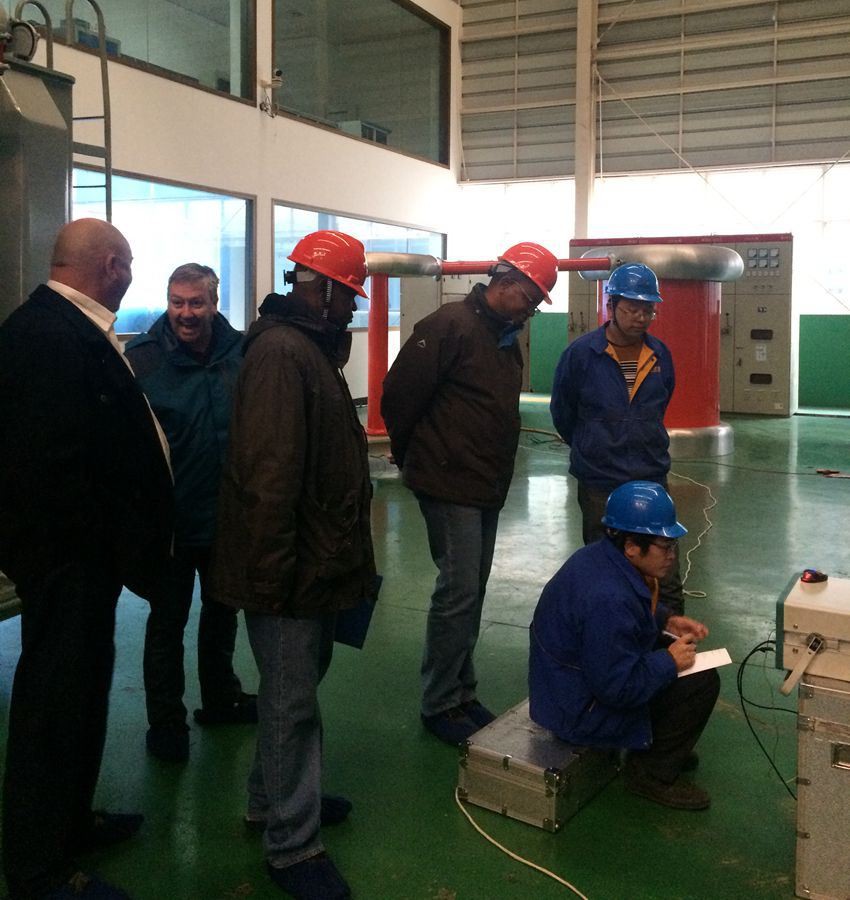

15 MVA 66/11KV Transformer Testing (FAT)

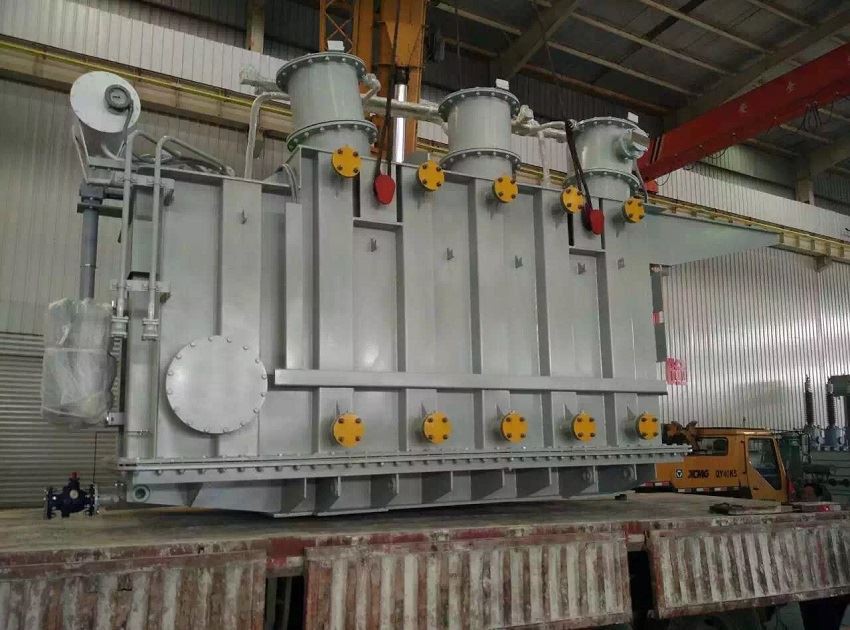

Packing and Delivery

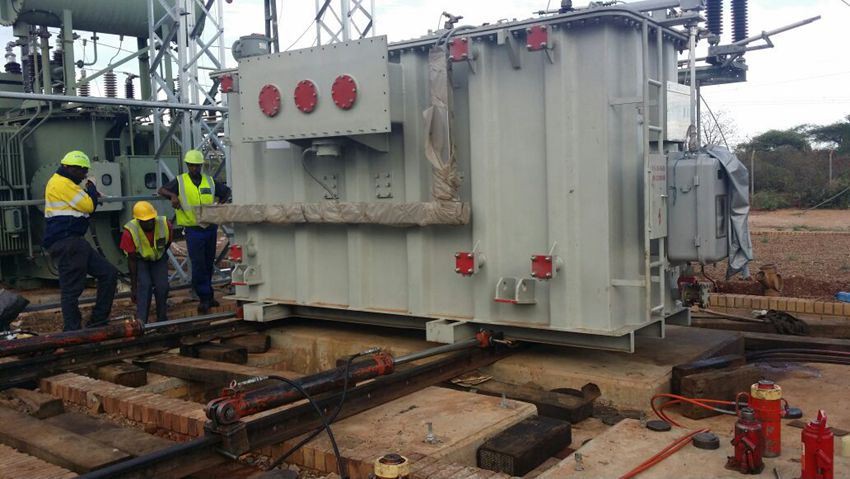

Installation Commissioning and Operation
Transformer Knowledge
How we definite transformers
Transformers are static equipment used for transferring power from one circuit to another, the frequency could be 50HZ or 60 HZ, this is a very basic definition of transformers. There is no rotating or moving part, so a transformer is a static device. Transformer operates on an ac supply and work on mutual induction principles.
FAQ
1. What standard do you follow?
IEC 60076 standard, and all other major international standard such as ANSI, CSA, UL, etc.
2. What package do you have for transformers?
Standard package with welded iron frame packed with ply wood boxes.
3. How long can I receive my transformers?
The shipping time from our port (shanghai or Ningbo) to your port is range from one week to one month, depend on the distance.
