Product Introduction

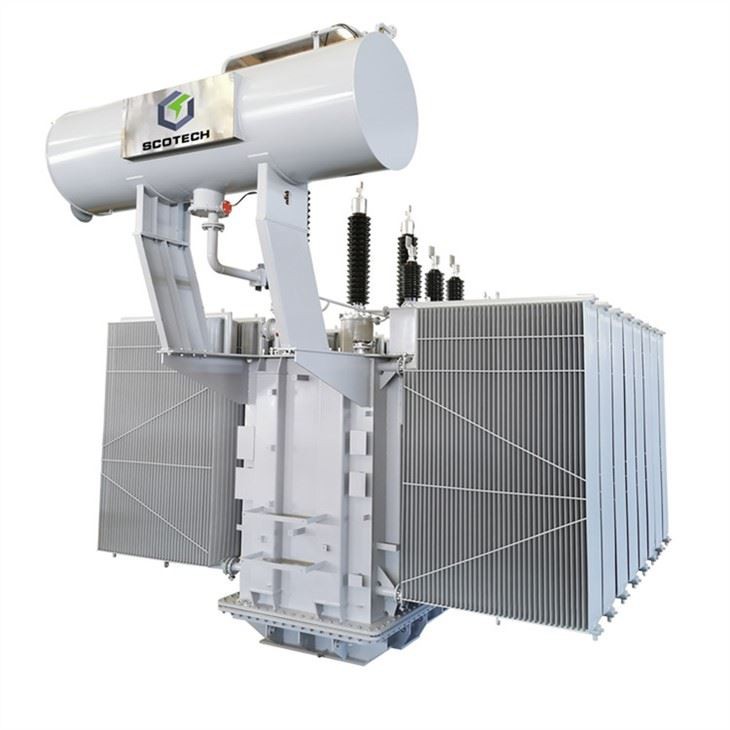

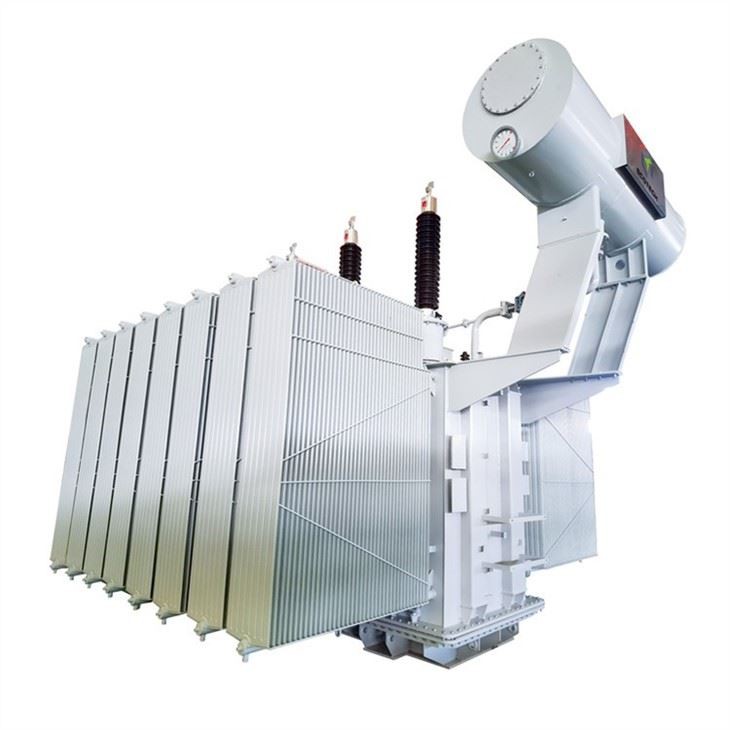

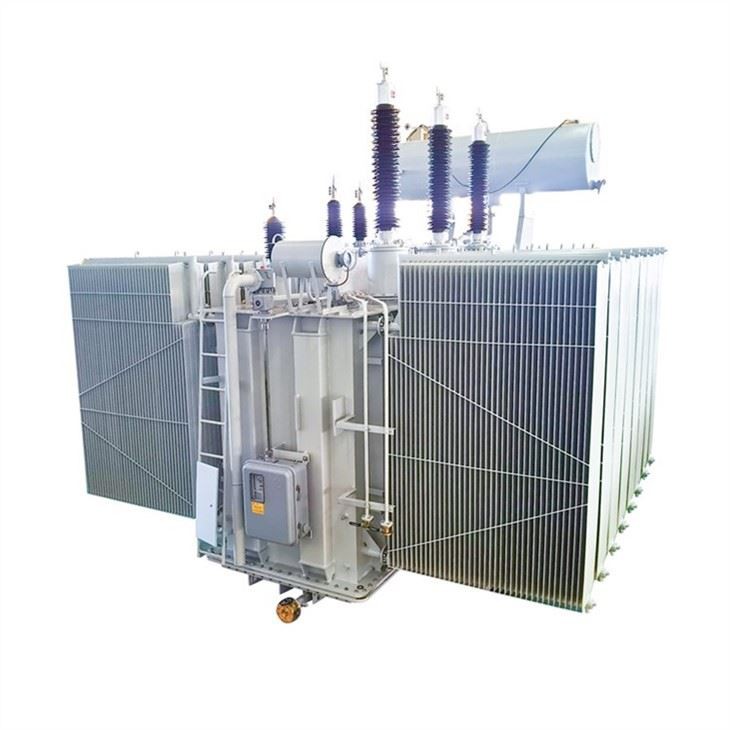

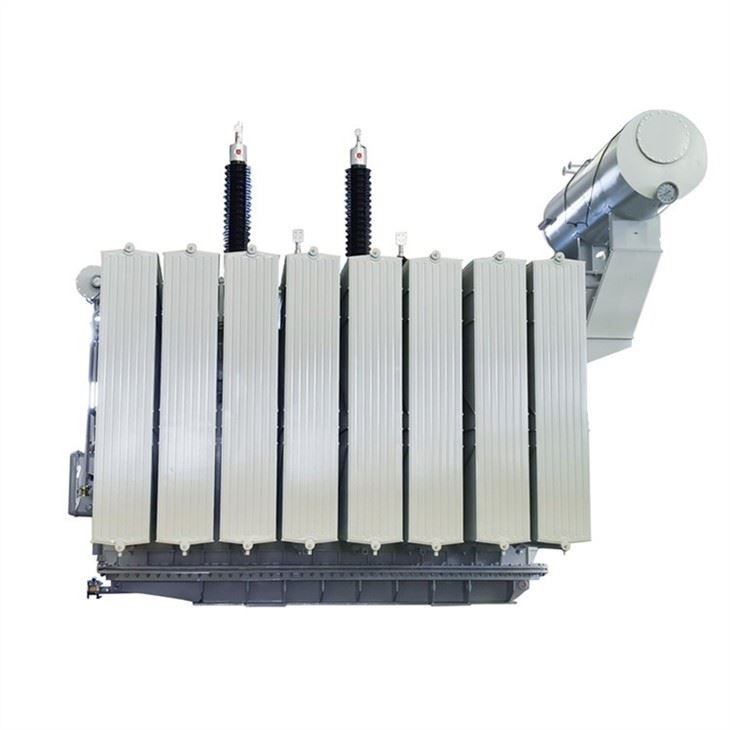

This 6.3 MVA 33 KV oil immersed transformer was delivered to Zimbabwe in 2017 via an South Africa Company, the cooling method of the transformer is ONAN(oil natural air natural) and this 6300 KVA tranfo with OLTC was supposed to be used in a substation for mining company, but the 33KV line voltage from the power grid is not stable, it jumps from 26 to 40kv frequently, so we designed this 33KV to 33KV OLTC transformer to regulate the primary voltage to get an stable 33KV output voltage.
SCOTECH is focus on transformer production more than 20 years, with our advanced technology and excellent quality, our transformers are welcomed in the market, we also supply other transformers such as distribution transformer, dry type transformer, furnace transformer, rectifier transformer, reactors, etc.
Scope of Supply
Product: Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Schedule
6.3 MVA substation power transformer specification and data sheet
| Delivered to | Zimbabwe |
| Year | 2019 |
| Model | SZ11-6.3 MVA-33/33KV |
| Type | Oil Immersed Power Transformer |
| Standard | IEC60076 |
| Rated Power | 6.3 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 33 KV |
| Secondary Voltage | 33 KV |
| Winding Material | Copper |
| Vector Group | Ynyn0 |
| Impedance | 5% |
| Tap Changer | OLTC |
| Tapping Range | +4 and-12 *1.25% @ Primary Side |
| No Load Loss | 6 KW |
| On Load Loss | 55 KW |
| Accessories | Standard Configuration |
| Remarks | N/A |

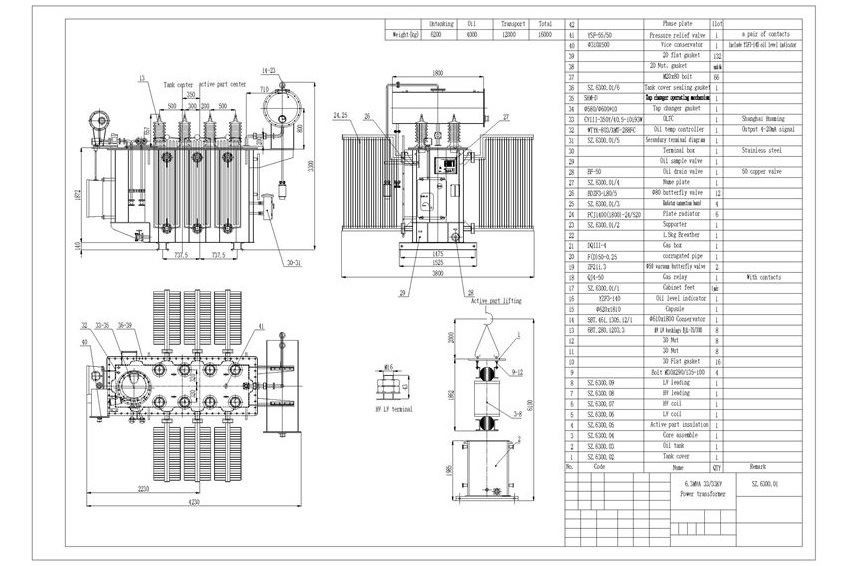

Outline Drawings for 6.3 MVA Transformer

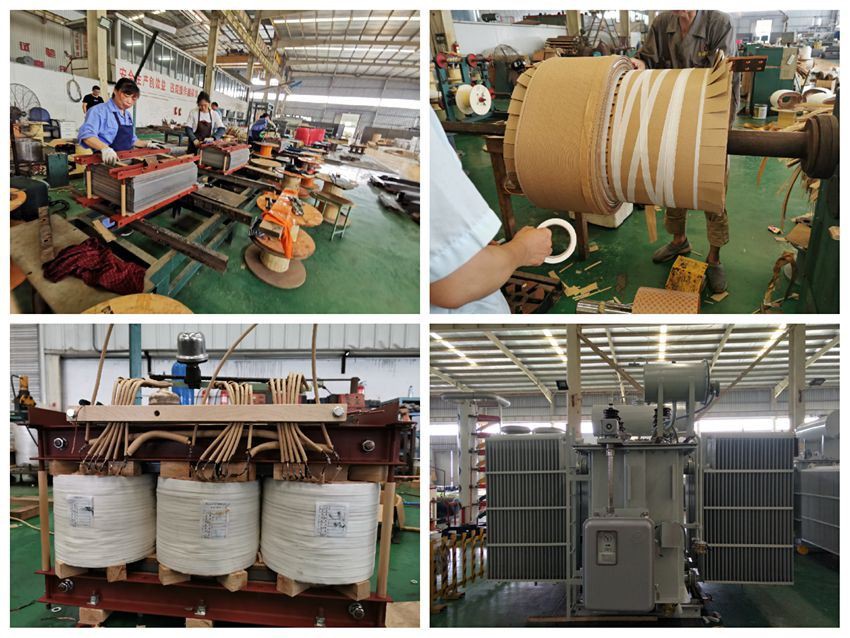

Core, Winding, Active Part manufacturing

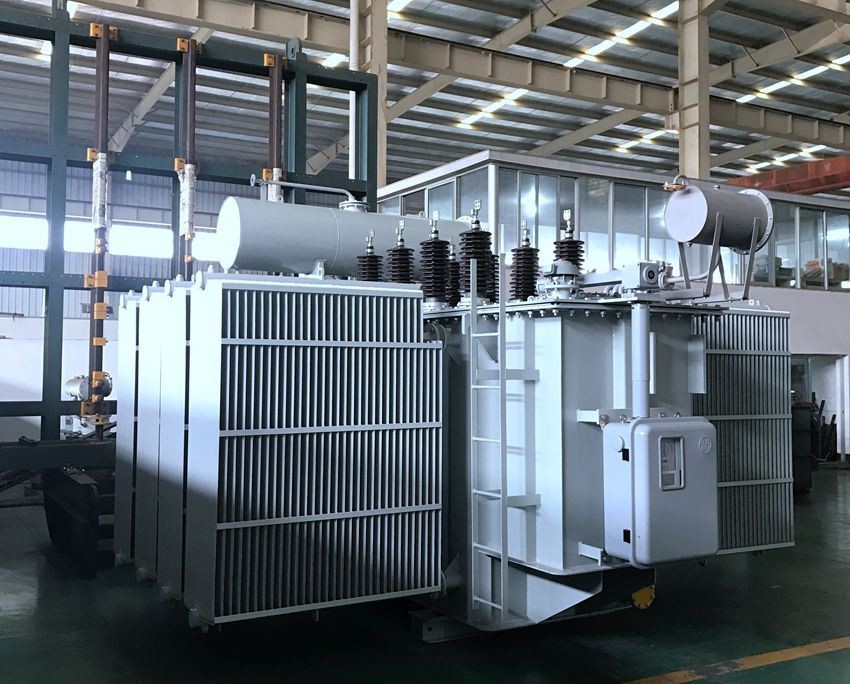

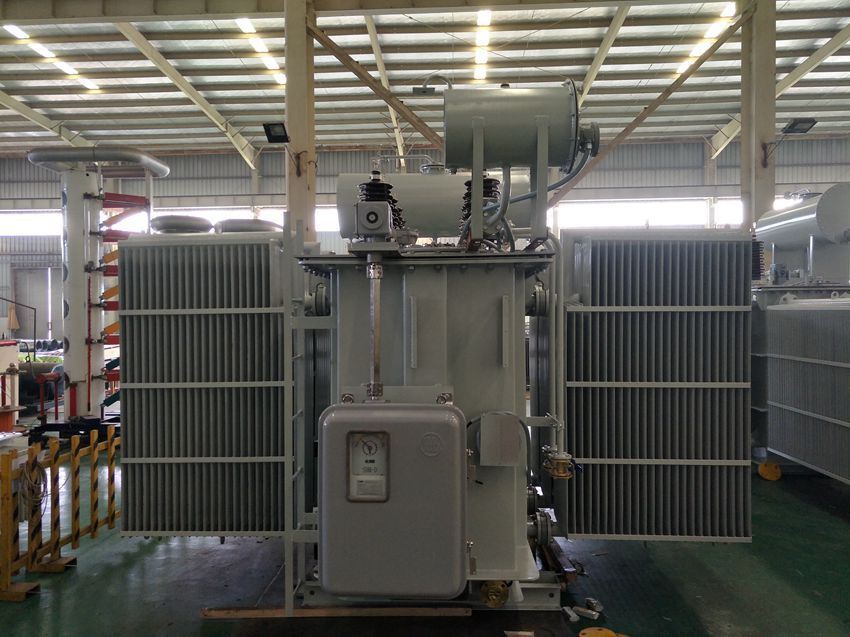

Transformer in Our Workshop

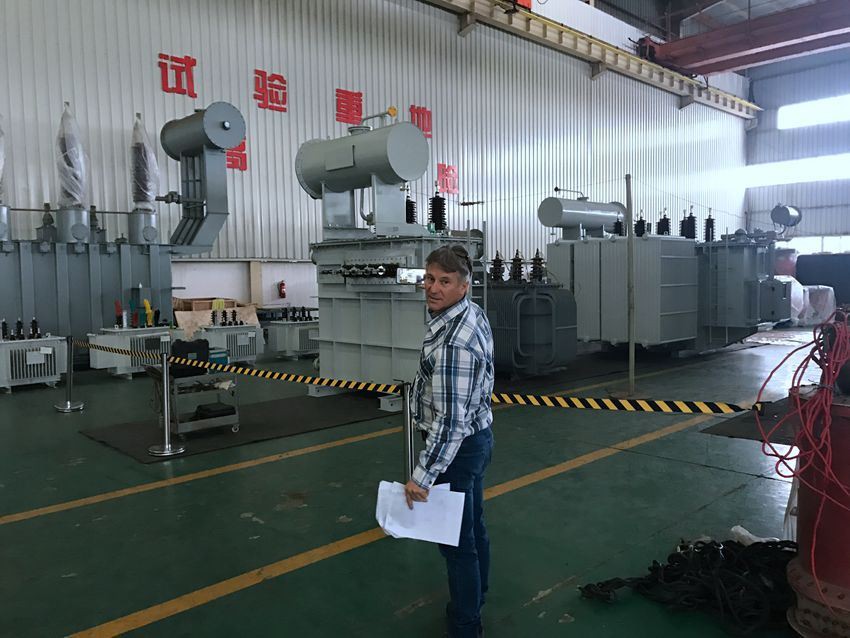

Customer Doing FAT in Our Workshop for the 6.3 MVA Transformer

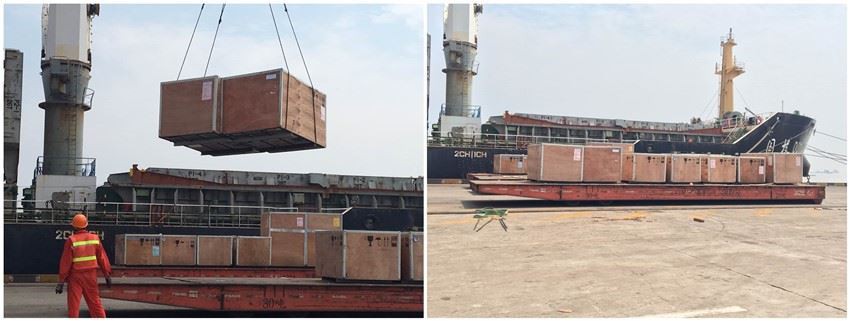

Transformer in the Seaport

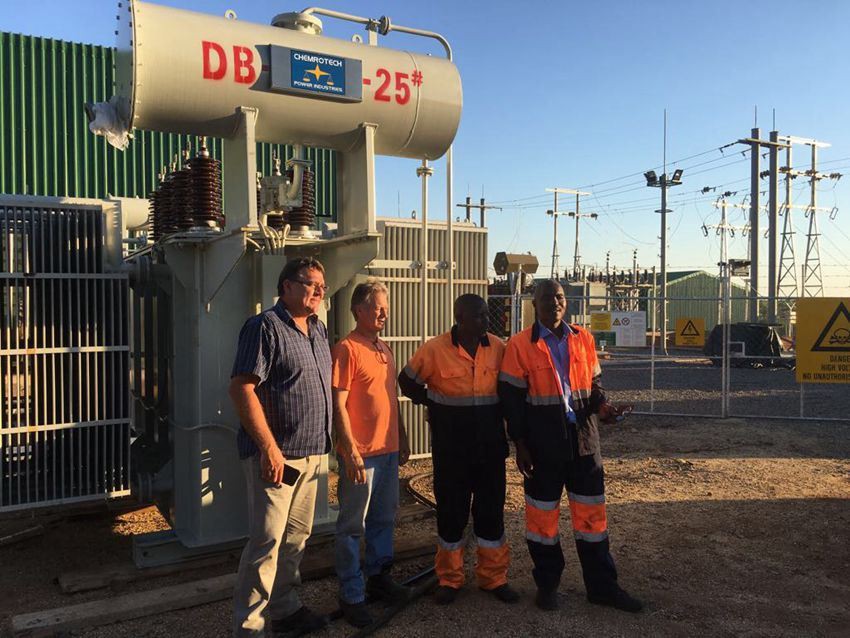

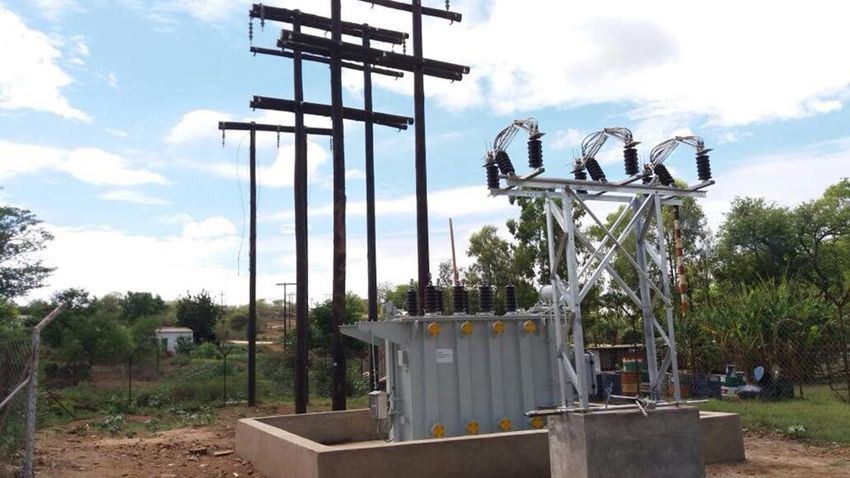

On Site Service for Installation, Commissioning
Transformer Knowledge
What is three main parts of a power transformer?
● Primary winding-which produce magnetic flux when it is connected to an electrical source
● Magnetic core-the magnetic flux produced by the primary winding, that will pass through this low reluctance path linked with secondary winding and create a closed magnetic circuit.
● Secondary winding-The flux, produced by primary winding, passes through the core, will link with the secondary winding. This winding also wounds on the same core and gives the desired output of the transformer.
FAQ
1. What is the scope of your supply?
We can supply distribution transformers up to 5000KVA 35KV, power transformers up to 200 MVA 230KV, dry type transformers up to 10 MVA 35KV, and other special transformers such as rectifier transformer and furnace transformers.
2. What service can you provide?
We can provide design, manufacturing, delivery, installation, commissioning, after-sale service.
3. Can I visit your company?
You are welcomed to visit our company at any time, contact us to get start the journey.
