Product Introduction
SCOTECH supplies power pole mounted transformer. Including single phase and three phase pole mounted transformer. It can reduce the length of low-voltage distribution lines, reduce line losses, and improve the quality of power supply. The transformer is designed with high efficiency and energy-saving coil core structure. The transformer is characterized by small volume, small infrastructure investment, reduced radius of low-voltage power supply and more than 60% loss of low-voltage line. Adopts fully sealed structure, with strong overload capacity, high reliability of continuous operation and simple maintenance. It is suitable for rural power grid, remote mountainous areas, scattered villages, agricultural production, lighting and power consumption, and can also be used for energy-saving transformation of railway and urban power grid. Our transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply

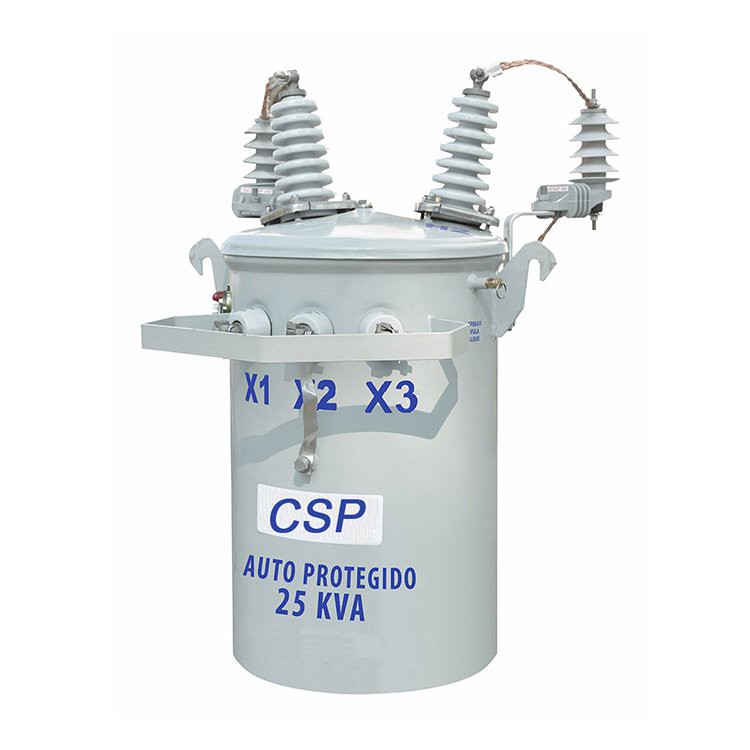

Product: Single phase pole mounted transformer
Phase: Single
Rated Power: Up to 167KVA
Primary Voltage: Up to 13.8KV
Product: Three phase pole mounted transformer
Phase: Three
Rated Power: Up to 1000KVA
Primary Voltage: Up to 35KV
Technical spec for single phase pole mounted transformer
| Rated Power | Primary Voltage | Secondary Voltage | No load loss (W) | Load loss (W) |
| 3 KVA | 6KV 6.66KV. 6.35KV 7.2KV 7.6KV 10KV 11KV 13.2KV 13.8KV | 120/240V 240/480V 139/277V 120/208V 600V | 9 | 45 |
| 5 KVA | 19 | 75 | ||
| 10 KVA | 36 | 120 | ||
| 15 KVA | 50 | 195 | ||
| 25 KVA | 80 | 290 | ||
| 37.5 KVA | 105 | 360 | ||
| 50 KVA | 135 | 500 | ||
| 75 KVA | 190 | 650 | ||
| 100 KVA | 210 | 850 | ||
| 167 KVA | 350 | 1410 |

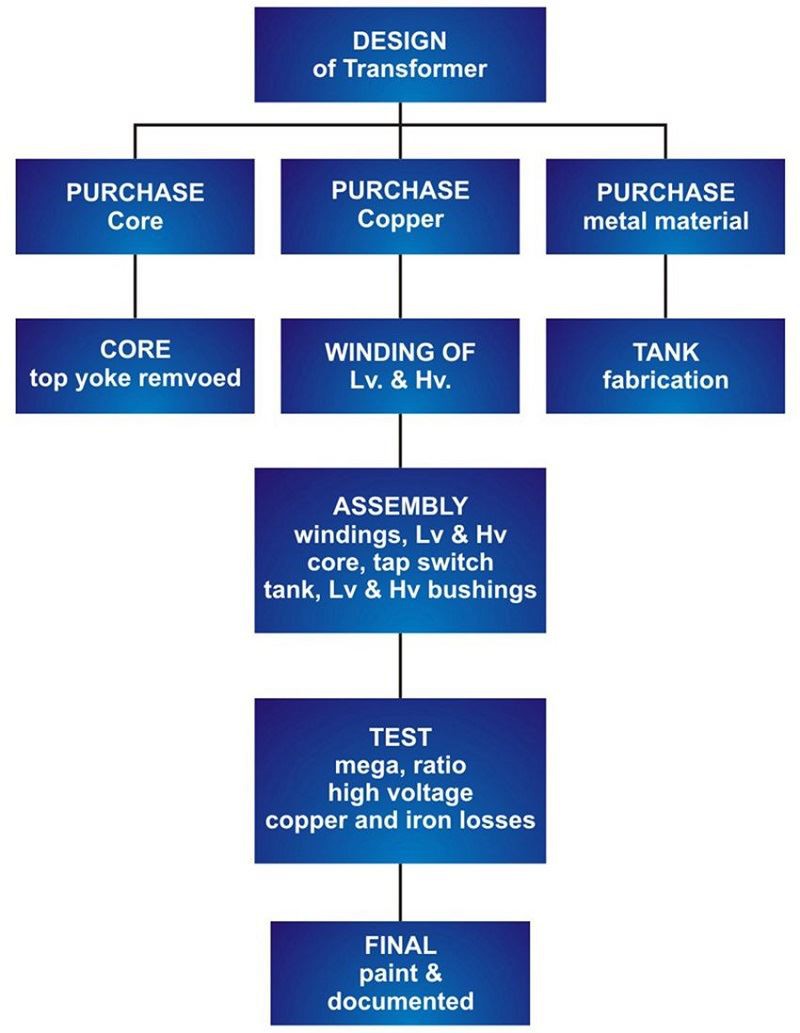

Pole Mounted Transformer Manufacturing
100 KVA Three phase Pole Mounted Transformer for Ecuador

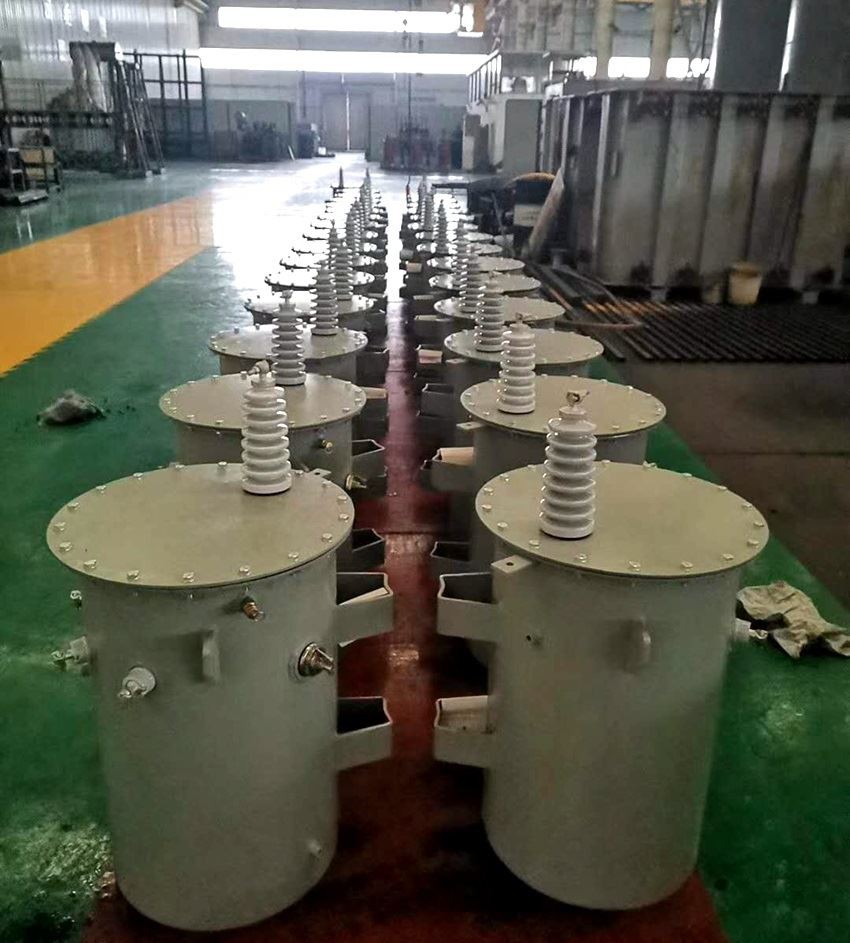

50 KVA Single-phase pole mounted transformers for Philippines
Packing and delivery of single phase pole transformer
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days( with imported components)
