Product Introduction
SCOTECH delivered 16 units of 800 KVA dual voltage distribution transformer to South Africa in 2014, the rated power of the transformer is 800 KVA, the primary voltage of this is 11KV, the secondary voltage is 6.6KV and 0.4KV, they can be switch to use either of them. The transformer is equipped with 5 tapping position NLTC. Our 800 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time. We also provide distribution transformer, dry type transformer, furnace transformer and rectifier transformer. If you interested in any of these items, pls do not hesitate to contact us, we will give you more details.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
800 KVA Dual Voltage transformer specification and data sheet
| Delivered to | South Africa |
| Year | 2014 |
| Model | S-800KVA-11(6.6)/0.4KV |
| Type | Oil Immersed distribution Transformer |
| Standard | IEC60076 |
| Rated Power | 800 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 11(6.6) KV |
| Secondary Voltage | 0.4 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 5.0 ± 10% |
| Tap Changer | OLTC |
| Tapping Range | ±2*2.5% @ Primary Side |
| No Load Loss | 0.98KW |
| On Load Loss | 7.5KW |
| Accessories | Standard Configuration |

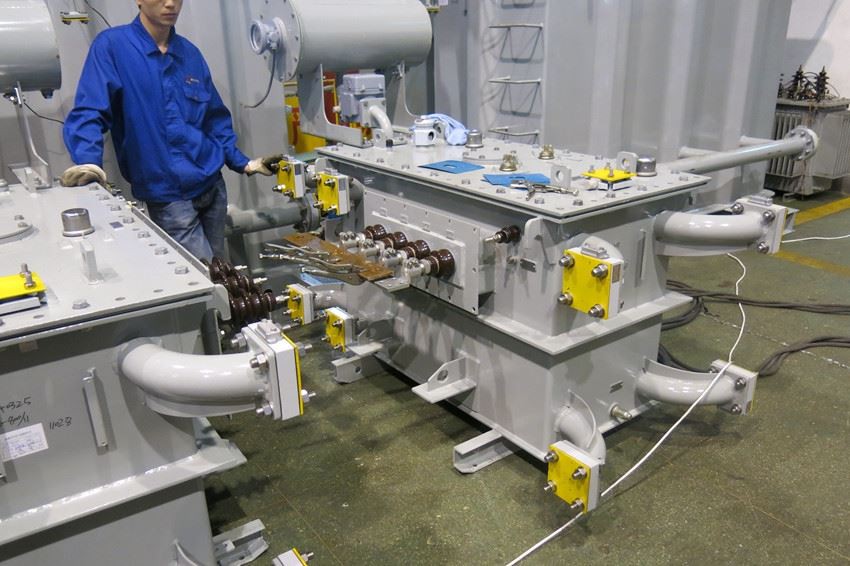

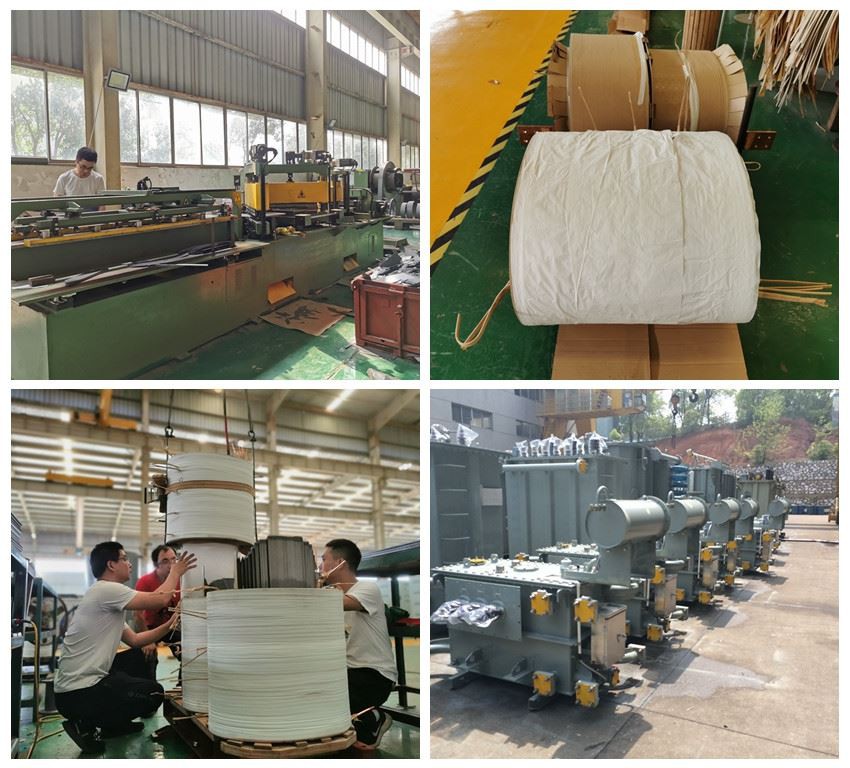

800 KVA 11(6.6)/0.4KV Transformer Manufacturing

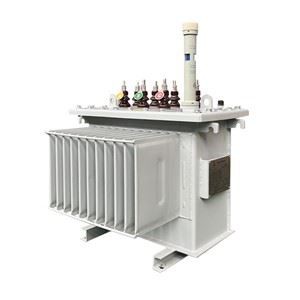

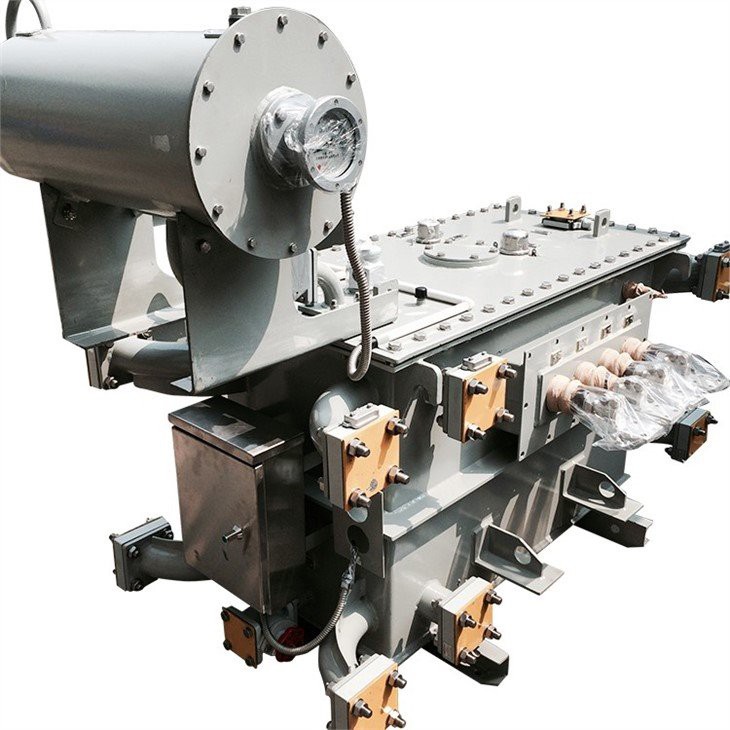

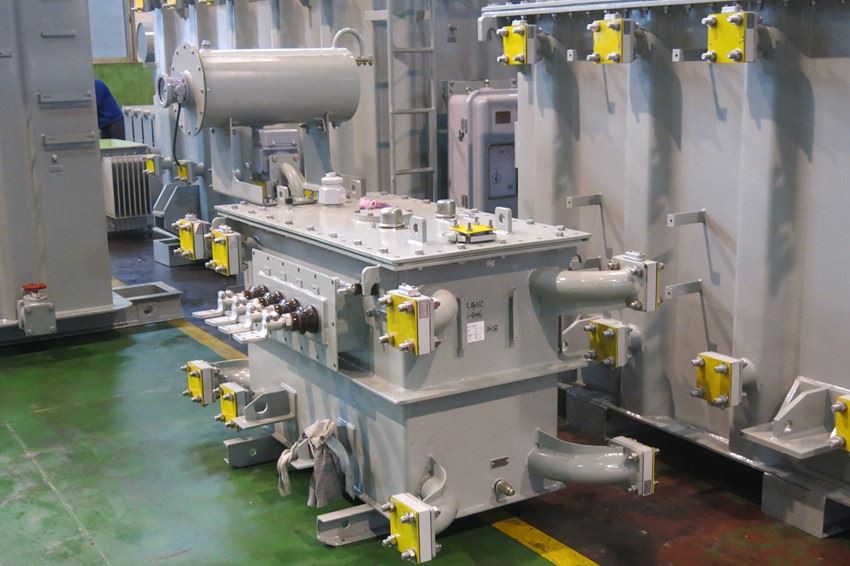

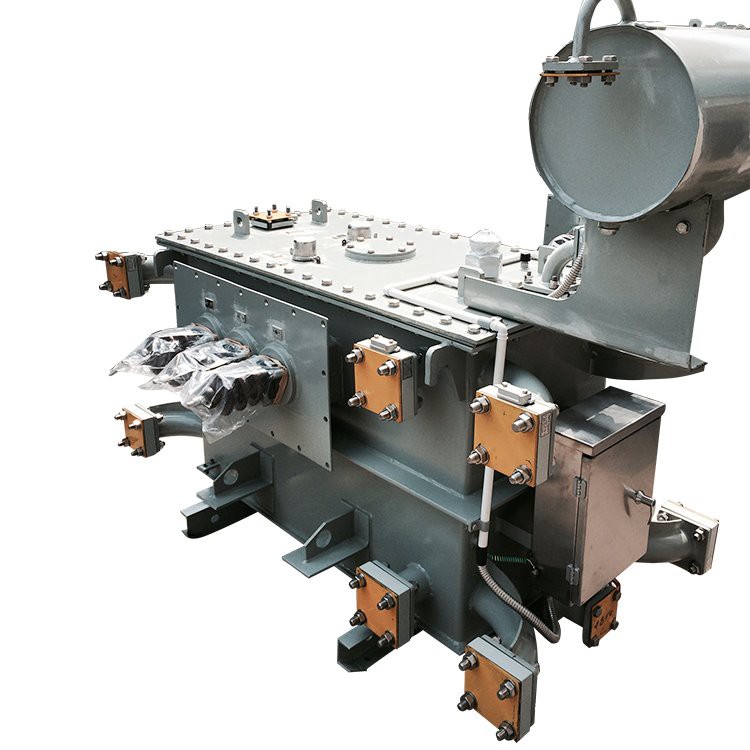

Finished 800 KVA 11(6.6)/0.4KV Transformer

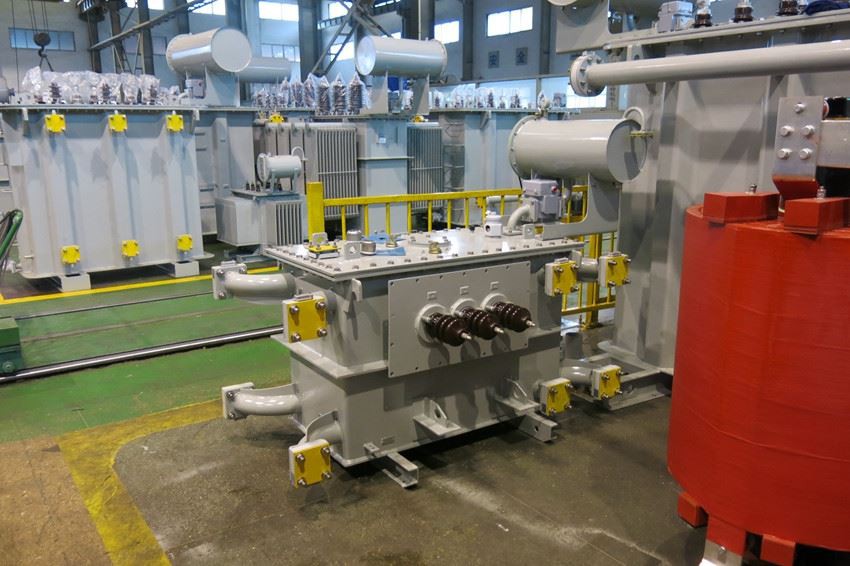

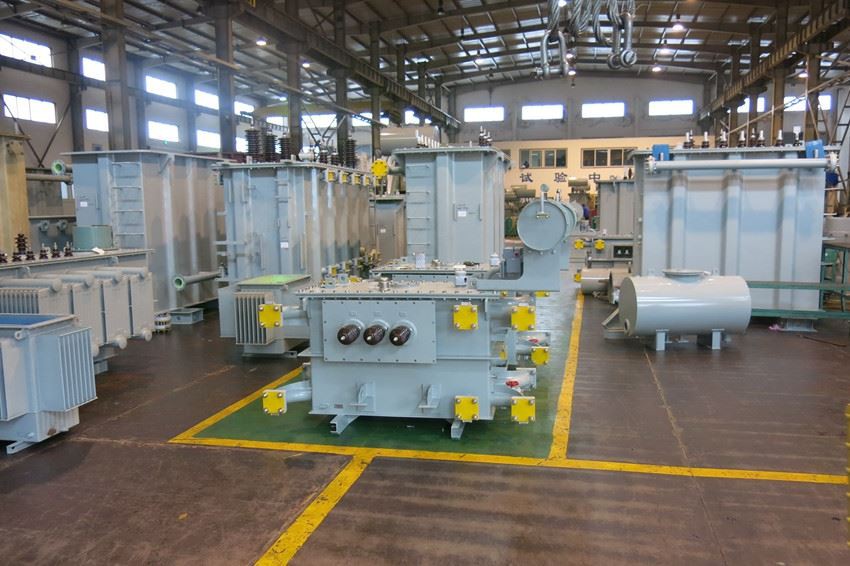

800 KVA 11(6.6)/0.4KV Transformer Testing

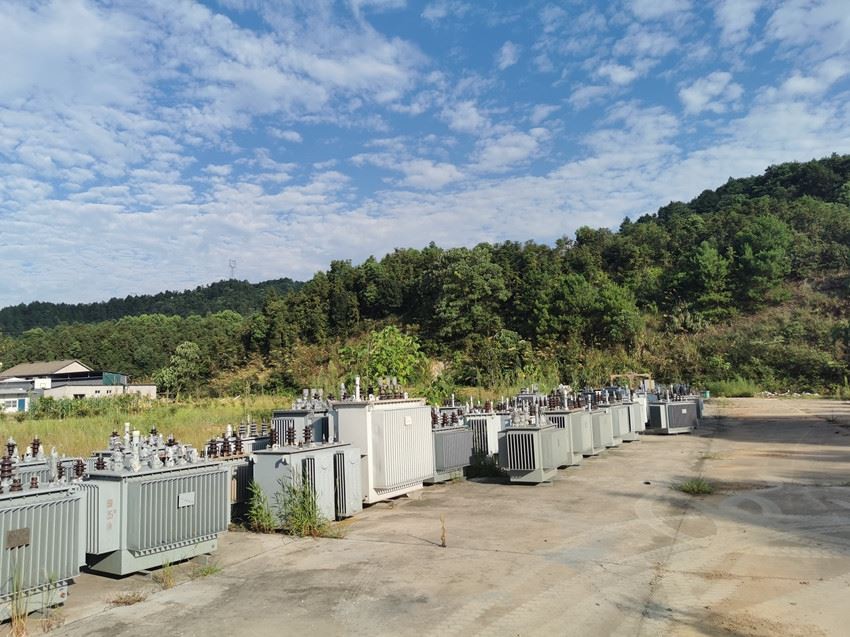

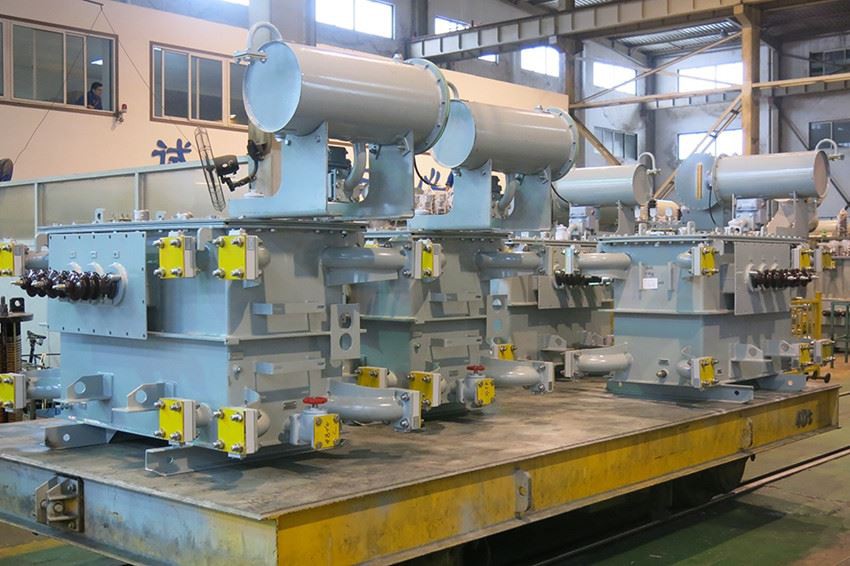

Packing and Delivery
What is the main work of transformer?
A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to “step up” or “step down” voltages and works on the magnetic induction principle. When voltage is introduced to one coil, called the primary, it magnetizes the iron core.
Installation Commissioning and Operation
FAQ
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
