Product Introduction

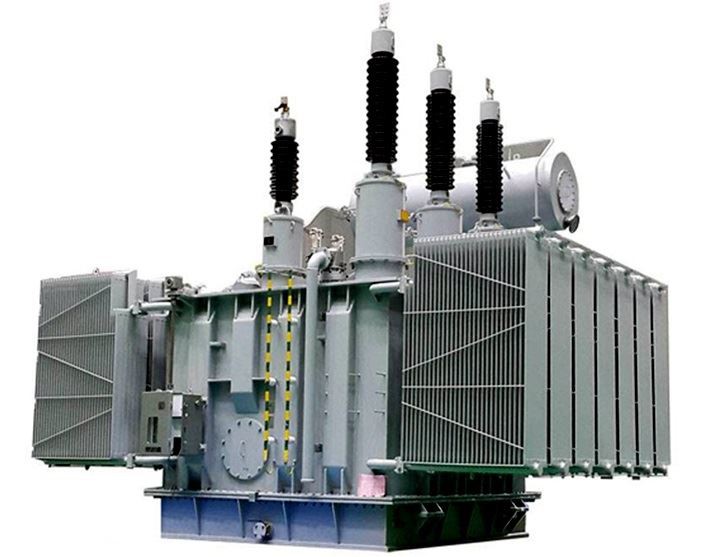

This 80 MVA 110KV power transformer was delivered to Ukraine in 2005, the rated power of the transformer is 80000 KVA. This 80000 KVA Step Down transformer 110kv to 15kv, the primary voltage is 110kv, the secondary voltage is 15kv. Large power transformers is usually used in power station, nuclear power stations and other places. And usually equipped with on load tap changer, Our 80 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
80 MVA oil type power transformer specifications and data sheet
| Delivered to | South Africa |
| Year | 2005 |
| Model | SZ11-80 MVA-110/15KV |
| Type | Oil Immersed Power Transformer |
| Standard | IEC60076 |
| Rated Power | 80 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 110 KV |
| Secondary Voltage | 15 KV |
| Winding Material | Copper |
| Vector Group | YNd1 |
| Impedance | 10% |
| Tap Changer | OLTC |
| Tapping Range | ±8*1.25% |
| Accessories | Standard Configuration |
| Remarks | N/A |

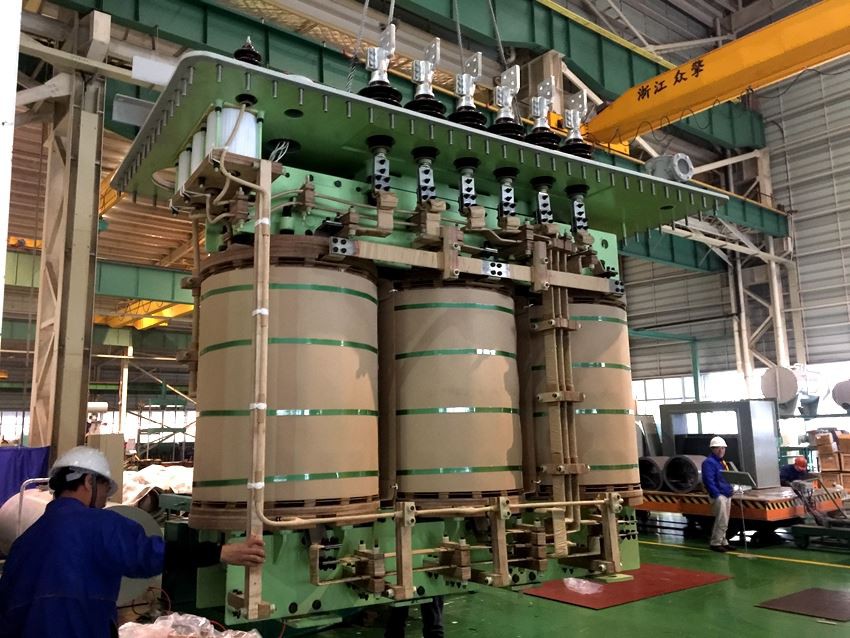

80 MVA 110/15KV Transformer windings
What is the difference between copper and aluminum windings?
The windings consist of the current-carrying conductors wound around the sections of the core, and these must be properly insulated, supported and cooled to withstand operational and test conditions.
Copper and aluminum are the primary materials used as conductors in power-transformer windings.
While aluminum is lighter and generally less expensive than copper, a larger cross section of aluminum conductor must be used to carry a current with similar performance as copper.
Copper has higher mechanical strength and is used almost exclusively in all but the smaller size ranges, where aluminum conductors may be perfectly acceptable.
The size of the aluminum transformers are bigger than the same rating copper transformers.

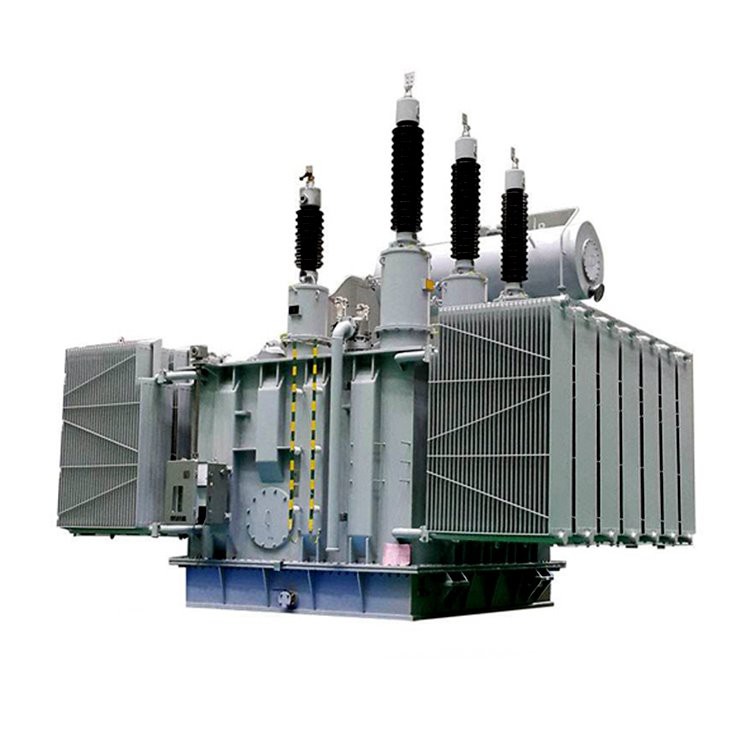

Finished 80 MVA 220/110KV Transformer

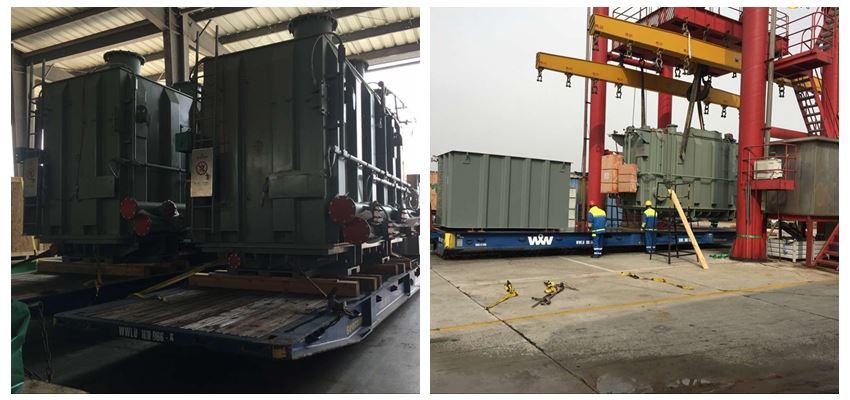

80 MVA 110/15KV Transformer shipping
FAQ
1. What is the scope of your supply?
We can supply distribution transformers up to 5000KVA 35KV, power transformers up to 200 MVA 230KV, dry type transformers up to 10 MVA 35KV, and other special transformers such as rectifier transformer and furnace transformers.
2. What service can you provide?
We can provide design, manufacturing, delivery, installation, commissioning, after-sale service.
3. Can I visit your company?
You are welcomed to visit our company at any time, contact us to get start the journey.
