Product Introduction

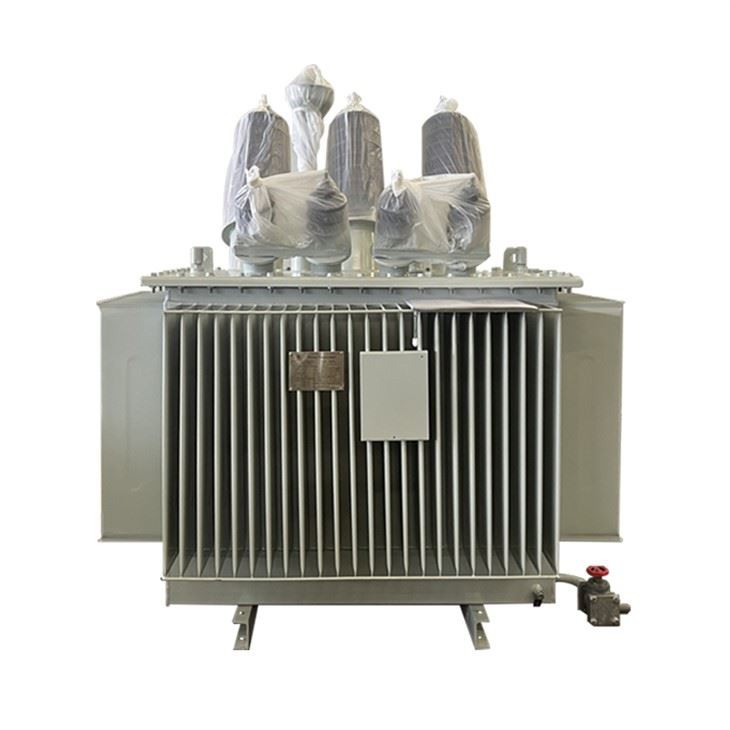

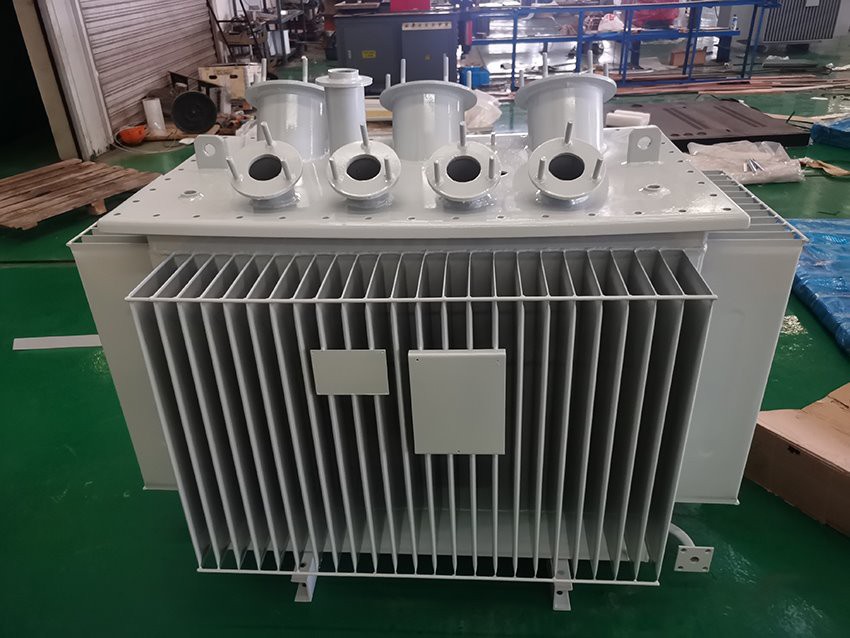

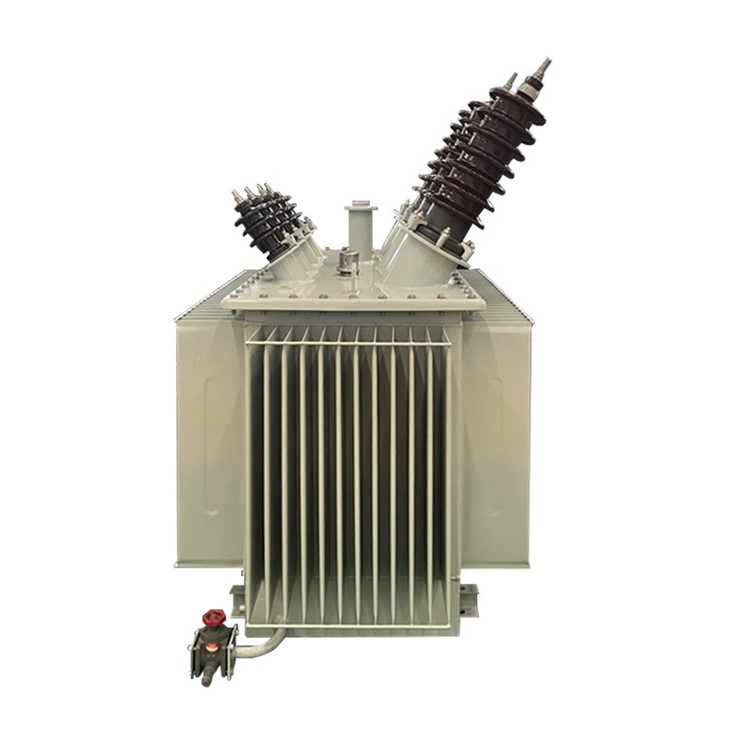

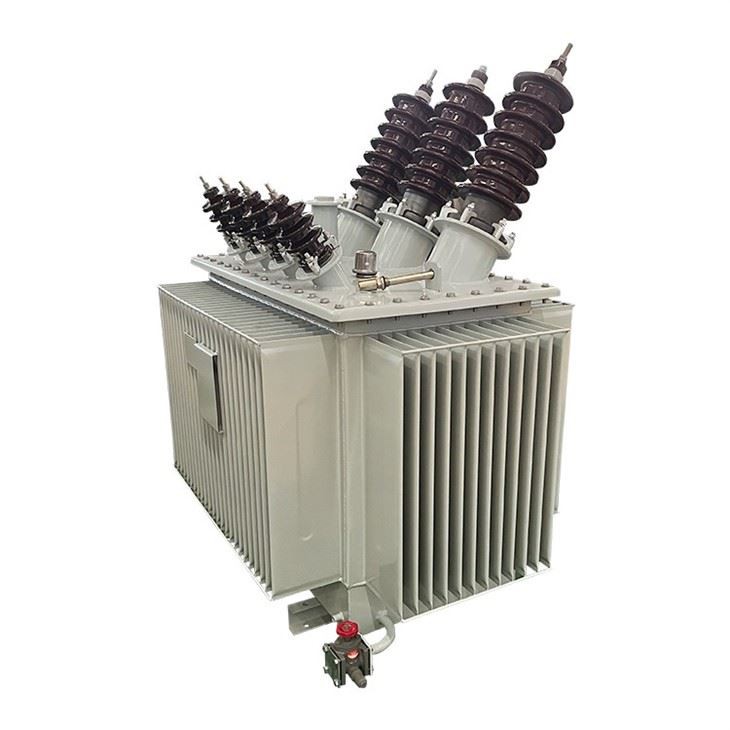

This 500 kVA power distribution transformer was delivered to Trinidad and Tobago in 2022 for a government project, the transformer is used for forest fires.
The rated power of the transformer is 500 kVA with ONAN cooling, the primary voltage is 33kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 6.6kV, they formed a vector group of Dyn11.
Our 500 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
500 KVA transformer specifications type and data sheet
| Delivered to | Trinidad and Tobago |
| Year | 2022 |
| Model | S-M-500 kVA-33/6.6kV |
| Type | Oil type distribution transformer
without conservator , bushings on top |
| Standard | IEC60076 |
| Rated Power | 500 kVA |
| Frequency | 60 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 33 kV |
| Secondary Voltage | 6.6 kV |
| Winding Material | Copper |
| Vector Group | Dny11 |
| Impedance | 5.12% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 1.3KW |
| On Load Loss | 6KW |
| Accessories | Standard Configuration |
| Remarks | N/A |
500 kVA-33/6.6kV Transformer Drawing

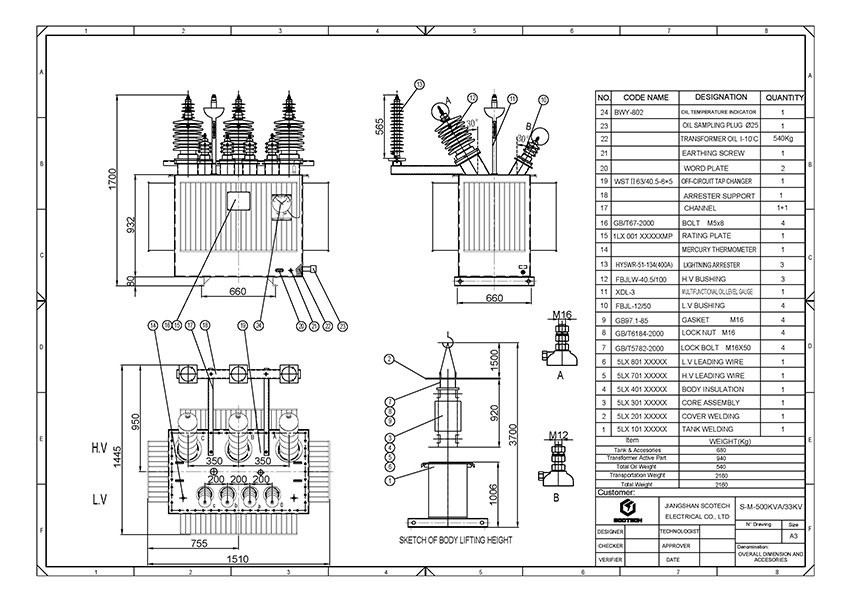

500 kVA transformer diagram drawing and size.
500 kVA-33/6.6kV Transformer Manufacturing Process
500 kVA-33/6.6kV Transformer Winding
Winding:
1.Our windings are made of high quality copper.

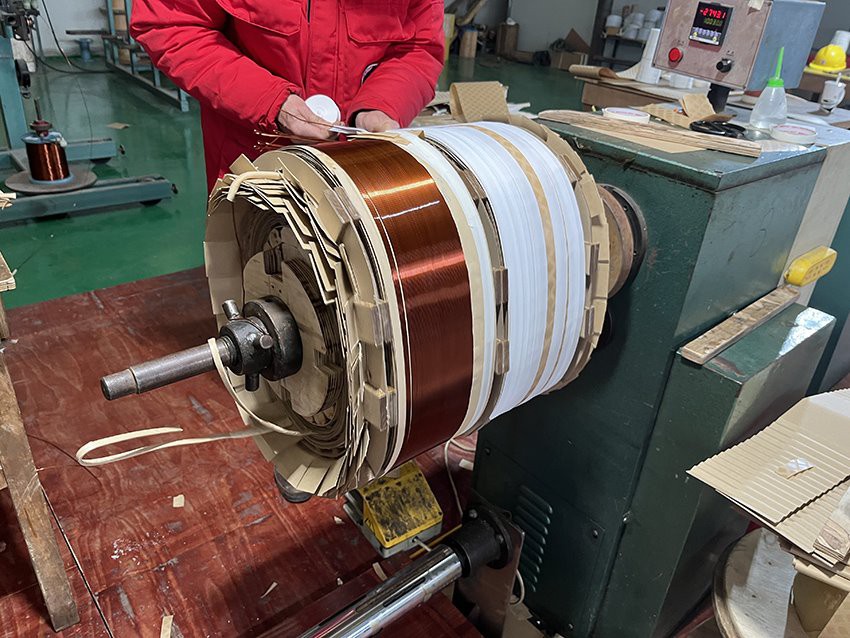

2.Both High Voltage (HV) and Low Voltage (LV) windings are done using Coil Winding Machines. The Copper strips/wires used in winding are meticulously selected for its quality to give the best output. The Copper strips/wires are paper covered and acts as insulators.
500 kVA-33/6.6kV Transformer Oil Tank
Oil Tank:
1. The oil tank is a transformer housing containing the iron core, winding and transformer oil.
2. The corrugated tank structure is fully sealed, and the corrugated will expand and compress with the increase of oil, isolating the transformer from the atmosphere and preventing oil deterioration and moisture. After oil removal, rust removal and phosphating treatment, the surface of corrugated oil tank is coated with rainproof paint. Moisture and salt spray.

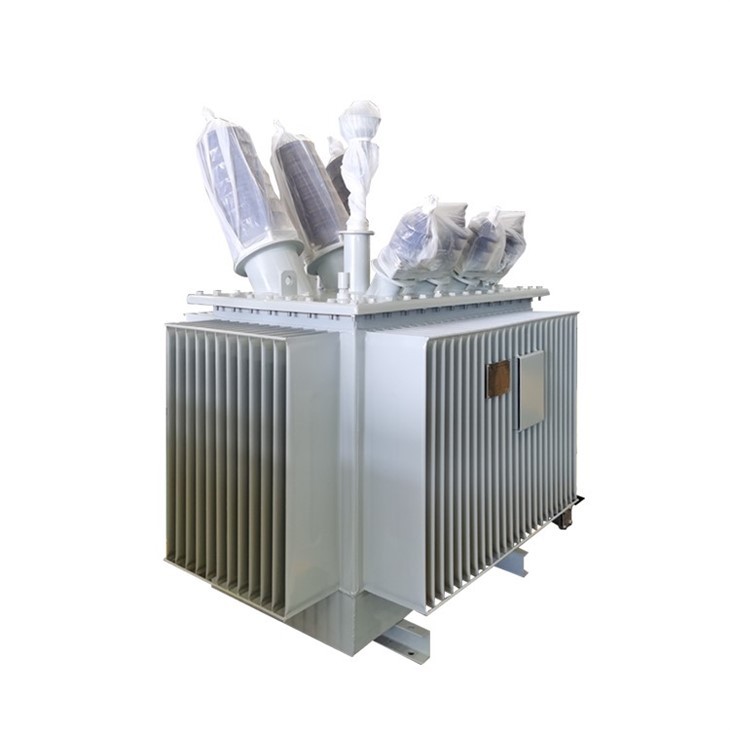

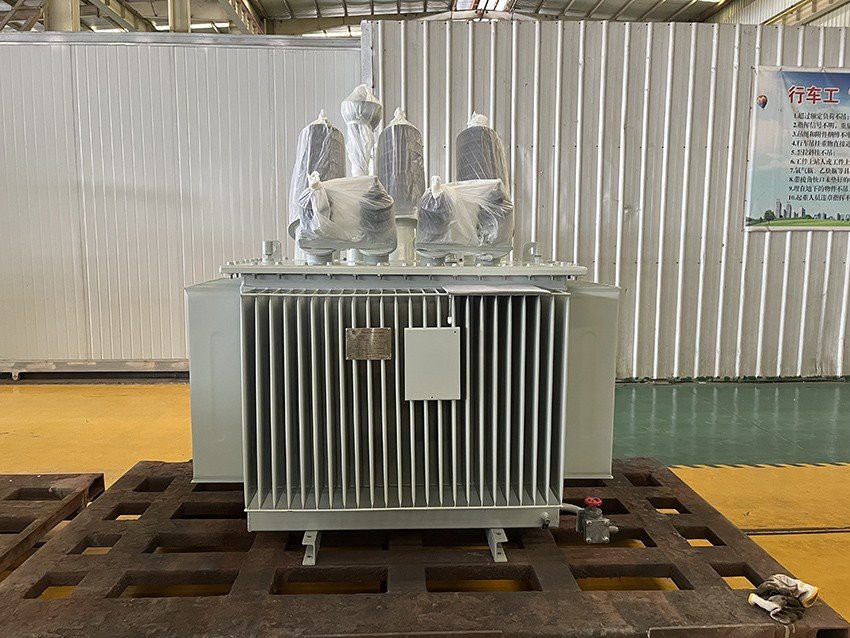

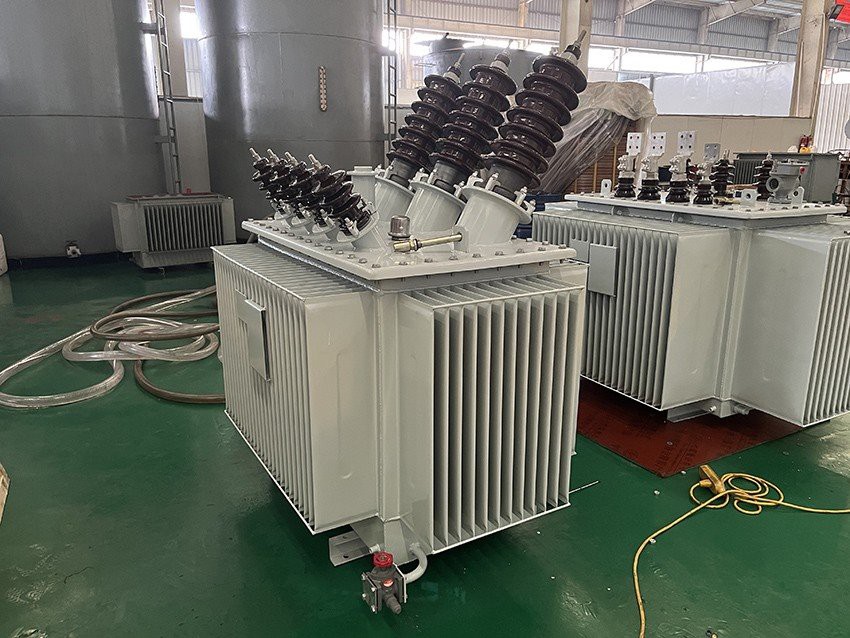

Finished 500 kVA-33/6.6kV Transformer

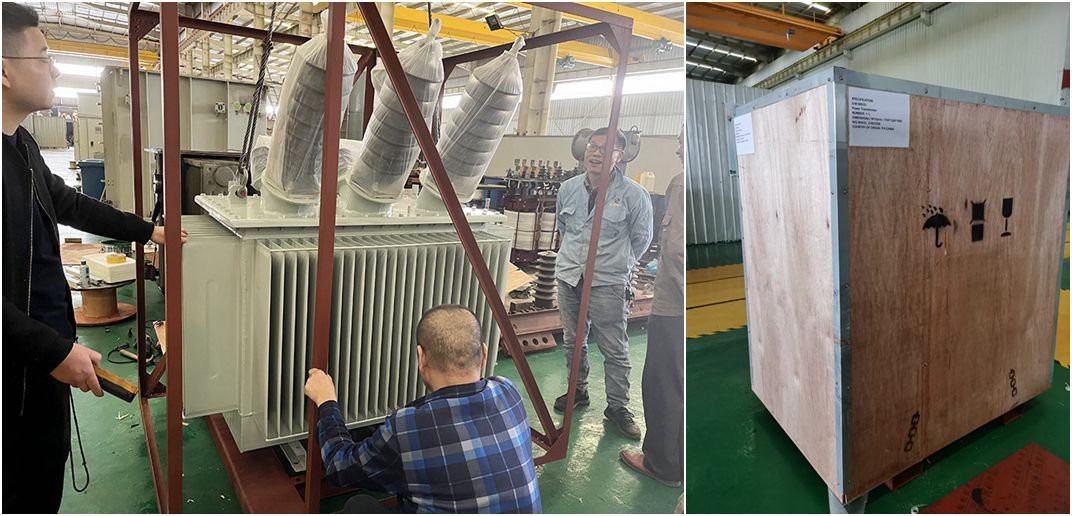

Packing and Delivery
FAQ
1. Where is your main market?
We had exported our transformers to more than 50 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)
