315 KVA 11KV Liquid Filled Distribution Transformer

This 315 KVA distribution transformer was delivered to a substation in South Africa in 2014, the rated power of the transformer is 315 KVA, the primary voltage of the transformer is 11KV and the secondary voltage is 0.4KV.

Product Introduction

This 315 KVA distribution transformer was delivered to a substation in South Africa in 2014, the rated power of the transformer is 315 KVA, the primary voltage of the transformer is 11KV and the secondary voltage is 0.4KV. The cooling system of these liquid filled transformers are ONAN, the coolant is PCB free transformer mineral oil and core material is used by grain oriented silicon steel sheet. Our 315 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time. We also provide power transformer, dry type transformer, furnace transformer and rectifier transformer.



SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.



Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV



Technical Specification

315 KVA distribution transformer specification and data sheet

Delivered to South Africa
Year 2014
Model S11-315 KVA-11/0.4KV
Type Oil Immersed distribution Transformer
Standard IEC60076
Rated Power 315 KVA
Frequency 50 HZ
Phase Three
Cooling Type ONAN
Primary Voltage 11 KV
Secondary Voltage 0.4 KV
Winding Material Copper
Vector Group Dyn11
Impedance 4%
Tap Changer NLTC
Tapping Range ±2*2.5%@primary side
No Load Loss 0.48 KW
On Load Loss 3.65 KW
Accessories Standard Configuration

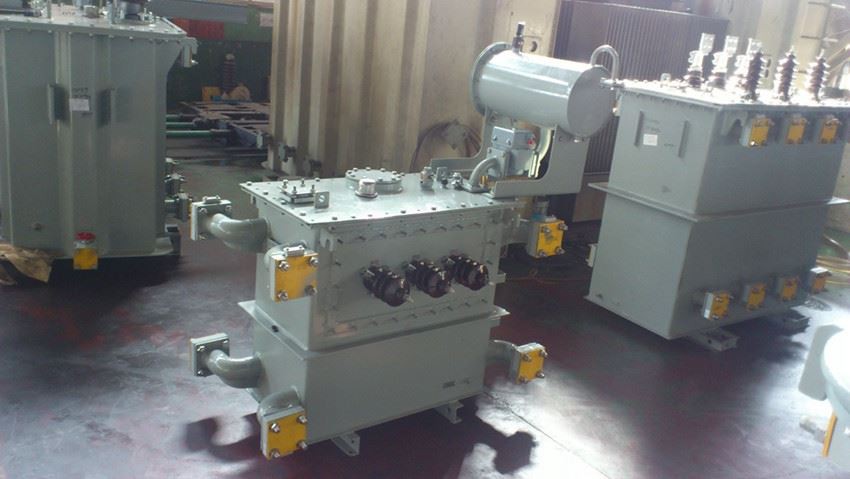

315 KVA 11/0.4KV Transformer Manufacturing

315 KVA 11KV Liquid Filled Distribution Transformer



Notes on transformer oil filling:

1. Before oil injection, the transformer oil shall pass the test.

2. The remaining oil in the transformer shall be drained as far as possible to avoid the quality deterioration of the new oil.

3. It is forbidden to mix dust, moisture, moisture and other dirt into the transformer through the oil when filling oil into the transformer.

4. The main body of the transformer should be in a vacuum state, – 0.095mpa, to prevent the corrosion of moisture on the coil.

5. Vacuum oil purifier should be selected as oil filling equipment, and gear oil pump is not allowed to directly inject oil into transformer.

6. The oil injected into transformer should be new oil or running oil of the same brand as the oil in the original equipment, and its indicators should meet the standards.

7. The oil flow speed should be controlled as much as possible in the process of oil injection, which is conducive to the bubbles in the oil to be separated from the oil in time.

8. Special personnel must be assigned to monitor the oil level and make corresponding exhaust preparation.

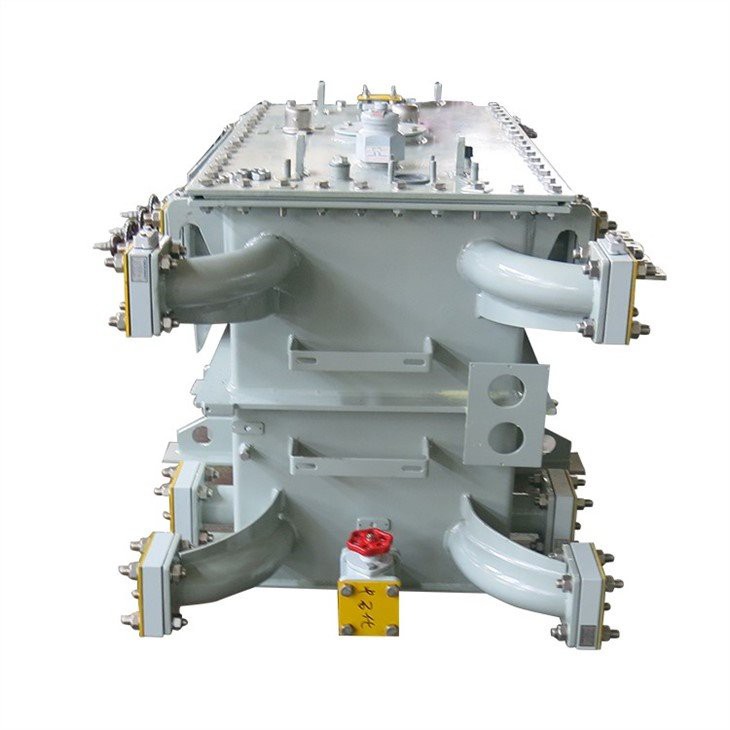

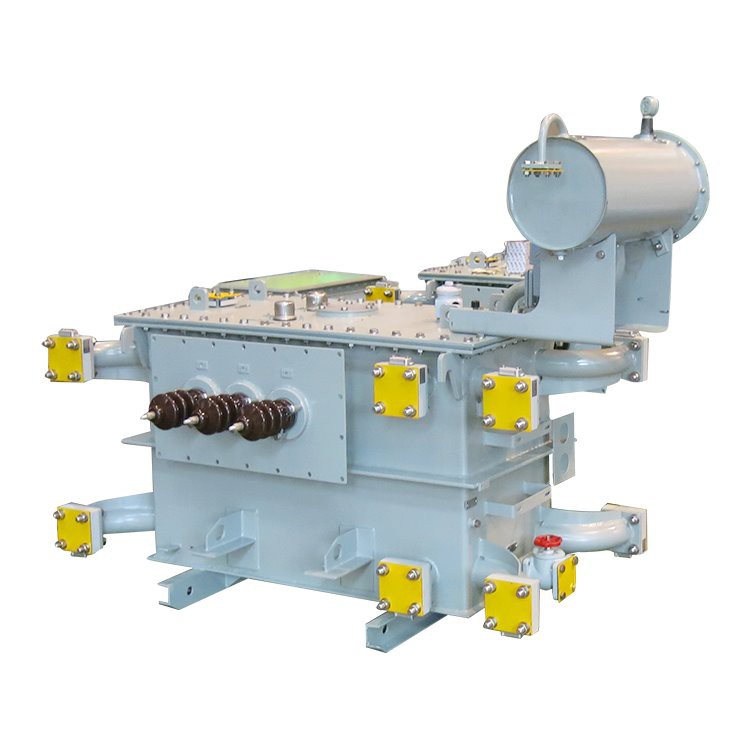

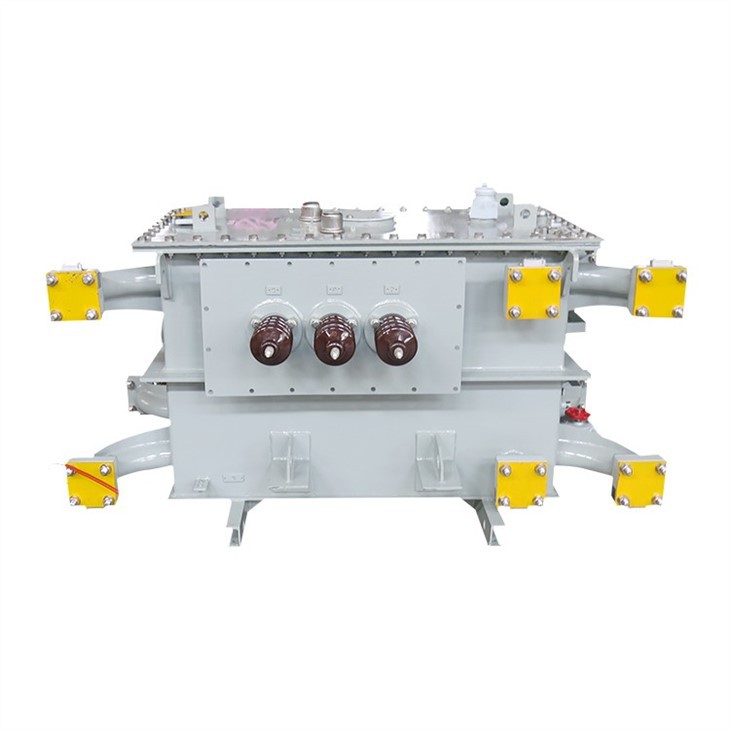

Finished 315 KVA 11/0.4KV Transformer

315 KVA 11KV Liquid Filled Distribution Transformer

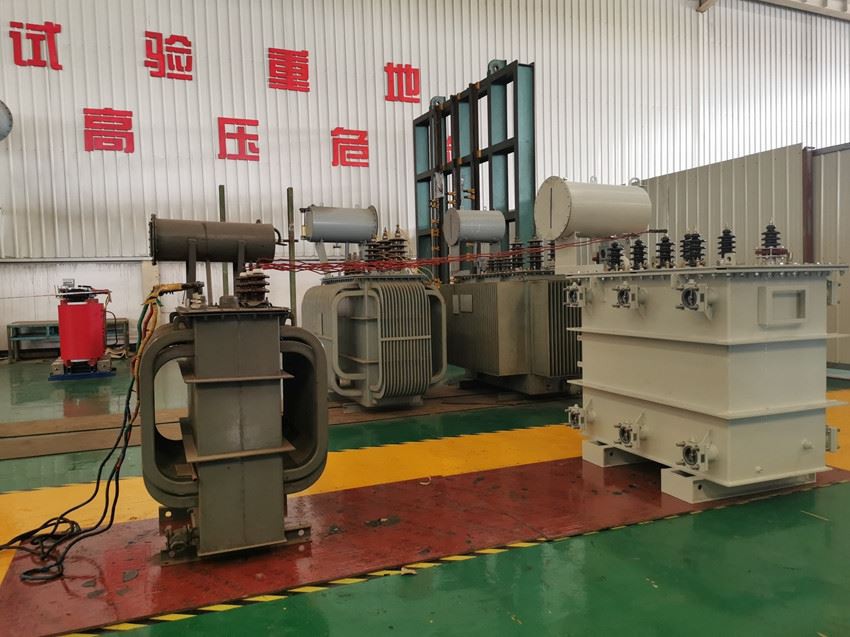

315 KVA 11/0.4KV Transformer Testing

315 KVA 11KV Liquid Filled Distribution Transformer

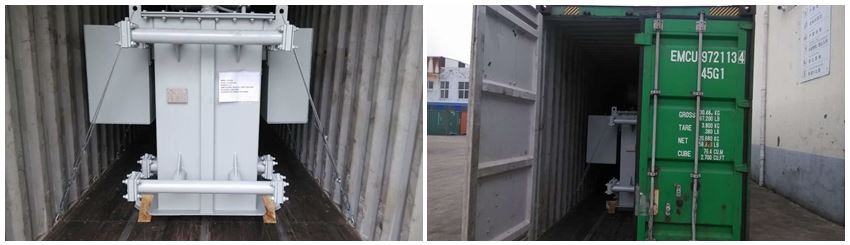

Packing and Delivery

315 KVA 11KV Liquid Filled Distribution Transformer

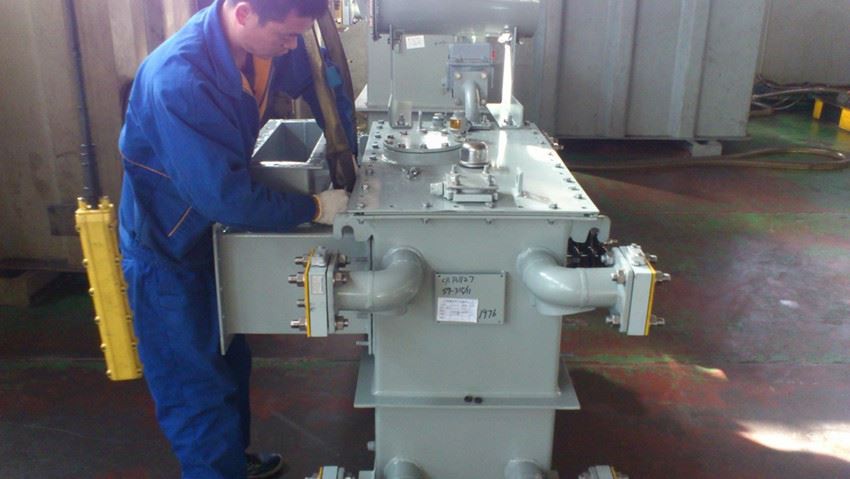

Installation Commissioning and Operation

315 KVA 11KV Liquid Filled Distribution Transformer



Location selection of distribution transformer installation:

1. Avoid flammable and explosive places.

2. Avoid dirty and low-lying areas.

3. High voltage and low-voltage incoming and outgoing lines are convenient.

4. Convenient construction, operation and maintenance.



FAQ

1. What is the scope of your supply?

We can supply distribution transformers up to 5000KVA 35KV, power transformers up to 200 MVA 230KV, dry type transformers up to 10 MVA 35KV, and other special transformers such as rectifier transformer and furnace transformers.

2. What service can you provide?

We can provide design, manufacturing, delivery, installation, commissioning, after-sale service.

3. Can I visit your company?

You are welcomed to visit our company at any time, contact us to get start the journey.
