Product Introduction
This 2 MVA transformer was delivered to South Africa in 2019. the rated power of the transformer is 2000 KVA. It is a step-down 11 KV to 415V transformer, the primary voltage of the transformer is 11 KV and secondary is 0.4 KV. Our 2 MVA distribution transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
2 MVA transformer specification and data sheet
| Delivered to | South Africa |
| Year | 2019 |
| Model | S11-2 MVA-11/0.4KV |
| Type | Oil Immersed distribution Transformer |
| Standard | IEC60076 |
| Rated Power | 2 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 11 KV |
| Secondary Voltage | 0.4 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 6.5% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 2 KW |
| On Load Loss | 18.3 KW |
| Accessories | Standard Configuration |
| Remarks | N/A |

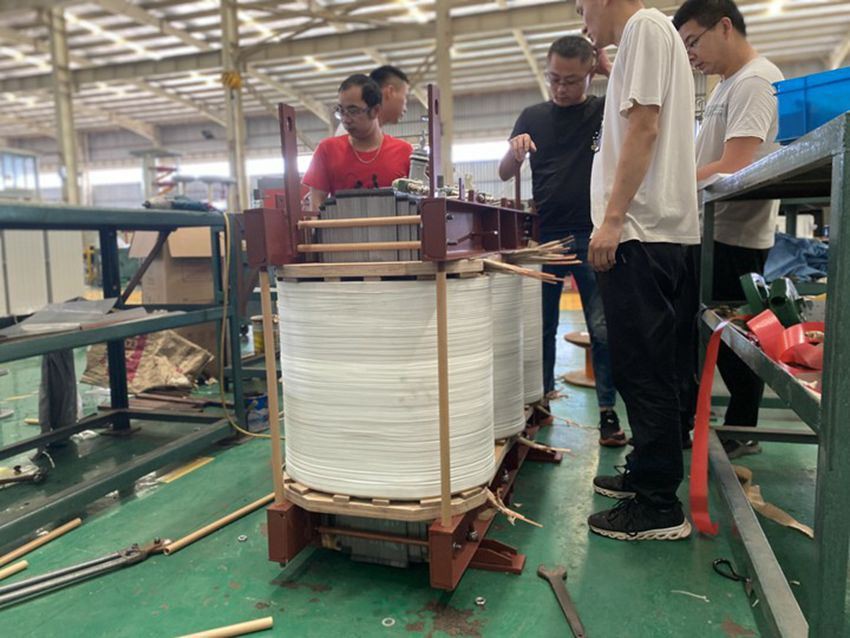

2 MVA 11/0.4 KV Transformer Winding
The functions of transformer winding
The primary wind brings the electric energy of the system into the transformer, while the secondary wind transfers the electric energy out, so the wind is the main component of the transmission and conversion of electric energy.

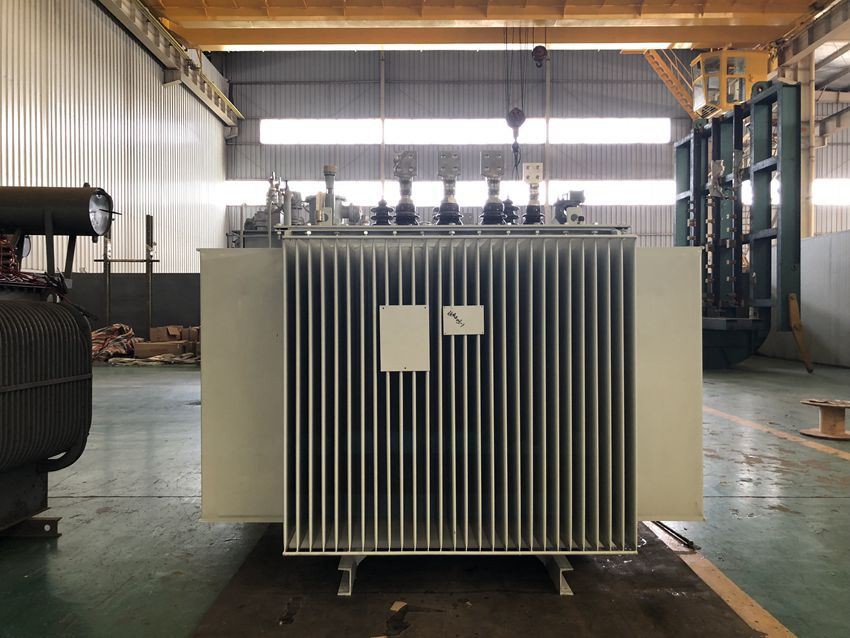

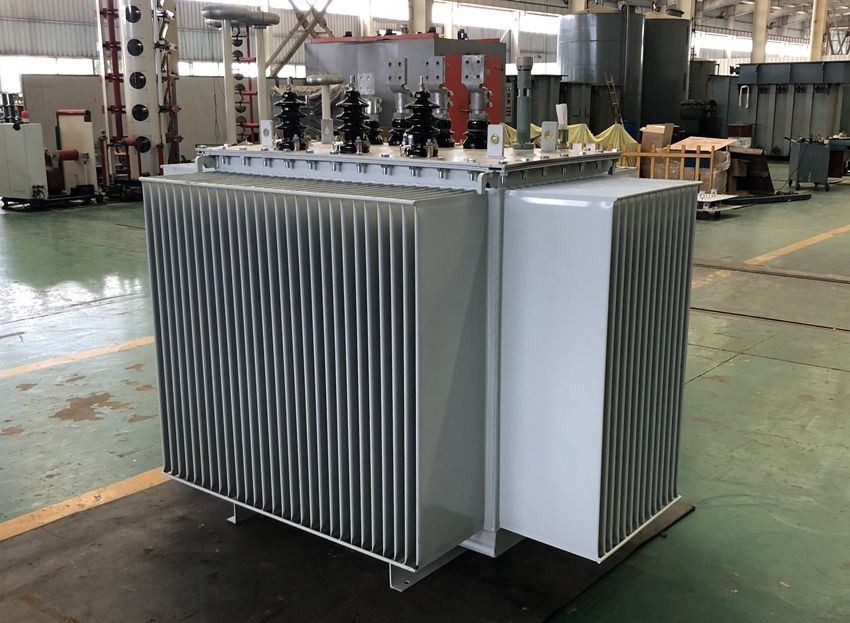

Finished 2 MVA 11/0.4 KV Transformer

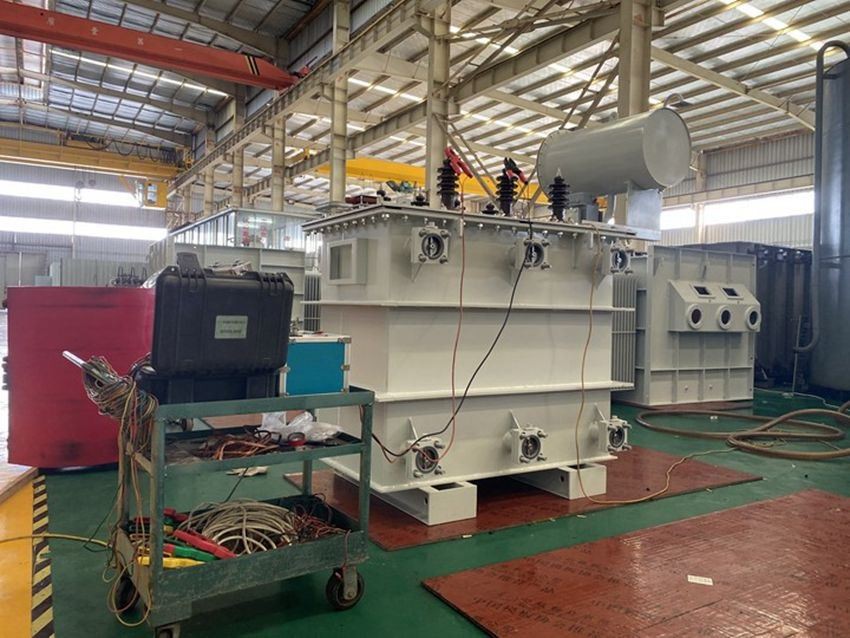

2 MVA 11/0.4 KV Transformer Testing
Special Tests of transformer include
1、Dielectric tests.
2、Measurement of zero-sequence impedance of three-phase transformers
3、Short-circuit test
4、Measurement of acoustic noise level
5、Measurement of the harmonics of the no-load current.
6、Measurement of the power taken by the fans and oil pumps.
7、Tests on bought out components / accessories such as buchhloz relay, temperature indicators, pressure relief devices, oil preservation system etc.

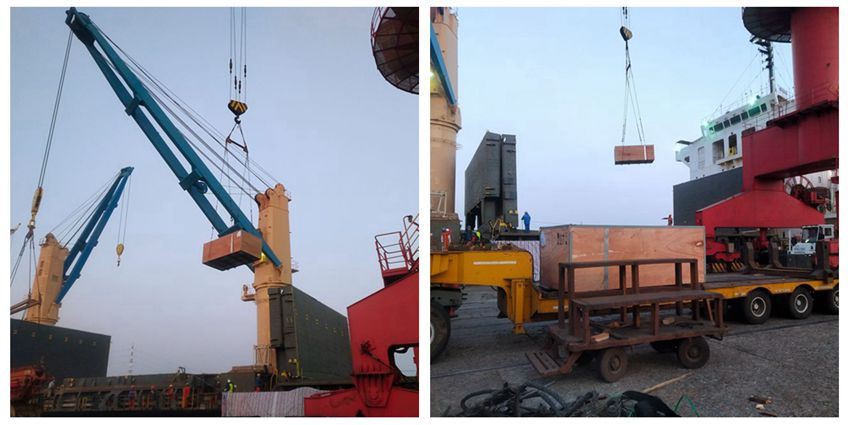

Packing and Delivery

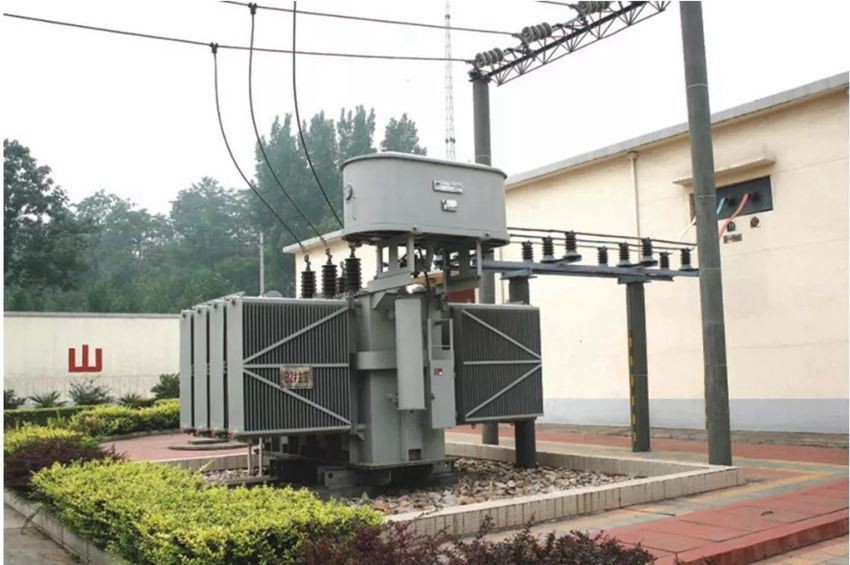

Installation Commissioning and Operation
Transformer knowledge
What is adjustable capacity transformer?
Regulating capacity transformer is a kind of energy-saving transformer specially used in rural areas. It can change the capacity of transformer by changing gear operation, to meet the different needs of rural peak power consumption and low power consumption in slack season. Therefore, it can greatly save electric energy and is a kind of agricultural transformer that should be vigorously promoted.
FAQ
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
