What is a Control Transformer?
Control transformers are specialized step-up or step-down transformers designed to meet specific electrical requirements in industrial and commercial applications. This article provides a comprehensive overview of control transformers, including their working principles, benefits, and applications.
1.What is a Control Transformer?
Control transformers are utilized to regulate power supply by either stepping up or stepping down voltage levels as needed. These transformers are critical in communication systems, industrial automation, household appliances, and other electronic devices. They are engineered to ensure consistent power delivery and efficient operation.

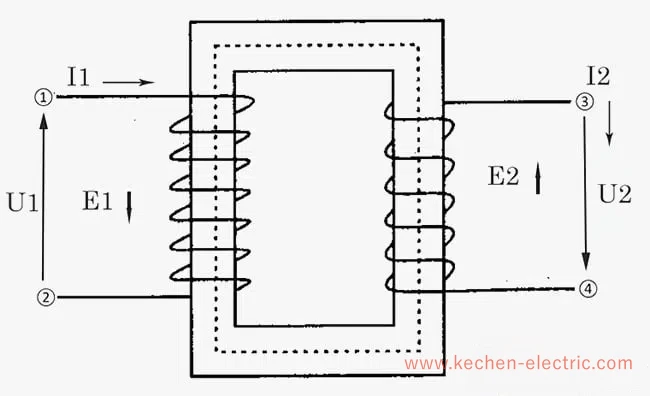

Working Principle:
A control transformer operates by transforming input voltage to a desired level using electromagnetic induction. When the input voltage is higher than required, the transformer adjusts the output to match the load. Similarly, in cases of low input power, the system can ensure safety by switching off or stabilizing voltage levels for continued operation.
Control transformers typically consist of:
Core: An iron core that facilitates magnetic flux.
Winding: Copper coils wrapped around the core, which generate the necessary electromagnetic fields.
Using principles like Ohm’s Law, these transformers maintain a balance between input and output voltages to suit varying operational conditions.
2. Types of Control Transformers
Control transformers come in multiple configurations to suit different applications:
Step-Up Transformer:
Increases voltage levels to match the load.
Common in scenarios where devices with lower voltage capacity are connected to higher-voltage sources.For example, if you want to run a 12V appliance from a 24V battery pack while charging your phone in another room, you could use this type of transformer.
Step-Down Transformer:
Reduces voltage for equipment that requires lower operating levels.
Often used in devices such as power adapters or lighting systems.
Additionally, control transformers can be classified into:
Autocoupling Transformers: Share a single winding for both input and output, offering compact design and efficiency.
Isolation Transformers: Separate the input and output to enhance safety and reduce electrical noise.
3.How Do Control Transformers Work?
Control transformers manipulate input voltage, current, or power within an electrical circuit. Using electromagnetic induction, they generate magnetic flux and induce electromotive forces (EMFs) to control output characteristics. This process ensures smooth operation even under varying input conditions, making these transformers indispensable in applications like motor drives and power supplies.
4. Advantages of Control Transformers
- Cost-Effective: Generally more affordable than standard transformers.
- Efficient Heat Dissipation: The control transformer is usually a dry-type transformer.Dry-type designs reduce the need for additional cooling systems.
- Low Noise Levels: Operates with minimal disturbance.
- Compact and Lightweight: Ideal for space-constrained applications.
- Low environmental pollution [Environmentally Friendly]: Free from liquid coolants, ensuring reduced environmental impact.
- Reduces installation costs [Versatile Application]: Reduces installation costs by eliminating the need for multiple transformers within a system.
5. Application Fields
Control transformers are extensively used across industrial sectors, including:
- Machine tools and equipment lighting.
- Secondary control circuits.
- Step-down isolation for safety systems.
- Power adapters and automation systems.
They can also be categorized into:
Fixed Frequency Transformers: Designed for consistent output voltage and current.
Variable Frequency Transformers: Adjustable to match specific customer or load requirements.
6.Conclusion
Control transformers play a vital role in modern electrical systems, ensuring stable and efficient power supply across various industries, including communication, lighting, and transportation.
This technology is very important to meet the needs of power supply. For reliable and customizable control transformers, KeChen Electric LLC. offers tailored solutions to meet diverse voltage requirements.
Contact KeChen Electric LLC. today to explore high-quality control transformers designed to meet your exact needs.
