What is the difference between a control transformer and a power transformer?
Though both devices serve the same fundamental purpose—altering output voltage—their specific applications and characteristics differ significantly.
If you’re unfamiliar with these two transformer types, this article will provide a comprehensive explanation. I believe you can get a satisfactory answer after reading this article

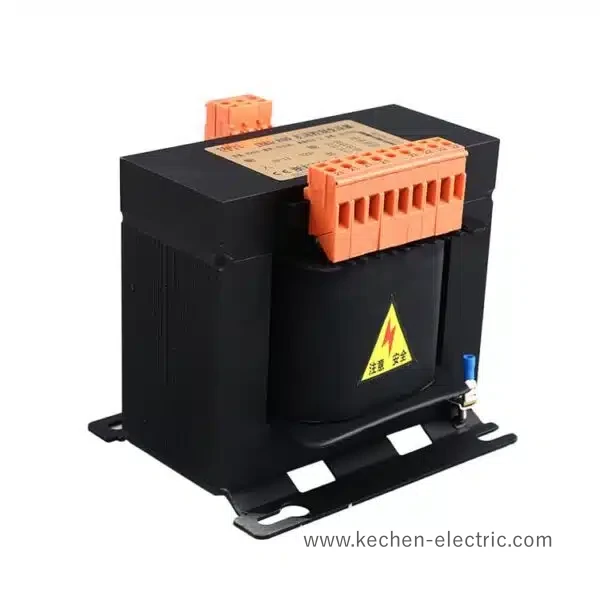

1. What is a control transformer?
A control transformer is an electrical device designed to step up or step down the voltage of alternating current. These transformers are integral in power supplies that regulate the output for various devices. For instance, if a light bulb requires 120 volts but needs to be switched off when it overheats, a control transformer can disconnect the bulb before it reaches its maximum temperature, preventing damage.
Control transformers work by adjusting their stator winding configuration to prevent generating magnetic fields when turned off, thereby dissipating excess energy safely.
Typically dry-type transformers, control transformers are commonly used in control circuits for mechanical equipment.

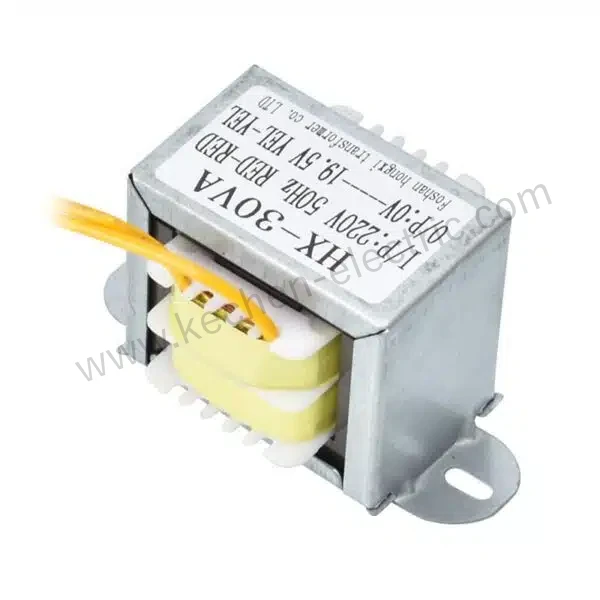

2. What is a power transformer?
A power transformer is a soft magnetic electromagnetic device primarily used for power transmission, voltage conversion, and insulation isolation. Widely used in power supply and power electronics technologies.
power transformers come in various sizes based on transmission power: high power (above 10 kVA), medium power (10 kVA to 0.5 kVA), low power (0.5 kVA to 25 VA), and micropower (below 25 VA).
Power transformers are fundamental in nearly all electronic devices, with their function ranging from voltage transformation to impedance transformation and electrical isolation. Their design and winding processes vary according to their application.

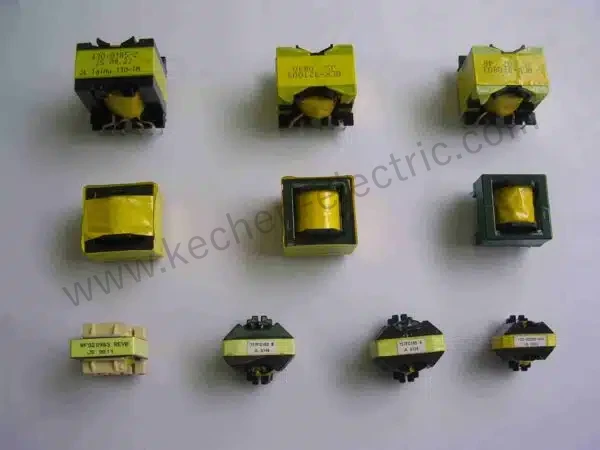

3. Control transformer vs. power transformer Differences
The primary distinction between these transformers lies in their intended use. Control transformers are specifically designed for control applications, unlike power transformers which serve as power sources.
Both operate on the principle of electromagnetic induction, transferring electrical energy or signals between circuits.
Control transformers are typically used for voltage levels like 6.3V, 12V, 24V, 36V, and 42V. Power transformers, on the other hand, are designed to handle specific voltage levels and are usually intended for higher power applications.
A power transformer is a transformer made according to a certain voltage level, and its main purpose is to use it as a power source. Its power is larger.
Whether it is a control transformer or a power transformer, it has the function of voltage conversion of alternating current.
Here are some key differences between control and power transformers:
• Control transformers are more versatile and used more widely than power transformers.
• Control transformers are generally more expensive than power transformers.
• Control transformers are larger in size compared to power transformers.
• Power transformers often require customization, whereas control transformers have numerous standard specifications.
Control transformers increase the voltage of an AC signal, while power transformers either step up or step down the voltage or current in a circuit. They can function independently or in tandem with another transformer to modify the output voltage and frequency.
4. Conclusion
In essence, a control transformer is designed to step up the voltage of low-voltage current, whereas a power transformer steps down high-voltage current.
Both transformers help to regulate current by changing it from one phase or frequency to another.Both devices are essential in regulating current, though they serve different purposes. Understanding these differences will help you make an informed choice when investing in either type.
