Various MVA 50KV 60KV 69KV Power Transformer

Product Introduction

Our high voltage electric transformer has many categories. For example, a 20MVA transformer with input voltage of 50 KV、60KV、69KV. Our high voltage electric transformer with reasonable structure layout, with good appearance, performance and quality, low noise and low loss.



1)The core joints are of stepped shape with 5steps, and the surface of the core is coated with cured paint to lower losses and noise.



2)Winding adopts mature structure, which ensure the reliability of transformer operation. Its insulation structure helps enhance its mechanical strength and the short circuit withstanding ability.



3)Body adopts mature insulation structure, and strictly guarantee the main axial insulation margin. Body mostly adopt multi-coil whole assembly, processed in constant voltage and evaporation, which made coil shrink evenly and with less renounce, and enhance the electric strength and mechanical strength.



SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.



Scope of Supply

Product: Oil Immersed Power Transformer

Rated Power: Up to 200 MVA

Primary Voltage: Up to 230 KV



Products Specification

High voltage power transformer specification and data sheet

Rated Capacity (kVA)	High Voltage (kV)	H.V Tap Range (%)	Medium Voltage (kV)	Low Voltage (kV)	Vector Group	Short-circuit Impedance (%)		No-load Loss(kW)	On-load Loss(kW)	No-load Current (%)
						Step up	Step down
6300	220 110 132 69 60 50 others	±2.2.5% ±8*1.25% others	35 37 38.5 others	10.5 11 others	YNyn0d11 others	HV-MV: 17.5~18.5 HV-LV: 10.5 MV-LV: 6.5	HV-MV: 10.5 HV-LV: 17.5~18.5 MV-LV: 6.5	9	44.6	0.82
8000								10.6	53.2	0.78
10000								12.6	62.7	0.74
12500								14.7	74.1	0.7
16000								17.9	90.3	0.66
20000								21.1	106.4	0.65
25000								24.6	126.4	0.6
31500								29.4	149	0.6
40000								34.9	180	0.55
50000								41.6	214	0.55
63000								49	256	0.5

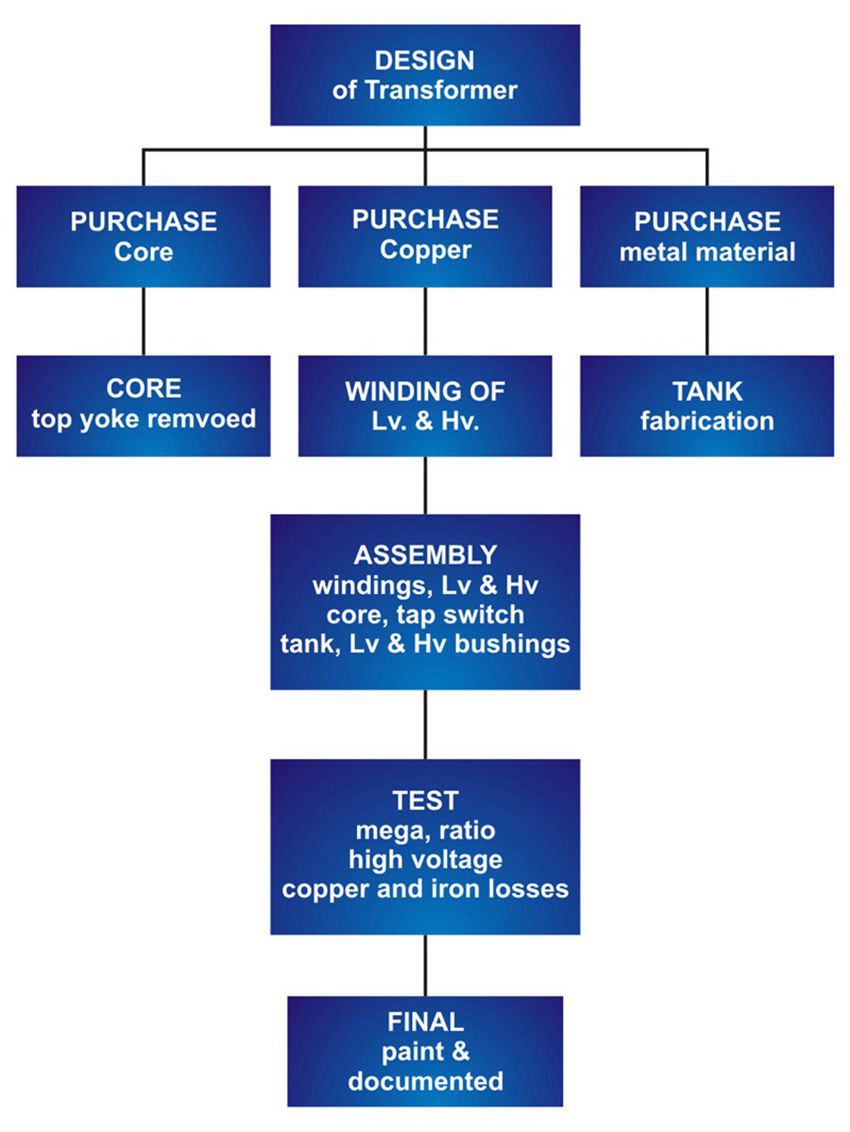

High voltage electric transformer Manufacturing

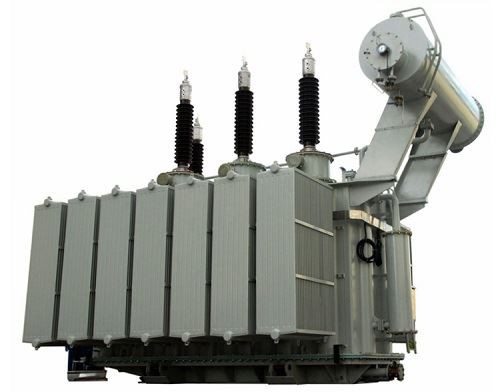

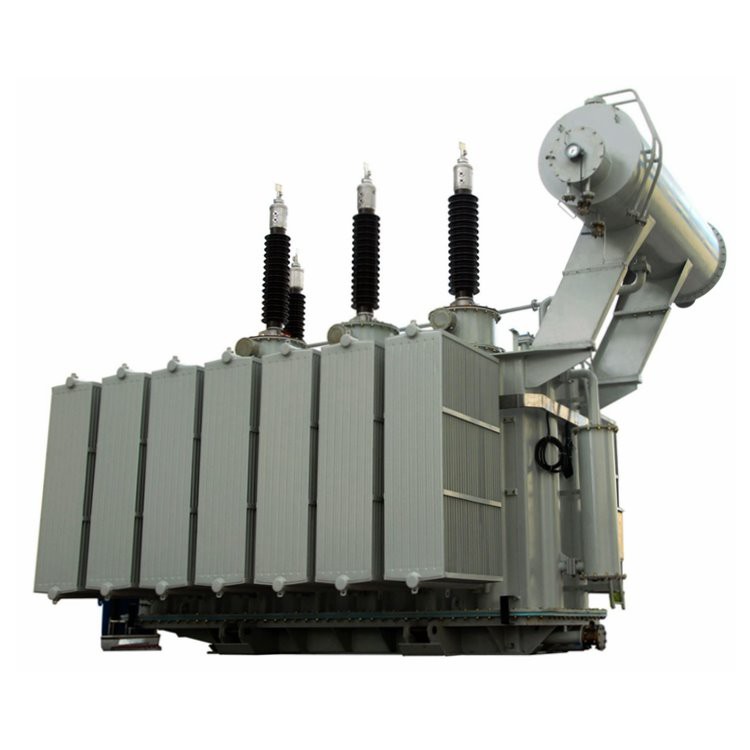

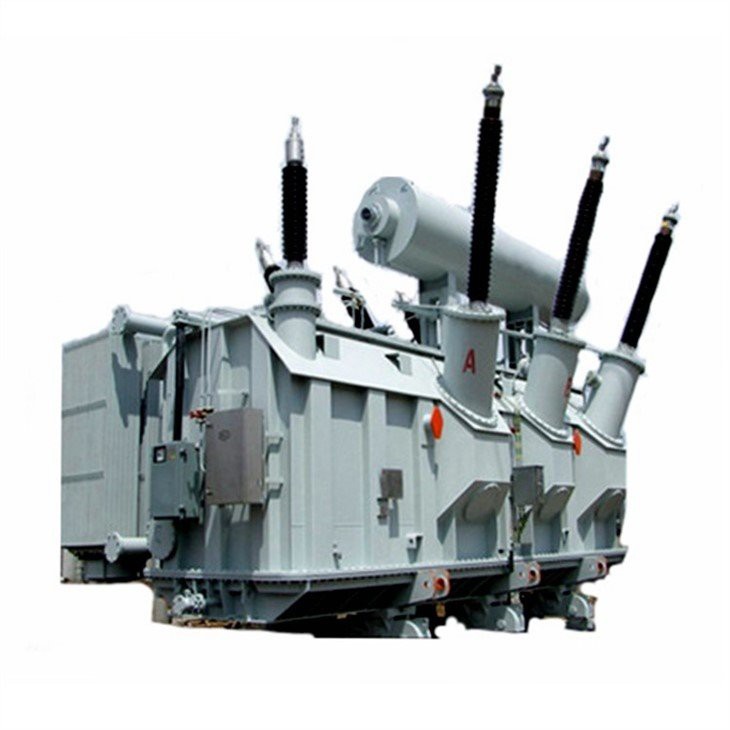

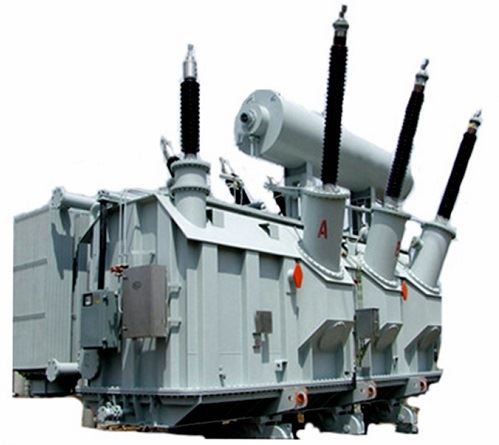

Finished high voltage electric transformer

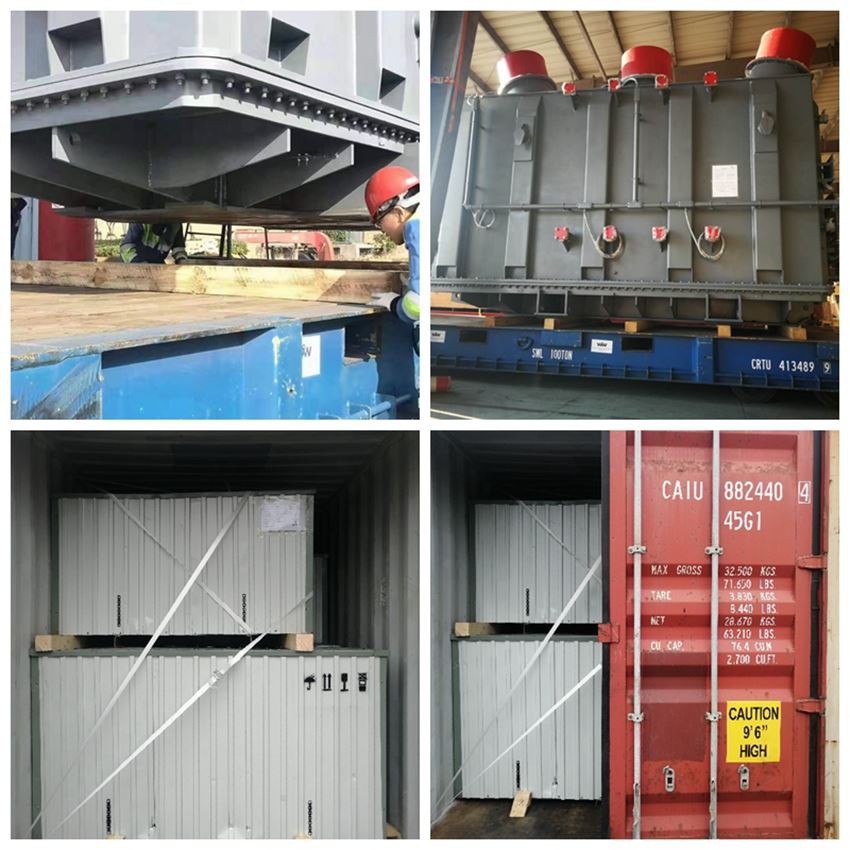

Packing and Delivery



FAQ

1. Where is your main market?

We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.

2. What certificate do you have?

We have KEMA, CESI, CTQC type test report for our transformers.

3. How long is your delivery time?

30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)
