Product Introduction
This 630 KVA transformer was delivered to a South Africa in 2012. the rated power of the transformer is 630 KVA. the primary voltage of the transformer is 6.6 KV and secondary voltage is 0.525 KV. The cooling type of this transformer is ONAN. Our power and distribution transformer were designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
630 KVA distribution transformer rating and connections.
| Delivered to | South Africa |
| Year | 2012 |
| Model | S11-630 KVA-6.3/0.4KV |
| Type | Oil Immersed Distribution Transformer |
| Standard | IEC60076 |
| Rated Power | 630 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 6.3 KV |
| Secondary Voltage | 0.4 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 4.5% |
| Tap Changer | NLTC |
| Tapping Range | ±2*5% |
| No Load Loss | 0.81KW |
| On Load Loss | 6.2KW |
| Accessories | Standard Configuration |
| Remarks | N/A |
General Arrangement Drawing

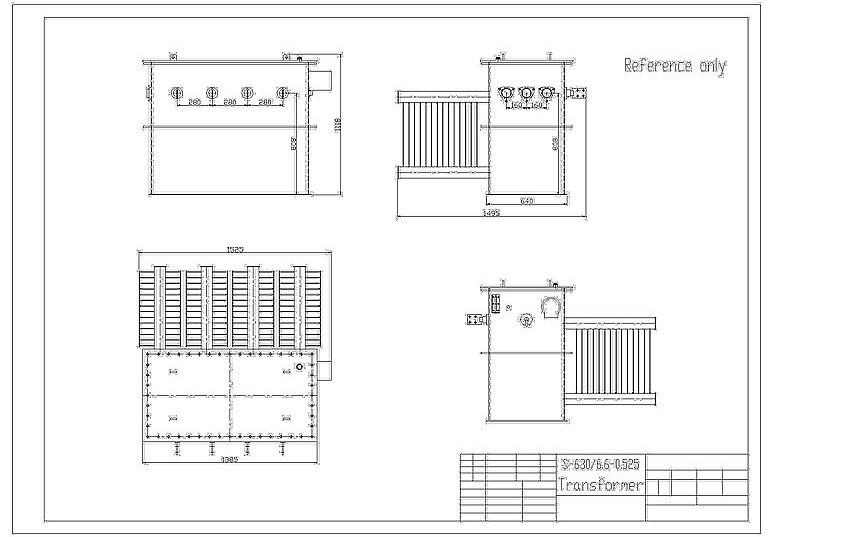

630 KVA 3 phase distribution transformer dimensions and weight details diagram.
630 KVA 6.6/0.525KV Transformer Manufacturing

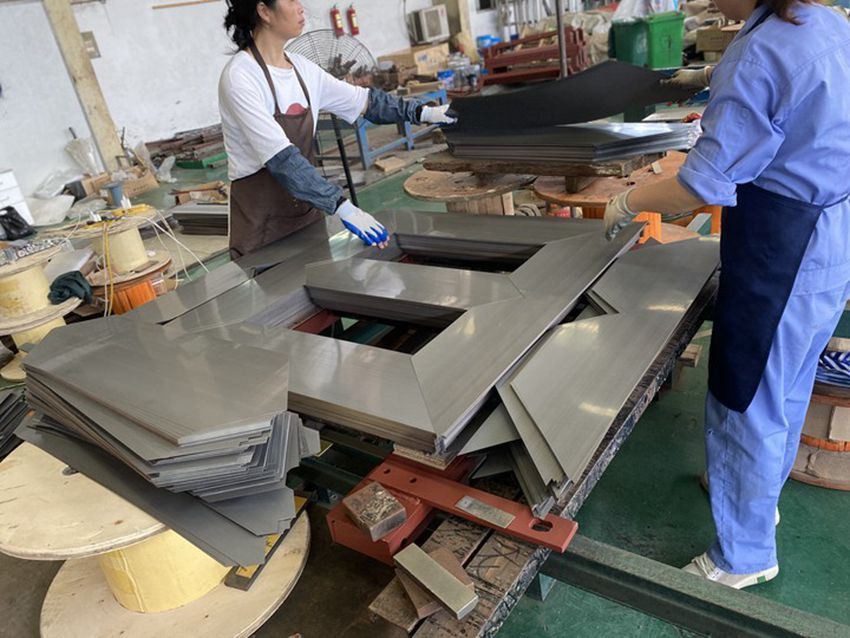

Silicon steel sheet knowledge
To reduce eddy current and its loss, the composite silicon steel sheet is usually used instead of the whole iron core, and the plane of the silicon steel sheet is parallel to the magnetic induction line. On the one hand, due to the high resistivity of the silicon steel sheet itself, on the other hand, each sheet is coated with an insulating paint or with a natural insulating oxide layer, the eddy current is limited in each sheet, so that the eddy current is greatly reduced, thus reducing the loss of electric energy.

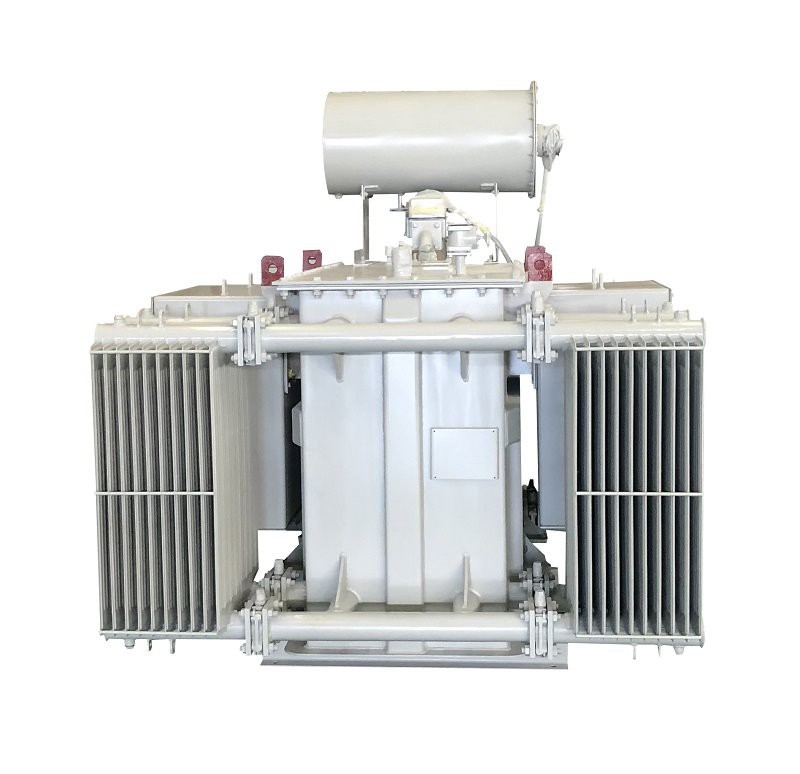

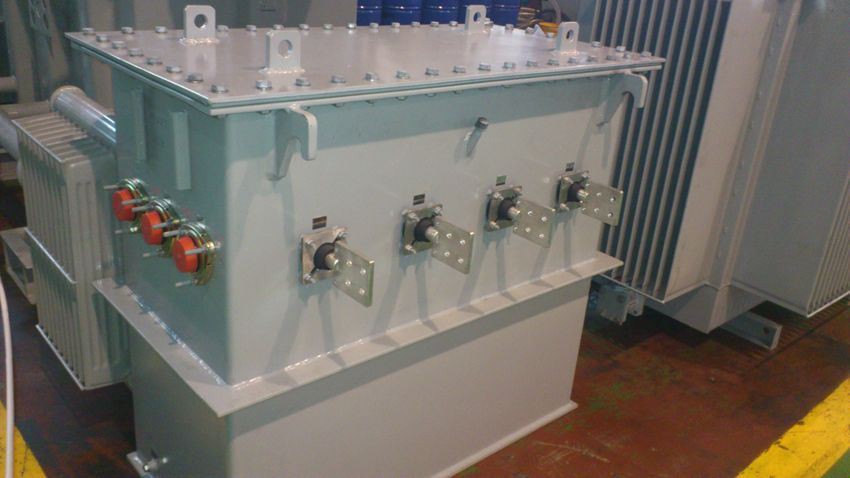

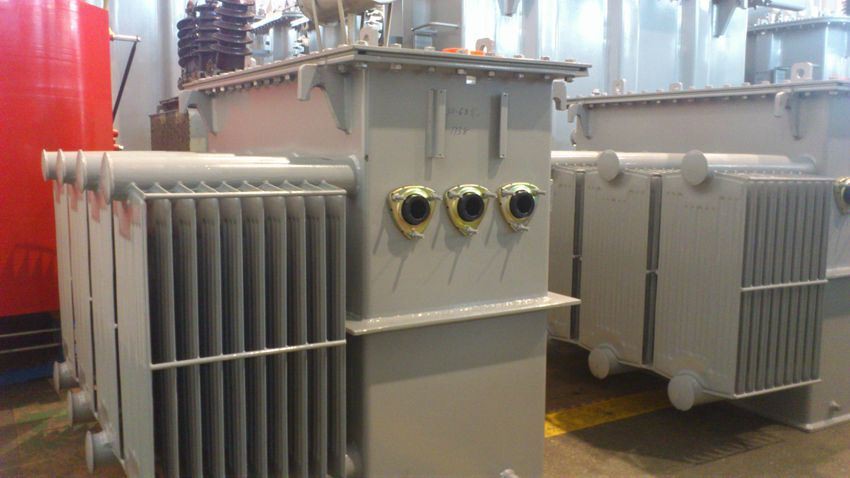

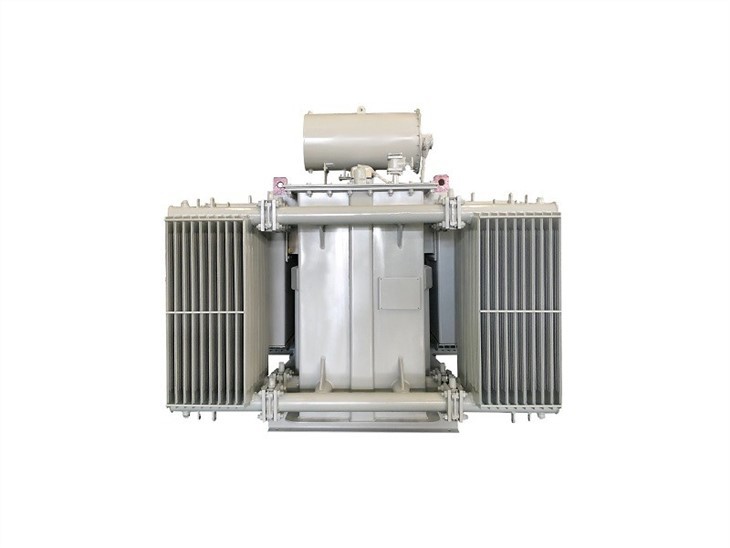

Finished 630 KVA 6.6/0.525KV Transformer

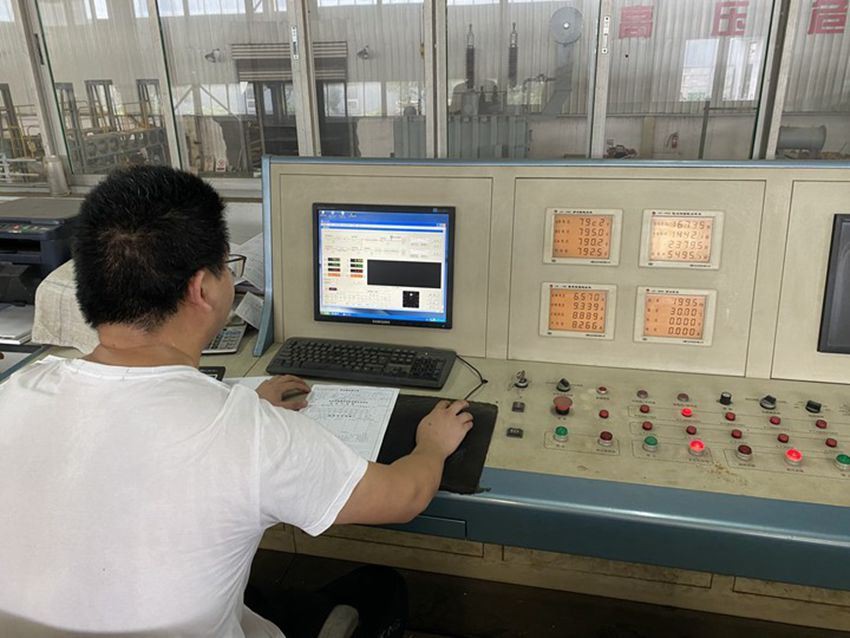

630 KVA 6.6/0.525KV Transformer Testing
Precautions for transformer testing:
1、Transformers must be tested in a dry, insulated and stable place
2、The operator must wear insulating gloves and stand on the insulating mat to operate
3、The test must be carried out in the designated area, unrelated personnel away from the scene
4、The test must be performed by two persons, one for operation and one for monitoring
5、Check the high pressure handle and wire of the high pressure withstand voltage tester for any damage before test
6、After the end of the test, it is confirmed that there is no high voltage output before removing the connection line
Packing and Delivery

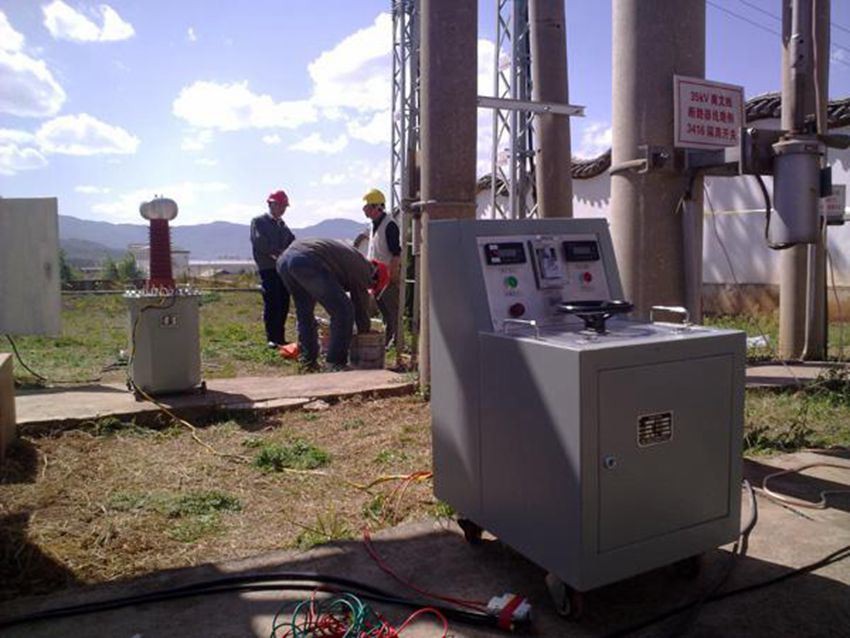

Installation Commissioning and Operation
FAQ
1. How soon can you delivery the transformer?
It depends on the quantity and capacity of the transformer, normally within one month since the date drawing confirmed by buyer.
2. How long can you provide the quality warranty?
12 months since the date transformer operated.
3. What payment method do you accept?
T/T (wire transfer), L/C both accepted.
