Product Introduction
This 60 MVA power transformer was delivered to a substation in Albania in 2015, the rated power of the transformer is 60000 KVA, the primary voltage of the transformer is 242KV and secondary voltage is 10.5KV. The cooling system of this high voltage power transformer is OFAF, The 60 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
60 MVA power transformer specification and data sheet
| Delivered to | Albania |
| Year | 2015 |
| Model | SZ11-60 MVA-242/10.5KV |
| Type | Three Phase Oil Immersed Power Transformer |
| Standard | IEC60076,60137,60214,60296 |
| Rated Power | 60 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | OFAF |
| Primary Voltage | 242 KV |
| Secondary Voltage | 10.5 KV |
| Winding Material | Copper |
| Vector Group | YNd11 |
| Impedance | |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% @ Primary Side |
| No Load Loss | 38 KW |
| On Load Loss | 216KW |
| Accessories | Standard Configuration |
| Remarks | N/A |

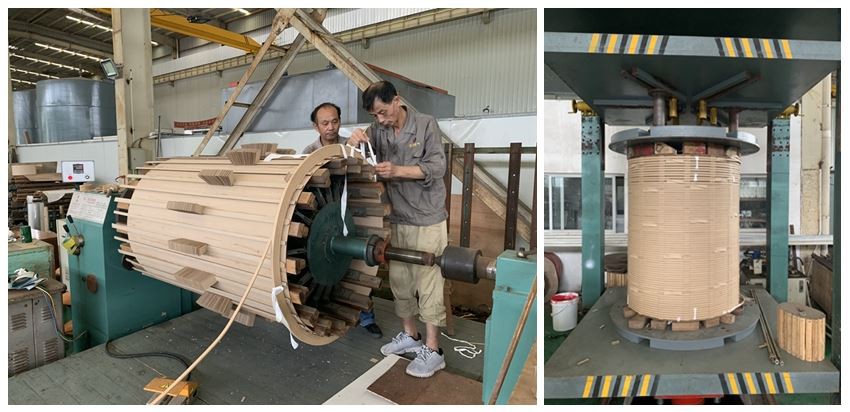

60 MVA 242/10.5KV Transformer Manufacturing

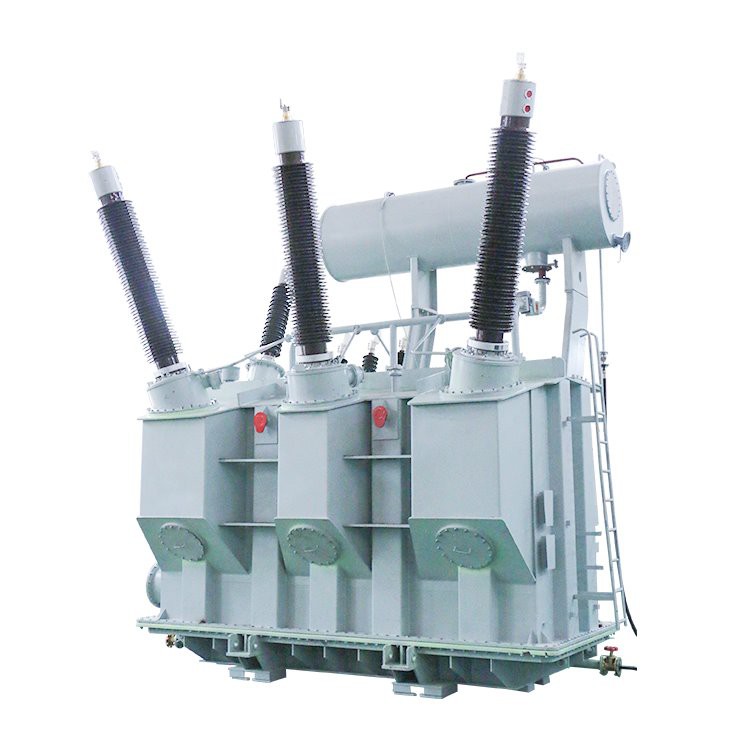

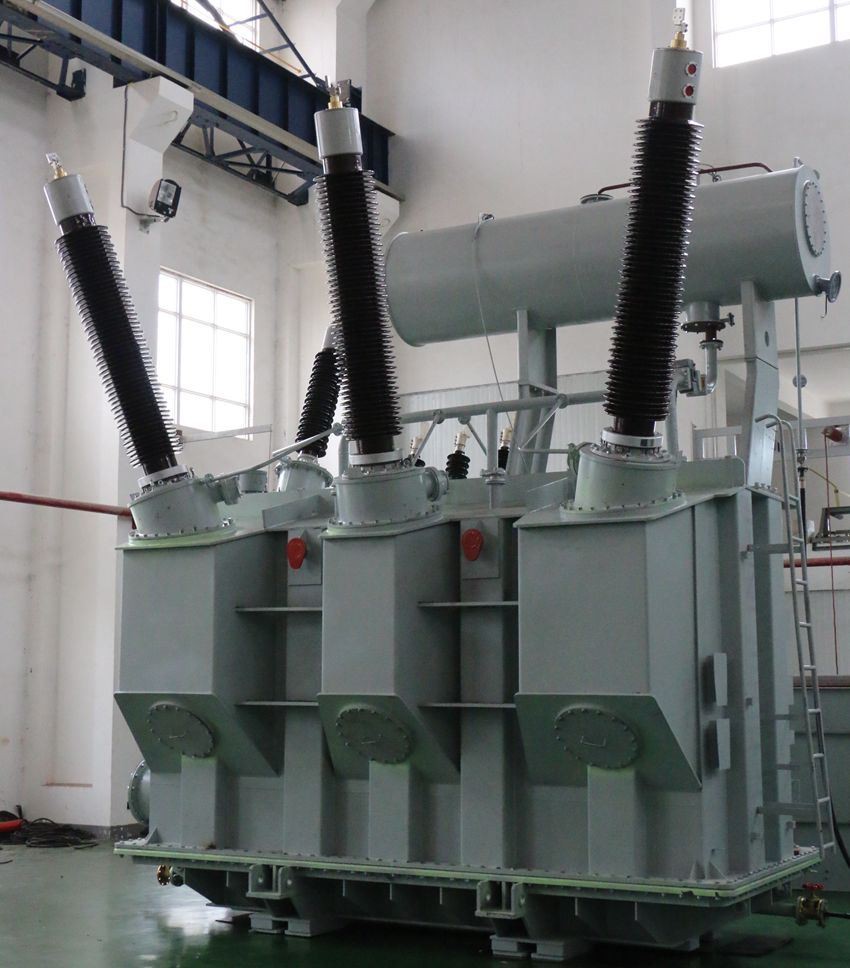

Finished 60MVA 242/10.5KV Transformer

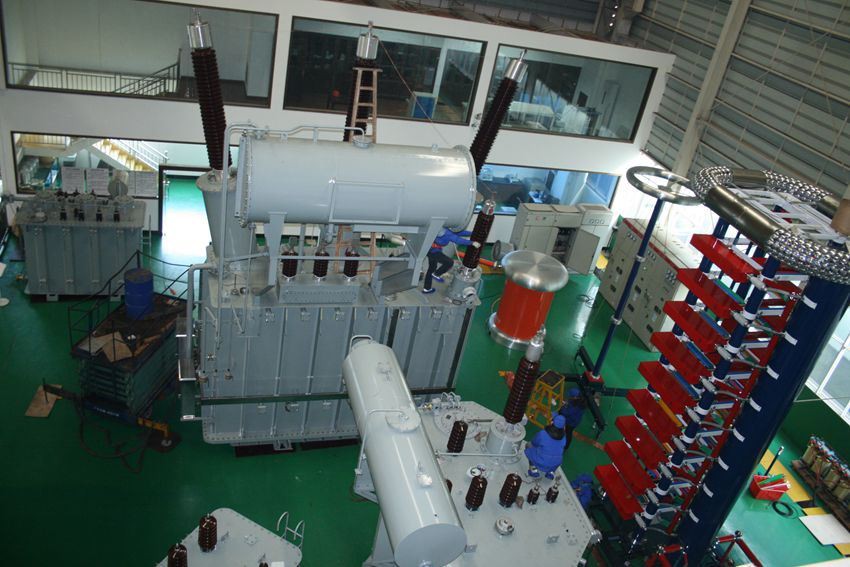

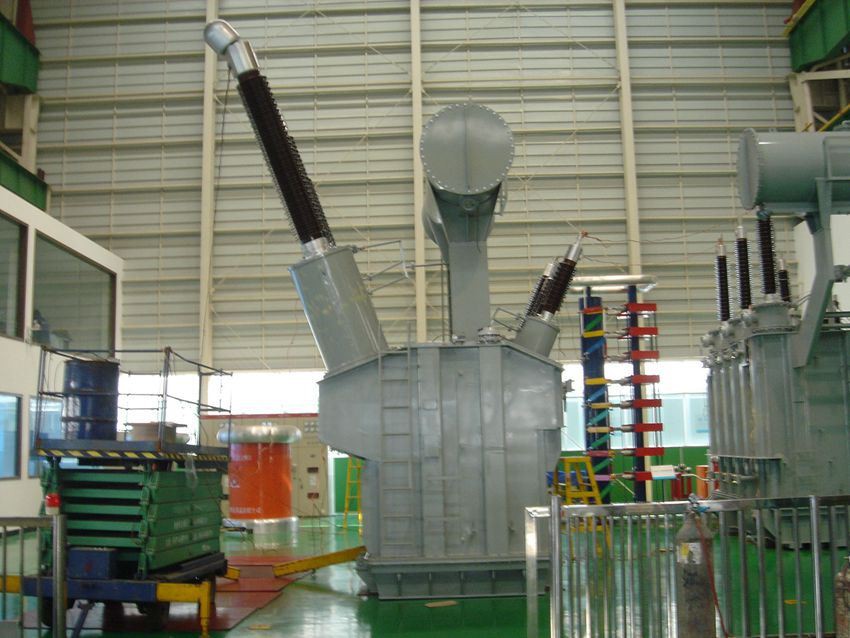

60 MVA 242/10.5KV Transformer Testing

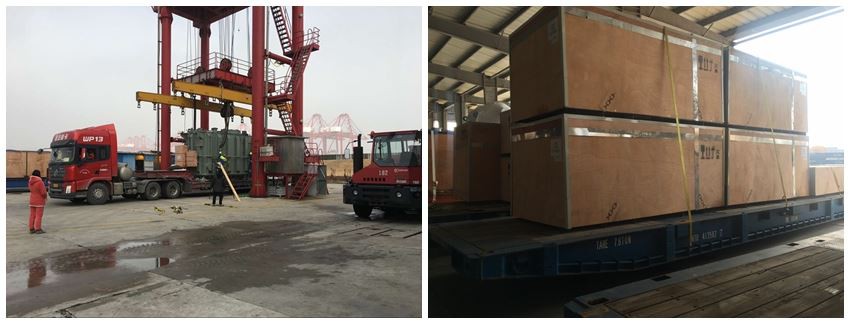

Packing and Delivery
What is function of step-down transformer?
As the name implies, a step-down transformer is a transformer that converts high voltage to low voltage. The transfer has more turns of wire on the primary coil as compared to the turns on the secondary coil. This reduces the induced voltage running through the secondary coil, which ultimately reduces the output voltage.
FAQ
1. What standard do you follow?
IEC 60076 standard, and all other major international standard such as ANSI, CSA, UL, etc.
2. What package do you have for transformers?
Standard package with welded iron frame packed with ply wood boxes.
3. How long can I receive my transformers?
The shipping time from our port (shanghai or Ningbo) to your port is range from one week to one month, depend on the distance.
