Product Introduction
This distribution transformer is a transformer which is internally isolated from the surrounding air. Because of the flexibility of the corrugated groove structure, the transformer oil cannot absorb the external moisture and oxygen. Thus, the aging speed of insulating materials is reduced. The input voltage of the transformer can be 10kV, 13.8kV, 12kV, 6.6kV, 15kV, and the output voltage is usually 0.4kV.Our distribution transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV

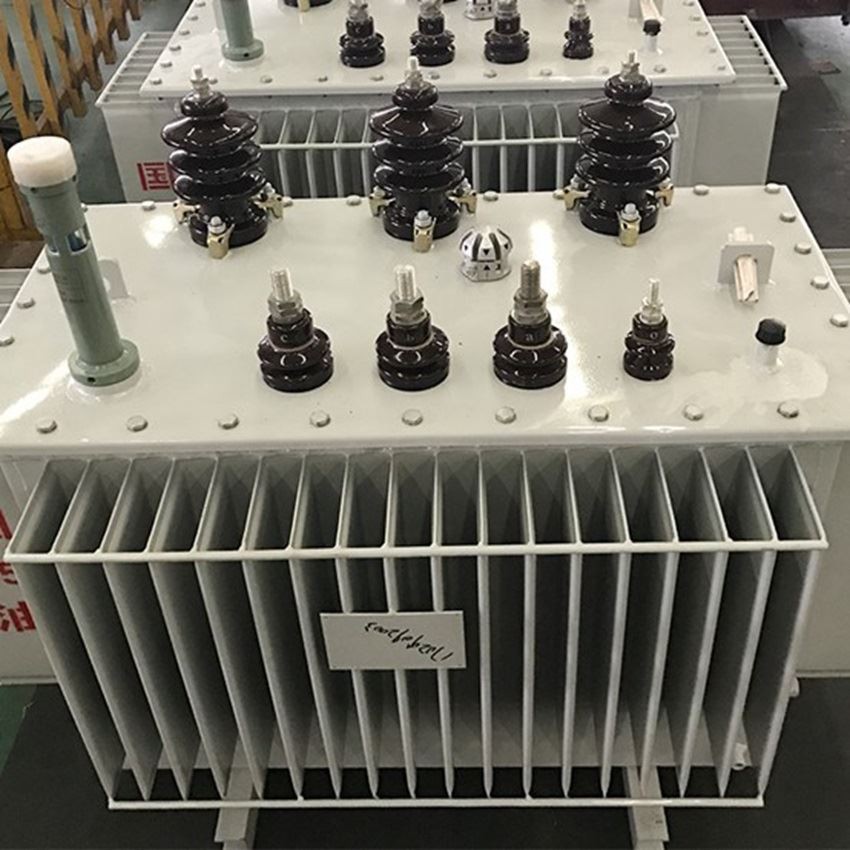

6.6KV 10KV 12KV 13.8 KV 15KV Distribution Transformer Manufacturing
Transformer two kinds of radiator：
At present, there are two kinds of radiator in the transformer: the first one is used as a plate radiator, which is generally made of high-quality cold-rolled steel plate (ST13).The other is a radiator for corrugated oil tank made of 08AL steel plates. The latter makes a better coefficient of expansion of the radiator and is commonly used as a fully sealed transformer tank.

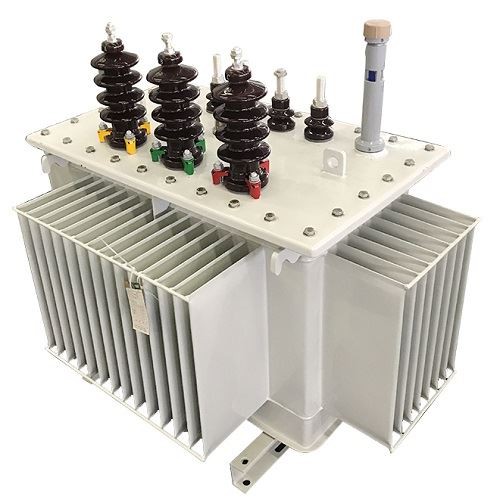

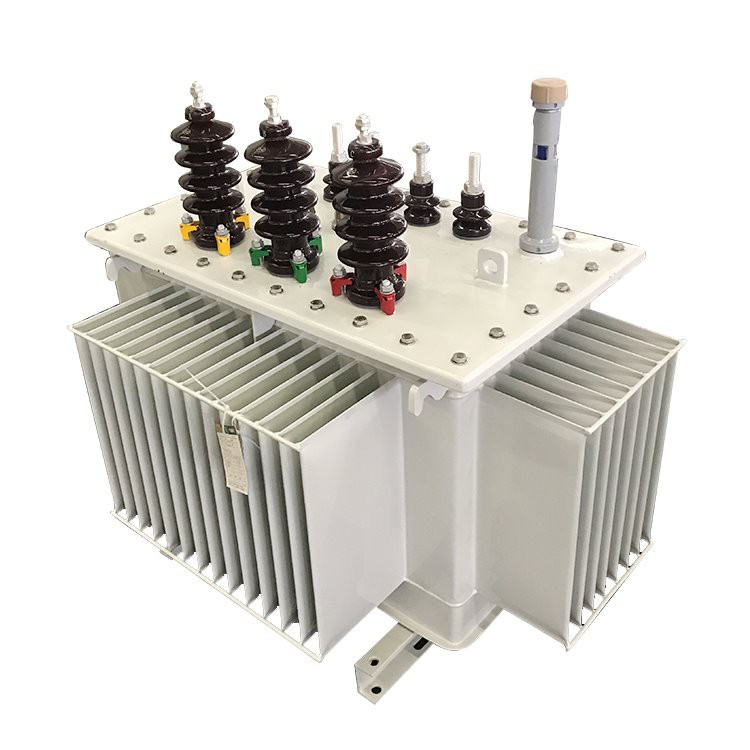

Finished 6.6KV 10KV 12KV 13.8 KV 15KV Distribution Transformer

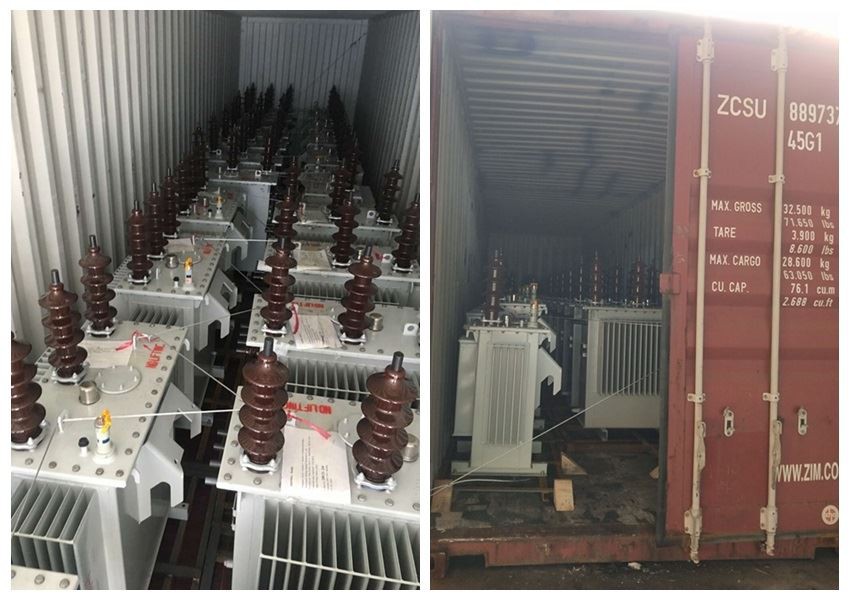

Packing and Delivery
FAQ
1. What is the scope of your supply?
We can supply distribution transformers up to 5000KVA 35KV, power transformers up to 200 MVA 230KV, dry type transformers up to 10 MVA 35KV, and other special transformers such as rectifier transformer and furnace transformers.
2. What service can you provide?
We can provide design, manufacturing, delivery, installation, commissioning, after-sale service.
3. Can I visit your company?
You are welcomed to visit our company at any time, contact us to get start the journey.
