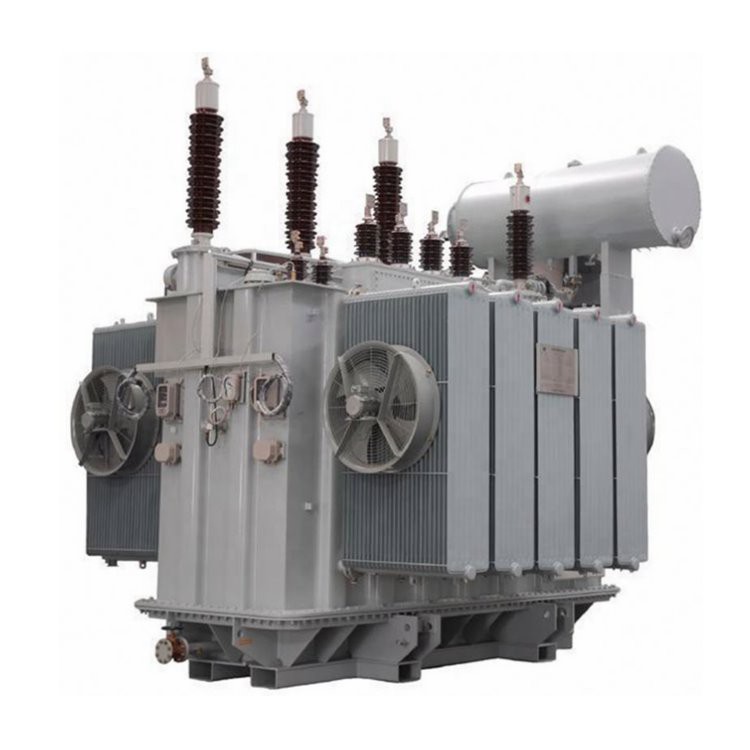

Product Introduction
The 45 MVA oil transformer was delivered to South Africa in 2009, the rated power of the transformer is 45000 KVA, the primary voltage is 132kv, the secondary voltage is 11kv. This transformer equipped with an OLTC and cooling fans. Our 45 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
45 MVA oil type power transformer specifications and data sheet
| Delivered to | South Africa |
| Year | 2009 |
| Model | SFZ11- |
| Type | Oil Immersed Power Transformer |
| Standard | |
| Rated Power | 45 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAF |
| Primary Voltage | 132 KV |
| Secondary Voltage | 11 KV |
| Winding Material | Copper |
| Vector Group | YNd1 |
| Impedance | 8% |
| Tap Changer | OLTC |
| Tapping Range | +4*1.25%, -12*1.25% |
| Accessories | Standard Configuration with OTI, WTI |
| Remarks | N/A |

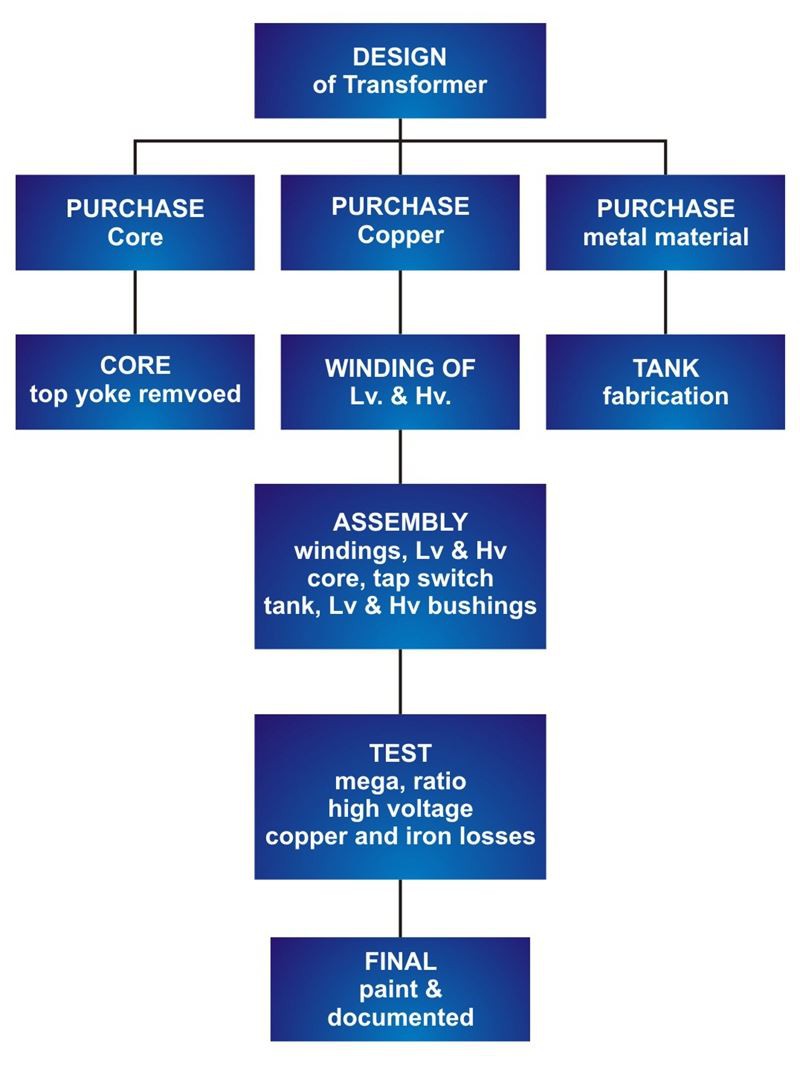

45 MVA 132/11KV Transformer Manufacturing

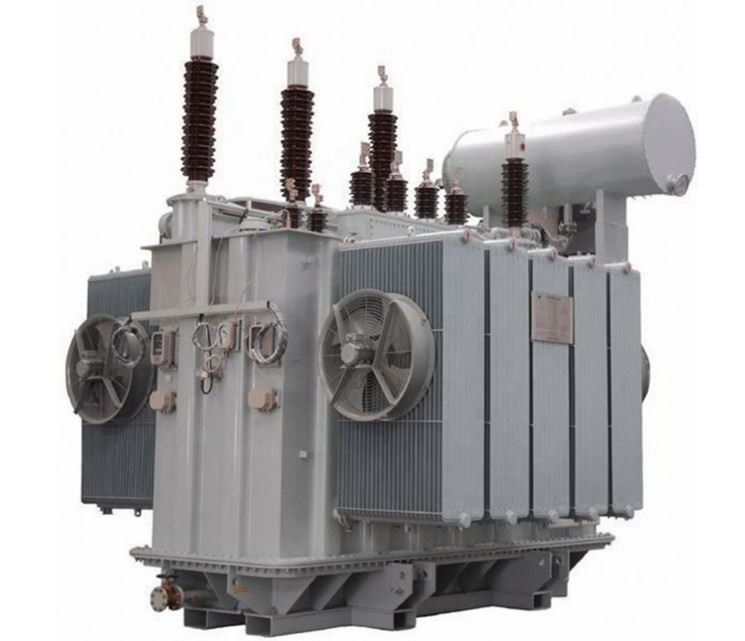

Finished 45 MVA 132/11KV Transformer

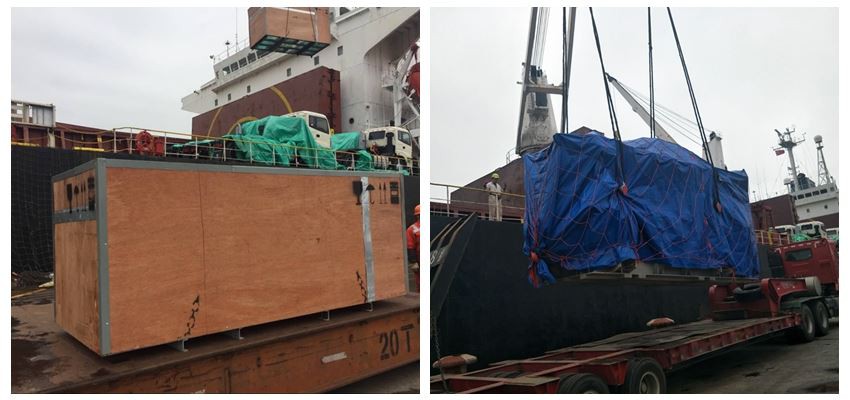

Packing and Delivery
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)
