Product Introduction
The 2 x (3635 – 2562/2562) kVA rectifier transformer was delivered to South Africa in 2022.
Two by 3635 – 2562/2562 kVA one star one delta primary transformers in single tank. Each transformer to have duel star secondary with IPT between star points
The rated power of the transformer is 2 x (3635 – 2562/2562) kVA with OFAF cooling, the primary voltage is 22 kV with 462,433,390,346,303,260V tapping range(NLTC), the secondary voltage is 2 of 462 V, they formed a vector group of Yy0y6 & Dy5y11.
Our 2 x (3635 – 2562/2562) kVA rectifier transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Oil Immersed Rectifier Transformer
Rated Power: Up to 100 MVA
Primary Voltage: Up to 110 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
3635*2 kVA oil immersed rectifier transformer specifications and data sheet
|
Delivered to |
South Africa |
|
Year |
2022 |
|
Model |
ZHSFPK-3635*2 kVA-22/2*0.462KV |
|
Type |
Oil Immersed Rectifier Transformer |
|
Standard |
IEC60076 |
|
Rated Power |
3635*2 kVA |
|
Frequency |
50 HZ |
|
Phase |
3/12 |
|
Cooling Type |
OFAF |
|
Primary Voltage |
22 KV |
|
Secondary Voltage |
2*462V |
|
Winding Material |
Copper |
|
Vector Group |
Yy0y6&Dy5y11 |
|
Impedance |
6.5 ± 10% |
|
Tap Changer |
NLTC |
|
Tapping Range |
462,433,390,346,303,260 V |
|
No Load Loss |
6200*2W |
|
On Load Loss |
44500*2W |

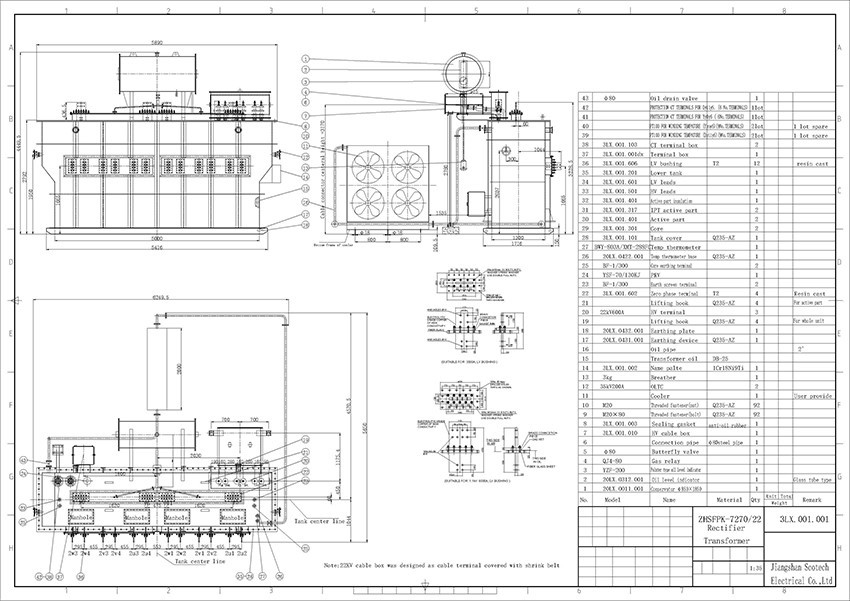

3635*2 kVA Transformer Drawing
3635*2 kVA rectifier transformer diagram drawing and size.
3635*2 kVA Transformer Manufacturing Process

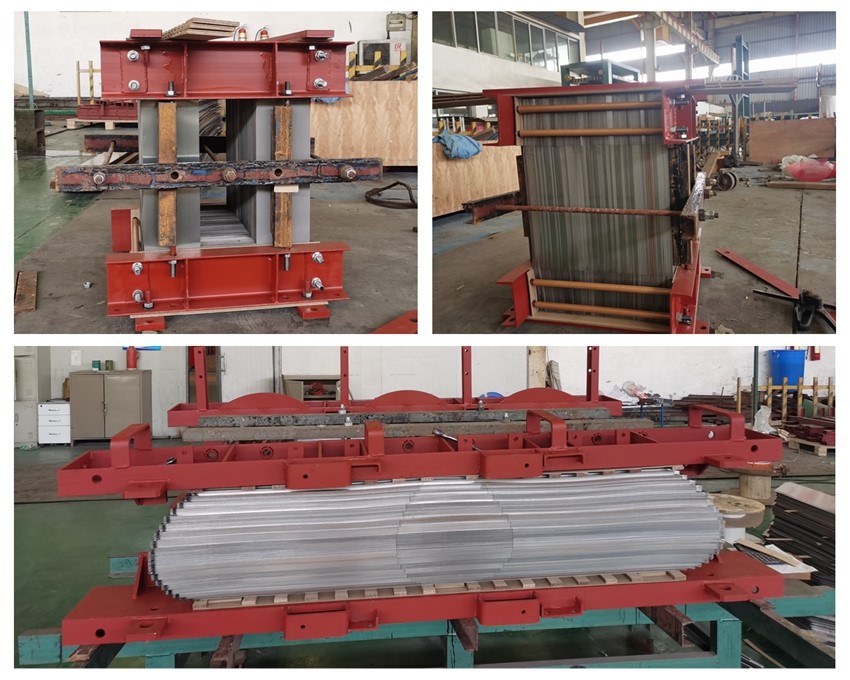

Transformer Core:

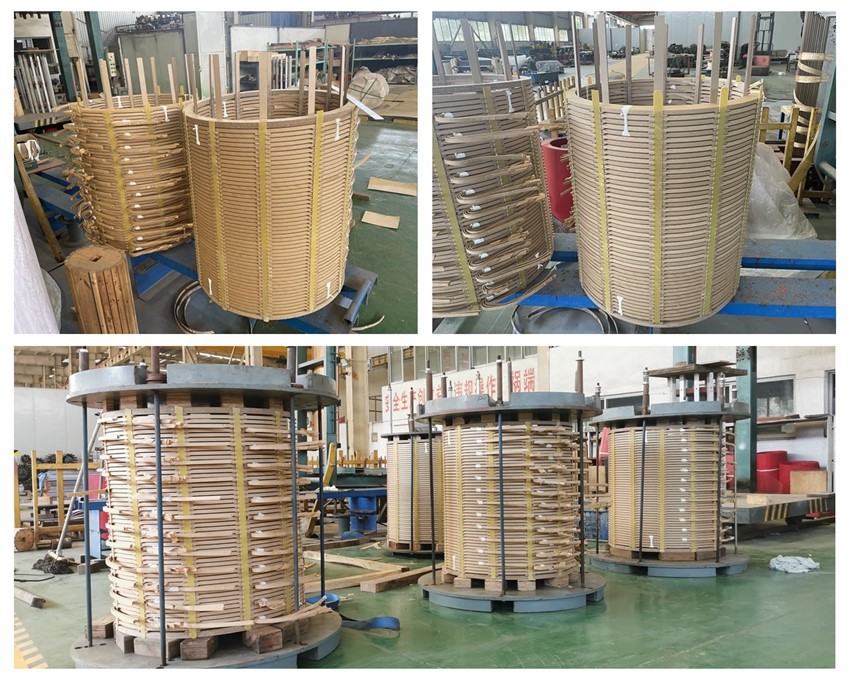

Winding:

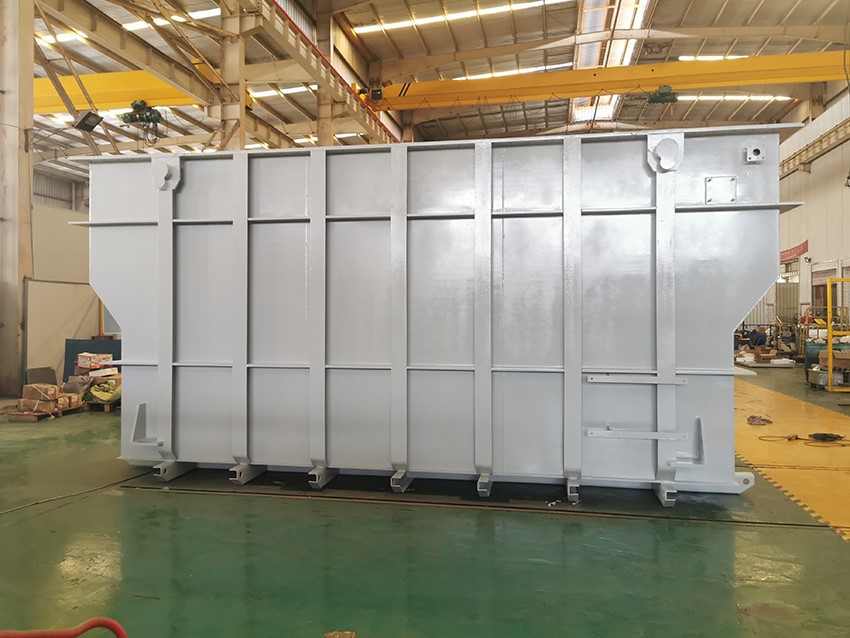

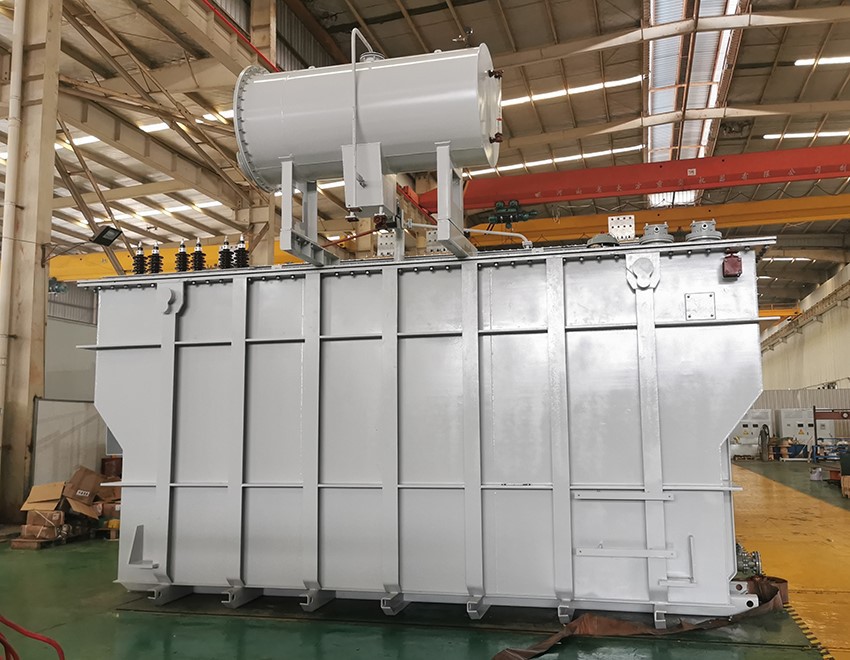

3635*2 kVA Transformer Oil Tank

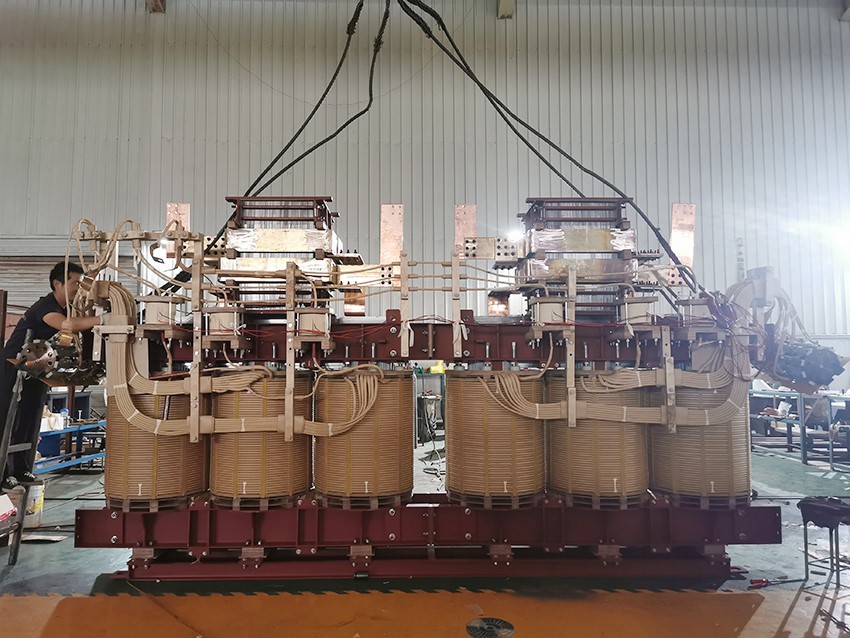

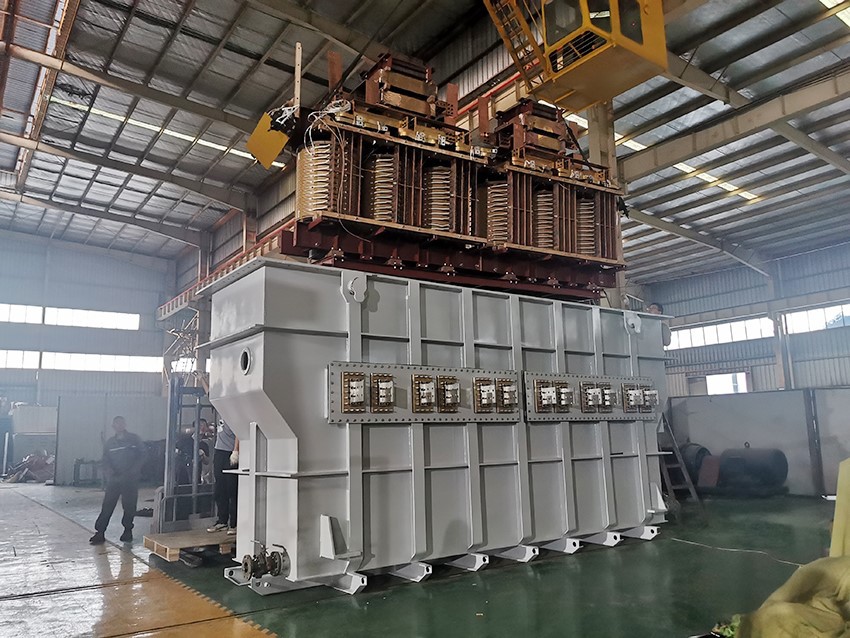

Final Assembly：

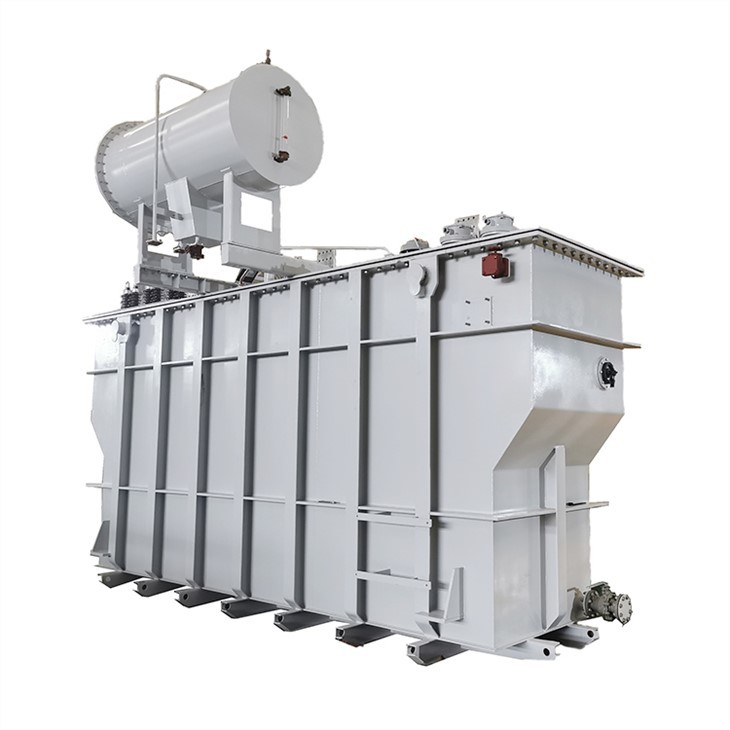

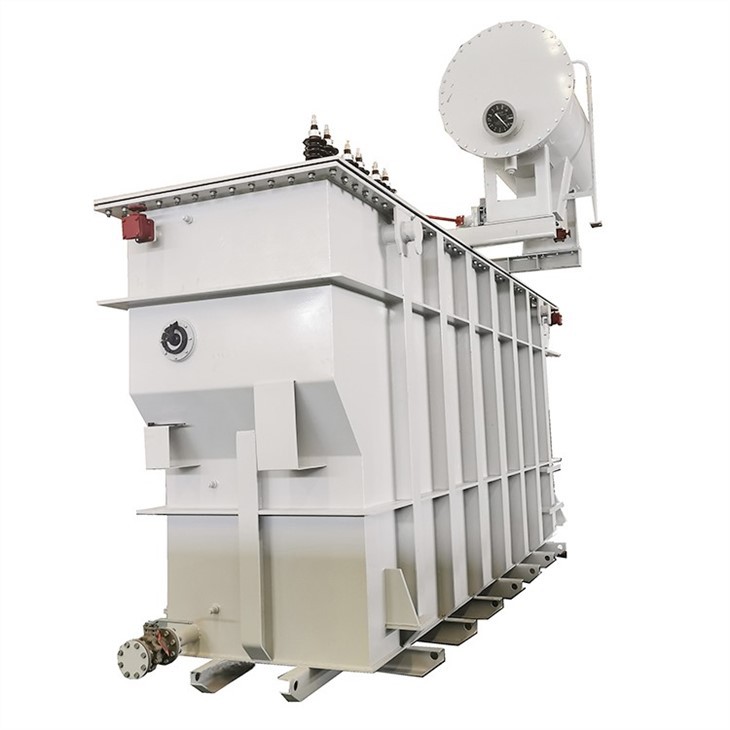

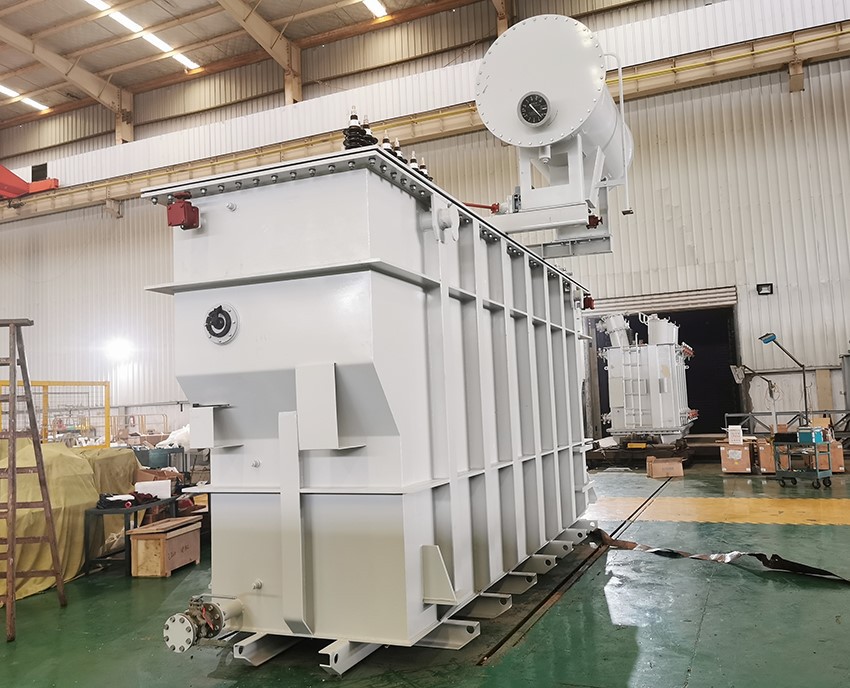

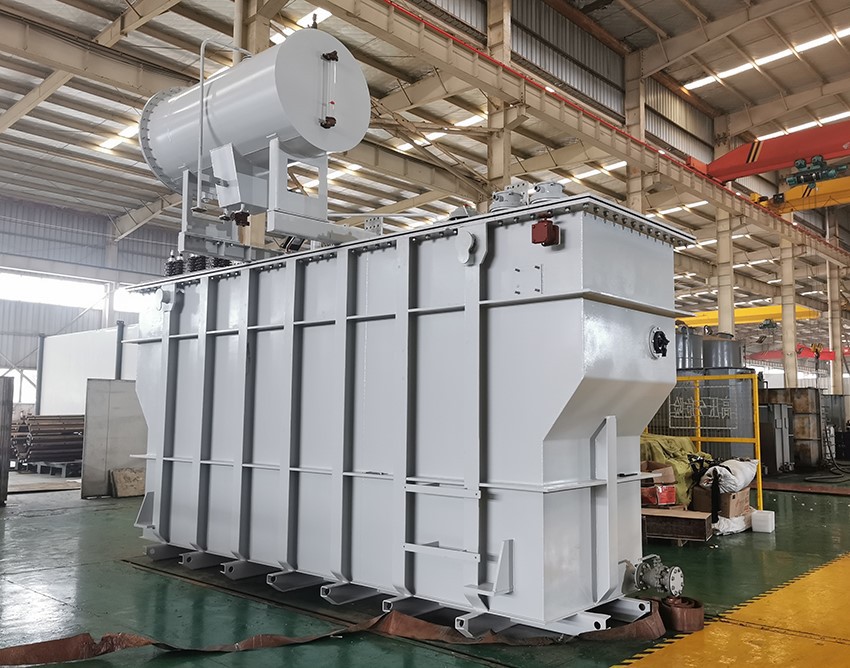

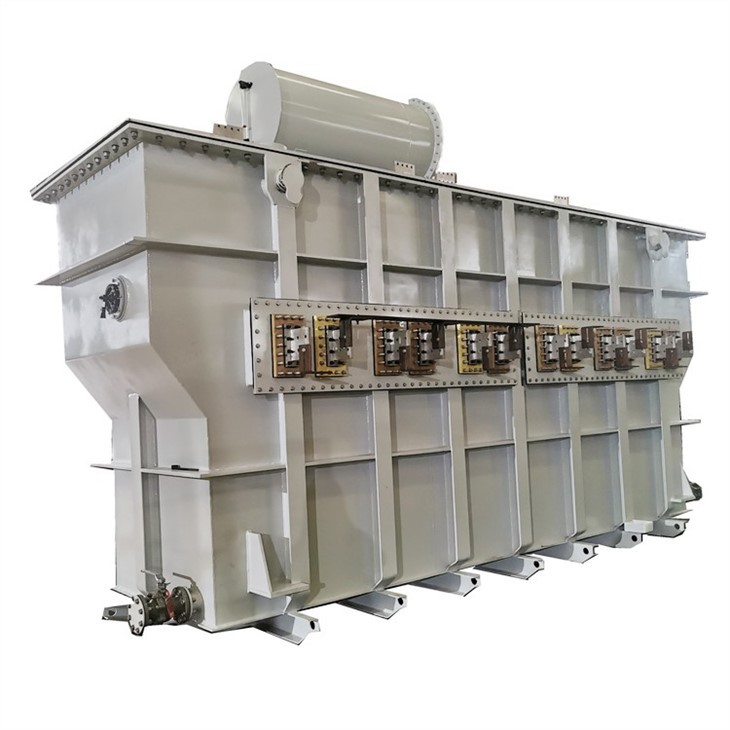

Finished 3635*2 kVA Transformer

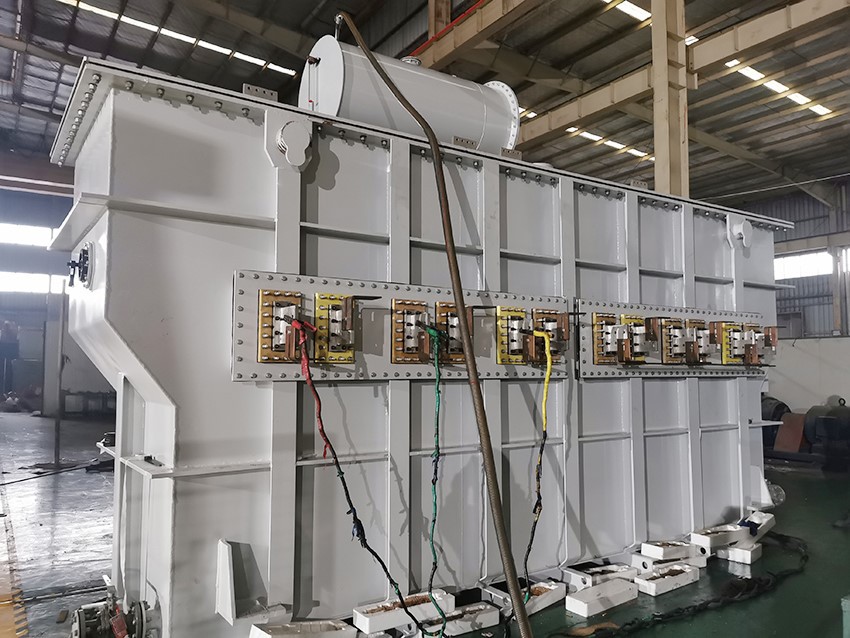

3635*2 kVA Transformer Testing

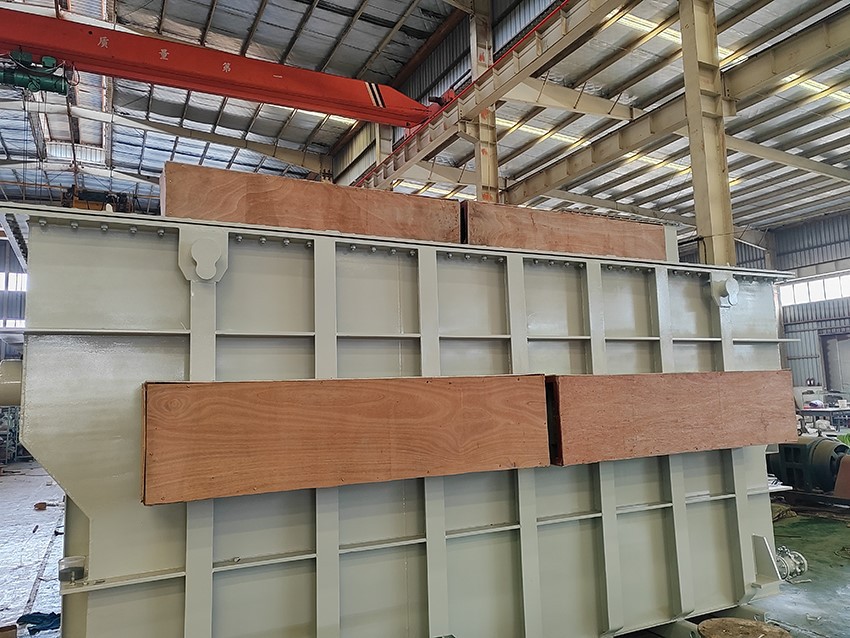

Transformer ready for ship
Packing attention
Special attention shall be paid to the loading of the transformer when loading: due to the concentrated weight of the transformer, the concentrated load at the bottom of the ship shall be guaranteed when considering the barge to be carried, and reinforcement measures shall be taken if necessary; the bumping wave of the ship shall be taken into consideration in water transportation, and the binding must be firm.
