Product Introduction
SCOTECH delivered two units of 7270 KVA rectifier transformer to Congo in 2015, the rated power of the transformer is 7270 KVA, we designed two 2*3635 KVA transformers in one tank with interphase transformers, they are 3/12 pulse rectifier transformers and equipped with oil pump and cooling fans as cooling system.
The oil type rectifier transformer is widely used in electrolysis process, traction, variable speed drive, smelting and many other industrial applications where dc power is needed. Rectifier system normally including oil filled rectifier transformer, diodes or thyristors, voltage regulation may also be included. we can supply different kind of design, 6 pulse, 12 pulse ,24 pulse, phase-shifting design.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Oil Immersed Rectifier Transformer
Rated Power: Up to 63 MVA
Primary Voltage: Up to 110 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
7.27 MVA oil immersed rectifier transformer specifications and data sheet
| Delivered to | South Africa |
| Year | 2015 |
| Model | ZS-7.27MVA-22KV |
| Type | Oil Immersed Rectifier Transformer |
| Standard | IEC60076 |
| Rated Power | 7.27MVA(2*3635KVA in one tank) |
| Frequency | 50 HZ |
| Phase | 3/12 |
| Cooling Type | OFAF (Oil forced air forced) |
| Primary Voltage | 22 KV |
| Secondary Voltage | 267,250,225,200,175,150V |
| Winding Material | Copper |
| Vector Group | Yy0y6 & Dy5y1 |
| Interphase transformer | 2*154V @2*5500A |

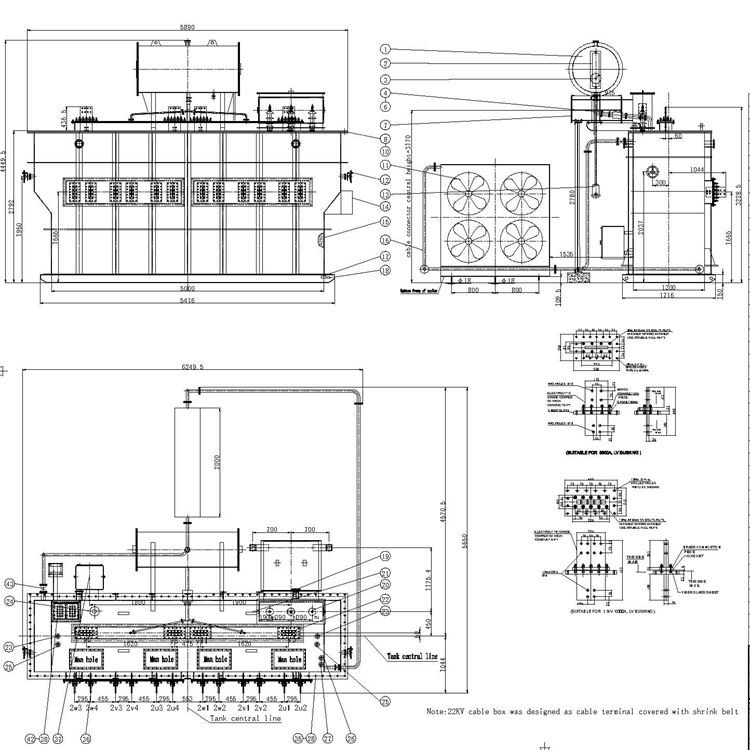

7.27 MVA Transformer Drawing
7270 KVA dry type transformer diagram drawing and size.

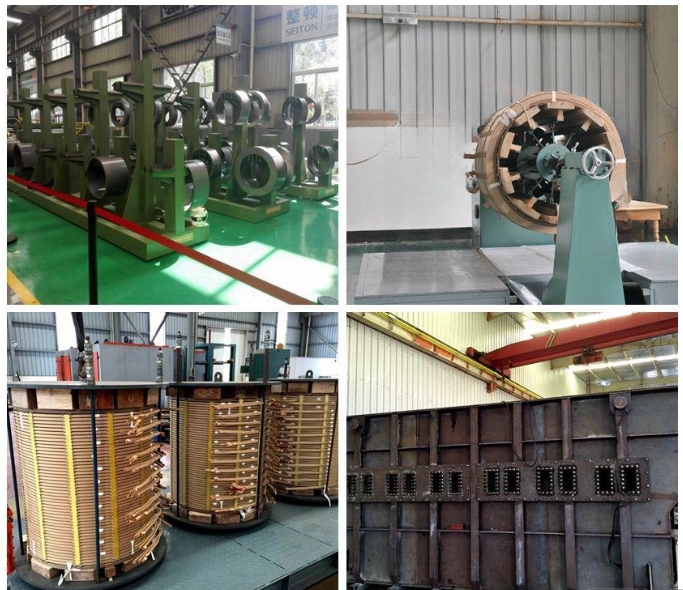

7.27 MVA Transformer Manufacturing
Transformer Features：
1、Save equipment space. Each three-phase three-pillar core package has more than two sets of high and low voltage coil, which can be operated by single group or various groups.
2、The transformer has two or more sets of low voltage coils, each group of which can be used alone or in parallel. There is a big short-circuit impedance between each coil.
3、Usually applied in steel mills AC to AC variable frequency motor or connected a DC motor after rectified.

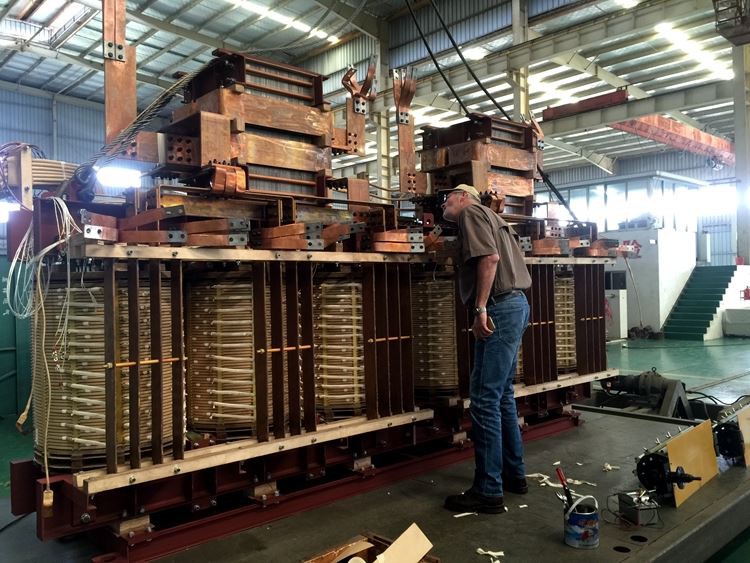

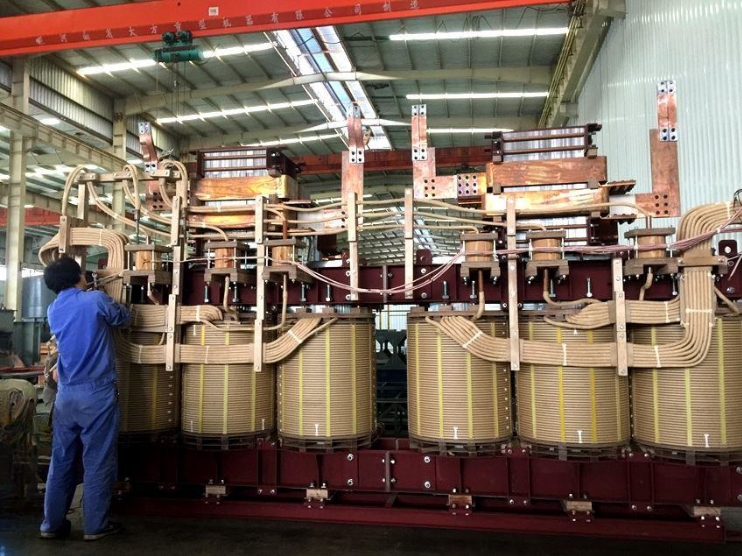

Finished 7.27 MVA Transformer active part
The application for which the transformer is used, will drive the design considerations including:
1、bridge type connection of the thyristors for higher voltages
2、interphase connection for low voltage, high current applications
3、number of pulses (6, 12 and higher with phase shifting)
4、eddy current and harmonic issues

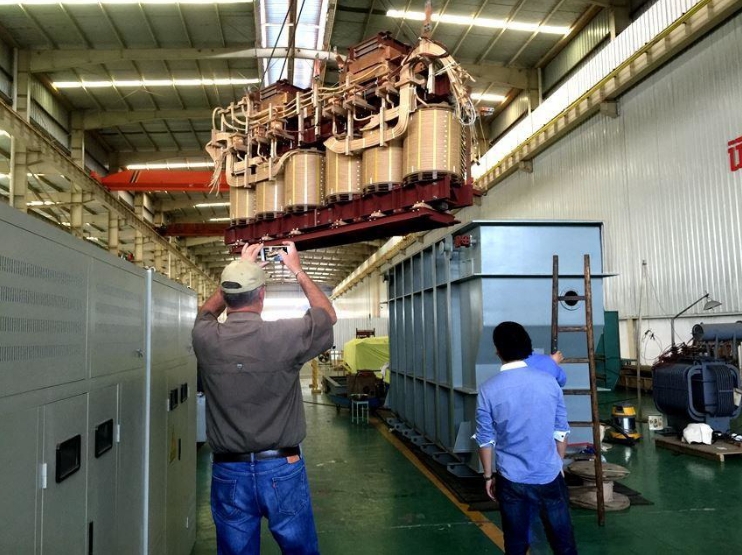

Customer was doing FAT

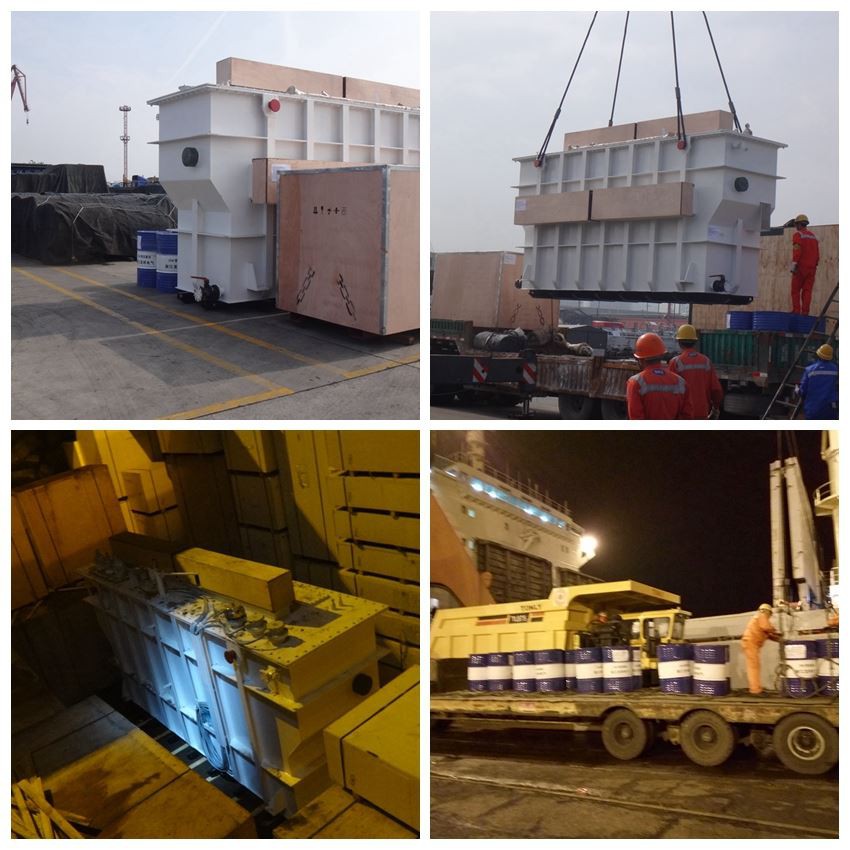

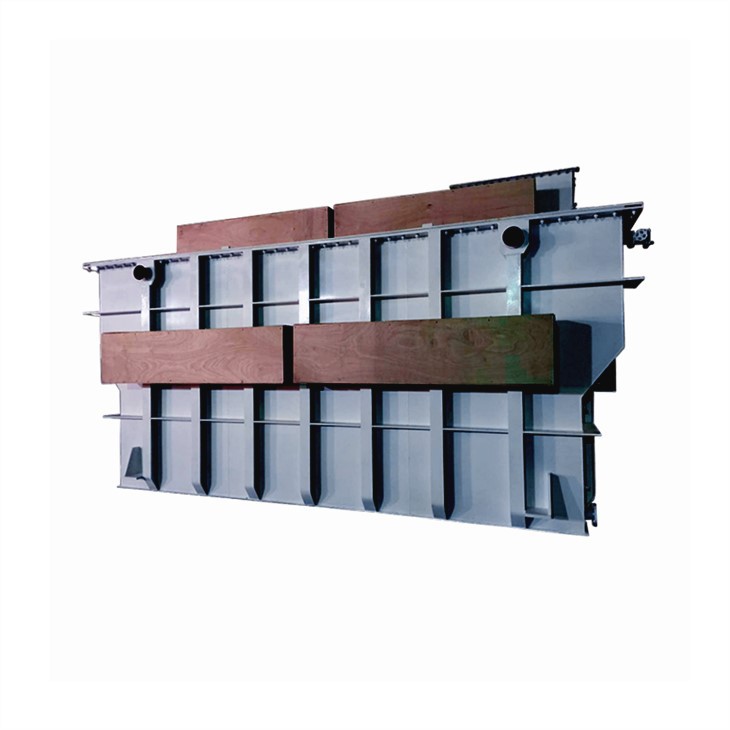

Packing and delivery

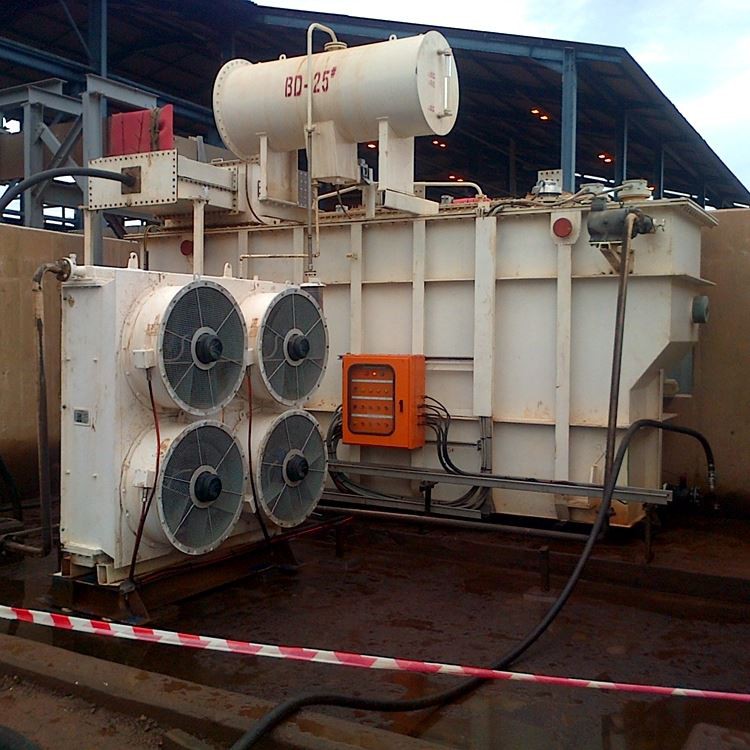

Transformer is operating in DRC at user’s factory in 2015
FAQ
1. How soon can you delivery the transformer?
It depends on the quantity and capacity of the transformer, normally within one month since the date drawing confirmed by buyer.
2. How long can you provide the quality warranty?
12 months since the date transformer operated.
3. What payment method do you accept?
T/T (wire transfer), L/C both accepted.
