Product Introduction
Scotech is pleased to provide high-quality single-phase pad mounted transformer for Jamaica Public Service. This 25kVA transformer will help meet the electricity demand of local residents. We are deeply honored to collaborate with Jamaica Public Service through a local trading company to provide them with high-quality transformer equipment.
The single-phase transformer has a capacity of 25kVA, the high voltage is 24GrdY/13.8kV and 12GrdY/6.9kV and low voltage is 0.12/0.24kV, which can easily meet local electricity demand. Its design and production use the most advanced technology and materials to ensure its long-term safe operation in various environments.
The transformer adopts a dual voltage design and requires the use of a dual voltage switching switch for voltage switching. This design ensures that the transformer can adapt to different power demands, thereby improving its practicality and adaptability.
With Scotech’s efforts, we believe that this transformer will play an important role in Jamaica Public Service’s services and provide more reliable and stable electricity supply to local residents. We look forward to more cooperation opportunities and continue to provide customers with high-quality power equipment and services.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Single phase pad mounted Transformer
Rated Power: Up to 250 KVA
Primary Voltage: Up to 34.5 GrdY/19.92 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
25 kVA oil type single phase pad mounted transformer specifications and data sheet
| Delivered to | Jamaica |
| Year | 2023 |
| Model | 25 kVA-24GrdY/13.8-12Grdy/6.9-0.12/0.24 kV |
| Type | Oil Immersed Single Phase Pad Mounted Transformer |
| Standard | IEEE C57.12.38 |
| Rated Power | 25 kVA |
| Frequency | 50 Hz |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 24GrdY/13.8-12GrdY/6.9 kV |
| Secondary Voltage | 0.12/0.24 kV |
| Winding Material | Copper |
| Polarity | Subtractive |
| Impedance | 2.5% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 0.078kW |
| On Load Loss | 0.29kW |
| Accessories | Standard Configuration |
| Remarks | N/A |

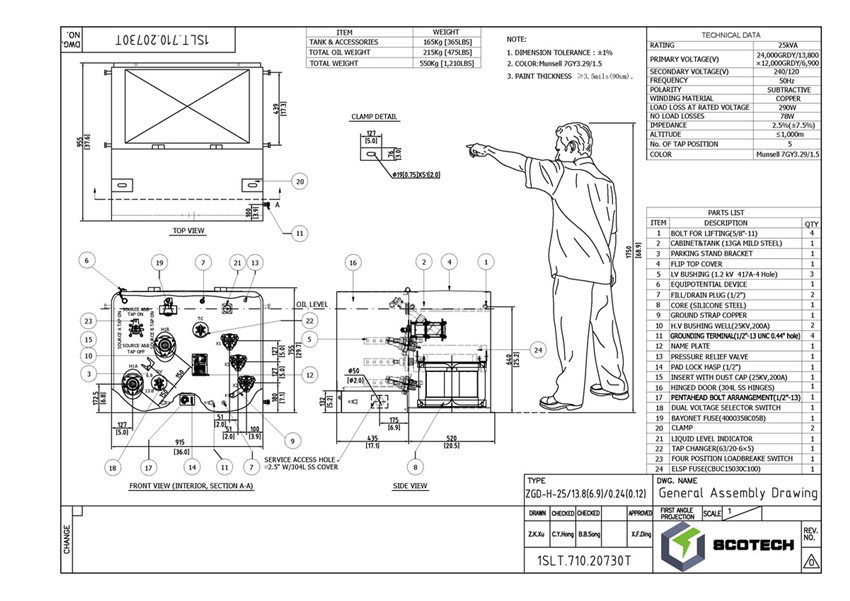

25 kVA 24GrdY/13.8-12GrdY/6.9-0.12/0.24 kV Single Phase Pad Mounted Transformer Drawing
25 kVA single phase pad mounted transformer diagram drawing and size.

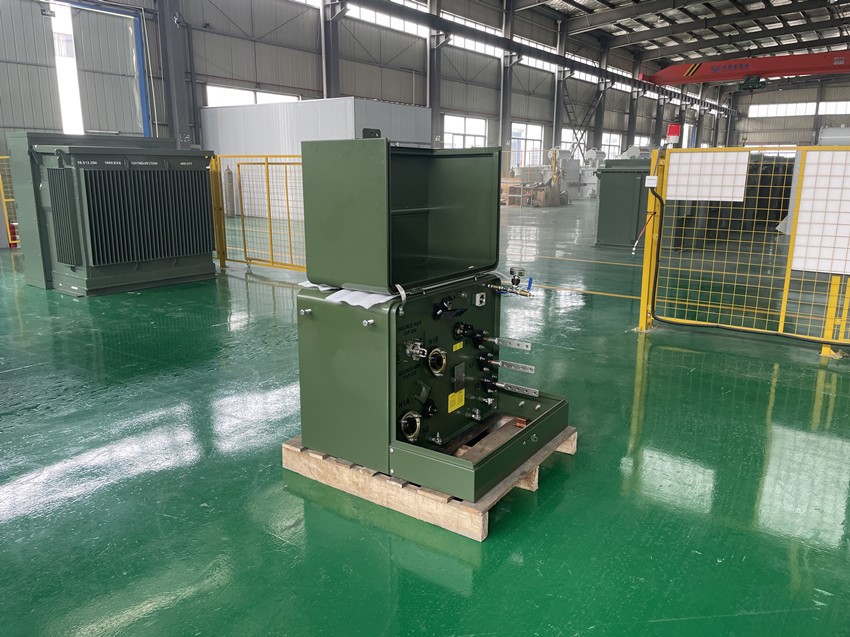

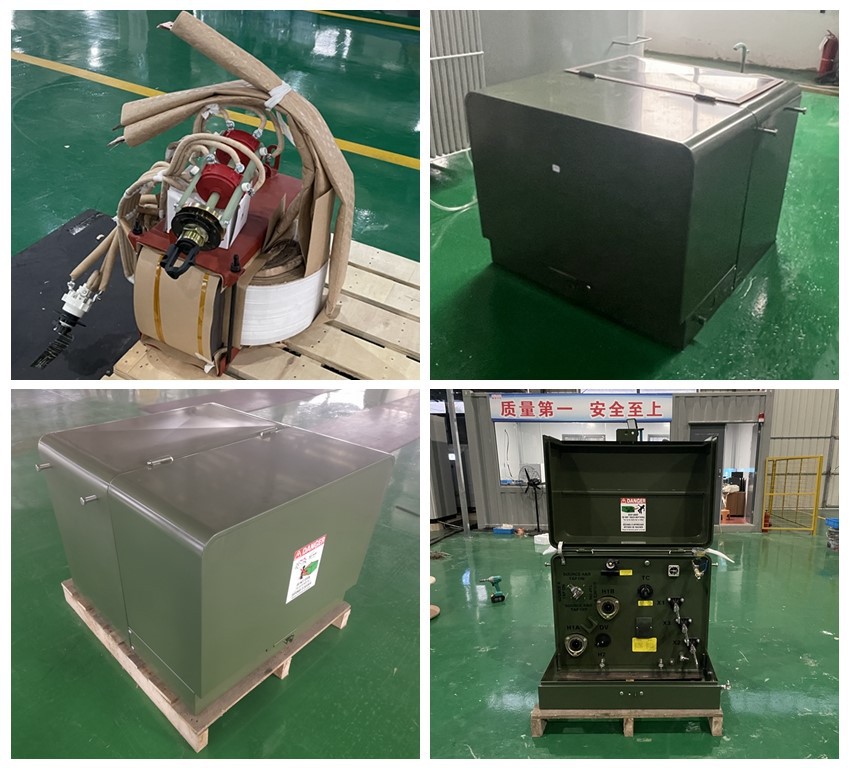

25 kVA 24GrdY/13.8-12GrdY/6.9-0.12/0.24 kV Single Phase Pad Mounted Transformer Manufacturing Process

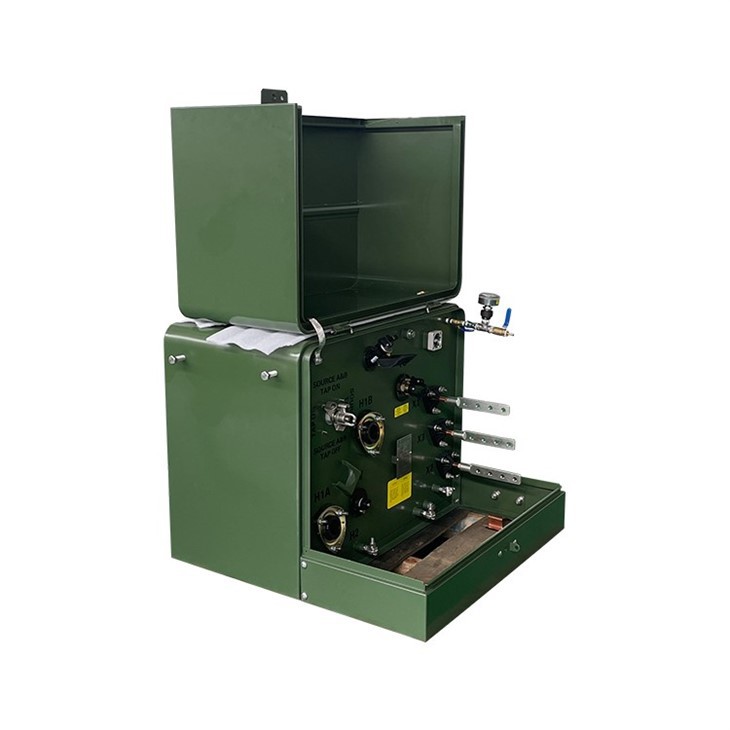

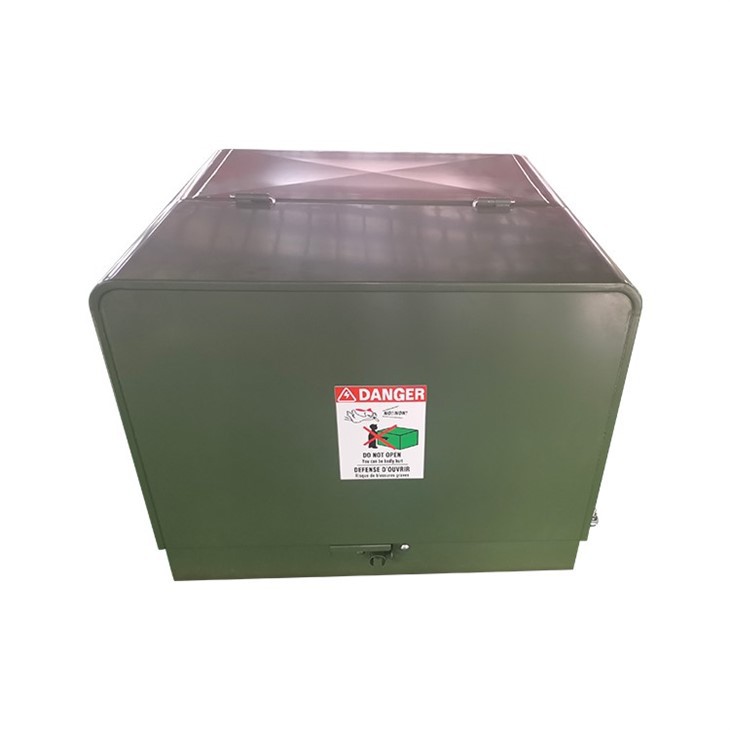

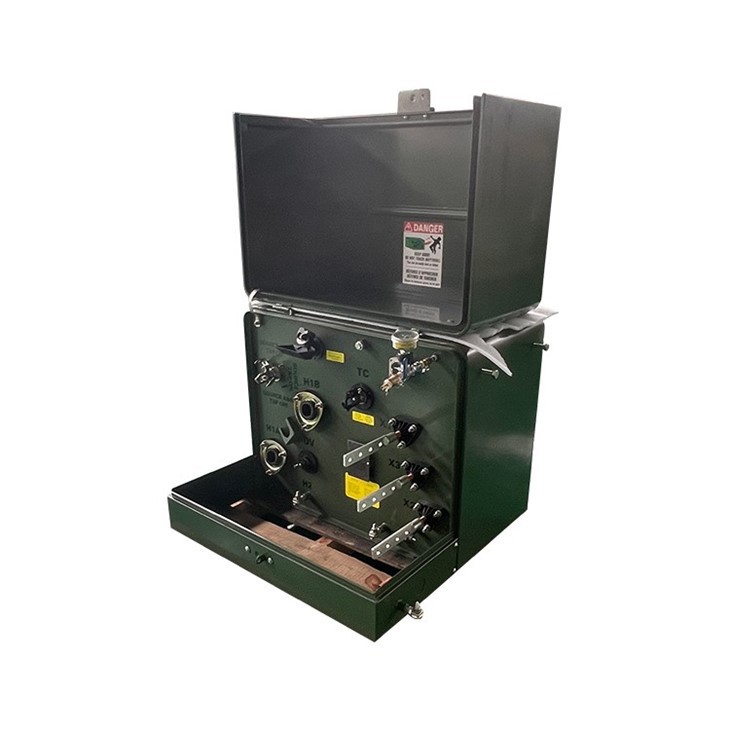

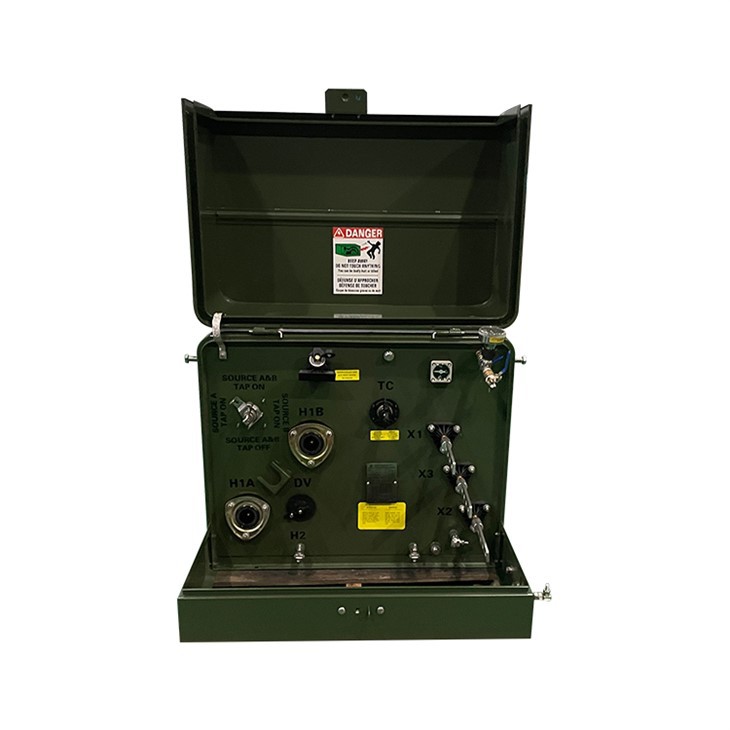

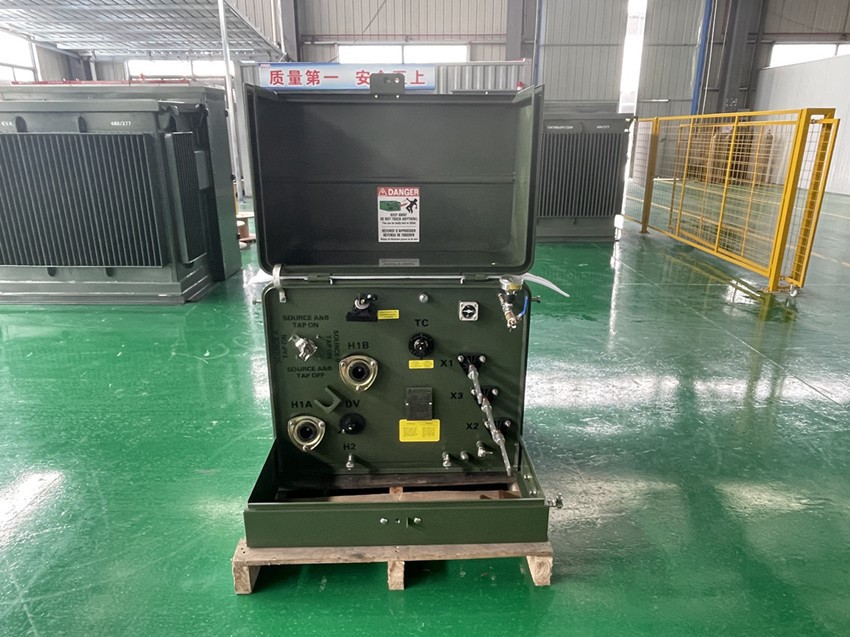

Finished 25 kVA Single Phase Pad Mounted Transformer

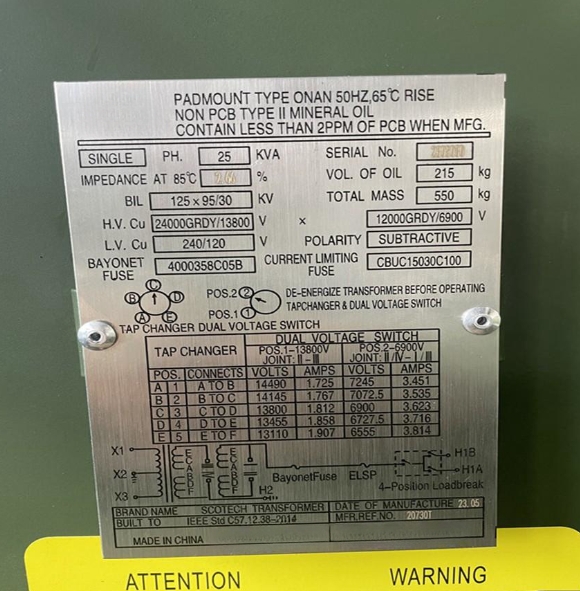

25 kVA Single Phase Pad Mounted Transformer Nameplate

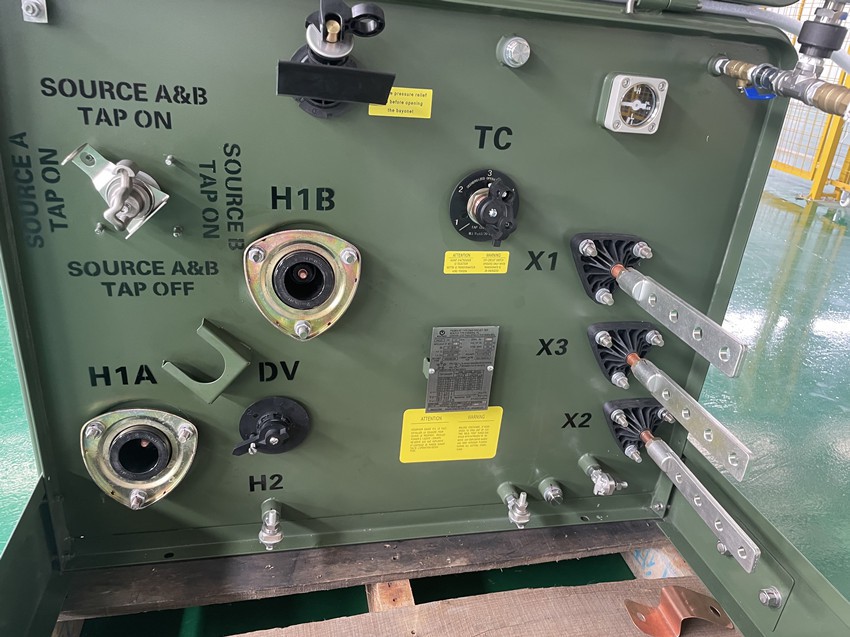

Transformer main accessories
The function of dual voltage switching switch
The dual voltage switching switch is an incredibly important and useful tool that helps us power electronic devices in different parts of the world. People from different countries use different voltages for their electrical appliances, and the dual voltage switching switch helps us avoid damaging those appliances when travelling internationally.
By switching between different voltage settings, the dual voltage switching switch ensures that we don’t short circuit or overheat our electronics. This is particularly important for battery operated devices like mobile phones and laptops, which are more sensitive to voltage fluctuations.
Moreover, the dual voltage switching switch is also eco-friendly as it helps us use our devices more efficiently. It reduces the likelihood of appliances burning out or breaking down, so we don’t have to replace them as often. By avoiding frequent replacements of our electronic devices, we are not only saving money, but we are also reducing the amount of e-waste that ends up in landfills.
In short, the dual voltage switching switch is a crucial tool that allows us to travel internationally and use our electronic devices safely and efficiently. It not only protects our electronics from voltage fluctuations, but it also helps us reduce electronic waste. So, let’s be grateful for this ingenious invention that makes our life easier and our planet greener.
