Product Introduction
The 12 MVA power transformer was manufactured by us in 2005, the rated power of the transformer is 12000 KVA. It’s a step-down transformer which convert 33kv to 11kv, the primary voltage is 33kv, the secondary voltage is 11kv. This transformer equipped with a on load tap changer to easy change the output voltage. Our 12 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far. Our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
12 MVA oil type power transformer specifications and data sheet
| Delivered to | South Africa |
| Year | 2005 |
| Model | S11-12 MVA-33/11KV |
| Type | Oil Immersed Power Transformer |
| Standard | IEC60076 |
| Rated Power | 12 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 33 KV |
| Secondary Voltage | 11 KV |
| Winding Material | Copper |
| Vector Group | YNd1 |
| Impedance | 6% |
| Tap Changer | OLTC |
| Tapping Range | ±8*1.25% |
| Accessories | Standard Configuration |
| Remarks | N/A |

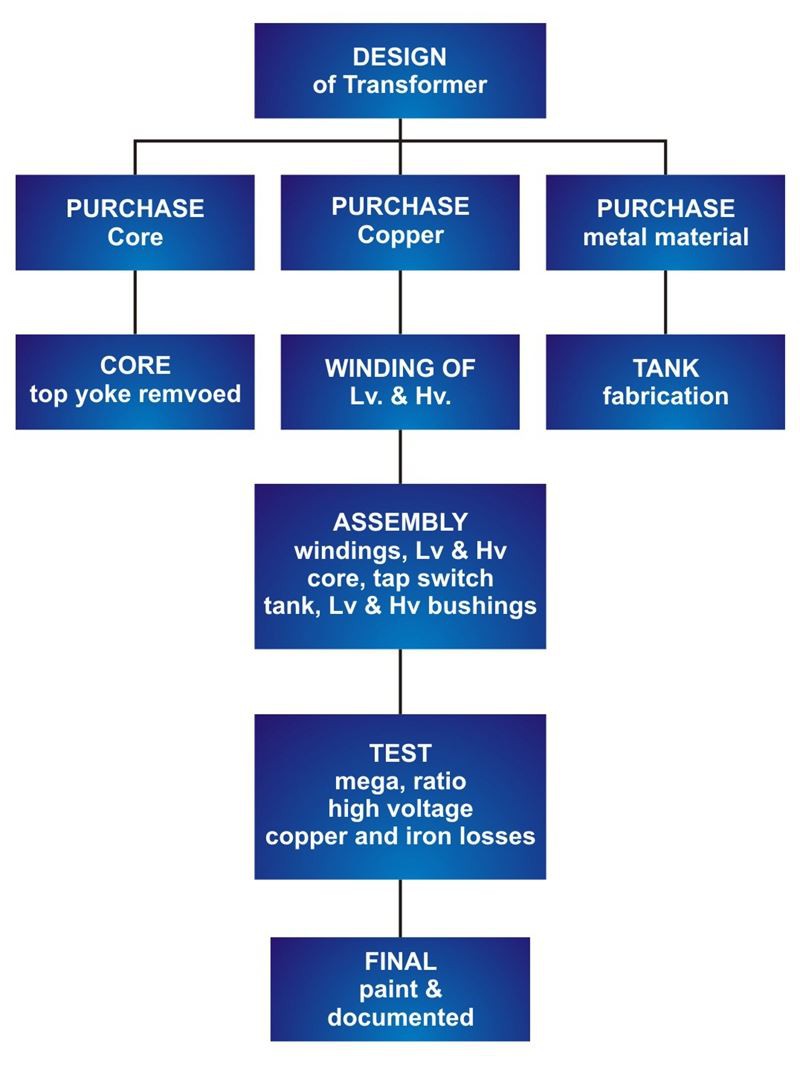

12 MVA 33/11KV Transformer Manufacturing

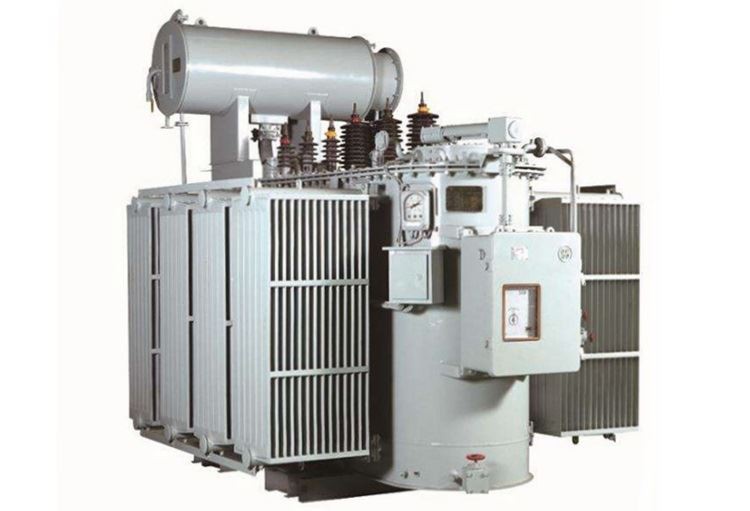

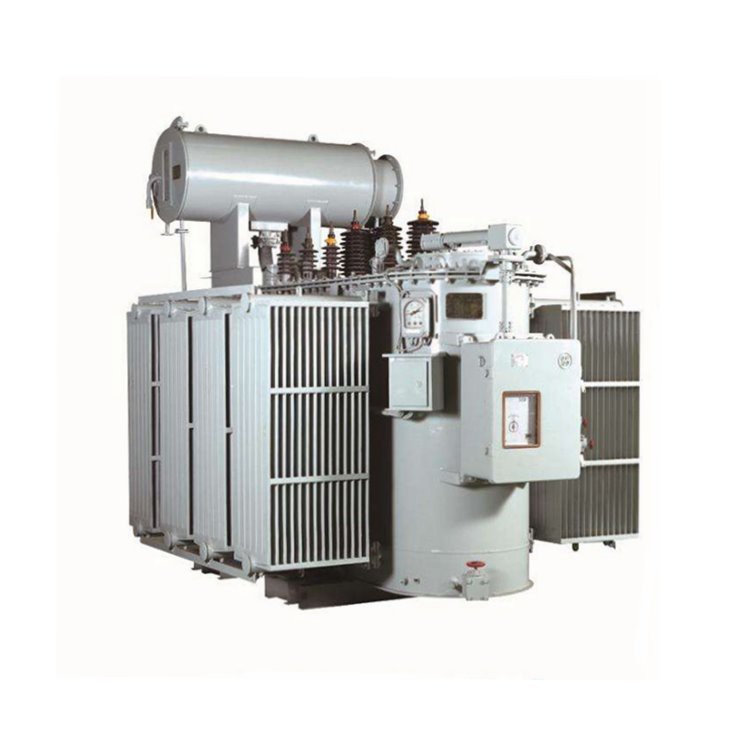

Finished 12 MVA 33/11KV Transformer

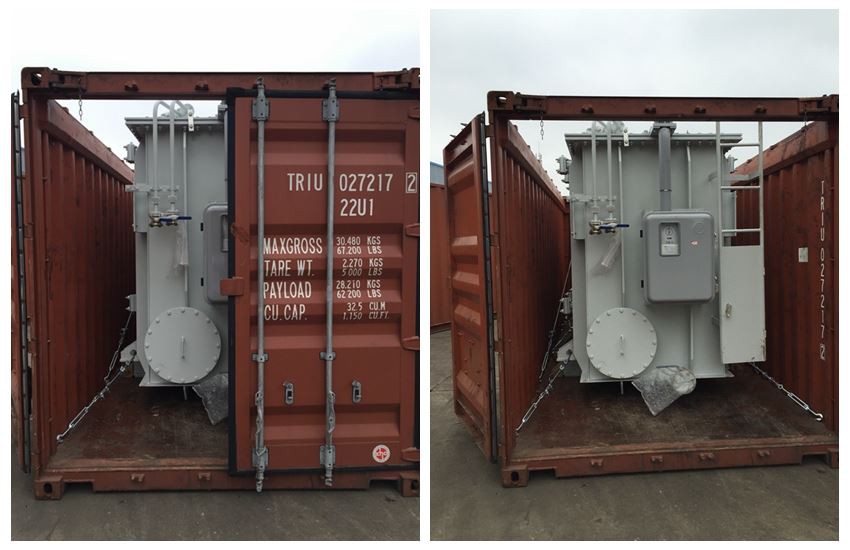

12MVA Transformer in the container
What is oil filled water cooled type transformer?
This type is used for much more economic construction of large transformers, as the above-told self-cooled method is very expensive. The same method is used here as well- the windings and the core are immersed in the oil. The only difference is that a cooling coil is mounted near the surface of the oil, through which cold water keeps circulating. This water carries the heat from the device. This design is usually implemented on transformers that are used in high voltage transmission lines. The biggest advantage of such a design is that such transformers do not require housing other than their own. This reduces the costs by a huge amount. Another advantage is that the maintenance and inspection of this type is only needed once or twice in a year.
FAQ
1. What is the scope of your supply?
We can supply distribution transformers up to 5000KVA 35KV, power transformers up to 200 MVA 230KV, dry type transformers up to 10 MVA 35KV, and other special transformers such as rectifier transformer and furnace transformers.
2. What service can you provide?
We can provide design, manufacturing, delivery, installation, commissioning, after-sale service.
3. Can I visit your company?
You are welcomed to visit our company at any time, contact us to get start the journey.
