Product Introduction
This 90 MVA power oil immersed transformer was manufactured by us in 2014, the rated power of the transformer is 90000 KVA. This 90000 KVA Step Down transformer 220kv to 33kv, the primary voltage is 220kv, the secondary voltage is 35kv. 220kv low-loss series transformer is our independently developed new generation of transformers based on absorption of domestic and foreign advanced technology, which feature low local discharge, low loss, low noise, high reliability, strange protection against abrupt short circuit. Our 90 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
90 MVA transformer specifications and data sheet
| Delivered to | Russia |
| Year | 2014 |
| Model | SFZ11-90MVA-220/35 |
| Type | Oil Immersed Power Transformer |
| Standard | IEC60076 |
| Rated Power | 90 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 220 KV |
| Secondary Voltage | 35 KV |
| Winding Material | Copper |
| Vector Group | YNd11 |
| Impedance | 12% |
| Tap Changer | OLTC |
| Tapping Range | ±8*1.25% |
| Accessories | Standard Configuration |

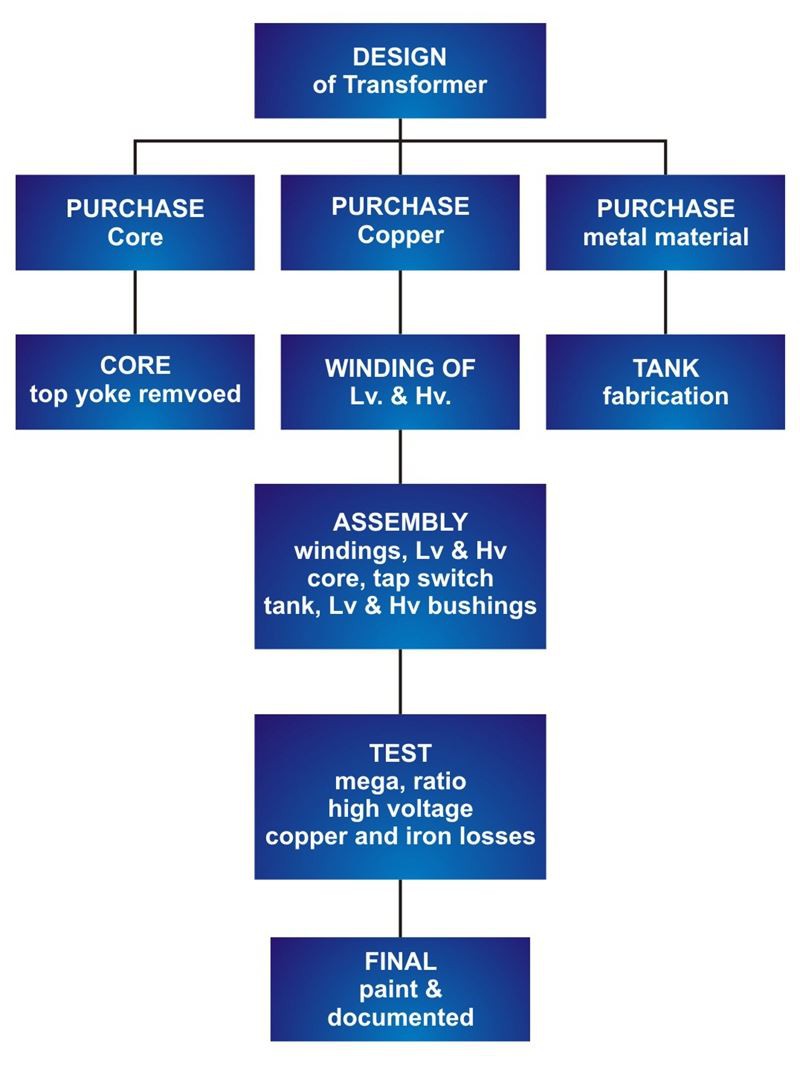

90 MVA 220/35KV Transformer Manufacturing

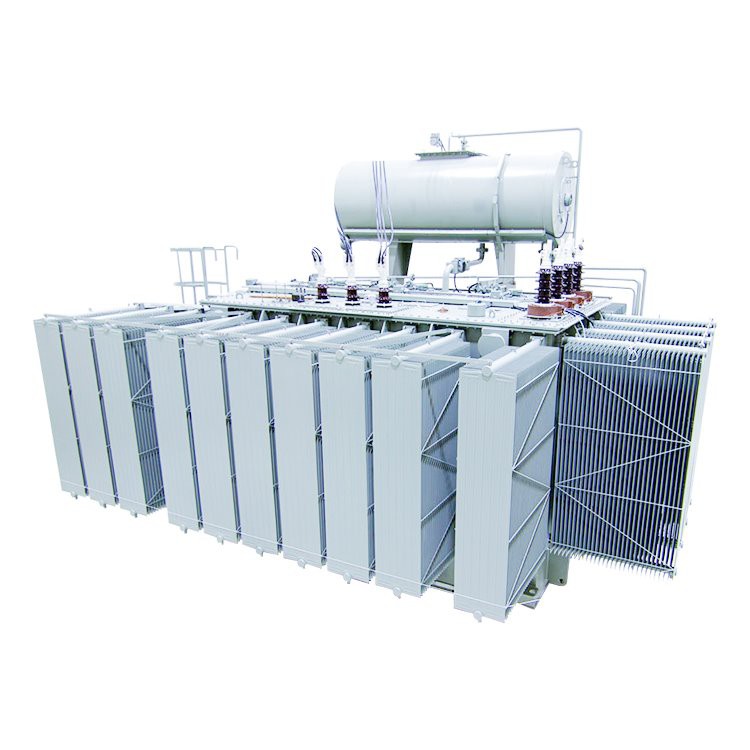

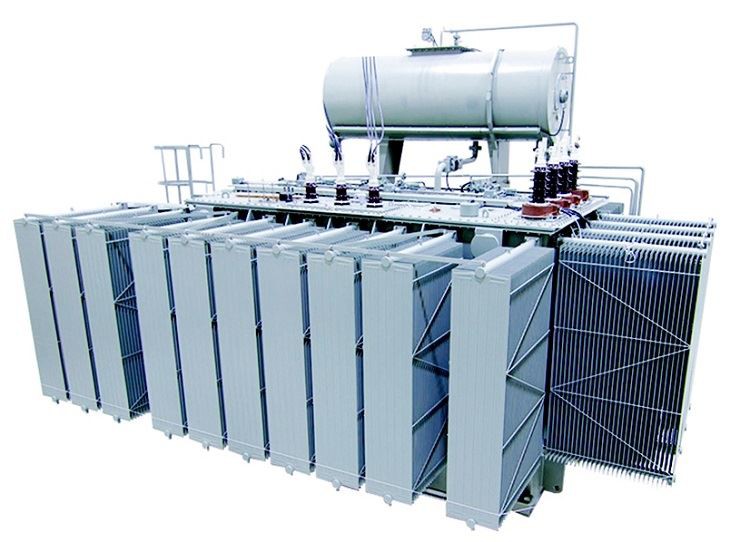

Finished 90 MVA 220/35KV Transformer

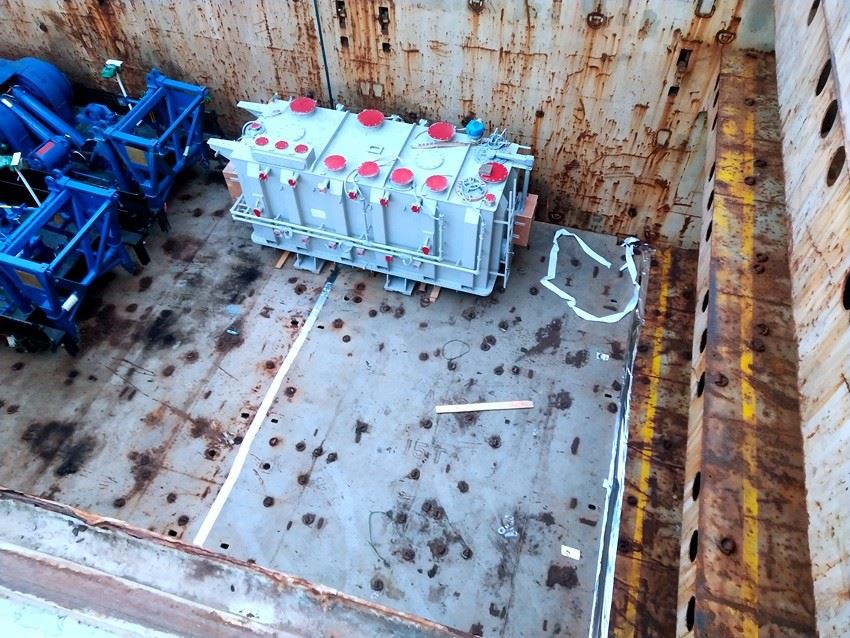

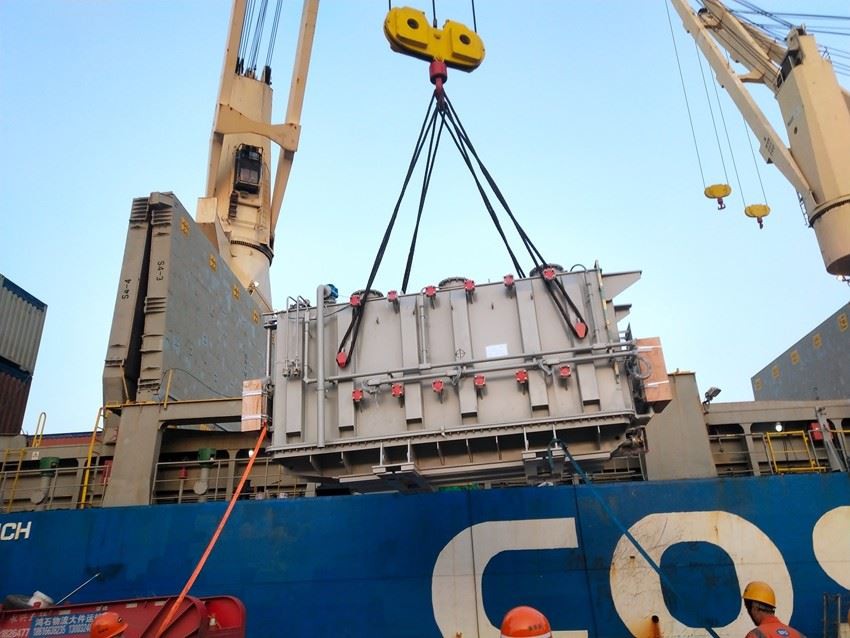

90 MVA transformer loading to bulk ship
What is the difference between dry type transformer and oil?
The biggest difference between oil-immersed transformer and dry-type transformer is that there is no “oil”. Since oil is liquid and has fluidity, oil-immersed transformer must have a shell. The inside of the shell is transformer oil. The dry type transformer has no oil, so the outer shell is not used, and the coil of the transformer can be seen directly.
FAQ
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
