Product Introduction
This 750 KVA 3 phase dry type transformer was delivered to South Africa in 2015, it’s a step down transformer 6.6kv to 0.55kv, the primary voltage is 6.6kv, the secondary voltage is 0.55kv, the cooling is ANAF, the vector group is Dyn11. This dry type transformer is used in outdoor condition, it equipped with an IP 43 outdoor enclosure, the dry type transformers are widely used in the place of hotel, airport, power plant, hospital, shopping center, and residential areas and other adverse environments like subways, smelt and power plant, ship, offshore drilling platform etc. Our 750 KVA dry type transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: Dry Type Transformer
Rated Power: Up to 20 MVA
Primary Voltage: Up to 35 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
750 KVA dry type transformer specifications and data sheet
| Delivered to | South Africa |
| Year | 2015 |
| Model | SCB10-750 KVA-6.6/0.55KV |
| Type | Dry Type Transformer |
| Standard | IEC60076 |
| Rated Power | 750 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ANAF |
| Primary Voltage | 6.6 KV |
| Secondary Voltage | 0.55 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 7 |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 1.52kw |
| On Load Loss | 6.96kw |
| Accessories | Standard Configuration |

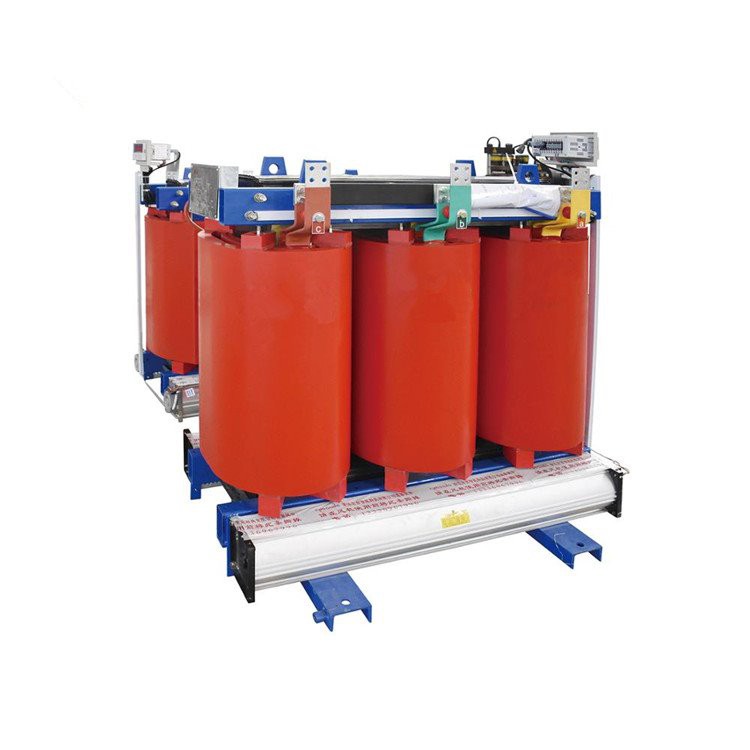

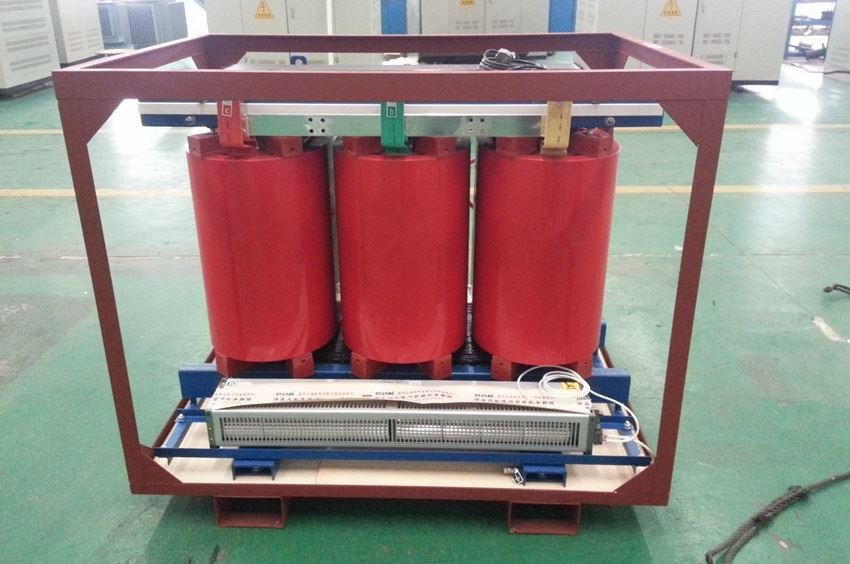

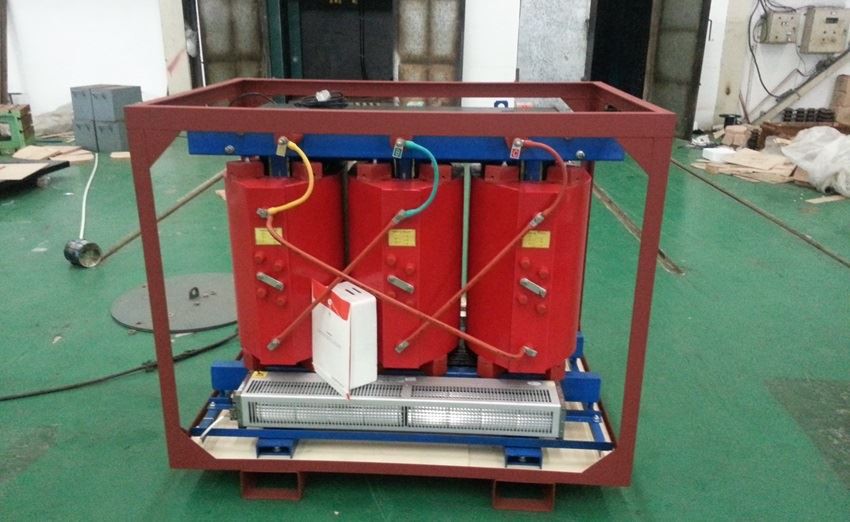

Finished 750 KVA 6.6/0.55KV Transformer
The coil is reinforced with glass fiber, and the whole process of pouring and curing with epoxy resin filled in vacuum is monitored at the computer terminal at any time and automatically adjusted by the computer according to the situation. The precise manufacturing process makes the coil have good mechanical properties, no cracking, no bubbles inside, small local discharge, high reliability and long service life.
The Feature of Dry Type Transformer:
1. This product has good moisture-proof performance. The high and low-voltage coils are vacuum cast without moisture absorption, and the iron core clamps and fasteners are treated with anti-corrosion, which can operate in high temperature and harsh environment.
2. Flame retardant, explosion-proof, no environmental pollution.
3. The internal embedded air duct enhances the heat dissipation performance and overload capacity.
4. With low loss, low noise and core stacking, fully inclined 45 ° joint and step lamination are adopted, which can effectively improve the magnetic flux distribution at the core corner, reduce the no-load loss step by step, and greatly reduce the noise level.
5. It has excellent ability to resist short circuit and lightning impact.
6. Small size, light weight, simple installation, wide range of application; safe and reliable, maintenance free, low comprehensive operation cost.

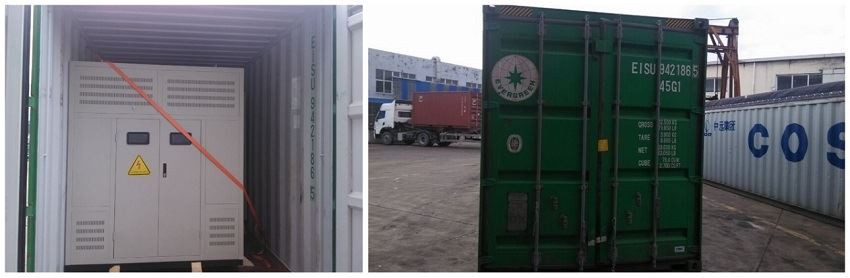

Transformer in the Container
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)
