Product Introduction
The 6.7 MVA dry type transformer was delivered to Vancouver, Canada in 2016, the rated power of the transformer is 6700 KVA. It is a vacuum pressure impregnated winding dry type transformer 25kv to 4.16kv, the high voltage of this dry type transformer is 25kv, the low voltage is 4.16kv. The insulation materials on wires are with H class insulation, which service life is longer than ordinary dry type transformer. Our 6.7 MVA dry type transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: Dry Type Transformer
Rated Power: Up to 20 MVA
Primary Voltage: Up to 35 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
6700 KVA dry type transformer specifications and data sheet
| Delivered to | Vancouver, Canada |
| Year | 2016 |
| Model | SGB-6.7MVA-25/4.16KV |
| Type | Dry Type Transformer |
| Standard | IEC60076 |
| Rated Power | 6.7 MVA |
| Frequency | 60 HZ |
| Phase | Three |
| Cooling Type | AN |
| Primary Voltage | 25 KV |
| Secondary Voltage | 4.16 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 7% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 8.12kw |
| On Load Loss | 38.3kw |
| Accessories | Standard Configuration |

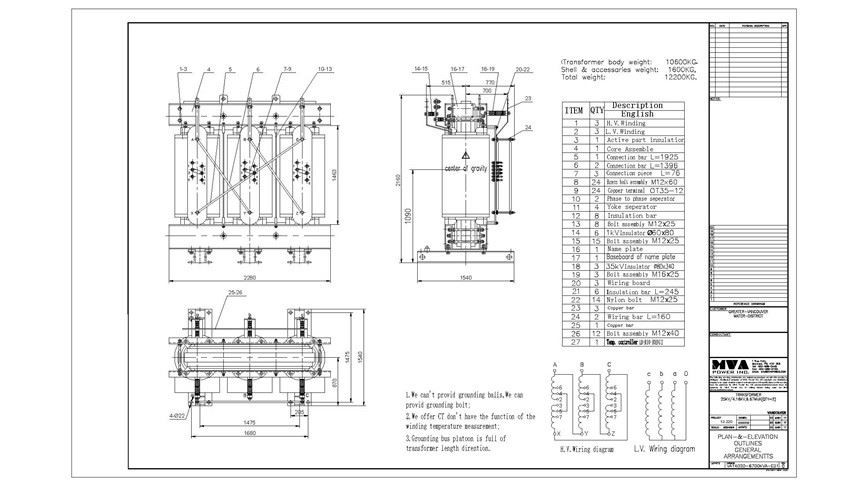

6700 KVA 25/4.16KV Transformer Drawing
6700 KVA dry type transformer diagram drawing and size.

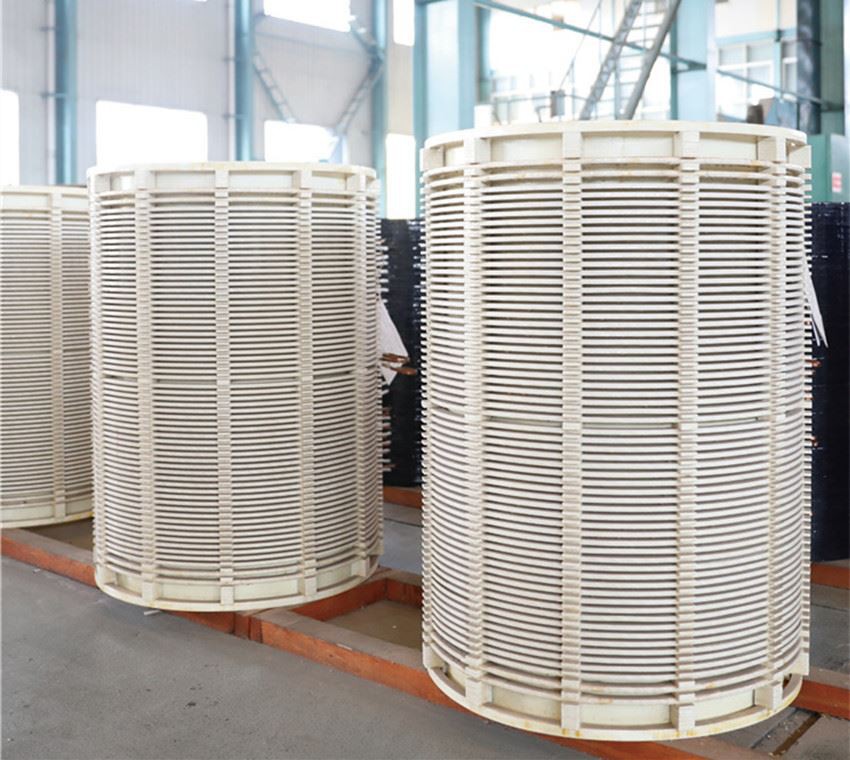

6700 KVA 25/4.16KV Transformer Winding Manufacturing
The windings up to 1.1kV class are made in foil or strip in a continuous layer; for higher voltages, the winding is made of disks connected in series or parallel according to the voltage or power of the winding.

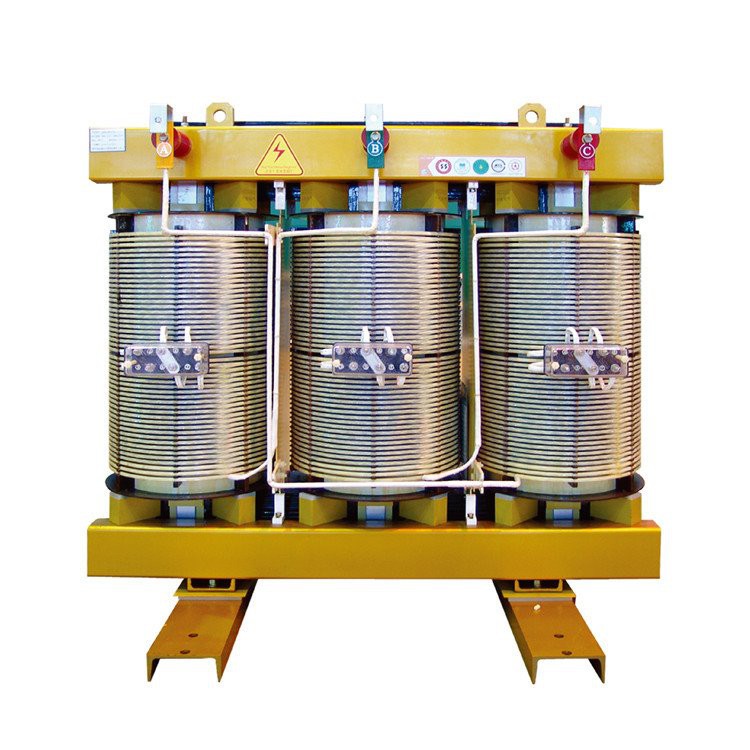

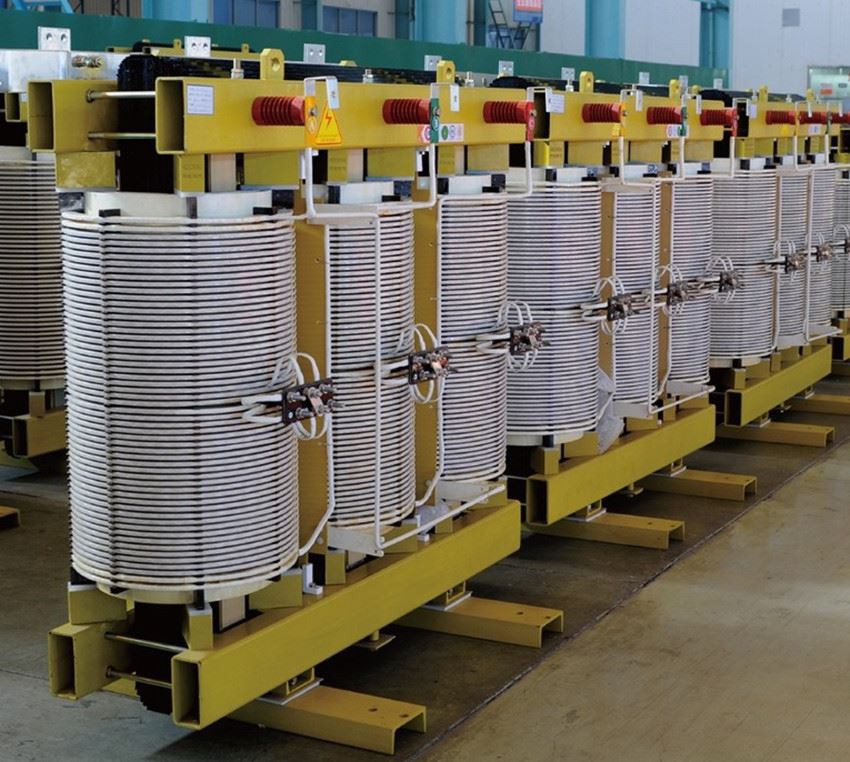

Finished 6700 KVA 25/4.16KV Transformer
Advantage：
1、Class H insulation
The insulation grade of H-class insulation dry-type transformer is class B, F, H, C, etc. The temperature resistance temperature of dry-type transformer is 130 ℃, 150 ℃, 180 ℃ and 220 ℃. SG (b) dry-type transformer adopts new materials and new technology of DEPONT company, and its thermal durability reaches grade H and that of some key parts reaches grade C.
2、Safety
SG(B) series products are today’s highest safety dry transformers, all insulation materials are non-combustion-supporting, self-extinguishing, non-toxic.
3、Reliability
The special coil design, process and material of SG(B) series products are the products with excellent three-proof performance, which can withstand thermal shock and never crack.
FAQ
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
