Product Introduction

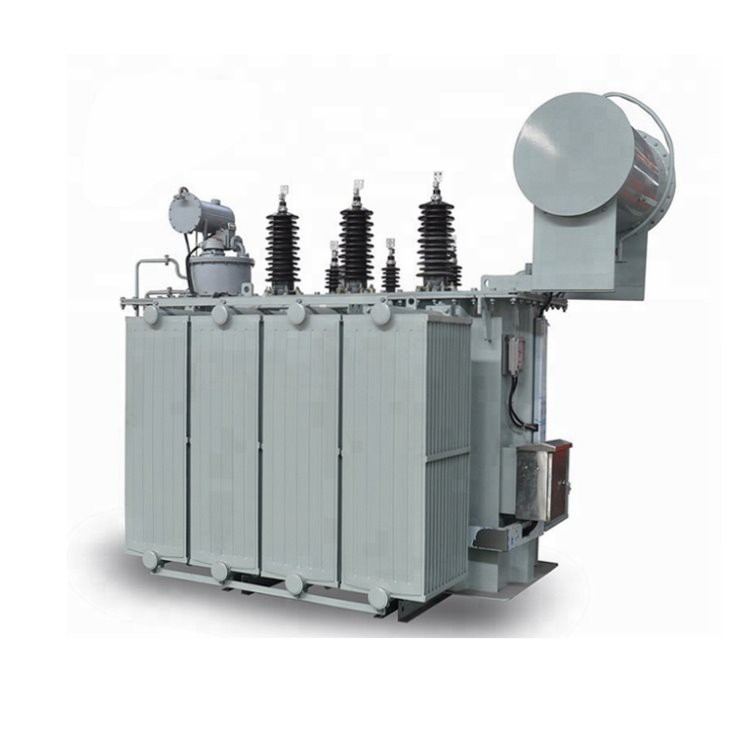

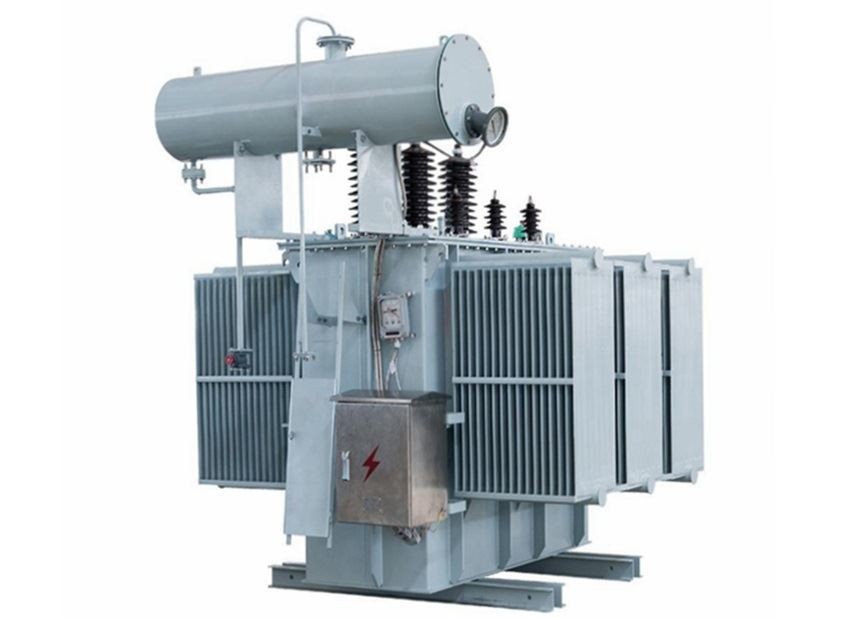

The 6 MVA oil filled power transformer was delivered to Zambia in 2011, the rated power of the transformer is 6000 KVA. It is an oil filled power transformer 33kv to 11kv, the primary voltage is 33kv, the secondary voltage is 11kv, the transformer is equipped with a no load tap changer, the tapping range is ±2*2.5% at primary side, the cooling is ONAN, our 6 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH is specialized in transformer manufacturing for more than 20 years, our transformers are widely used in the world and we exported our transformers to more than 50 different countries.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
6 MVA oil type power transformer specification and data sheet
| Delivered to | Zambia |
| Year | 2011 |
| Model | S11-6 MVA-33/11KV |
| Type | Oil Immersed Power Transformer |
| Standard | IEC60076 |
| Rated Power | 6 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 33 KV |
| Secondary Voltage | 11 KV |
| Winding Material | Copper |
| Vector Group | YNyn0 |
| Impedance | 5% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 6 |
| On Load Loss | 44 |
| Accessories | Standard Configuration |
| Remarks | N/A |

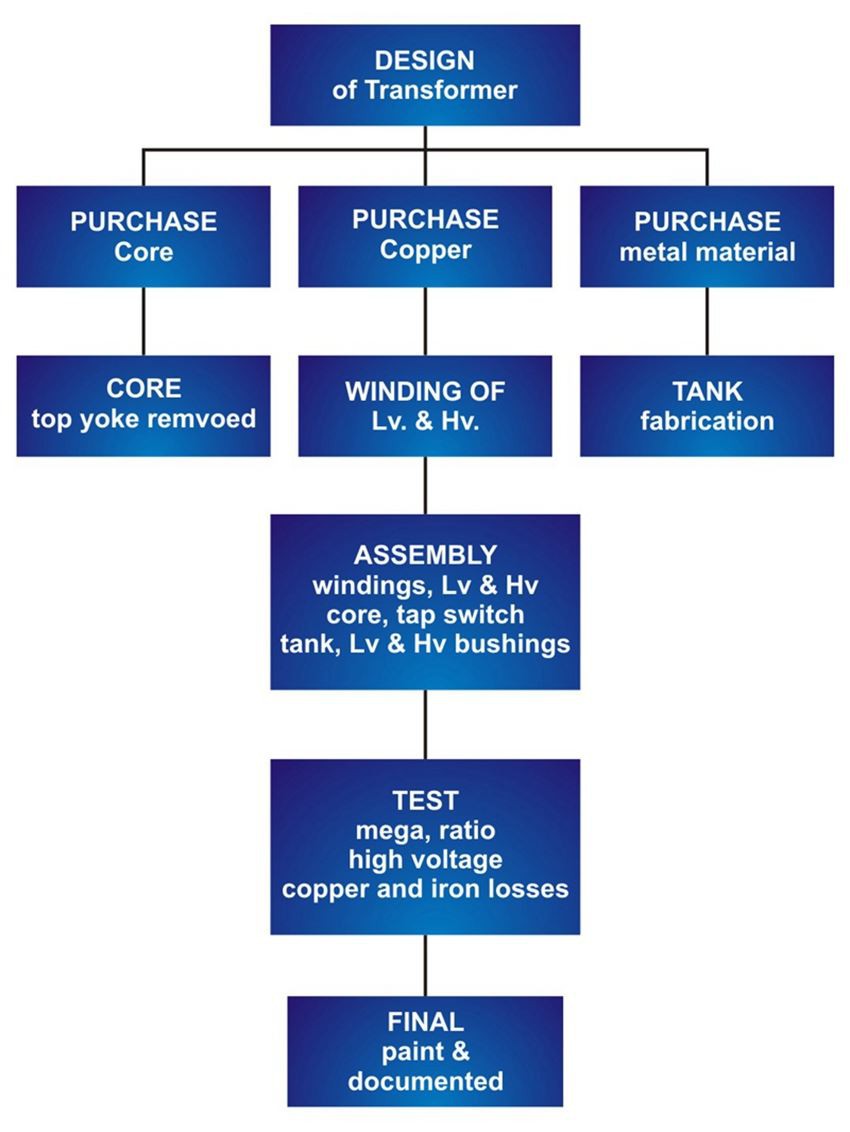

6 MVA 33/11KV Transformer Fabrication Chart

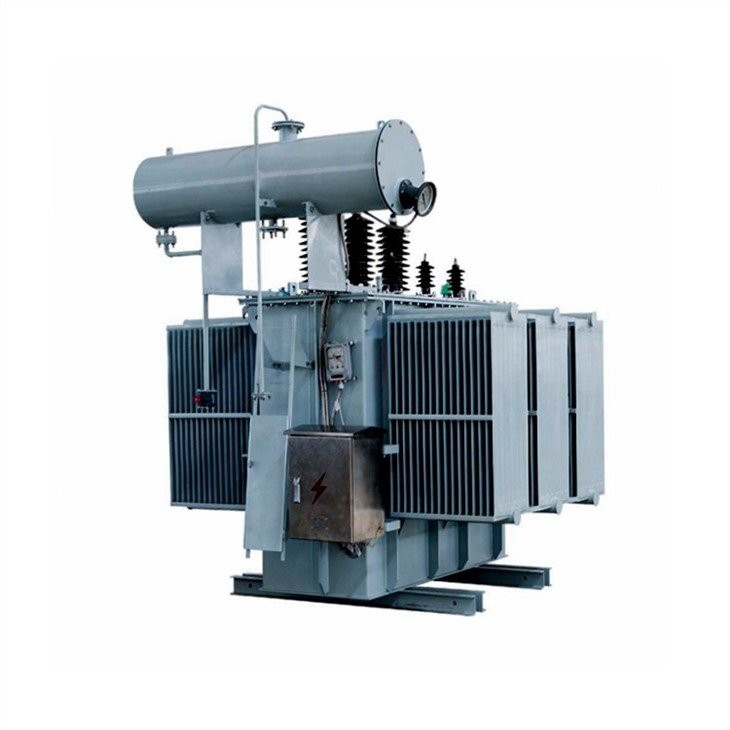

6 MVA 33/11KV Transformer
Package and transport

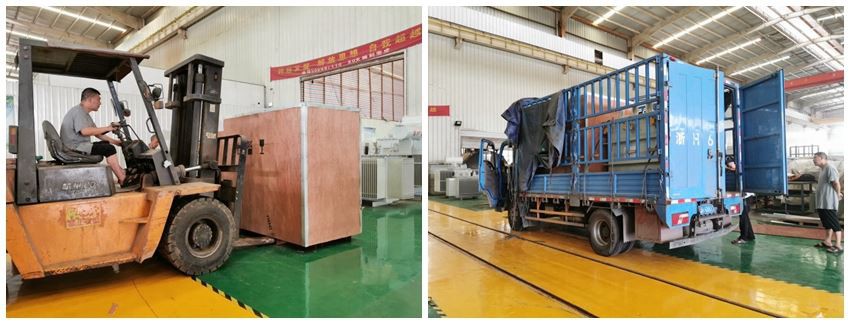

The transformer accessories are packed in plywood boxes, the box is made of high strength iron frame and covered with non-fumigation ply wood plate, the transformer main body is nude and fixed in the container, some of the big transformers will equipped with impact recorder to record the G value during sea transportation.
How Does a Transformer Work?
A transformer is basically a large, square magnet with a hole in the middle. Electricity enters on one side via wires wrapped a number of times around the transformer, and leaves on the opposite side via wires wrapped a different number of times around the transformer. Entering electricity induces a magnetic field in the transformer, which in turn induces an electric field in the other wires, which then carry power away from the transformer.
At the level of physics, a transformer works by taking advantage of Faraday’s law, which states that the voltage ratio of two coils equals the ratio of the number of turns in the respective coils. Thus if reduced voltage is required at a transformer, the second (outgoing) coil contains fewer turns than the primary (incoming) coil.
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days (with imported components)
