Product Introduction

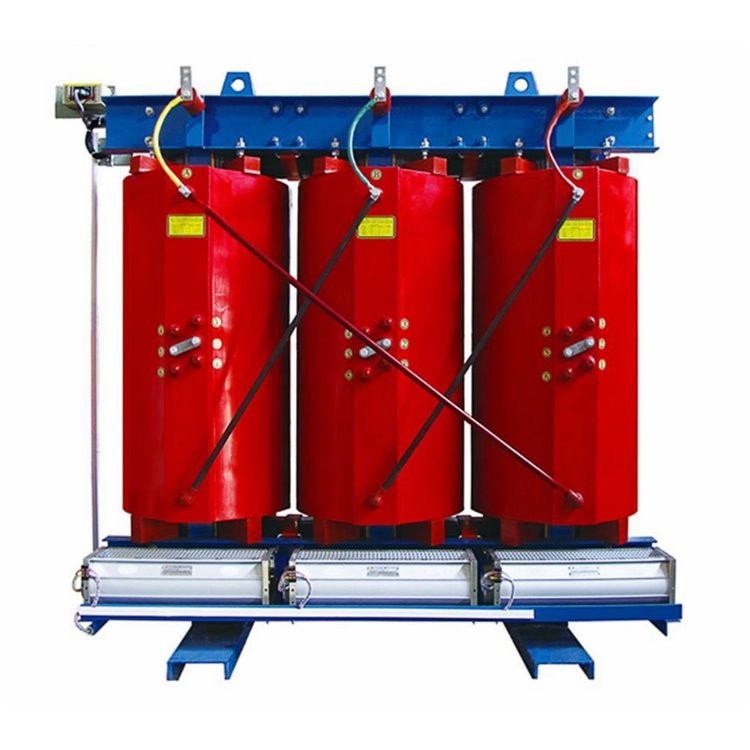

This 5000 KVA cast coil dry type transformer was delivered to a substation in Zimbabwe in 2017 the rated power of the transformer is 5000 KVA. the primary voltage of the transformer is 33 KV and secondary voltage is 0.415 KV. The dry type transformer equipped with temperature controller, it can control to stop, over-temperature alarm and ultra-high temperature tripping to ensure the safe operation of dry power transformer. Our 5000 KVA cast coil transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: resin cast dry type transformer
Voltage level: up to 35KV
Rating level: up to 20MVA
The transformer can be designed according to customer’s requirements
Technical Data Sheet
5000 KVA Dry Type Transformer specifications and data sheet
| Delivered to | Zimbabwe |
| Year | 2017 |
| Model | SCB10 -5000 KVA-35/0.55KV |
| Type | resin cast dry type transformer |
| Standard | IEC60076 |
| Rated Power | 5000 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | AN/AF |
| Primary Voltage | 35 KV |
| Secondary Voltage | 0.55 KV |
| Winding Material | Aluminum |
| Vector Group | Dyn11 |
| Impedance | |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| Accessories | Standard Configuration |

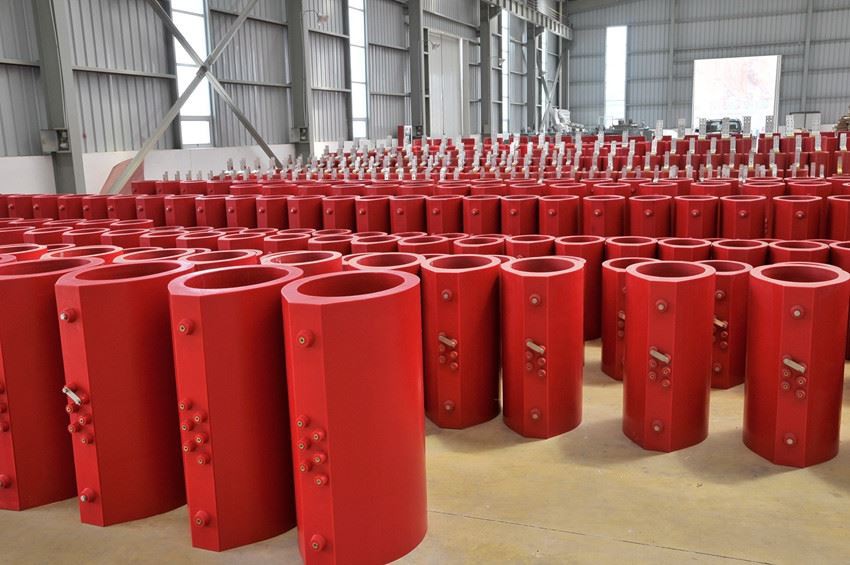

Cast Coils of Dry Type Transformers
The epoxy resin dry type transformer has the characteristics of good electrical performance, strong lightning impact resistance, strong short-circuit resistance, small size, and light weight. The temperature display controller can be installed to display and control the operating temperature of the transformer windings to ensure the normal service life of the transformer.

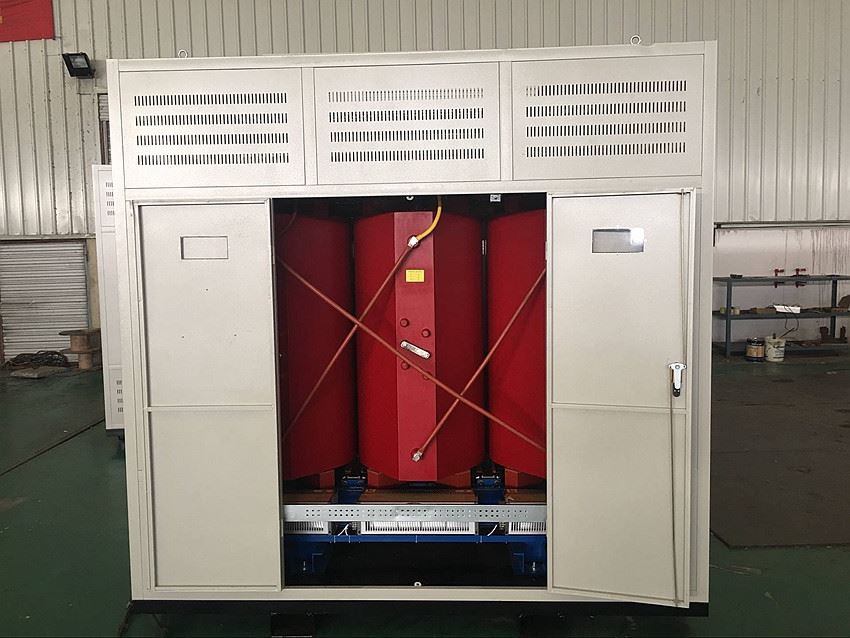

Finished 5000 KVA 33/0.4KV Transformer

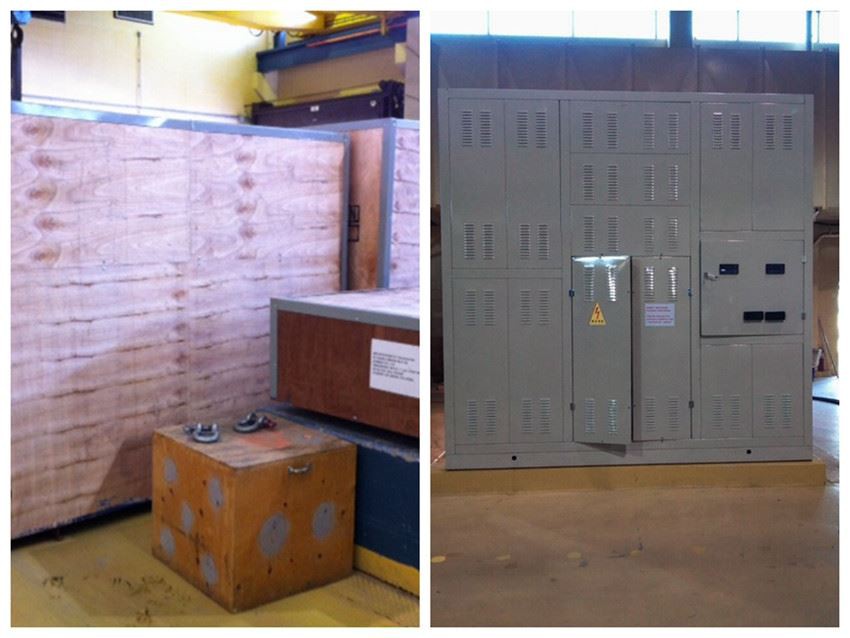

Transformer packing
The function of temperature controller:
According to the temperature rise, the cooling fan is automatically controlled to stop, overtemperature alarm and ultra-high temperature tripping to ensure the safe operation of dry power transformer.
