Product Introduction
This 5 MVA Vacuum Impregnated Transformer was delivered to Canada in 2016. the rated power of the transformer is 5000 KVA. the primary voltage of the transformer is 24.94 KV and secondary voltage is 4.16 KV. This is VPI transformers, is a new concept of dry type transformers, the transformer coils are vacuum pressure impregnated in high temperature polyester vanish under vacuum and pressure, the coils can be made of copper or aluminum, the insulation is made of high grade nonflammable materials, the insulations class can be F, H or C class, suitable for different requirements. Our 5 MVA Dry Type Transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: resin cast dry type transformer
Voltage level: up to 35KV
Rating level: up to 20MVA
The transformer can be designed according to customer’s requirements
Technical Data Sheet
5 MVA Dry Type Transformer specifications and data sheet
| Delivered to | Canada |
| Year | 2016 |
| Model | SGB10 -5 MVA-24.94/4.16 KV |
| Type | Vacuum Pressure Impregnated Transformer |
| Standard | IEC60076 |
| Rated Power | 5 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | AN/AF |
| Primary Voltage | 24.94 KV |
| Secondary Voltage | 4.16 KV |
| Winding Material | Aluminum |
| Vector Group | Dyn11 |
| Impedance | 5% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 5.99 KW |
| On Load Loss | 25.8 KW |
| Accessories | Standard Configuration |

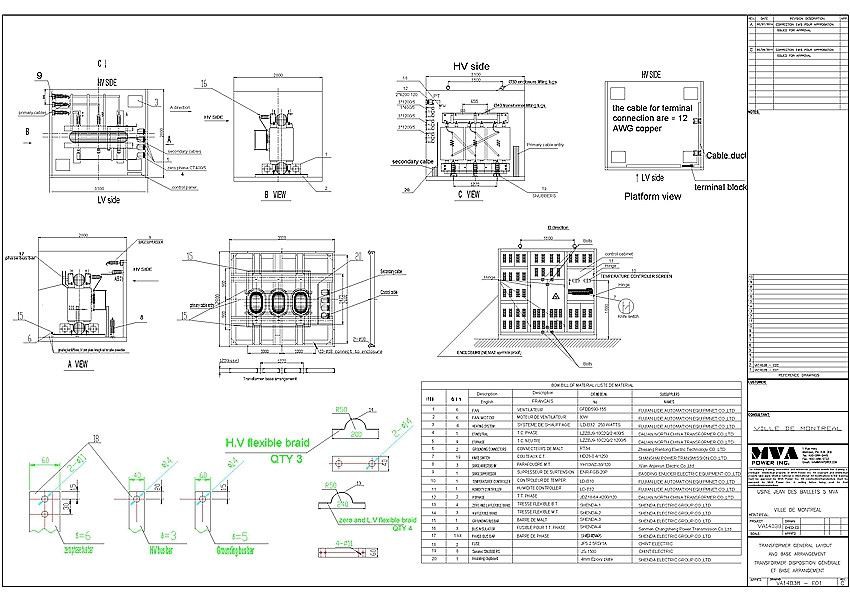

Transformer GA drawing

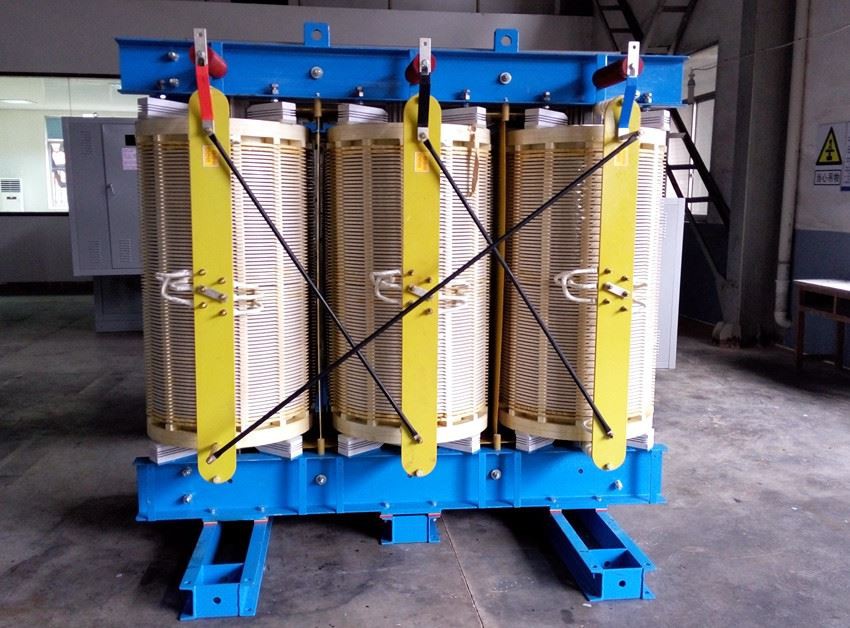

5 MVA 24.94/4.16 KV Transformer Manufacturing Process

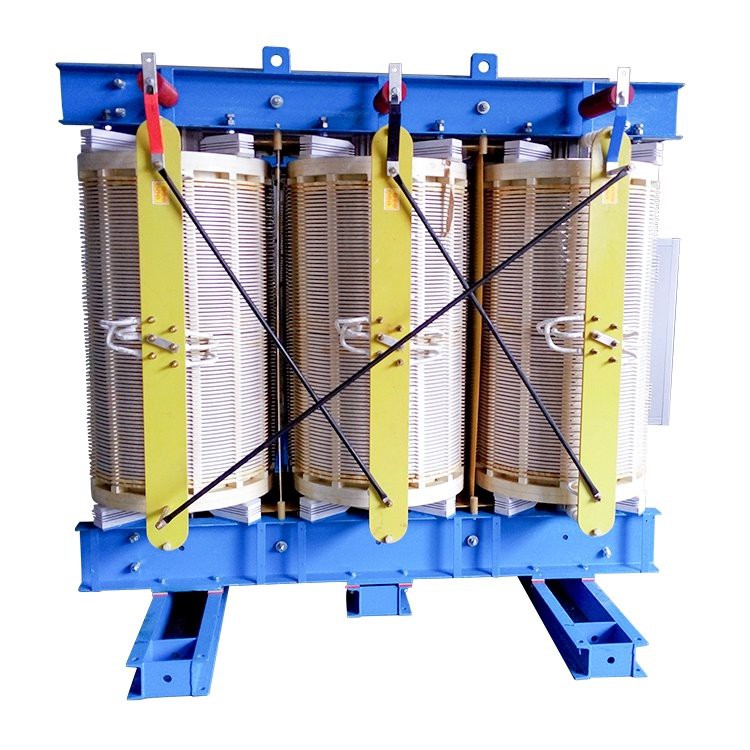

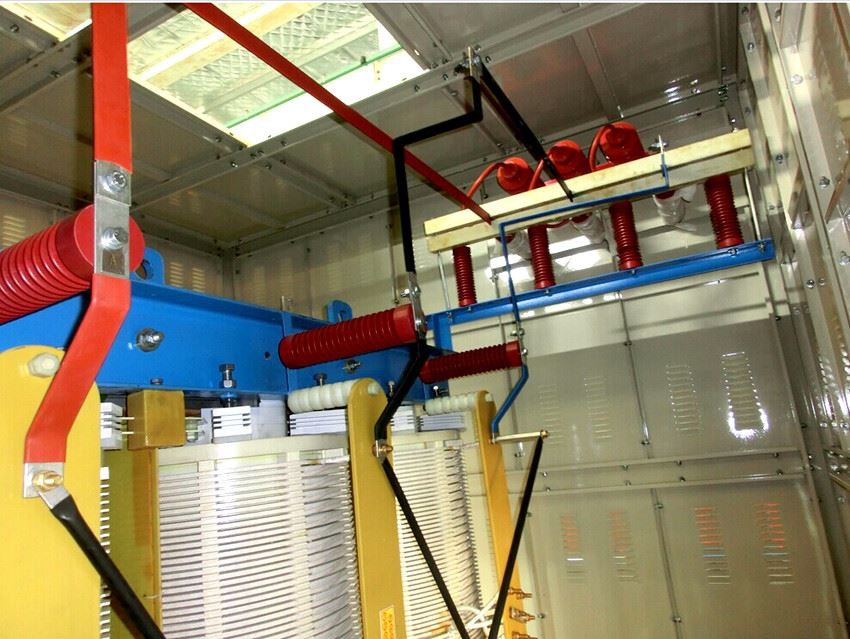

Finished 5 MVA 24.94/4.16 KV Transformer
Customer FAT
What is VPI process?
Vacuum Pressure Impregnation (V.P.I) is a process by which a fully wound electric apparatus stator or rotor is completely submerged in a Resin. Through a combination of dry and wet vacuum and pressure cycles, the resin is assimilated throughout the insulation system.
