Product Introduction

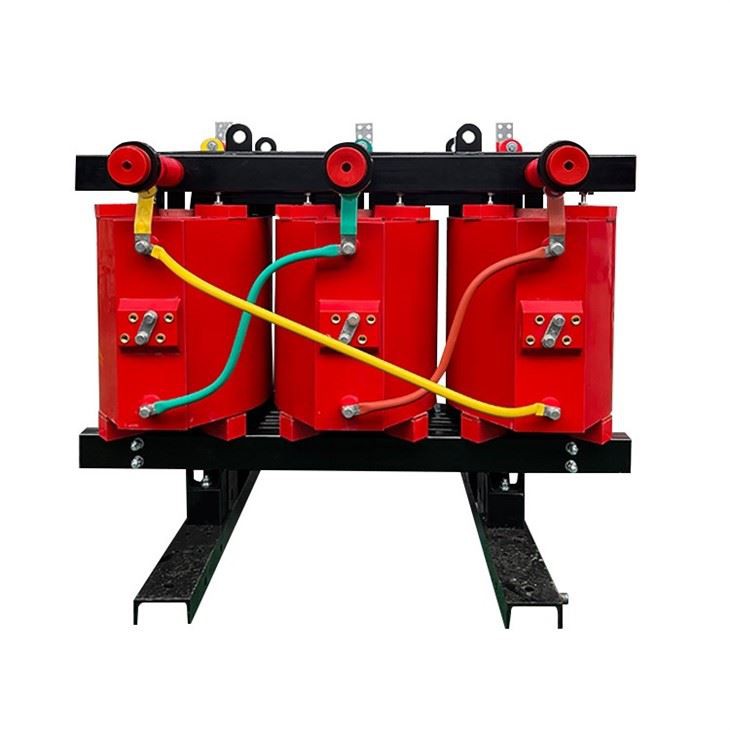

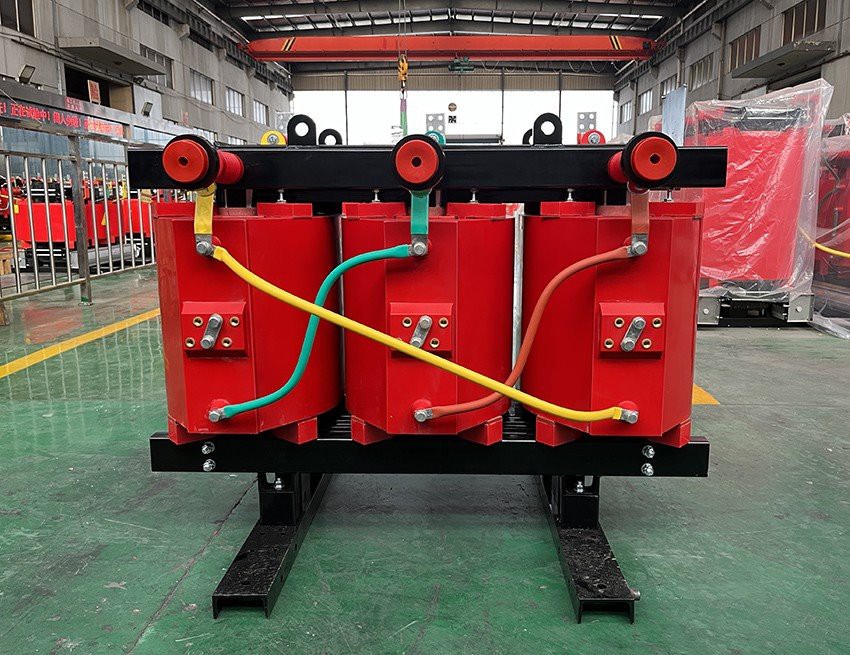

The 315 kVA epoxy resin cast dry type transformer was delivered to Georgia in 2022 for a national project. Transformers are used on the highway.
The rated power of the dry type transformer is 315 kVA with AN cooling, the primary voltage is 10 kV with ±2*2.5% tapping range(NLTC), the secondary voltage is 0.4kV with delta star connection.
Cast resin technology provides excellent insulation and environmental protection, this together with the foil winding technology inside the resin offers the ultimate dry type transformer in terms of dielectric performance and short circuit withstand ability and ensures long term reliability for both distribution and special applications. cast resin transformers can be supplied with either aluminum or copper windings together with possibility of class F or class H insulation system, they can be designed to in-door or out-door installation with different enclosures.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: resin cast dry type transformer
Voltage level: up to 35KV
Rating level: up to 20MVA
The transformer can be designed according to customer’s requirements
Technical Data Sheet
315 KVA Dry Type Transformer specifications and data sheet

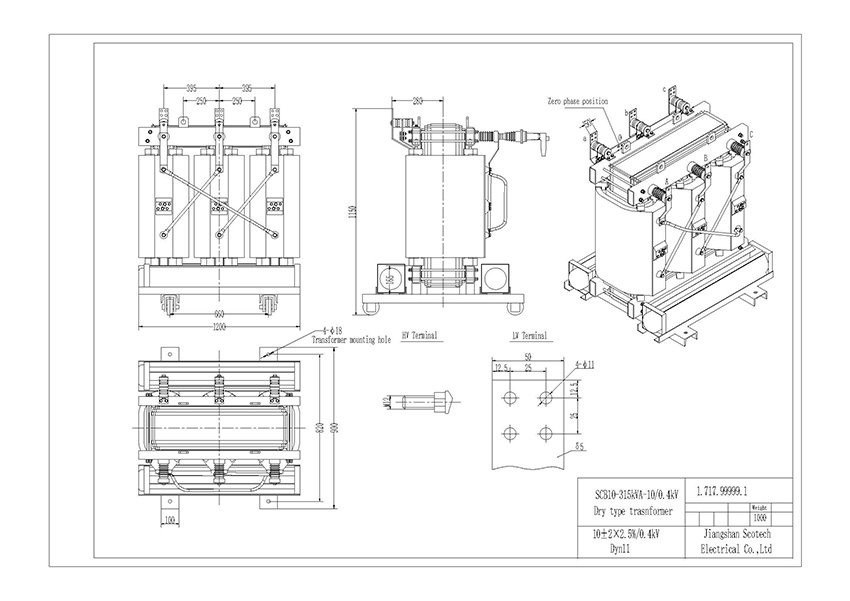

315kVA-10/0.4kV Transformer Drawing
315kVA transformer diagram drawing and size.

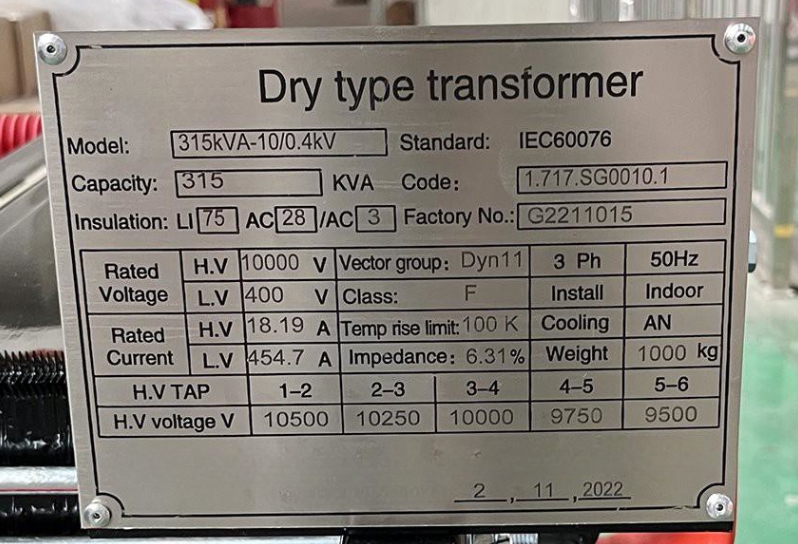

315kVA-10/0.4kV Transformer Name Plate

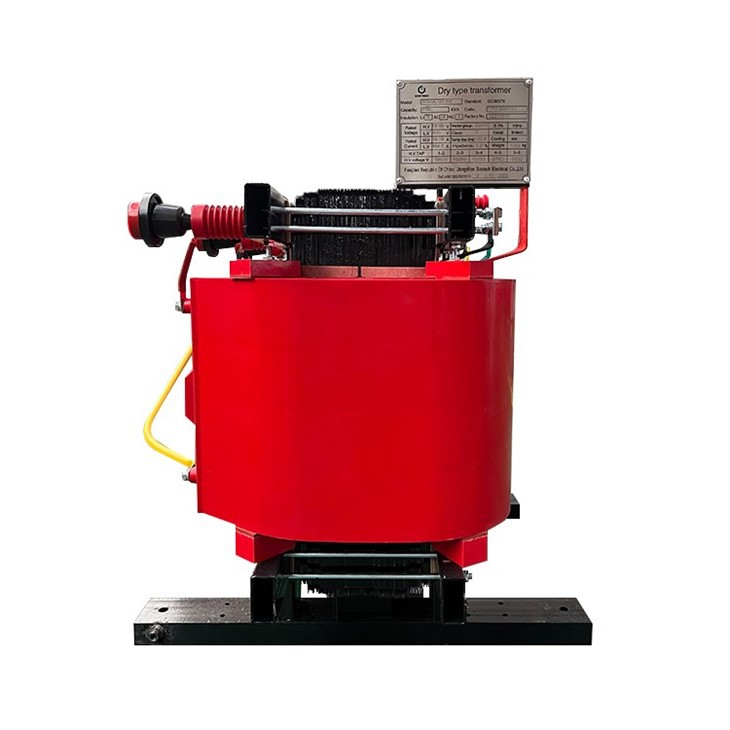

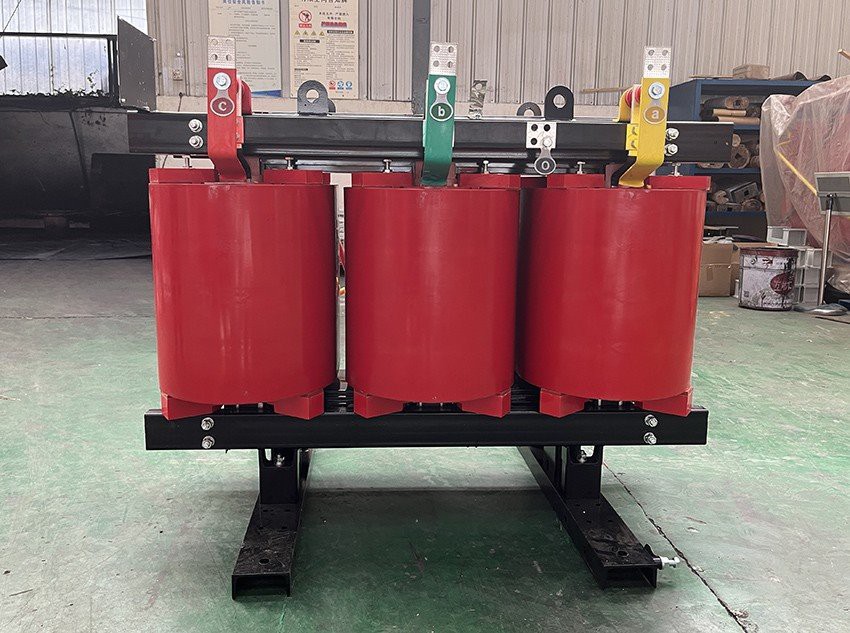

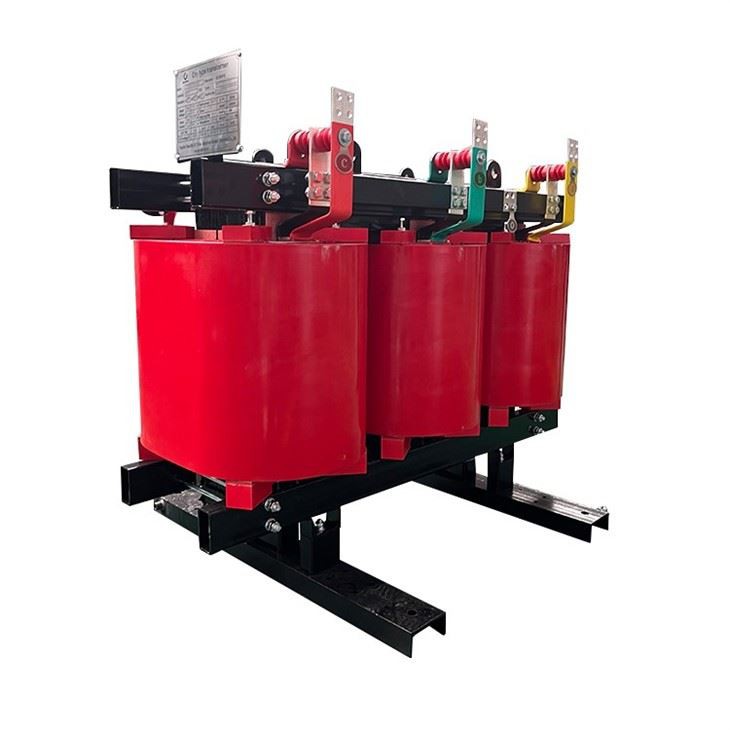

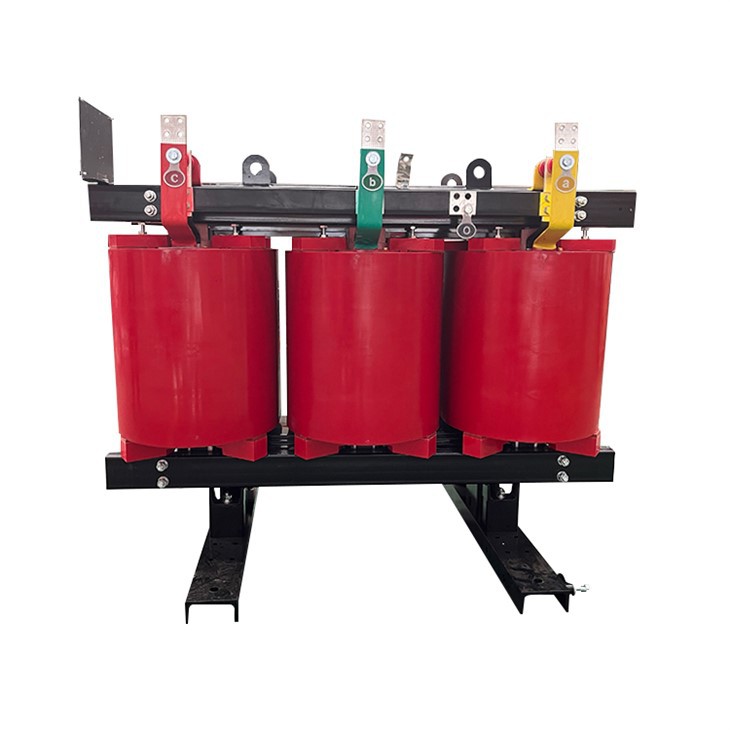

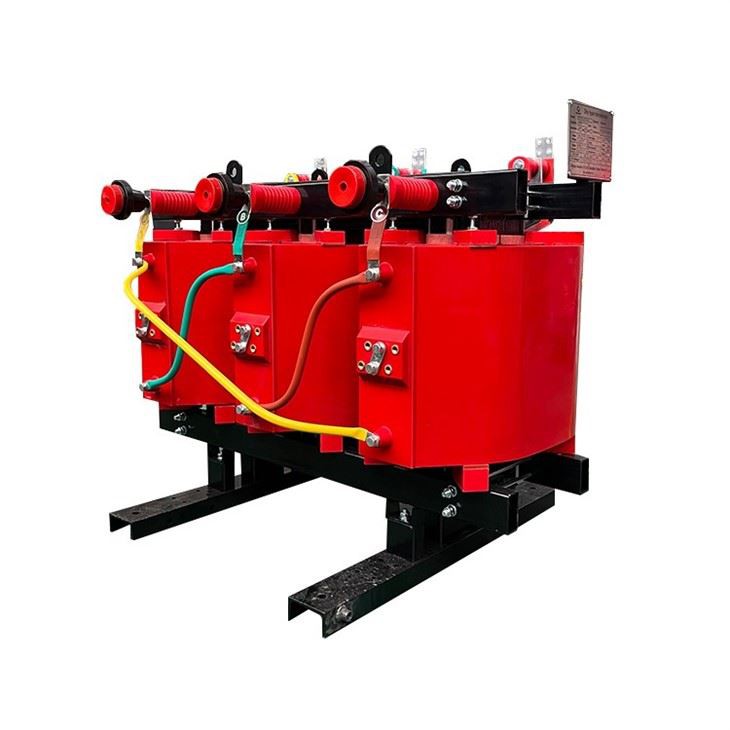

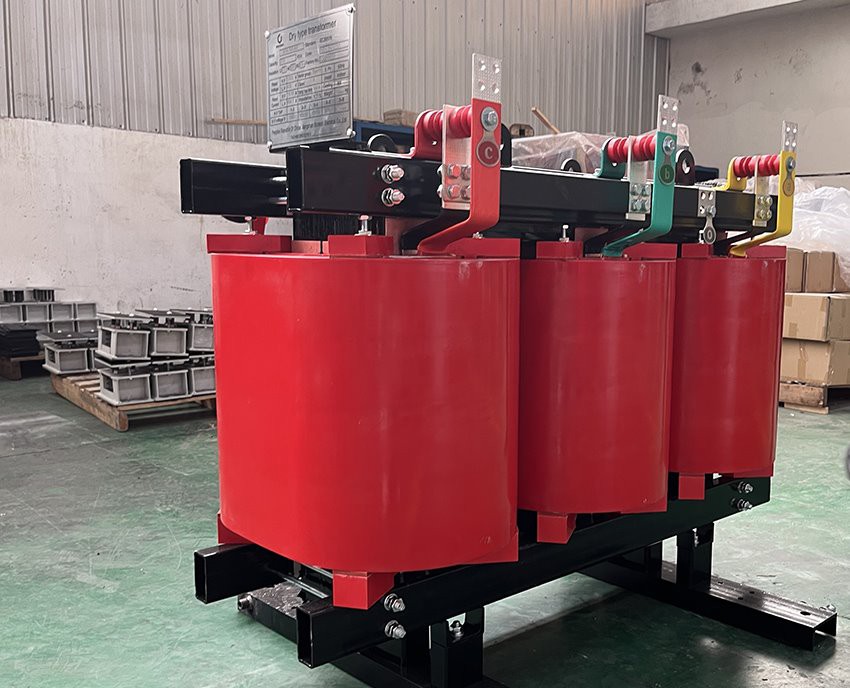

Finished 315kVA-10/0.4kV Transformer
The epoxy resin dry type transformer has the characteristics of good electrical performance, strong lightning impact resistance, strong short-circuit resistance, small size, and light weight. The temperature display controller can be installed to display and control the operating temperature of the transformer windings to ensure the normal service life of the transformer.
The function of temperature controller:
According to the temperature rise, the cooling fan is automatically controlled to stop, overtemperature alarm and ultra-high temperature tripping to ensure the safe operation of dry power transformer.
FAQ
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
