Product Introduction
This 2500 KVA cast resin dry type transformer was delivered to South Africa in 2018. The rated power of the transformer is 2500 KVA. The primary voltage of the transformer is 11 KV and secondary voltage is 0.4 KV. It equipped with RS485 communication protocol temperature controller to monitor the operation condition of the transformers, our 2500 KVA Dry Type Transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: resin cast dry type transformer
Voltage level: up to 35KV
Rating level: up to 20MVA
The transformer can be designed according to customer’s requirements
Technical Data Sheet
2500 KVA Dry Type Transformer specifications and data sheet
| Delivered to | South Africa |
| Year | 2018 |
| Model | SCB10 -2500 KVA-11/0.4KV |
| Type | resin cast dry type transformer |
| Standard | IEC60076 |
| Rated Power | 2500 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | AN/AF |
| Primary Voltage | 11 KV |
| Secondary Voltage | 0.4 KV |
| Winding Material | Aluminum |
| Vector Group | Dyn11 |
| Impedance | 6% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 4 KW |
| On Load Loss | 17.2 KW |
| Accessories | Standard Configuration |

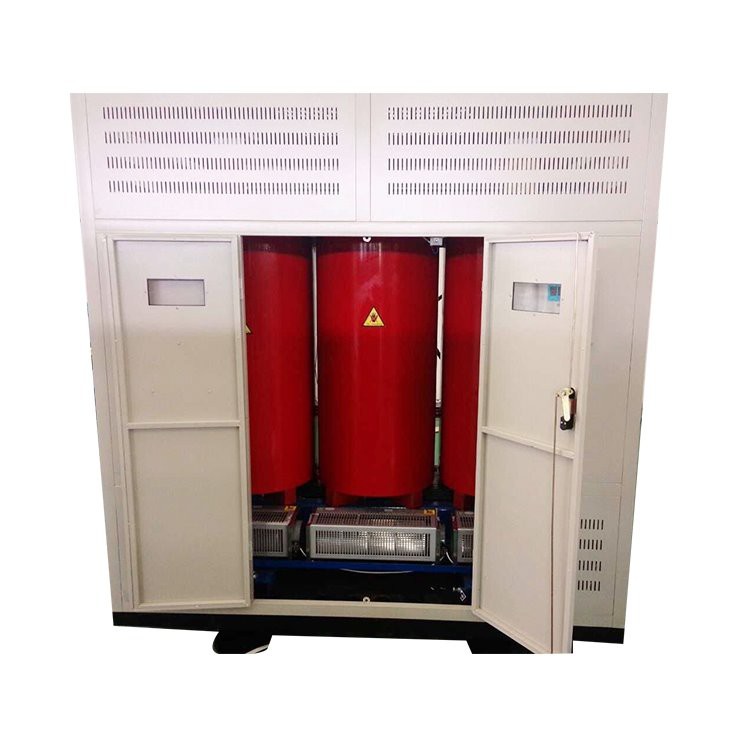

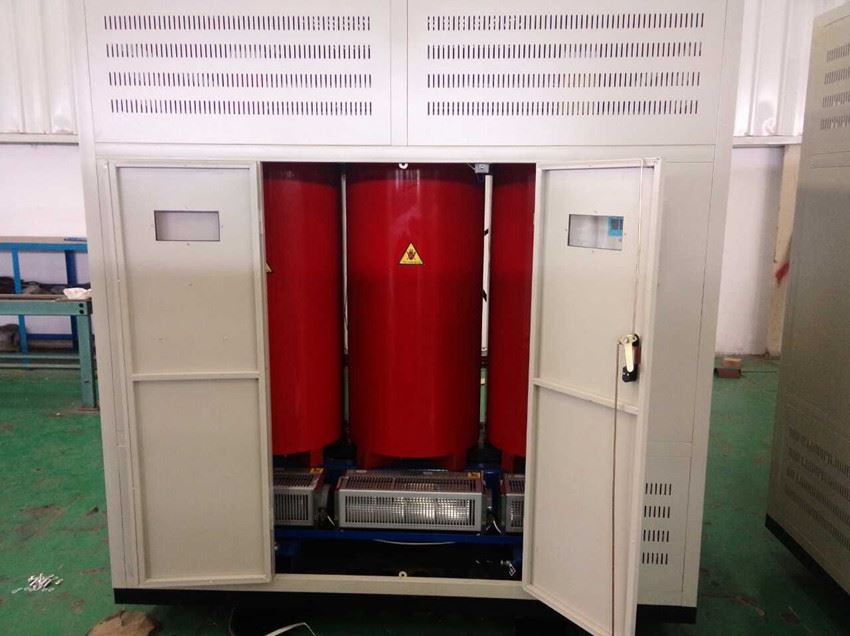

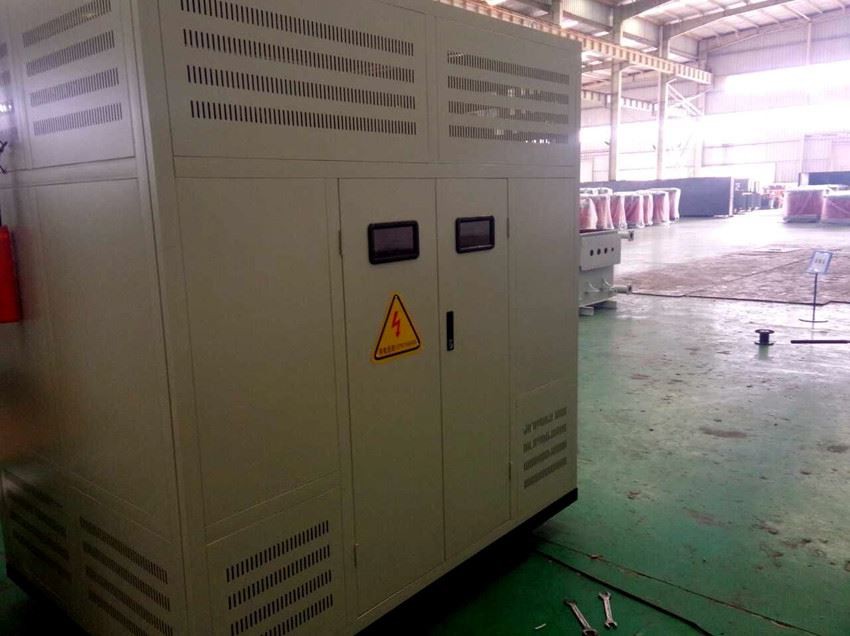

Finished 2500 KVA 11/0.4KV Transformer
Check before running
1. Check whether all fasteners and connectors are loose and tighten them again.
2. Check whether the parts removed during transportation are properly reinstalled, and check whether there are foreign bodies in the transformer, especially in the high and low voltage air duct of the transformer and on the underlying pad.
3. Check whether the fan, temperature controller, temperature indicator, on-load switch and other accessories can work normally. For the three-phase power fan, attention should be paid to its steering. When the fan is normally turning, the wind blows upward from the bottom of the coil into the line
Circle, otherwise, it will be reversed, please replace the phase sequence of the fan power.

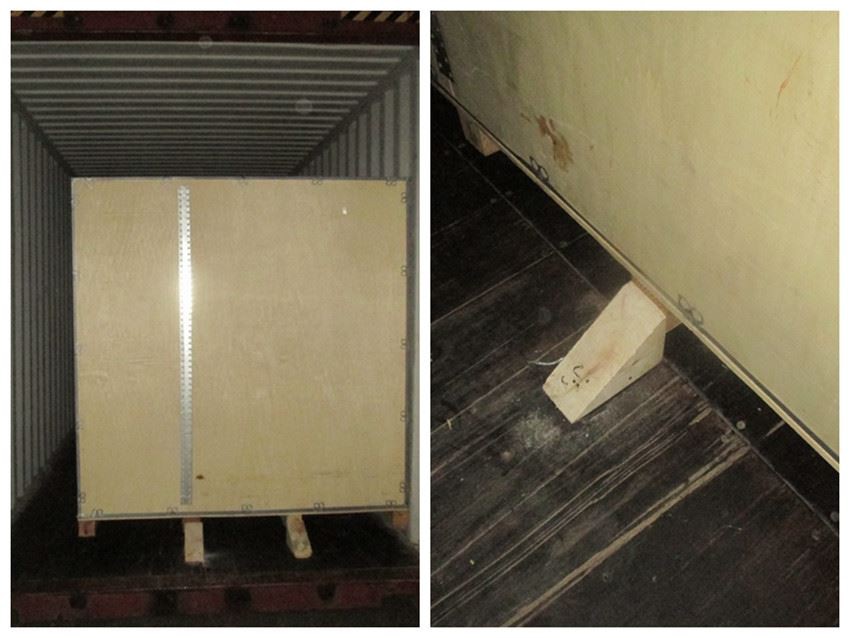

Transformer packing
How to solve the abnormal temperature rise?
1.Modify or replace the instrument
2.Reduce the load, balance the load of each phase, increase the transformer capacity
3. Change the wiring
4.Clean the dust
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)
