Product Introduction

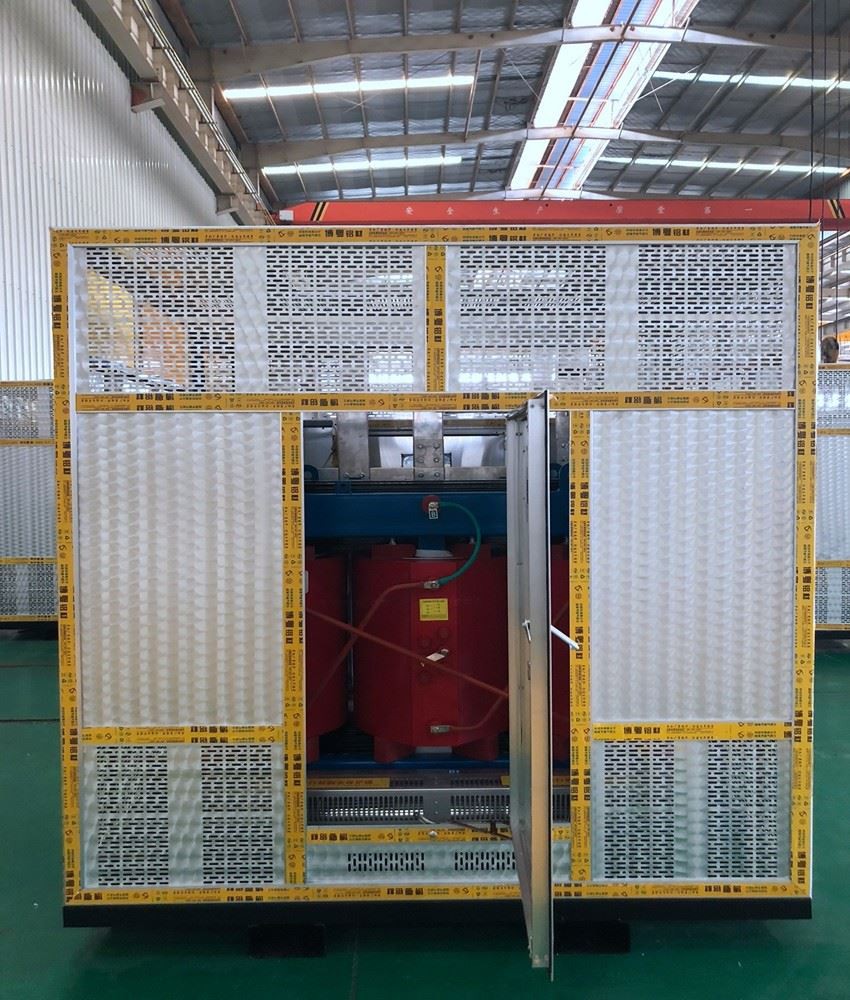

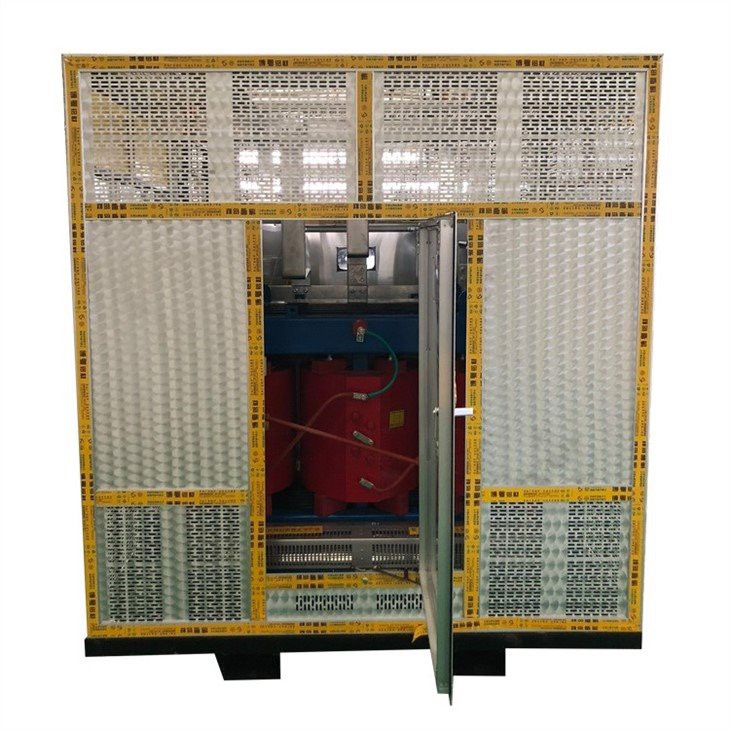

SCOTECH delivered 4 units of 2000 KVA dry type distribution transformers to Nigeria in 2015, the high voltage is 33kv, the low voltage is 0.415kv, the vector group is Dyn5, the transformers are equipped with cooling fans to speed up heat dissipation, and advanced temperature control system to make them safe operation, the enclosure is IP21 stainless steel. Our 2000 KVA dry type transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: Dry Type Transformer
Rated Power: Up to 20 MVA
Primary Voltage: Up to 35 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
2000 KVA dry type transformer specifications and data sheet
| Delivered to | Nigeria |
| Year | 2015 |
| Model | SCB10-2000 KVA-33/0.4KV |
| Type | Dry Type Transformer |
| Standard | IEC60076 |
| Rated Power | 2000 KVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ANAF |
| Primary Voltage | 33 KV |
| Secondary Voltage | 0.415 KV |
| Winding Material | Copper |
| Vector Group | Dyn5 |
| Impedance | 6 |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 4.95kw |
| On Load Loss | 19.2kw |
| Accessories | Standard Configuration |

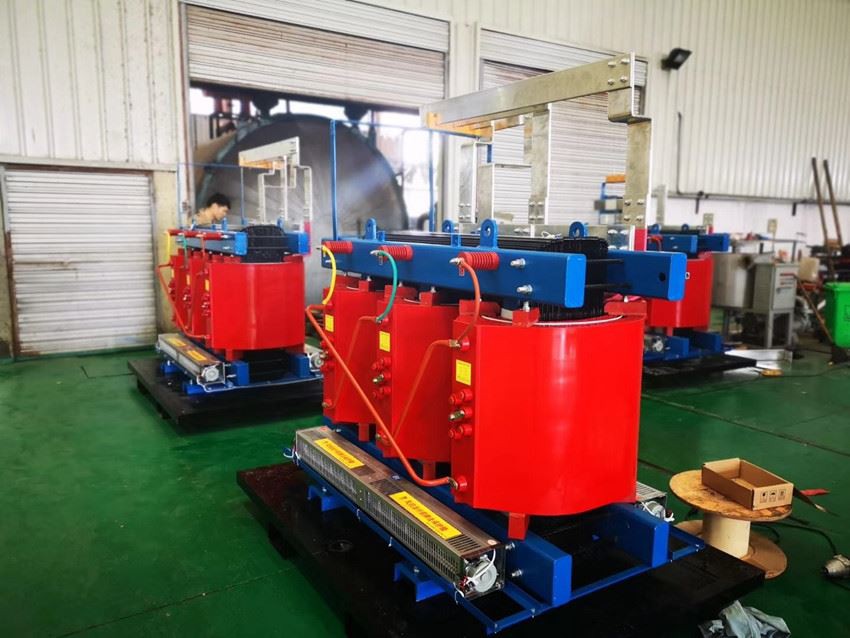

2000 KVA 33/0.4KV dry type transformer manufacturing
What is the difference between aluminum coils and copper coils?

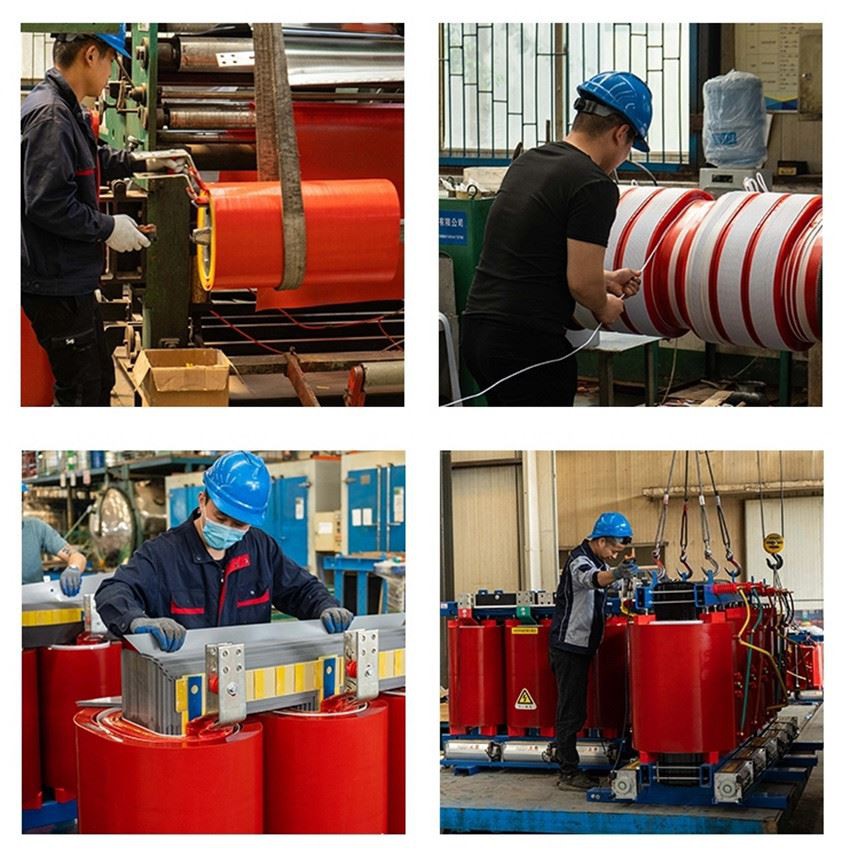

The coils of the dry type transformers could be made of aluminum or copper, it depends on customer’s requirements, but normally aluminum material is suggested in dry type transformers, differently with oil type transformers, the coils of dry type transformers are casted in epoxy resin, the resin casted windings already have enough mechanical strength to withstand short circuit current, and aluminum have better heat dissipation ability than copper, the most important is that aluminum coil is more economy(the cost of the aluminum dry type transformers are around 60-70% of the copper transformers), but copper windings dry type transformers is more compact in size, it’s a good choice for the customer who have limited installation space.

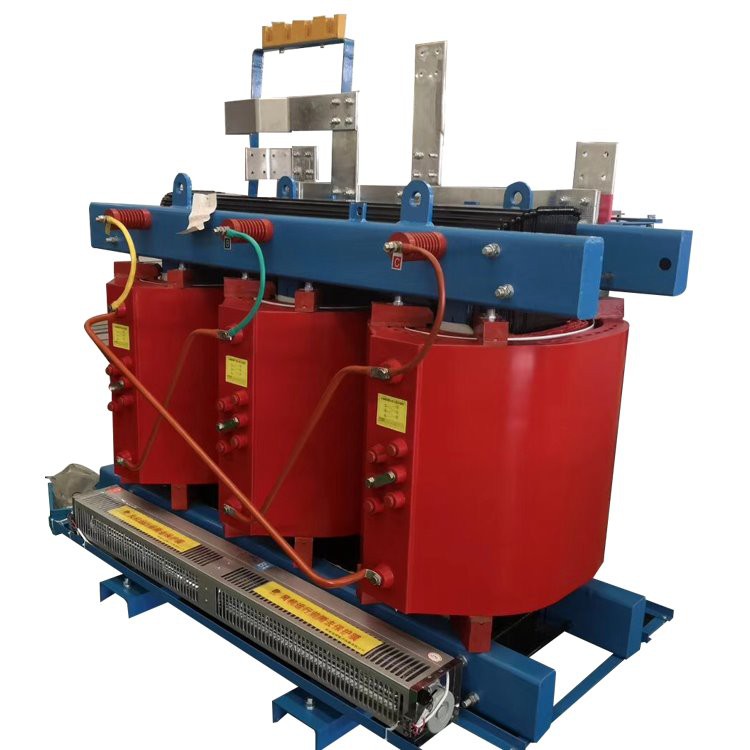

Finished 2000 KVA 33/0.4KV Dry Type Transformer
What is the difference between dry type transformer and oil?
Dry-type transformers use air as the cooling medium, while oil-filled transformers use oil instead of air. Some public places do not use oil-filled transformers because they are a big fire hazard and, instead, use dry-type transformers. This is because the liquid being used is flammable.

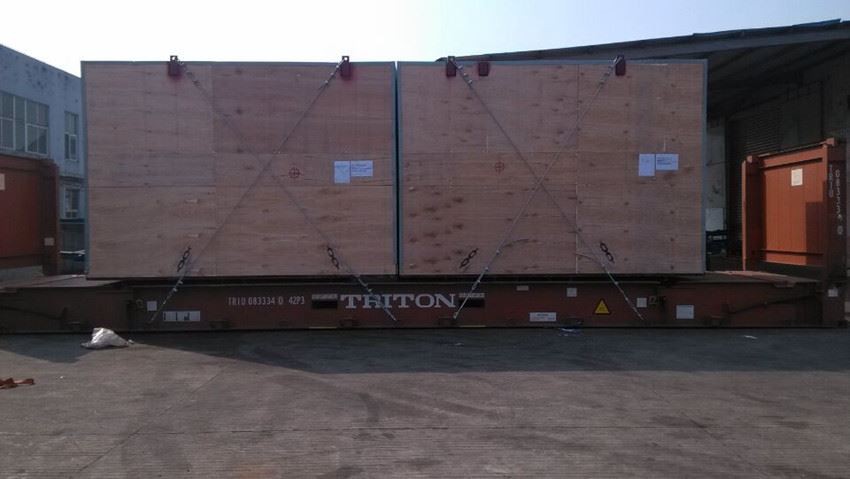

2000 KVA 33/0.4KV Transformer Shipping
