Product Introduction
The 1 MVA VPI dry type transformer was delivered to Vancouver, Canada in 2016, the rated power of the transformer is 1000 KVA. It is a vacuum pressure impregnated winding dry type transformer 25kv to 0.6kv, the high voltage of this dry type transformer is 25kv, the low voltage is 0.6kv, this 1000 KVA VPI transformer is equipped with a no load tap changer, the tapping range is ±2*2.5% at primary side, the cooling is AN, our 1 MVA dry type transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: Dry Type Transformer
Rated Power: Up to 20 MVA
Primary Voltage: Up to 35 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
1000 KVA dry type transformer specifications and data sheet
| Delivered to | Vancouver, Canada |
| Year | 2016 |
| Model | S10-1000 KVA-25/0.6KV |
| Type | Dry Type Transformer |
| Standard | IEC60076 |
| Rated Power | 1 MVA |
| Frequency | 60 HZ |
| Phase | Three |
| Cooling Type | AN |
| Primary Voltage | 25 KV |
| Secondary Voltage | 0.6 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 5.75 |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 2.1kw |
| On Load Loss | 10.46kw |
| Accessories | Standard Configuration |

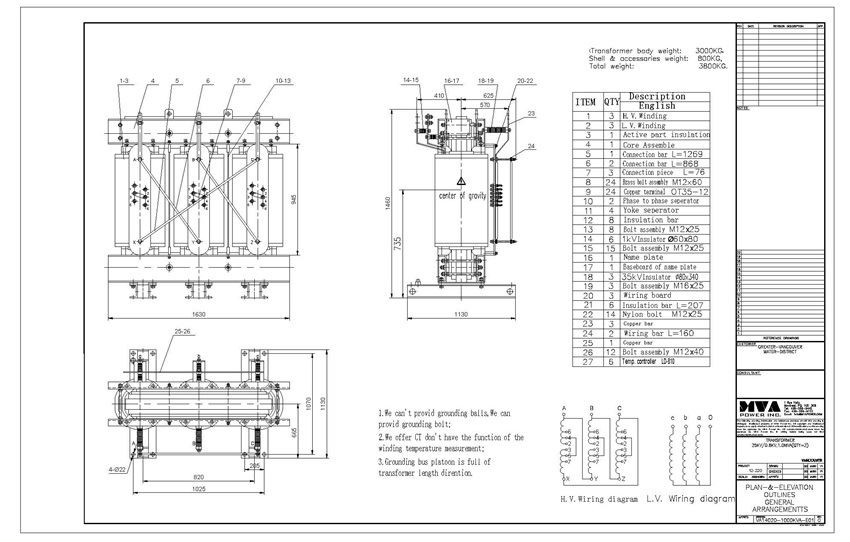

1000 KVA 25/0.6KV Transformer Drawing
1000 KVA dry type transformer diagram drawing and size.

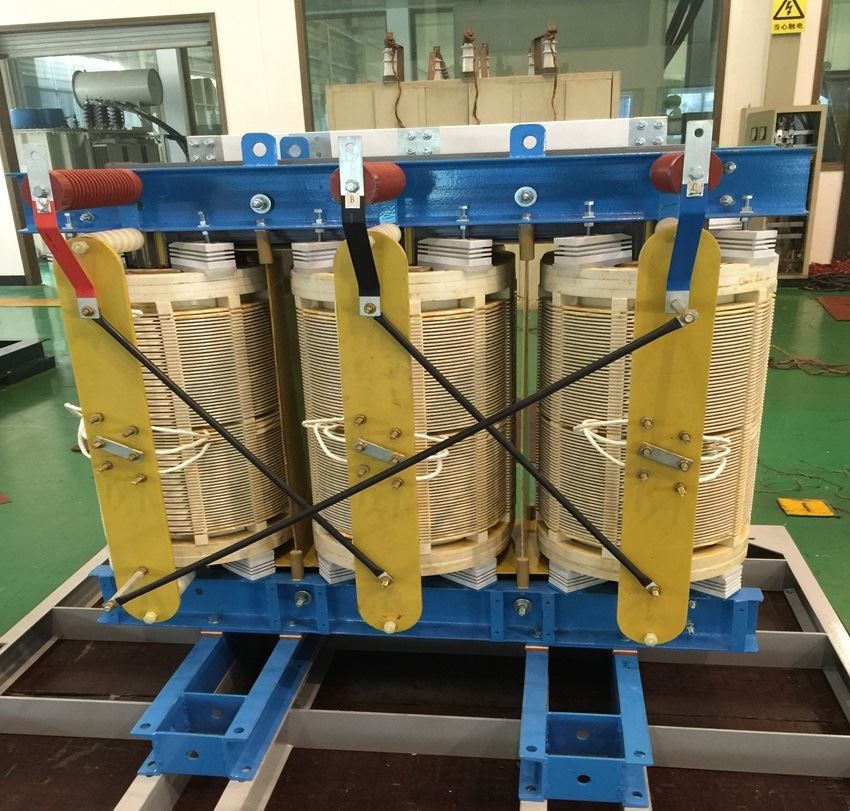

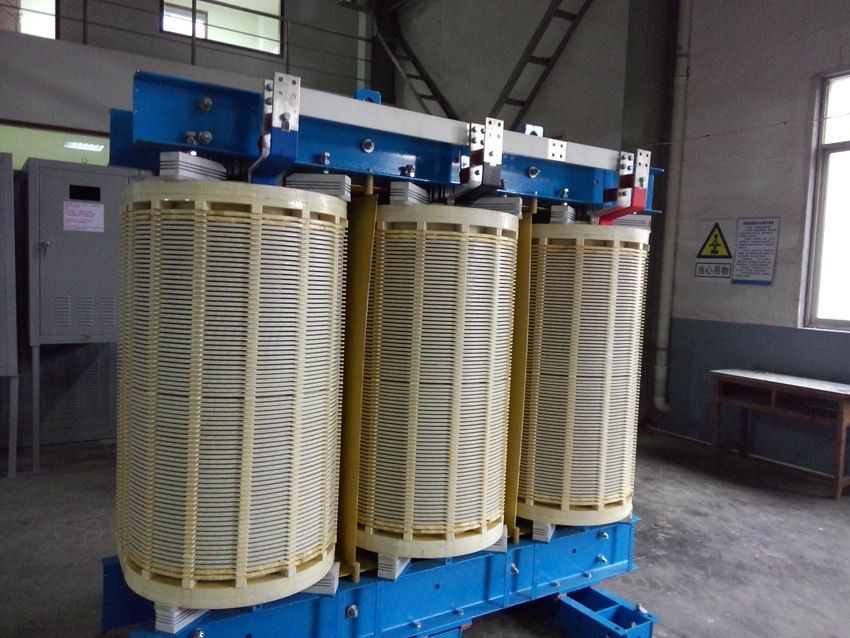

1000 KVA 25/0.6KV Transformer Manufacturing
What is VPI process?
Vacuum Pressure Impregnation (V.P.I) is a process by which a fully wound electric apparatus stator or rotor is completely submerged in a Resin. Through a combination of dry and wet vacuum and pressure cycles, the resin is assimilated throughout the insulation system.

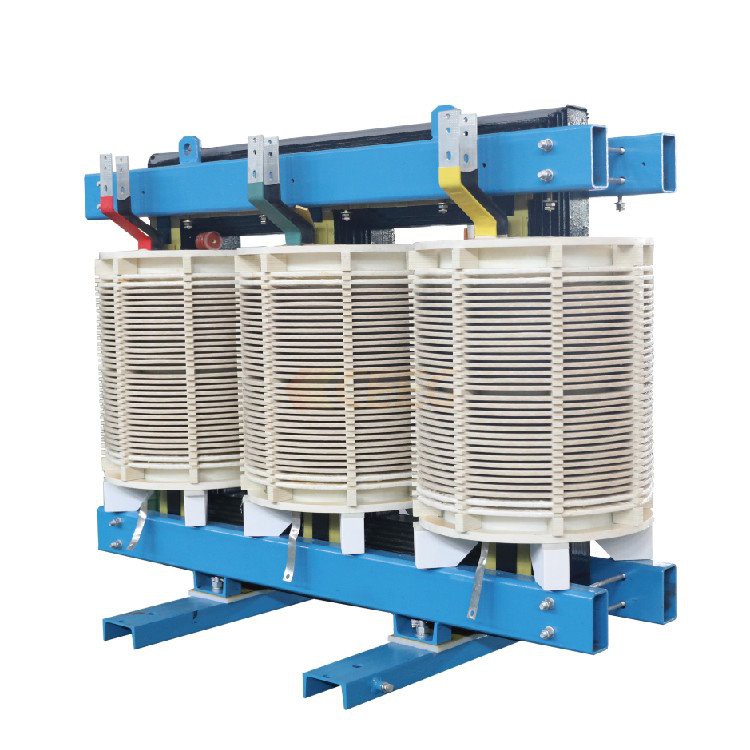

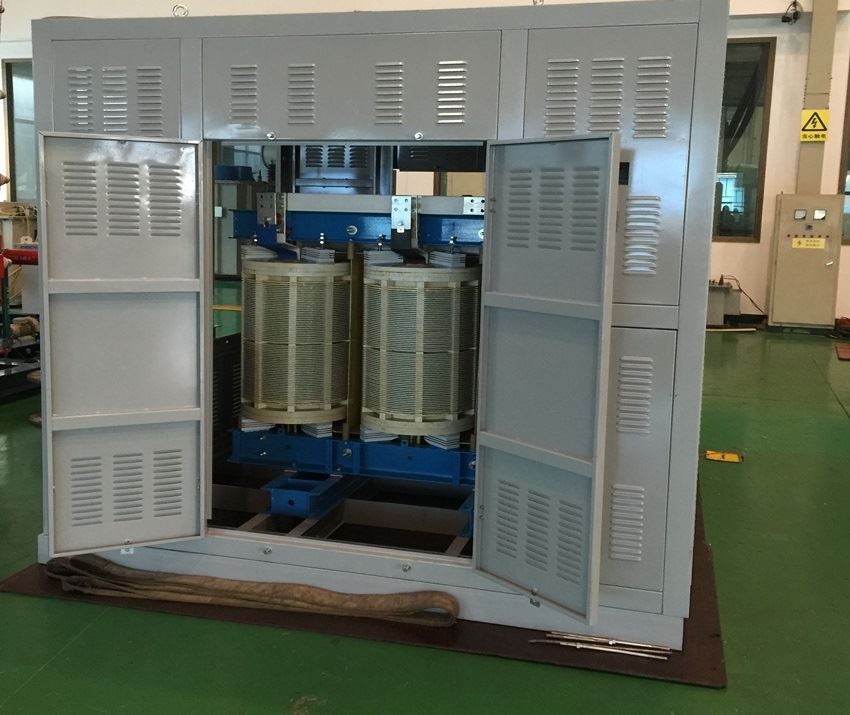

Finished 1000 KVA 25/0.6KV Transformer
What is VPI transformer?
The VPI process uses polyester resin. The coils are then cured in an oven. The VPI process is better than the standard dry-type transformer because it includes pressure in addition to vacuum. This process allows better penetration of the varnish in the transformer coil.
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)
