Product Introduction

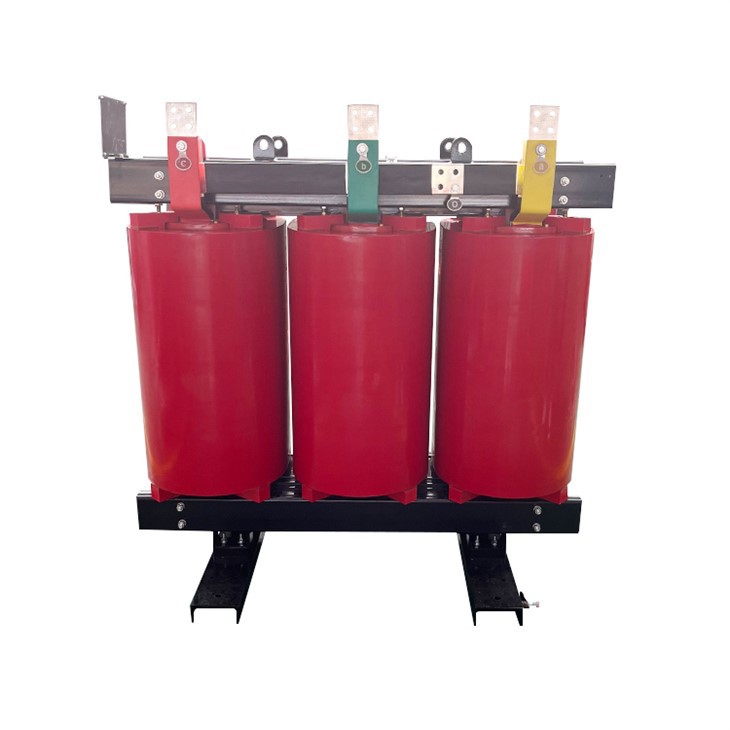

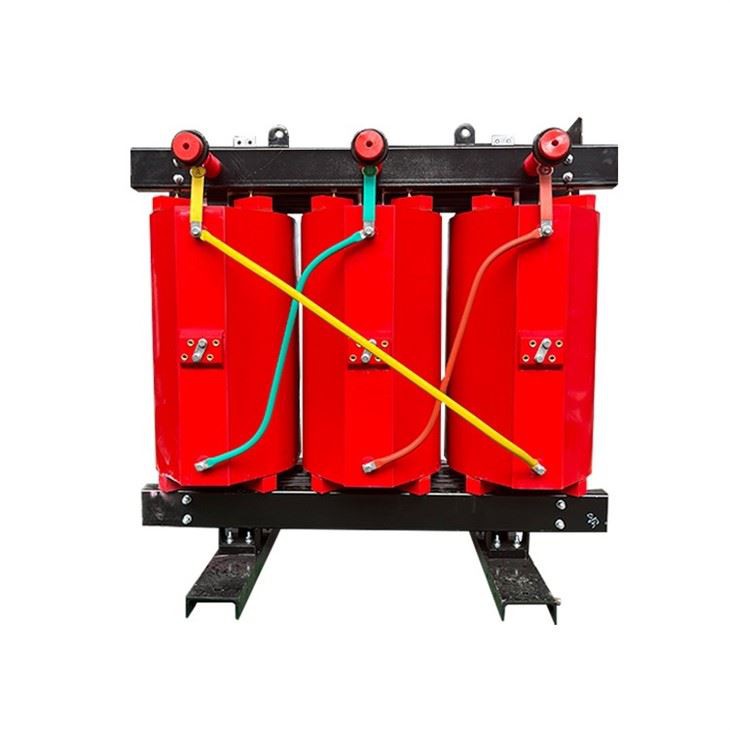

The 1000 kVA epoxy resin cast dry type transformer was delivered to Georgia in 2022 for a national project. Transformers are used on the highway.
The rated power of the dry type transformer is 1000 kVA with AN cooling, the primary voltage is 10 kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.69kV with delta star connection.
Cast resin technology provides excellent insulation and environmental protection, this together with the foil winding technology inside the resin offers the ultimate dry type transformer in terms of dielectric performance and short circuit withstand ability and ensures long term reliability for both distribution and special applications. cast resin transformers can be supplied with either aluminum or copper windings together with possibility of class F or class H insulation system, they can be designed to in-door or out-door installation with different enclosures.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: resin cast dry type transformer
Voltage level: up to 35KV
Rating level: up to 20MVA
The transformer can be designed according to customer’s requirements
Technical Data Sheet
1000 KVA Dry Type Transformer specifications and data sheet
| Delivered to | Georgia |
| Year | 2022 |
| Model | SCB10-1000kVA-10/0.69kV |
| Type | Resin cast dry type transformer |
| Standard | IEC60076 |
| Rated Power | 1000 kVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | AN |
| Primary Voltage | 10 kV |
| Secondary Voltage | 0.69 kV |
| Winding Material | Aluminum |
| Vector Group | Dyn11 |
| Impedance | 6% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 1500 W |
| On Load Loss | 9000 W |
| Accessories | Wheels, Supporting Insulator on primary side, Plug type HV terminal, Lifting eyes, Earthing bolts, Temperature controller, PT100 probe, CT |
| Remarks | N/A |

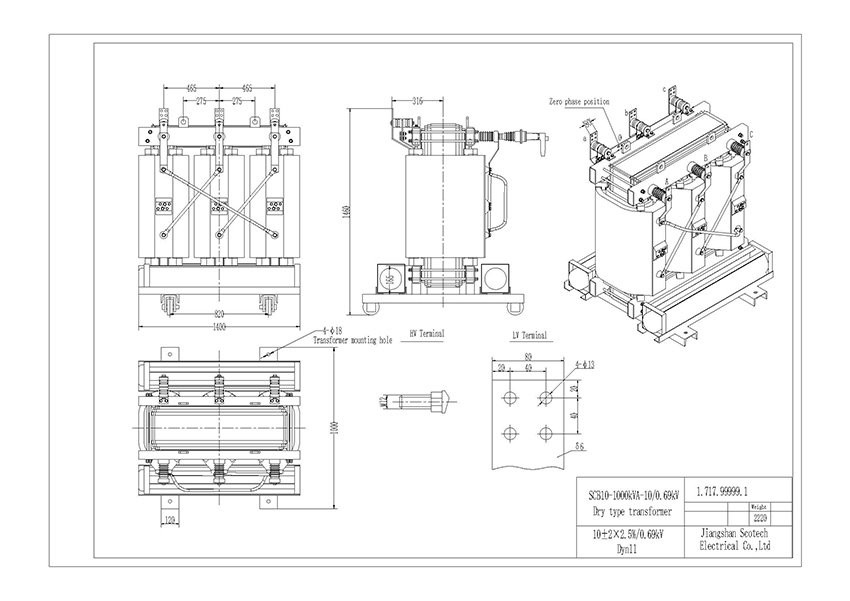

1000kVA-10/0.69kV Transformer Drawing
1000 kVA transformer diagram drawing and size.

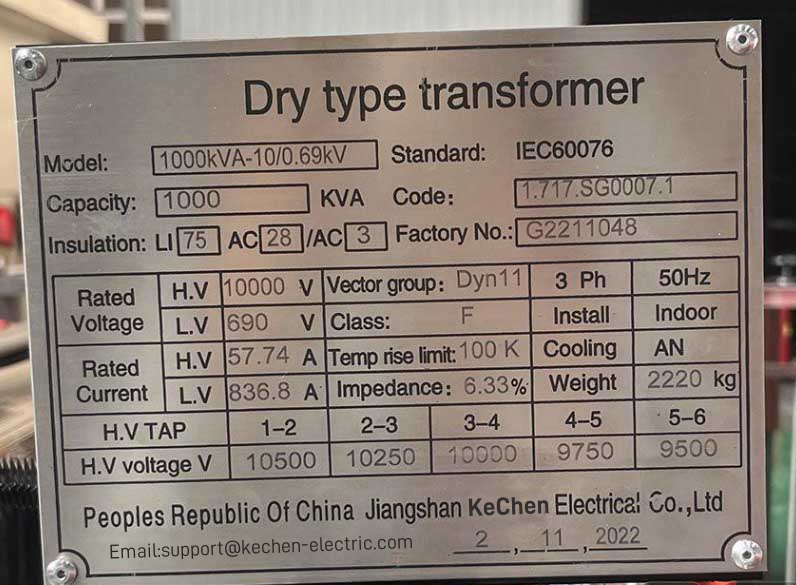

1000kVA-10/0.69kV Transformer Name Plate

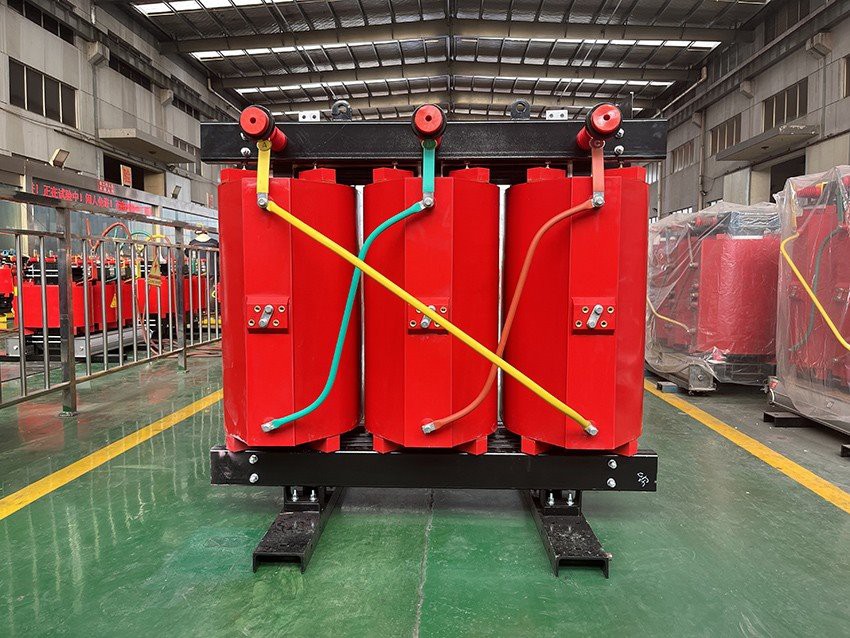

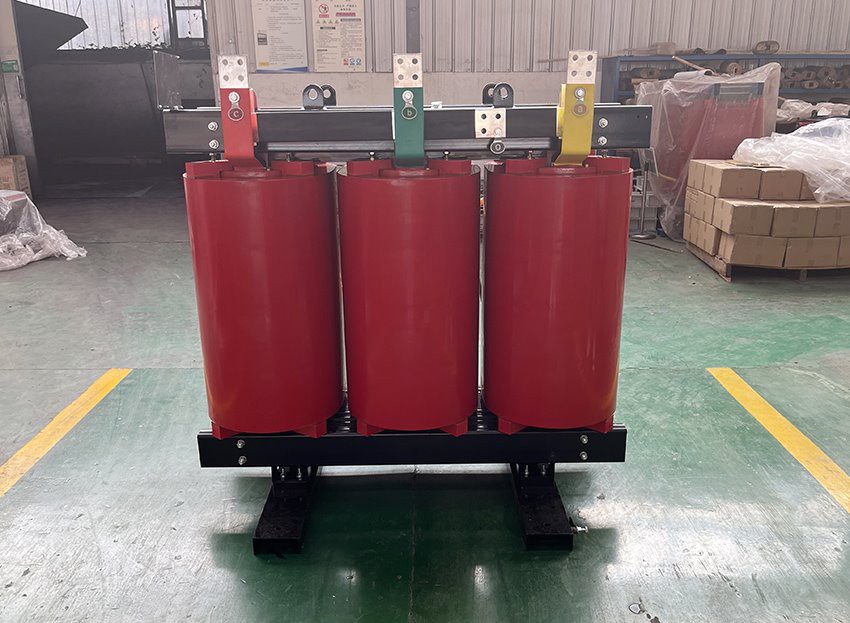

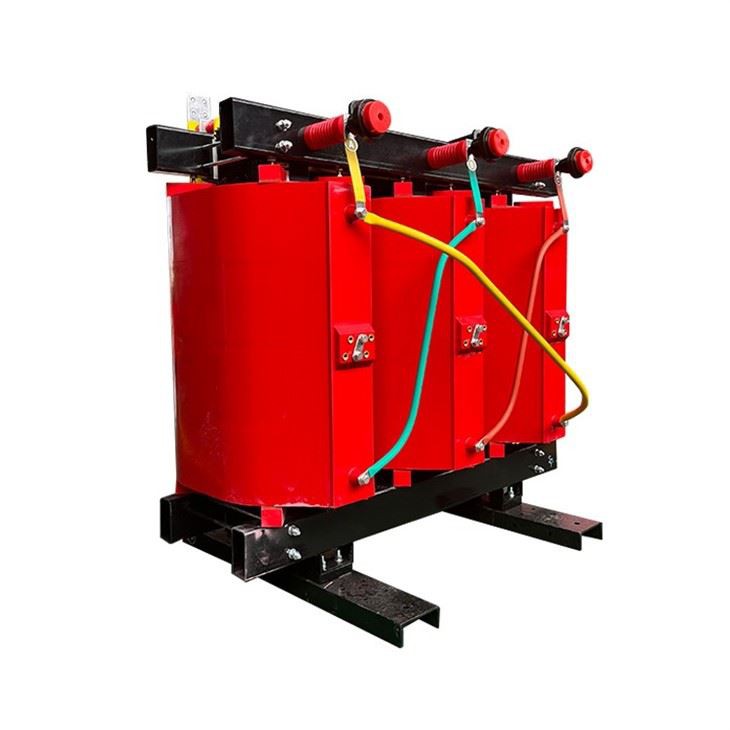

Finished 1000kVA-10/0.69kV Transformer
Advantages of dry type transformer:
1. Good fire performance, no flammable resin, no toxic gas, not easy to spontaneous combustion characteristics.
2. Low dissipation and low noise.
3. No pollution and no maintenance.
4. Good insulation, no partial discharge, strong lightning impact resistance.
FAQ
1. Where is your main market?
We had exported our transformers to more than 30 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.
2. What certificate do you have?
We have KEMA, CESI, CTQC type test report for our transformers.
3. How long is your delivery time?
30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)
