Product Introduction
SCOTECH delivered 1 unit of 100 kVA H class dry type transformers to South Africa in 2021.The rated power of the transformer is 100 kVA. the primary voltage of the transformer is 0.4 kV and secondary voltage is 0.19 kV. This is a VPI Transformer,the windings insulation of transformer are made of H class 220 degree Nomex Insulation paper wrapped. They have excellent dielectric properties and inherently low coefficient of thermal expansion. Laminates insulation paper has a heat resistance grade of H grade, has good dielectric properties and mechanical properties, and is excellent in mechanical properties at high temperatures and after damp.And this dry type transformer is equipped with a temperature controller. Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: VPI dry type transformer
Voltage level: up to 35 kV
Rating level: up to 20 MVA
The transformer can be designed according to customer’s requirements
Technical Data Sheet
100 kVA Dry Type Transformer specifications and data sheet
border=”1″ cellspacing=”0″ cellpadding=”0″>
| Delivered to | South Africa |
| Year | 2021 |
| Model | SGB10 -100 kVA-0.4/0.19 kV |
| Type | Vacuum Pressure Impregnated dry type transformer |
| Standard | IEC60076 |
| Rated Power | 100 kVA |
| Frequency | 50 Hz |
| Phase | Three |
| Cooling Type | AN |
| Primary Voltage | 0.4 kV |
| Secondary Voltage | 0.19 kV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 4% |
| No Load Loss | 0.43 KW |
| On Load Loss | 1.7 KW |
| Accessories | Standard Configuration |

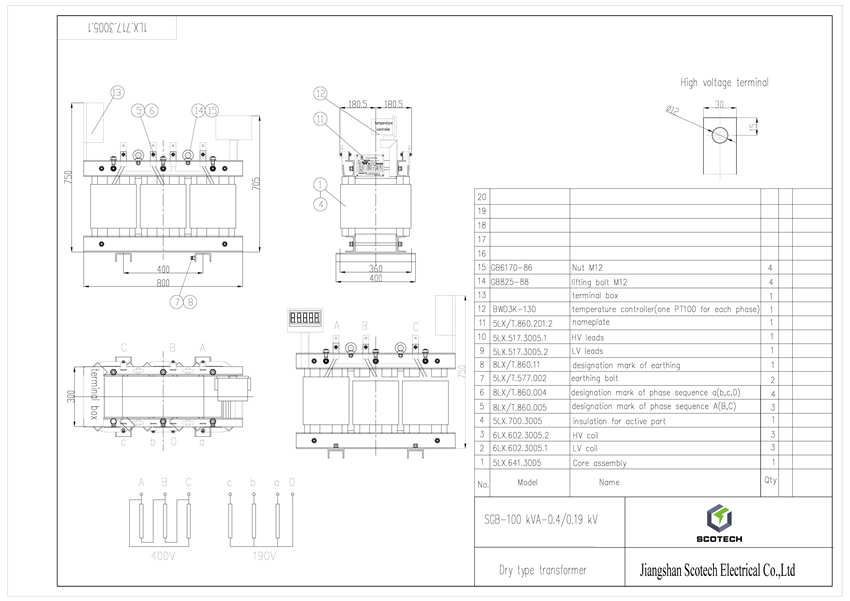

General Arrangement Drawing

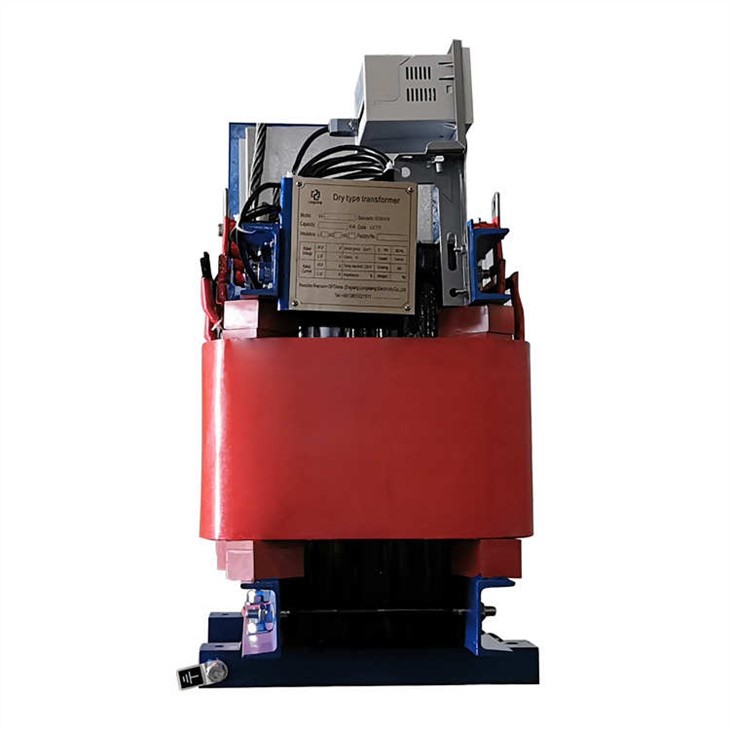

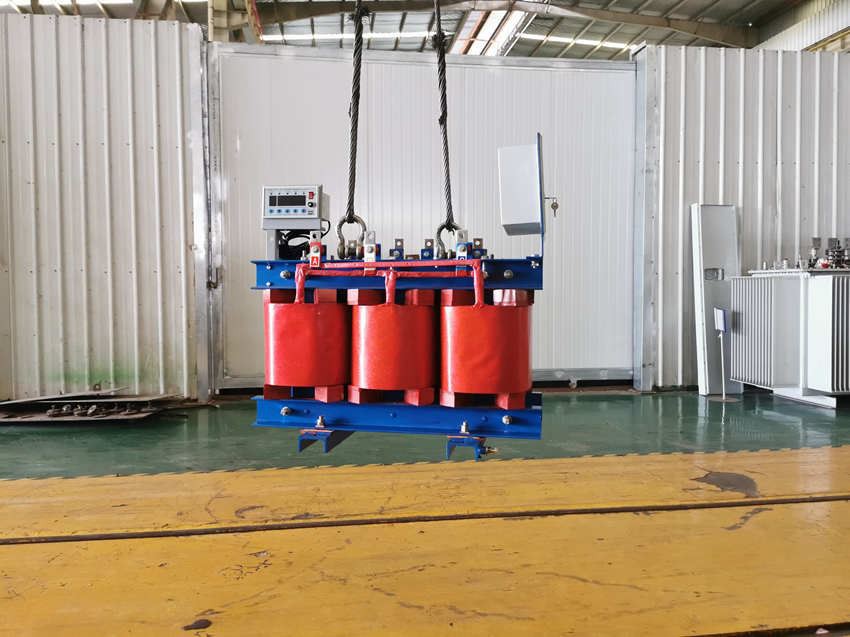

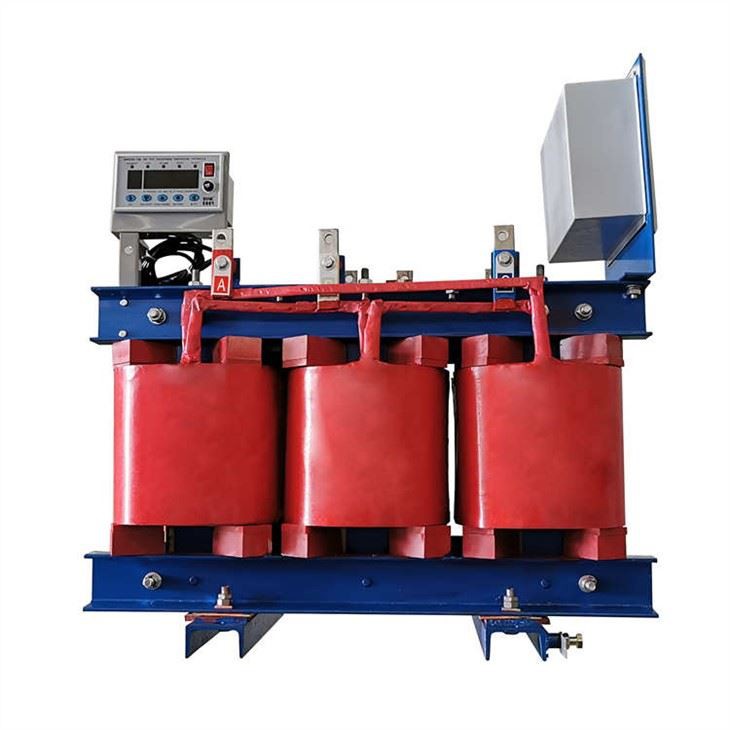

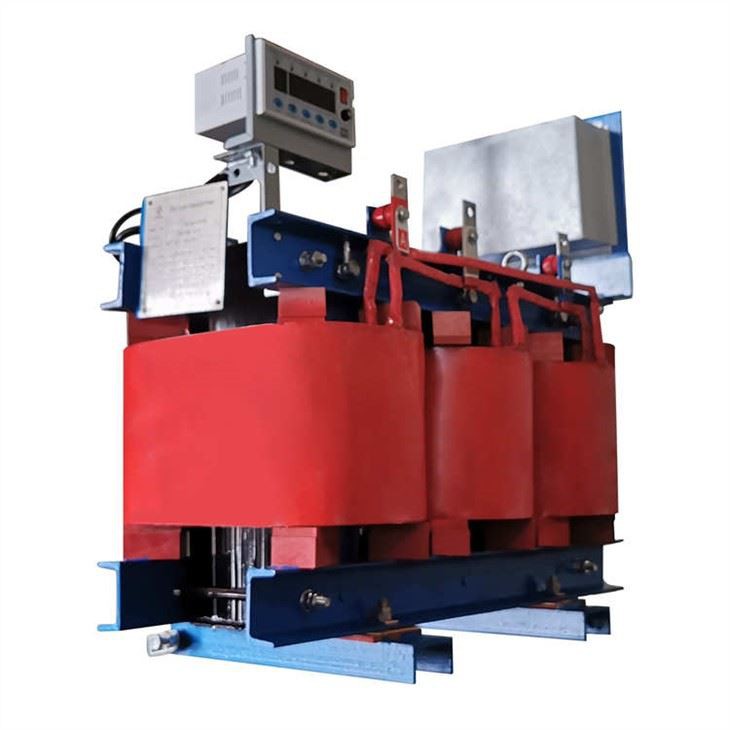

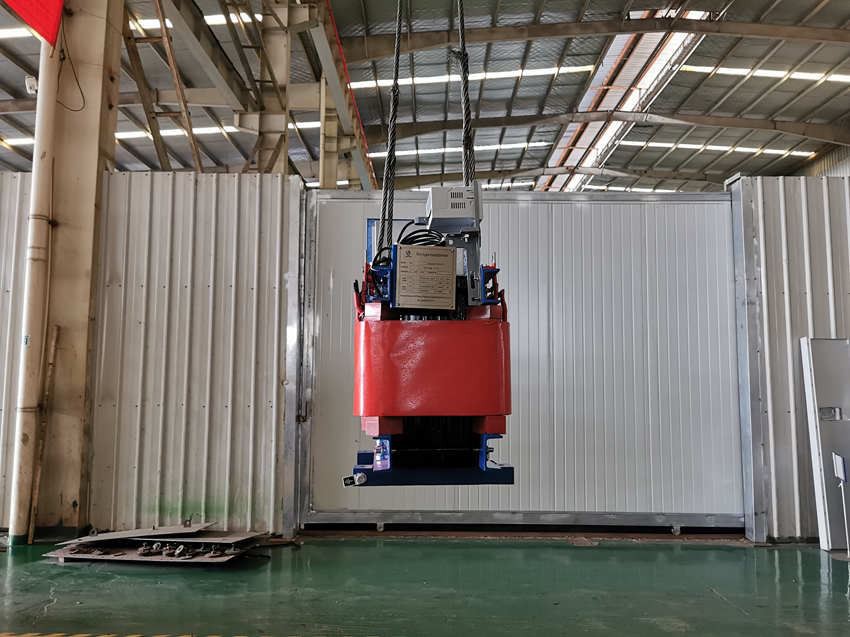

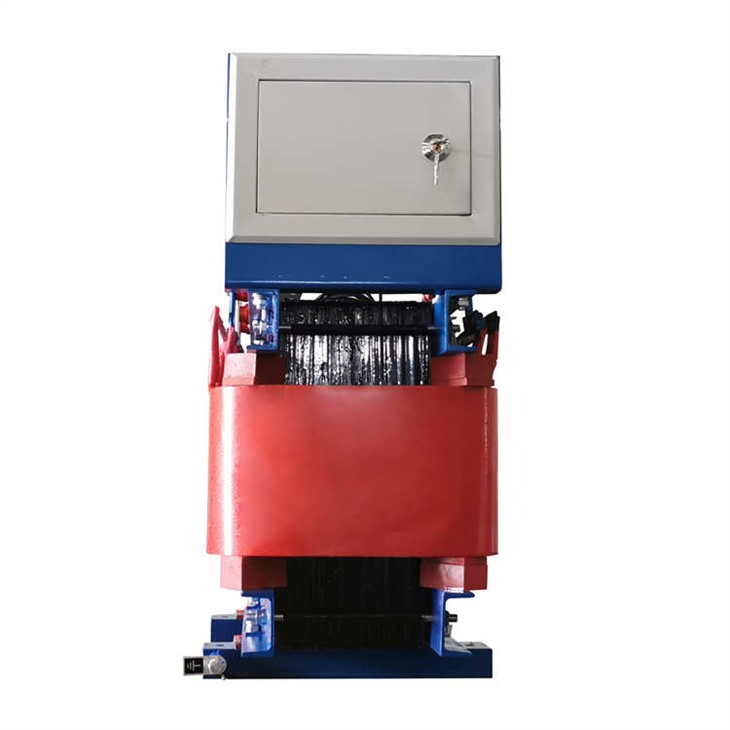

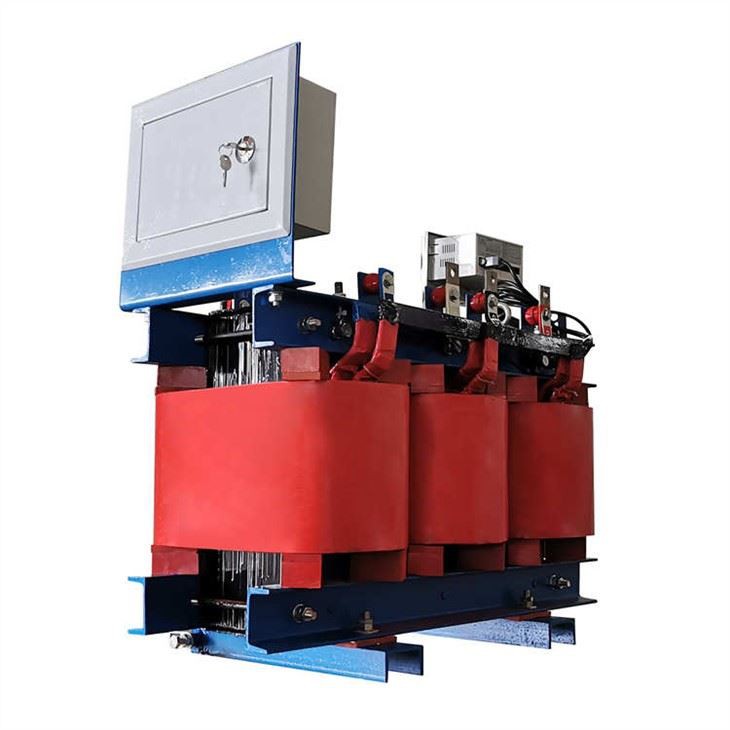

Finished 100 kVA 0.4/0.19 kV Transformer

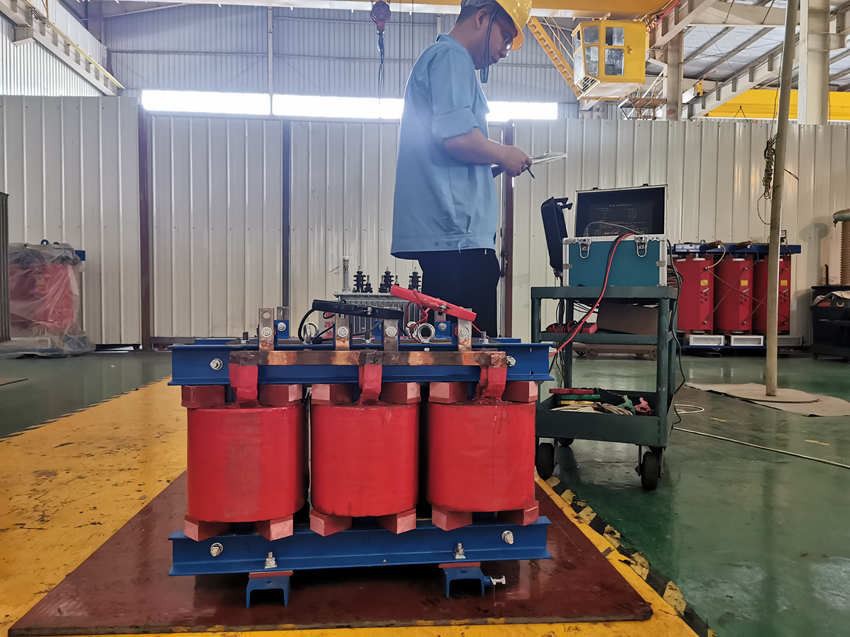

Transformer testing
Dry type transformer routine tests
1. Separate-source voltage withstand test
2. Induced voltage test
3. Voltage ratio measurement and check of polarities and connections
4. No-load current and no-load loss measurement
5. Winding resistance measurement
6. Short-circuit impedance and load loss measurement
7. Partial discharge measurement in accordance with IEC 60726

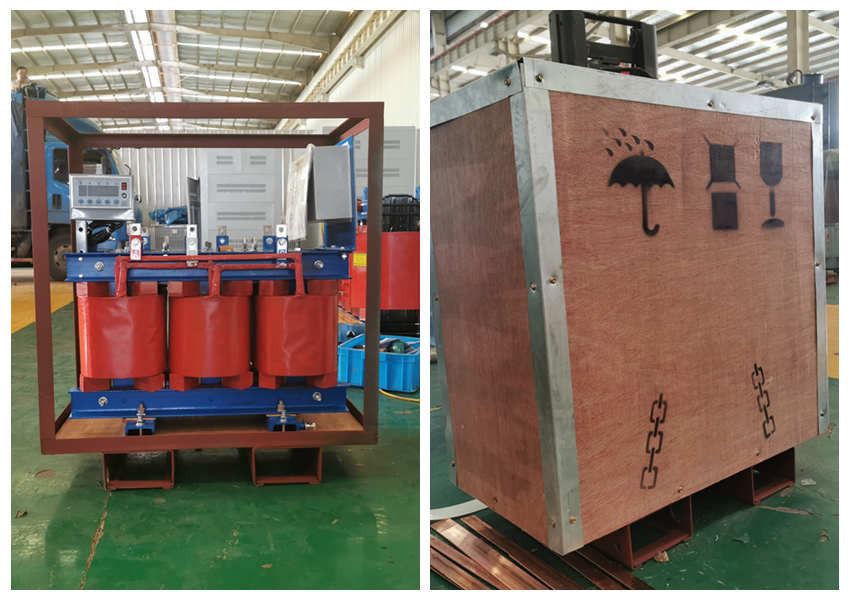

Transformer packing
FAQ
1. What is the scope of your supply?
We can supply distribution transformers up to 5000KVA 35KV, power transformers up to 200 MVA 230KV, dry type transformers up to 10 MVA 35KV, and other special transformers such as rectifier transformer and furnace transformers.
2. What service can you provide?
We can provide design, manufacturing, delivery, installation, commissioning, after-sale service.
3. Can I visit your company?
You are welcomed to visit our company at any time, contact us to get start the journey.
