Product Introduction

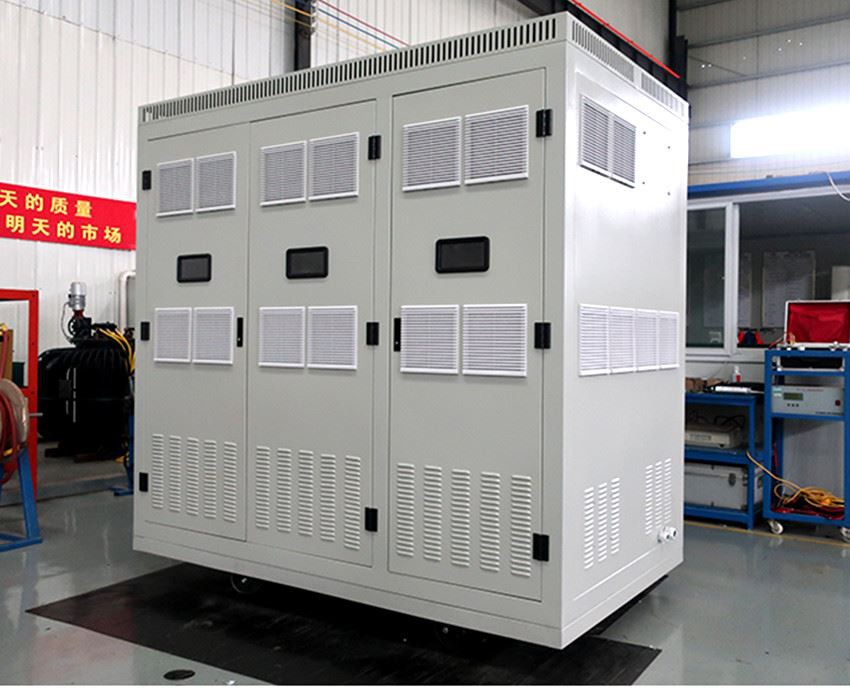

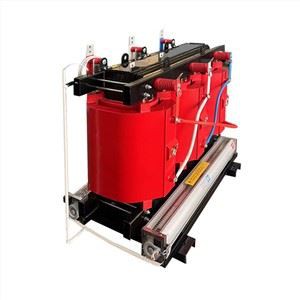

SCOTECH delivered 5 units of 10 MVA VPI dry type transformers to Canada in 2016, the rated power of the transformer is 10000 KVA. the primary voltage of the transformer is 24.94 KV and secondary voltage is 4.16 KV. We designed 115℃ temperature rise and H class insulation which can suffer 220℃ max temperature, the dry type transformers are equipped with winding temperature indicator, pad absorbers, grounding connectors, seismic absorbers, heating system, fan and controller, lighting arresters, CTs, enclosure. Our 10 MVA Dry Type Transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Advantages
Fire resistant /Self-extinguishing(F1)
Environmental class(E2) and climatic class (C2)
From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling
Maintenance free
Environmental friendly ,＞90% of material recyclable
Temperature control system
Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.
Open circuit alarm and fault self-check alarm display and signal output.
3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.
Fans manual/auto control switch, timing start/stop, history data output.
4-20mA current output
RS485 Modbus communication protocol
Environment temperature measurement
Core temperature measurement
Scope of Supply
Product: dry type transformer
Voltage level: up to 35KV
Rating level: up to 20MVA
The transformer can be designed according to customer’s requirements
Technical Data Sheet
10 MVA Dry Type Transformer specifications and data sheet
| Delivered to | Montreal, Canada |
| Year | 2016 |
| Model | SGB-10MVA-24.94/4.16KV |
| Type | Vacuum Pressure Impregnated Transformer |
| Standard | IEC60076 |
| Rated Power | 10 MVA |
| Frequency | 60 HZ |
| Phase | Three |
| Cooling Type | AN/AF |
| Primary Voltage | 24.94 KV |
| Secondary Voltage | 4.16 KV |
| Winding Material | Aluminum |
| Vector Group | Dyn11 |
| Impedance | 5% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% |
| No Load Loss | 11.5 KW |
| On Load Loss | 48 KW |
| Accessories | Standard Configuration |

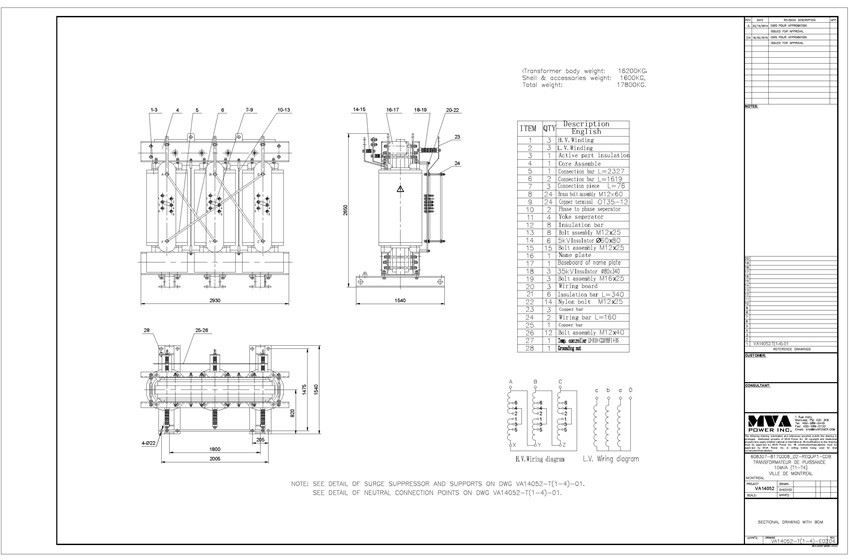

General Arrangement Drawing

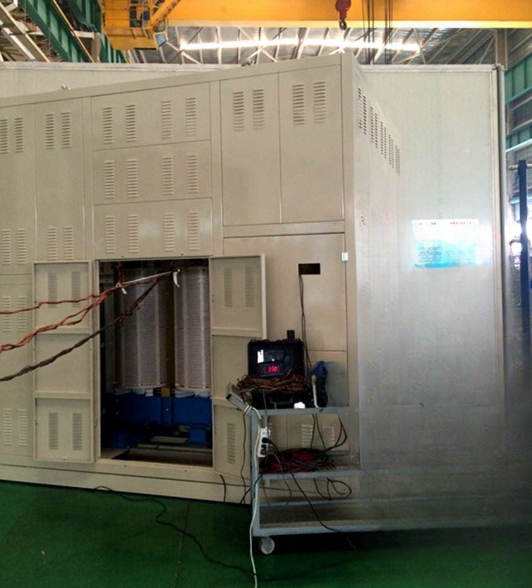

10 MVA 24.94/4.16 KV Transformer Testing

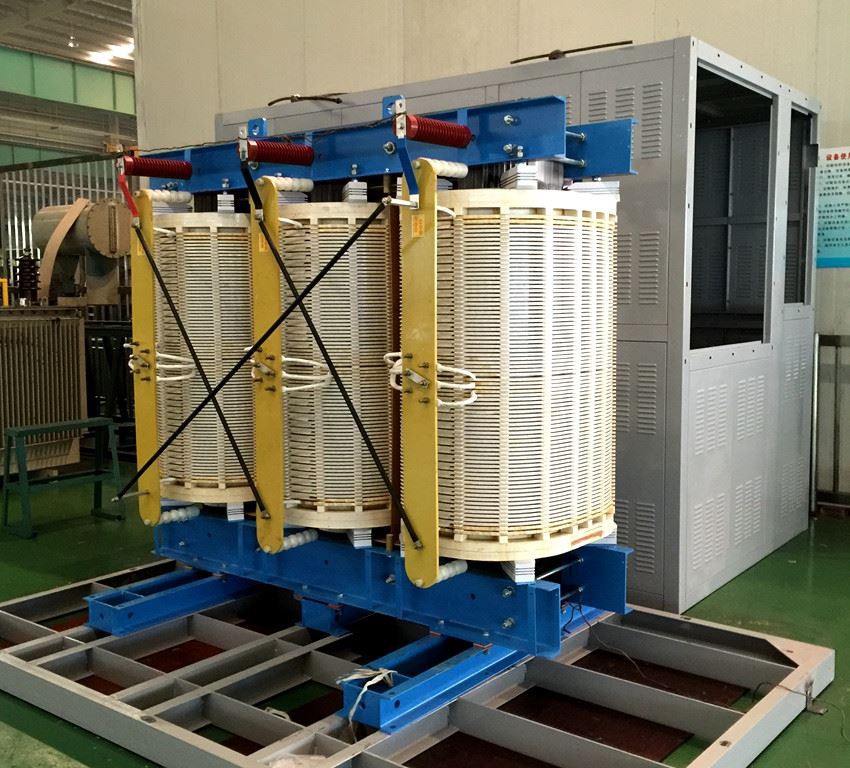

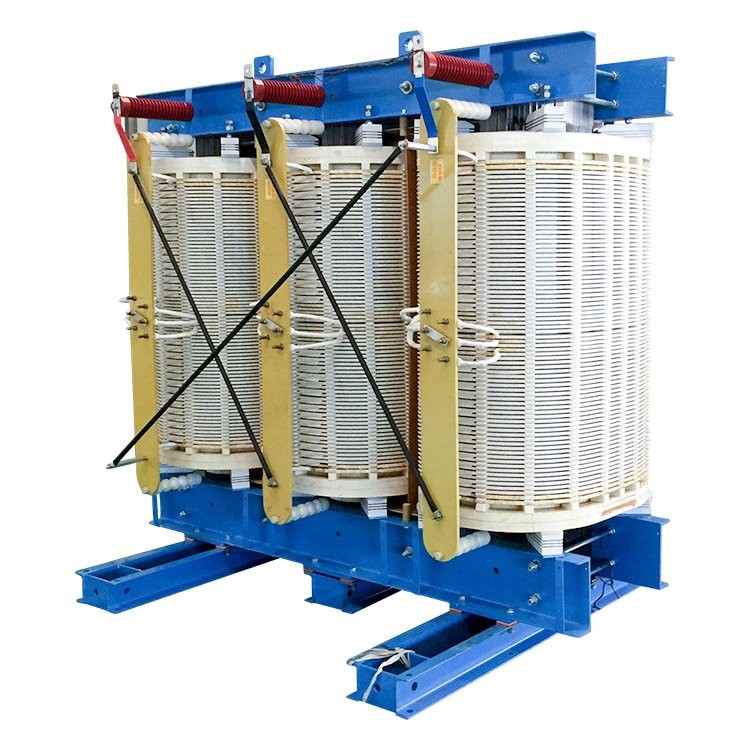

Finished 10 MVA 24.94/4.16 KV Transformer

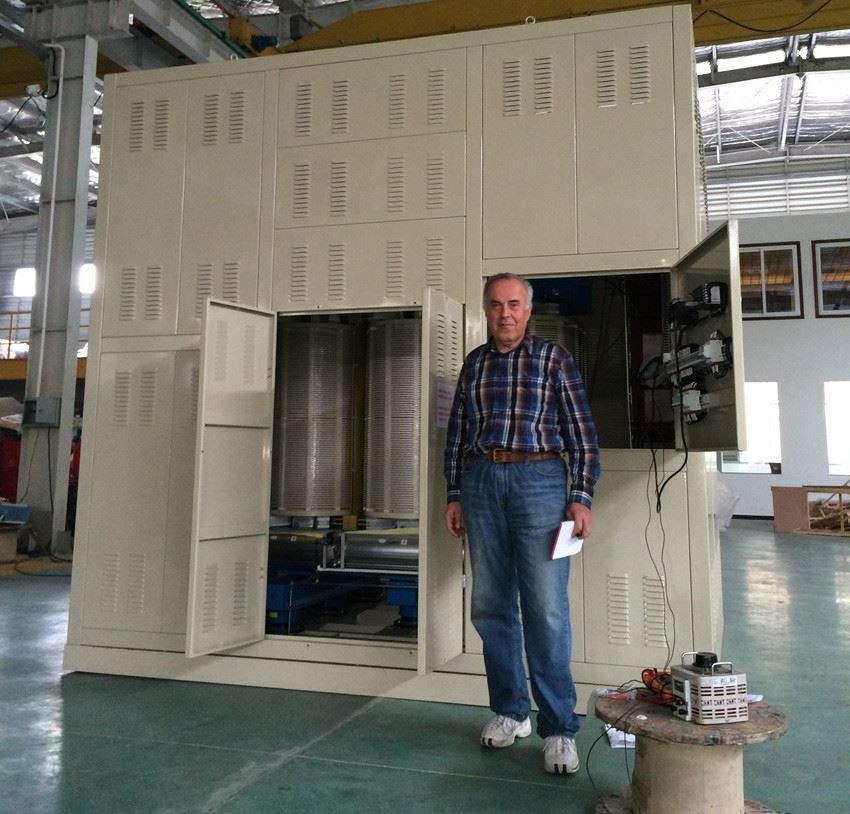

Customer FAT
Use conditions
1. The ambient temperature shall be 75℃≥ -40℃.
2. The industrial gas passing through the cooling fan is not allowed to have strong acid, strong alkali, and various solutions.
3. Dust and other sundries are not allowed to fall into the fan, so as not to cause the fan to burn down and the fan blade to break.

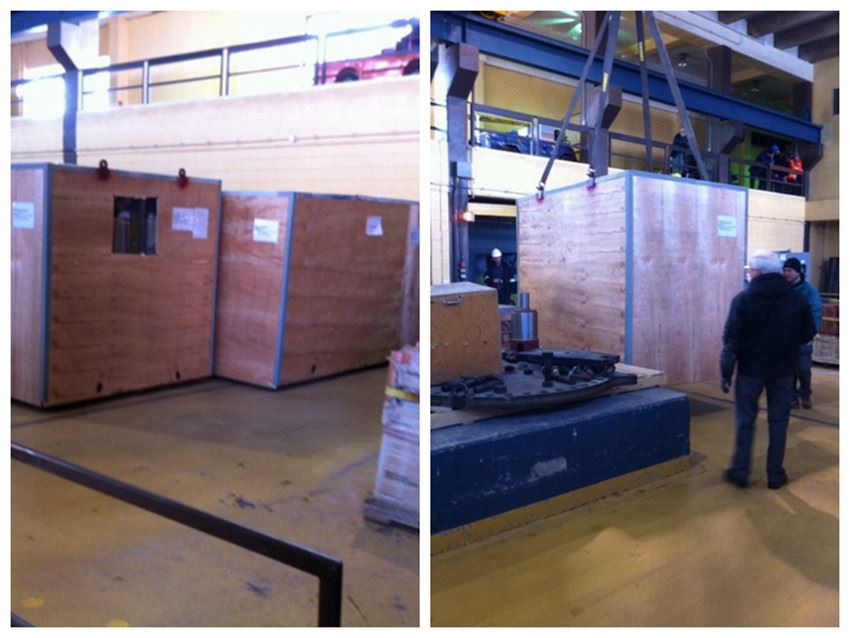

Transformer in the Container
Attention in Transportation：
Generally, trailers are used to transport by road, but the general transport speed is not more than 15km/h, and the other road surface is not more than 10km/h. If the phenomenon of dumping occurs in the process of transportation, then it is necessary to put the pulling force point on the center of gravity of the equipment.
FAQ
1. What standard do you follow?
IEC 60076 standard, and all other major international standard such as ANSI, CSA, UL, etc.
2. What package do you have for transformers?
Standard package with welded iron frame packed with ply wood boxes.
3. How long can I receive my transformers?
The shipping time from our port (shanghai or Ningbo) to your port is range from one week to one month, depend on the distance.
