Product Introduction
This 1.25 MVA power supply transformer was delivered to South Africa in 2017, the rated power of the transformer is 1250KVA. It is a step-down transformer 11KV to 0.4KV, the primary voltage is 11KV, the secondary voltage is 0.4KV. The vector group of the transformer is Dyn11. This transformer is fully sealed and oil immersed, which has fully sealed, no oil leakage, maintenance free, long life, and other advantages. Our 5 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
1.25 MVA power transformer specifications type and data sheet
| Delivered to | South Africa |
| Year | 2017 |
| Model | S11-1250KVA-11/0.4KV |
| Type | Oil Immersed distribution Transformer |
| Standard | IEC60076 |
| Rated Power | 1.25 MVA |
| Frequency | 50 HZ |
| Phase | Three |
| Cooling Type | ONAN |
| Primary Voltage | 11 KV |
| Secondary Voltage | 0.4 KV |
| Winding Material | Copper |
| Vector Group | Dyn11 |
| Impedance | 6.5% |
| Tap Changer | NLTC |
| Tapping Range | ±2*2.5% @ Primary Side |
| No Load Loss | 1.3 KW |
| On Load Loss | 13.9 KW |

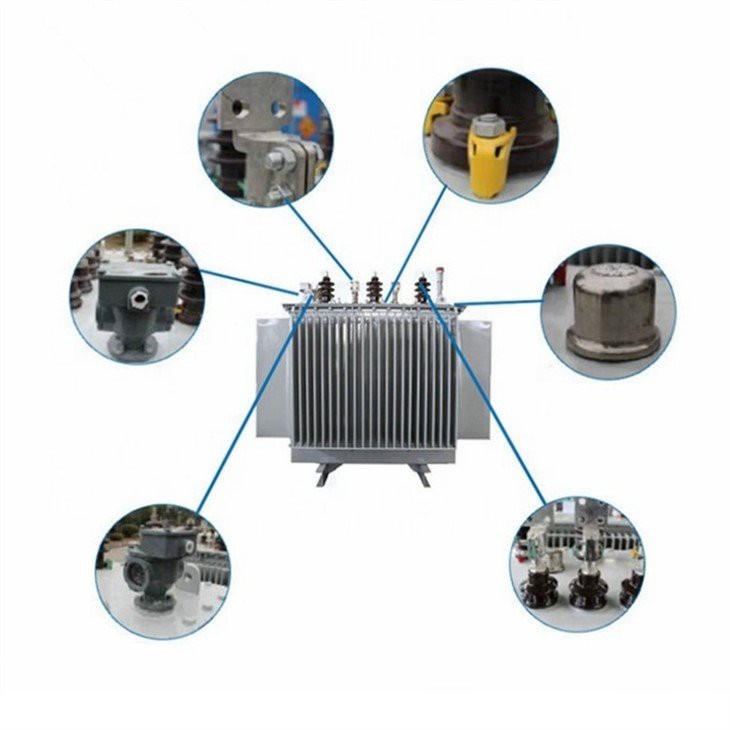

| Accessories | Standard Configuration |
| Remarks | N/A |

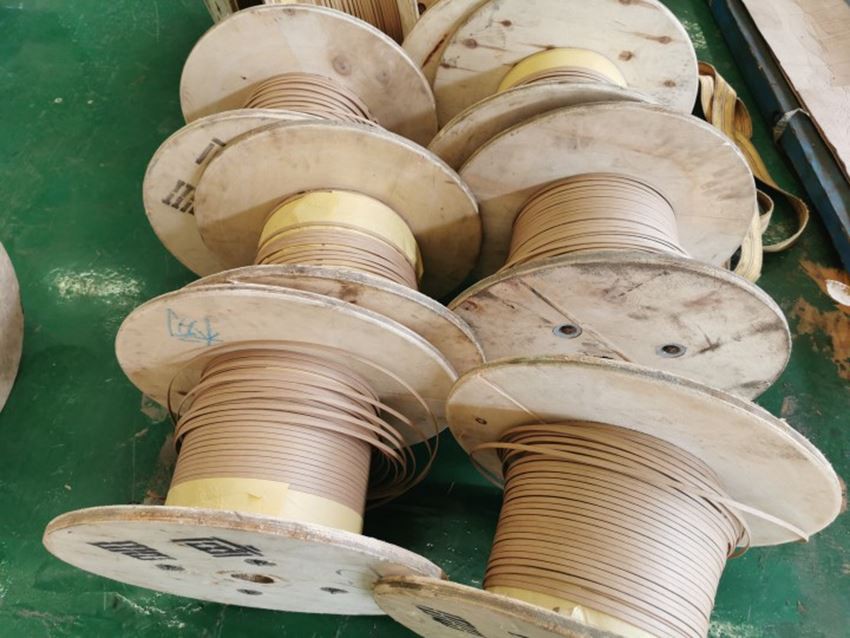

Insulated copper wire for transformer coils
What is a transformer coil?
A transformer consists of two electrically isolated coils and operates on Faraday’s principal of “mutual induction”, in which an EMF is induced in the transformers secondary coil by the magnetic flux generated by the voltages and currents flowing in the primary coil winding.

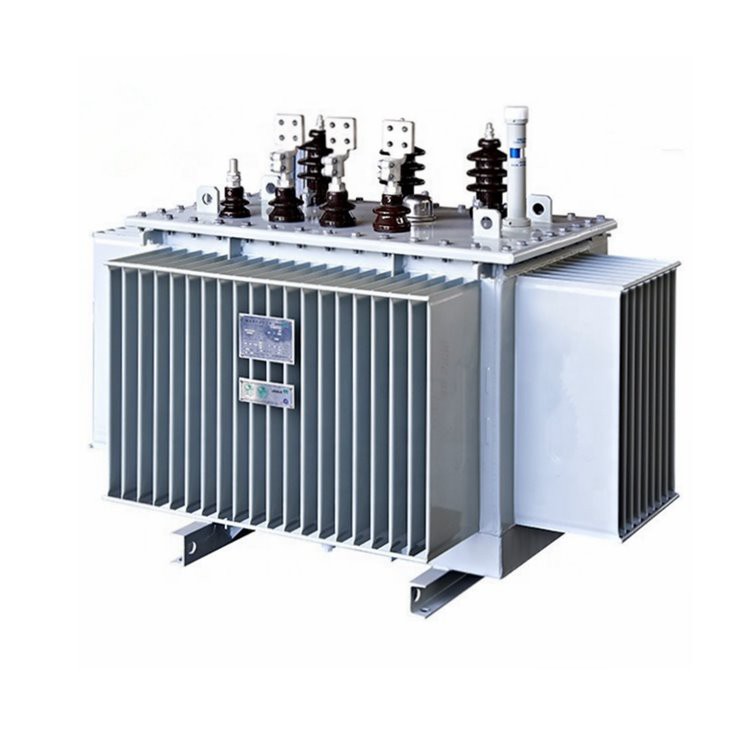

Finished 1.25MVA 11/0.4KV Transformer
What is a Distribution Transformer?
A distribution transformer is also known as a typical kind of isolation transformer. The main function of this transformer is to alter the high voltage to the normal voltage like 240/120 V to use in electric power distribution. In the distribution system, there are different kinds of transformers available like single phase, 3-phase, underground, pad-mounted, pole-mounted transformer.

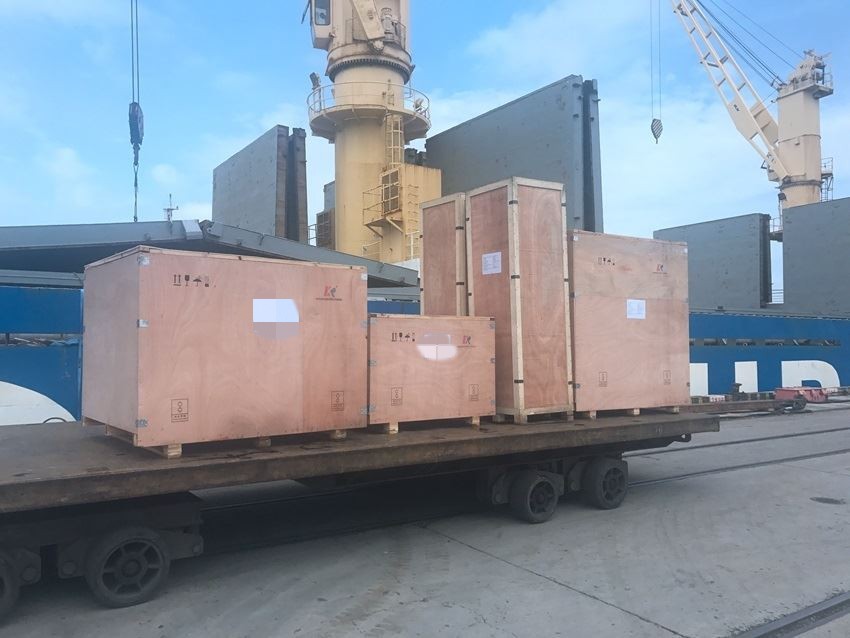

Packing and Delivery
FAQ
1. How soon can you delivery the transformer?
It depends on the quantity and capacity of the transformer, normally within one month since the date drawing confirmed by buyer.
2. How long can you provide the quality warranty?
12 months since the date transformer operated.
3. What payment method do you accept?
T/T (wire transfer), L/C both accepted.
